Description

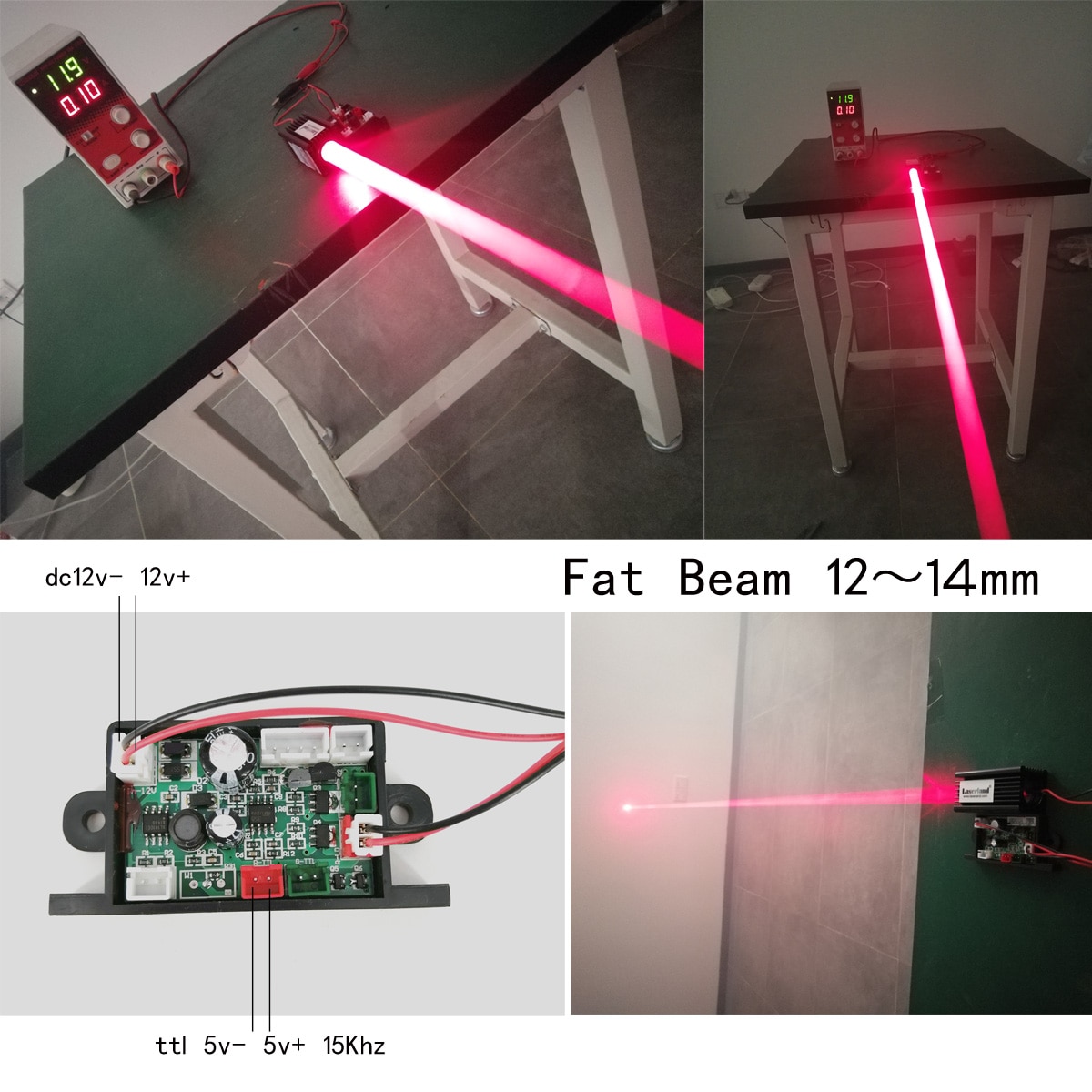

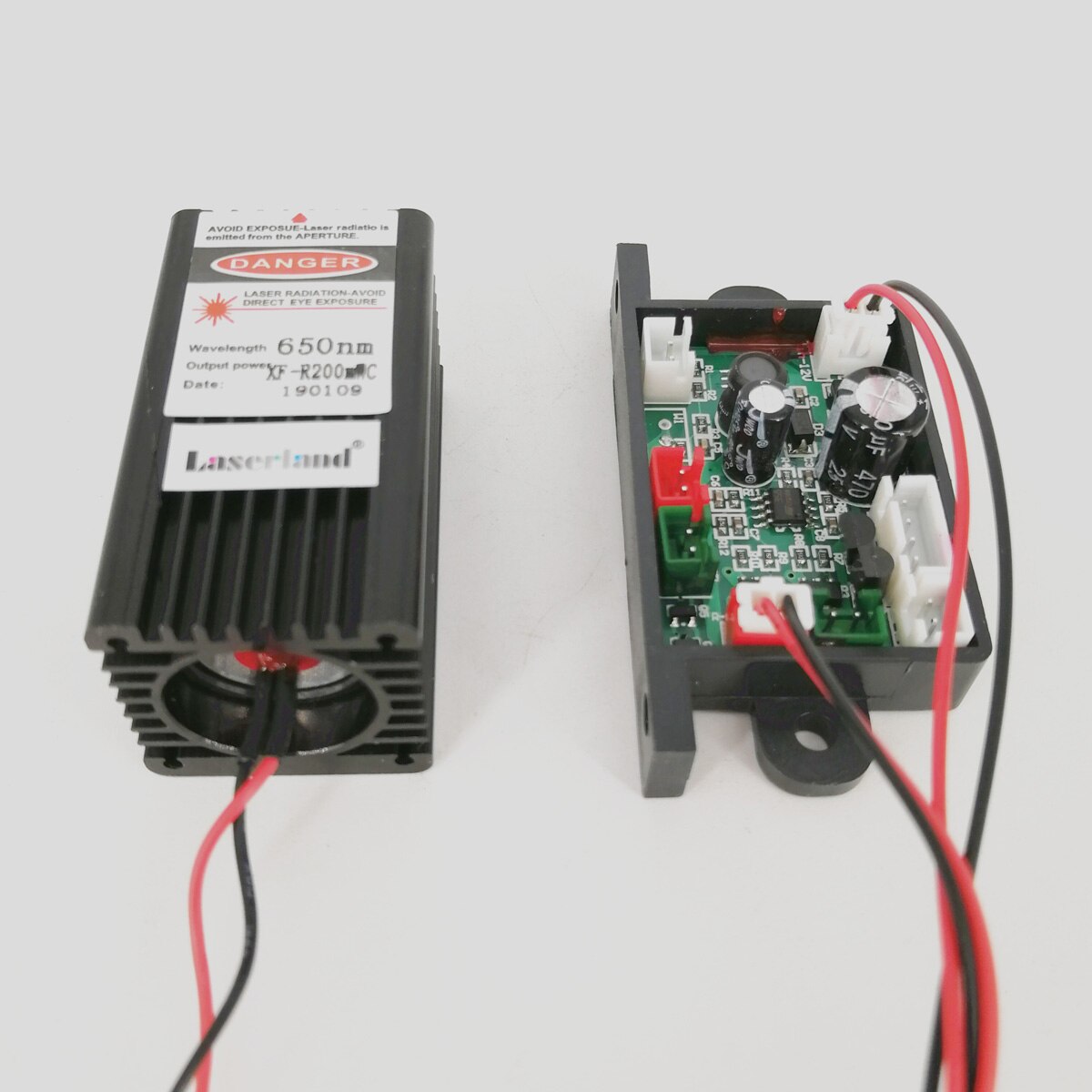

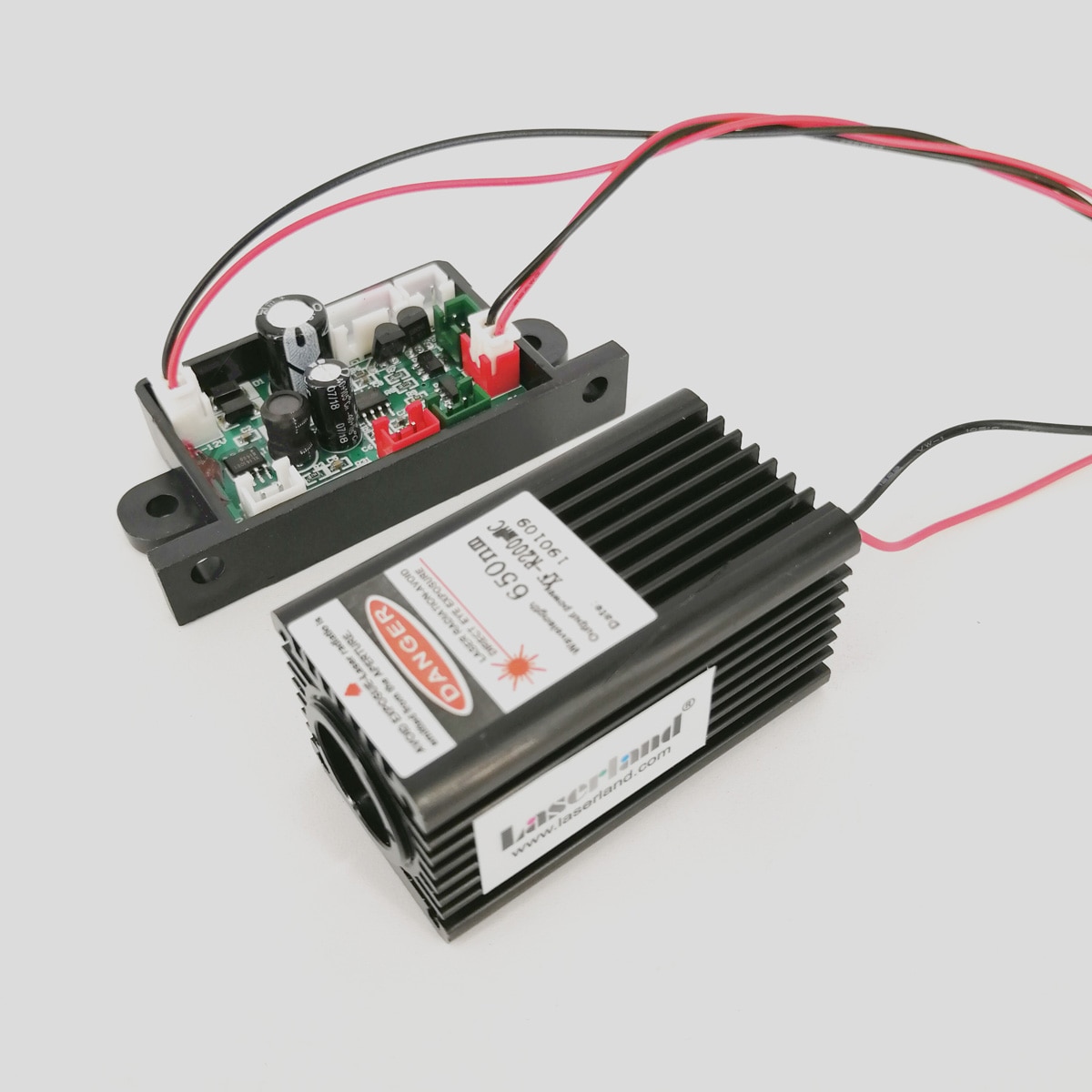

Fat beam Focusable 200mW 650nm Red Dot Laser Diode Module TTL Continuous Working
wavelength(nm) 650
Output power(mw) >150
Transverse mode TE00
Operating mode CW
Power stability (rms, over 4 hours) <5%
Warm-up time (minutes) <5
Beam divergence, full angle (mrad) <1.0
Beam diameter at the aperture (mm) ~5
Beam height from base plate (mm) 16
Beam roundness >90%
Operating temperature (centi-degree) 10-35
Power supply (12VDC) 35.6(L)×72(W)×24(H)
Dimensions of Laser Head (mm) 55(L)×30(W)×30(H)
Modulation option TTL/Analog modulation 0-5V
Expected lifetime (hours) 10000
Why Buy Lasers and Laser Accessories from Laserlands
We focus on laser and intelligent manufacturing and sales for nearly 10 years. We supply laser modules of various sizes and wavelength, with reasonable prices, excellent quality for customers all around the world.
Laserlands and besram are trademark of Besram Technology. We reserve all rights of using these trademarks.
Shipping & Delivery
There are two methods of shipping for you to choose when you check out. The free shipping is Air Mail (postal service), the postal system will make the delivery. The Express shipping is EMS, DHL or UPS. We will choose the company for you depending on their service availability.
1. The default shipping service for all items over $10 is China Post or Hong Kong Post Air Mail with a tracking number: a tracking number is used for mail status tracking and it is insurance at the same time. Order under $10 will not have such a tracking number.
2. You can track your mail though national post within 3 days after the payment and a tracking number is provided by item status notification email from laserlands. For example: US USPS. We will send the tracking number to your via your email .
3. Within 3 business days for domestic handling time once cleared payment received.
4. 7-21 business days for delivery to US destinations on any orders and 7-29 business days for delivery to any International destinations for air mail.
5. There can be some factors may delay the delivery (for customs, weather etc.) But don't worry. We will 100% refunds when 30 business days of shipment are confirmed. Please pay us again when you receive it after that.
6.>1mw laser may be confiscated by UK, AU customs. Lasers over 5mW are banned in some countries, please read your laws before place the order. We are not responsible for the customs hold or law violation.
7. We don't ship to Italy, India, Africa and some other countries for a high risk of mail lost.
Returns & Replacements
3 Months: In 3 month (from the day of shipping out), if any problem happens caused by the item itself, please DONOT dismantle it. You can return it in the original package to us. We will repair or exchange new one for you and you just pay for the both way shipment.
3 Days: If you really dislike the item we shipped to you when you received the parcel please return it back to us in 3 days (from the day of receipt). We can arrange refund for you and charge 25% service and handling fee based on the total cost of the product.
