Description

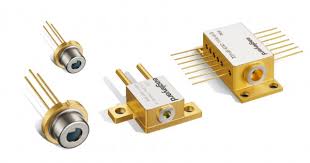

Fabry Perot Lasers: 1100 nm – 1700 nm
nanoplus offers FP laser diodes at any wavelength between 1100 nm and 1700 nm.
Key features of nanoplus FP laser diodes
- spectral multimode
- lateral single mode
- continuous wave
- room temperature
- custom wavelengths
Why choose nanoplus FP laser diodes
- precise selection of target wavelength
- typically > 5 mW output power
- small size
- easy usability
- high efficiency
- long-term stability
For more than 15 years nanoplus has been the technology leader for lasers in gas sensing. We produce lasers at large scale at our own fabrication sites in Gerbrunn and Meiningen. nanoplus cooperates with the leading system integrators in the TDLAS based analyzer industry. More than 20,000 installations worldwide prove the reliability of nanoplus lasers.
Quick description of nanoplus FP laser technology
nanoplus uses a unique and patented technology for FP laser diode manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
Related Information for nanoplus FP laser diodes between 1100 nm and 1700 nm
Specifications
The following table summarizes the typical FP laser specifications in the 1100 nm to 1700 nm range:
| parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
|---|---|---|---|---|---|
| wavelength precision | δ | nm | + / – 20 | ||
| optical output power | Pout | mW | 10 | ||
| forward current | If | mA | 45 | ||
| threshold current | lth | mA | 50 | ||
| typical maximum operating voltage | Vop | V | 2 | ||
| slow axis (FWHM) | degrees | 17 | 20 | 25 | |
| fast axis (FWHM) | degrees | 35 | 40 | 45 | |
| emitting area | W x H | µm x µm | 2 x 1.5 | 2.5 x 1.8 | 3 x 2.5 |
| storage temperature | TS | °C | -40 | +20 | +80 |
| operational temperature at case | TC | °C | -20 | +25 | +50 |
