ESP32-CAM OV2640 850nm WiFi Bluetooth Module Camera esp32 Development Board FT232RL FTDI

$19.00

SKU: 4001309679203 Category: Tag:

Description

ESP32-CAM OV2640 70°/160°/850nm WiFi Bluetooth Module Camera Module esp32 Development Board FT232RL FTDI with Camera Module

Purchase must read:

Dear buyers, based on the messages of some customers during this period, we learned that some customers misunderstood our link specifications, thinking that there is a supporting development board for the specification of a separate camera. Here we declare that we will make this form of link According to the needs of most customers, some customers don’t want to use the factory matching lens, but want to change to other. Therefore, in order to save everyone’s cost, we sell the camera and the development board separately so that everyone can match it at will. If you don’t understand anything, you can contact our customer service staff at any time, thank you

H946ba5c747a44f78962930a27eb6cd28O

1

12

characteristic:

Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Using low-power dual-core 32-bit CPU, can be used as an application processor
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support serial local upgrade and remote firmware upgrade (FOTA)

Overview:

ESP32-CAM has the most competitive small-size camera module in the industry. The module can work independently as the smallest system, with a size of only 27*40.5*4.5mm, and a deep sleep current of at least 6mA.
ESP-32CAM can be widely used in various IoT occasions, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM adopts DIP package, which can be used directly by plugging in the bottom plate, realizing the rapid production of products, providing customers with a highly reliable connection method, which is convenient for various IoT hardware terminal occasions.

Module model: ESP32-CAM

Package: DIP-16
Size: 27*40.5*4.5 (±0.2) mm
SPI Flash: default 32Mbit
RAM: internal 520KB + external 8MB PSRAM
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi: 802.11 b/g/n/e/i
Support interface: UART, SPI, I2C, PWM
Support TF card: Maximum support 4G
IO port: 9
Serial port rate: default 115200 bps
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Frequency range: 2400 ~2483.5MHz

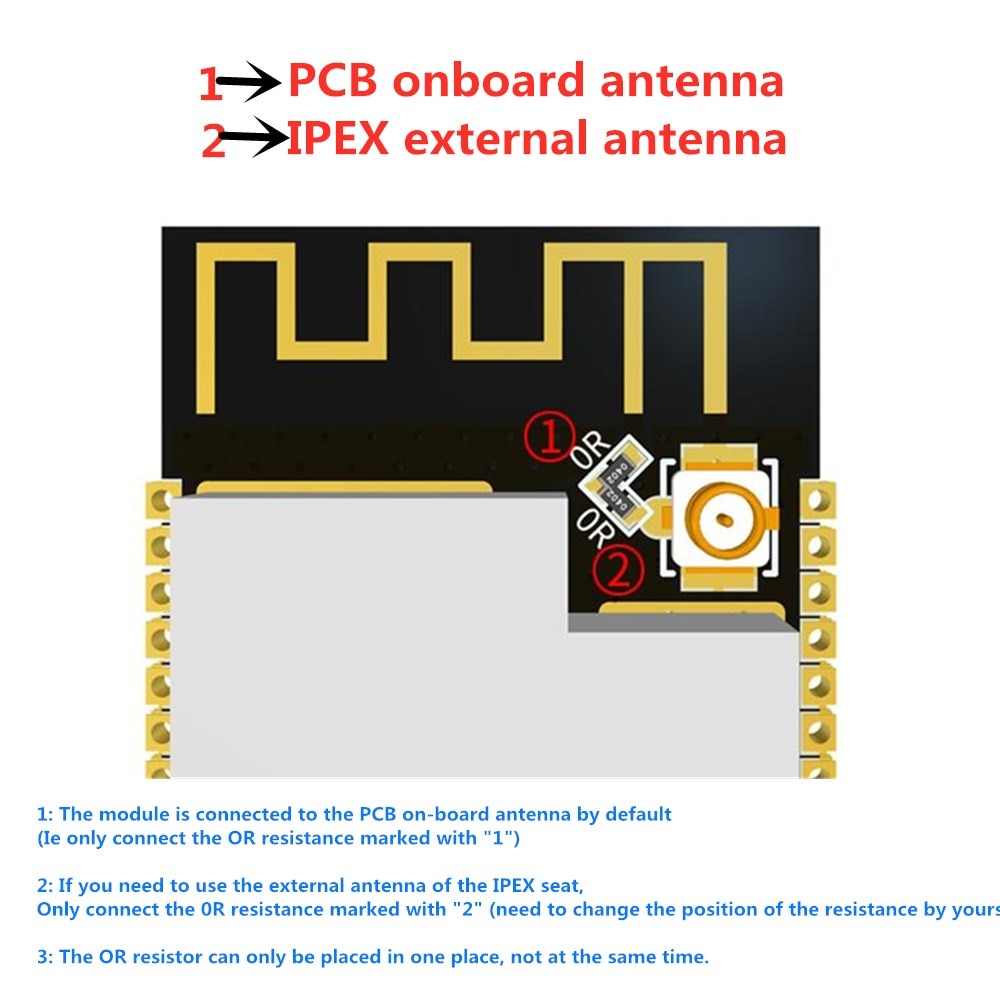

Antenna form: Onboard PCB antenna, gain 2dBi
Transmit power:
802.11b: 17±2 dBm (@11Mbps)
802.11g: 14±2 dBm (@54Mbps)
802.11n: 13±2 dBm (@MCS7)
Receive sensitivity:
CCK, 1 Mbps: -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power consumption:
Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: The lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Power supply range: 4.75-5.25V
Working temperature: -20 ℃ ~ 70 ℃
Storage environment: -40 ℃ ~ 125 ℃, <90%RH

ESP32-CAM module picture output format rate

 5

Minimal system diagram:

6

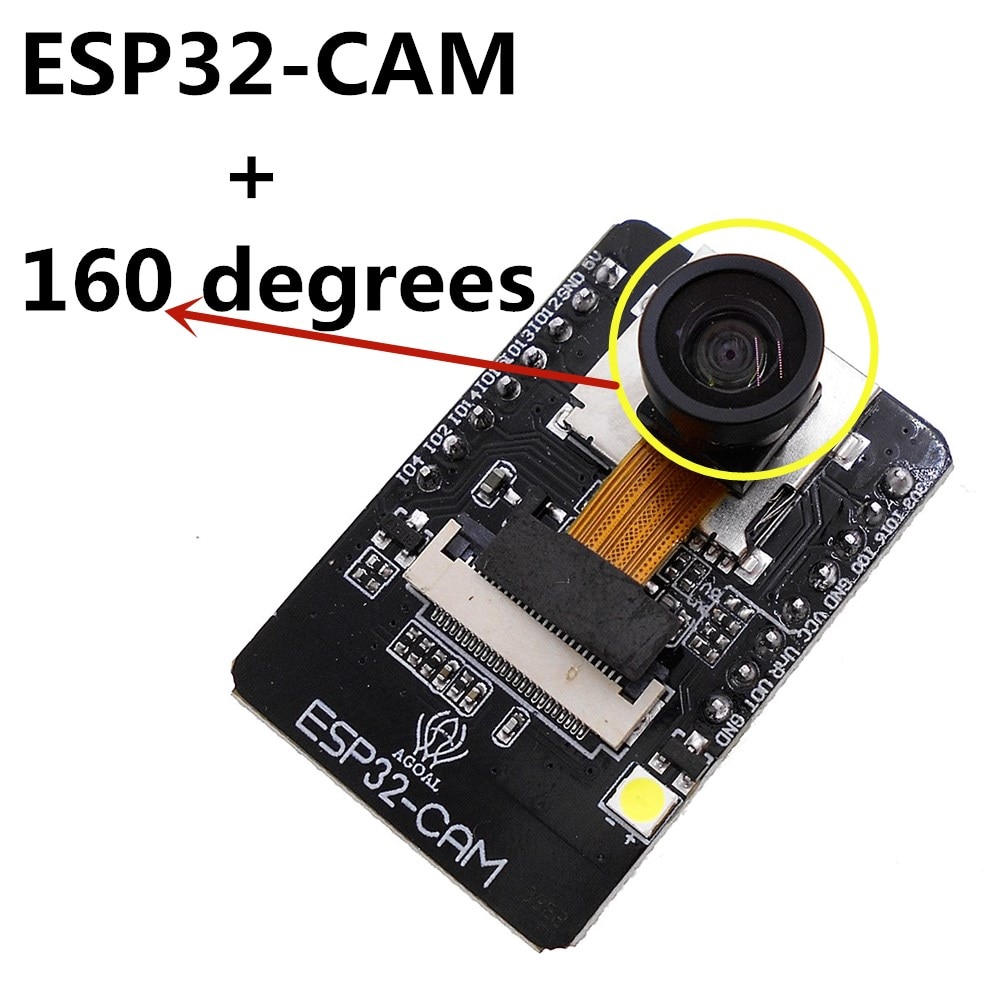

160 degrees

H3b083e97bcd94fe2a715aa98650548ed9

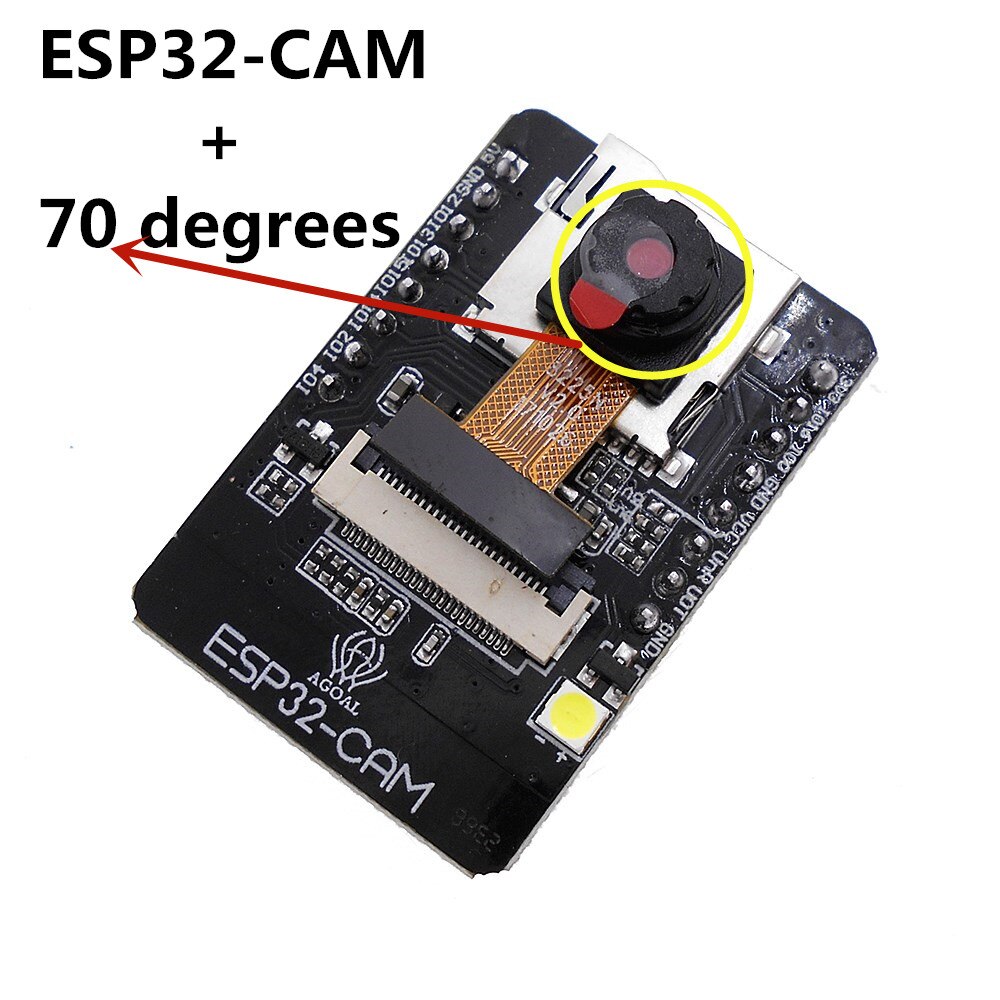

70 degrees

O1CN014ZE9ZM20M1ELx384S_!!1755226834 (1)
