Description
Description:

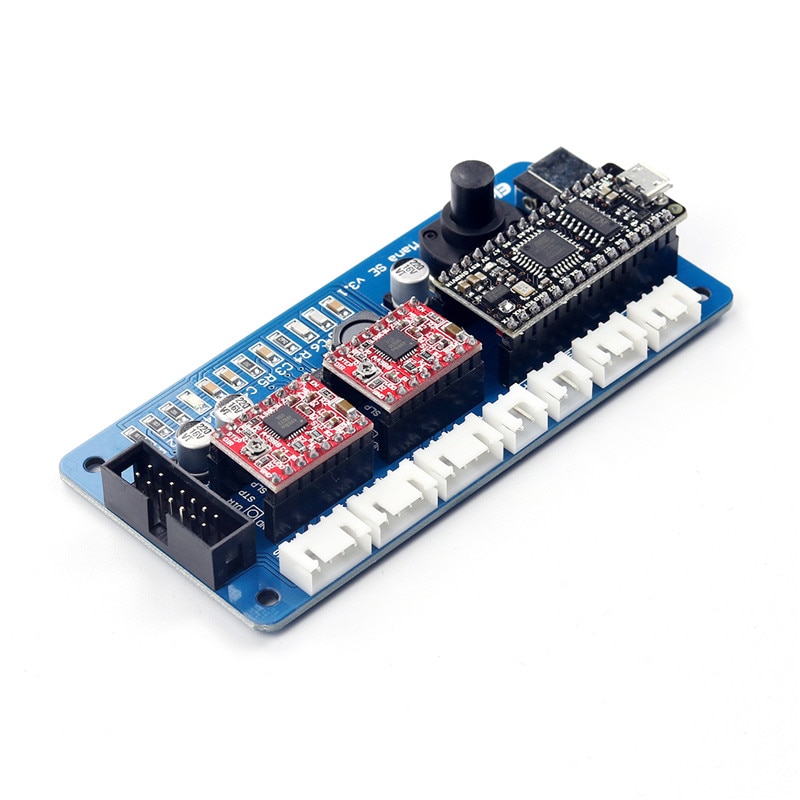

EleksMaker New ManaSE 2-axis Stepper Motor Driver Laser Controller Board, Perfect for DIY Your Customized Amateur Laser Engraver.
Specification:
General Specification | |
Brand | EleksMaker® |
Model | NEW ManaSE |
Board Dimension (L*W) | 94x46mm |
Technical Parameters | |
Interface Port | Micro USB |
Software | EleksCAM |
Support-axis | XY-axis |
Power Requirement | Higher than12V 2A |
Support Stepper Motor | Motor within 2A 2-phase 4-wire |
Input Voltage | DC 12V |
Power Interface |
DC5.5 – 2.1 (Inside is positive electrodes and ouside is negative electrodes) |
Features:
1. NEW ManaSE comes with the mounting holder, make it more easier to be installed on your machine.
2. Fit for DIY desktop laser engraver, laser engraving machines printer, plotter.
3. Come with Micro USB cable and connector wires.
4. 2-axis linkage Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire.
5. Large MOS tube,onboard DC buck module, jumper ADJ can adjust manually the laser voltage to control the laser power
Note:
There isn't a Voltage Regulator Module in this Laser board .
The motor can not work higher than 2A, when the motor work for a long time in 1A to 2A , please pay attention to heat
Package Included:

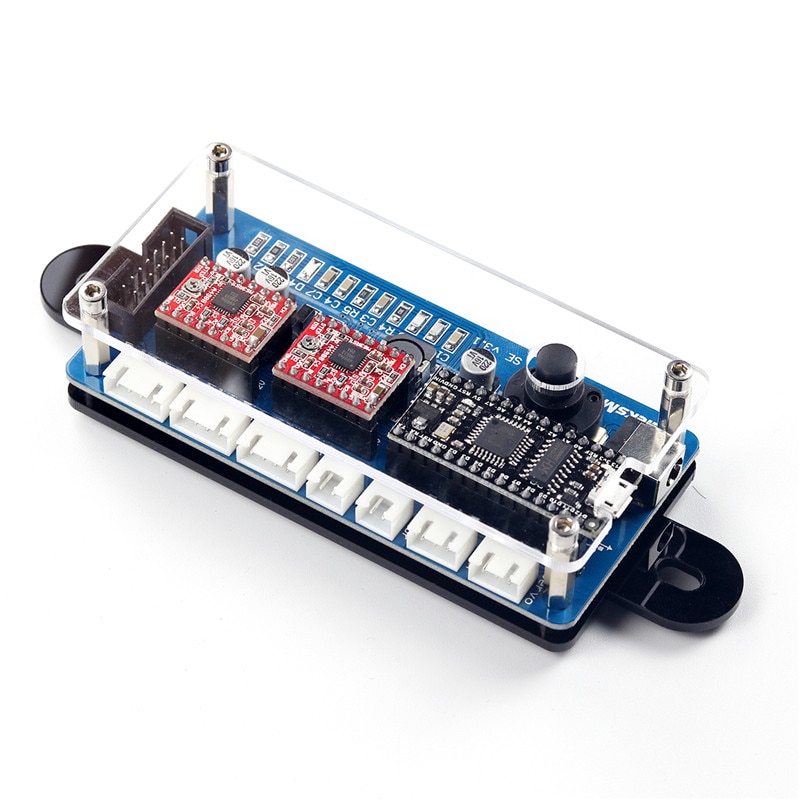

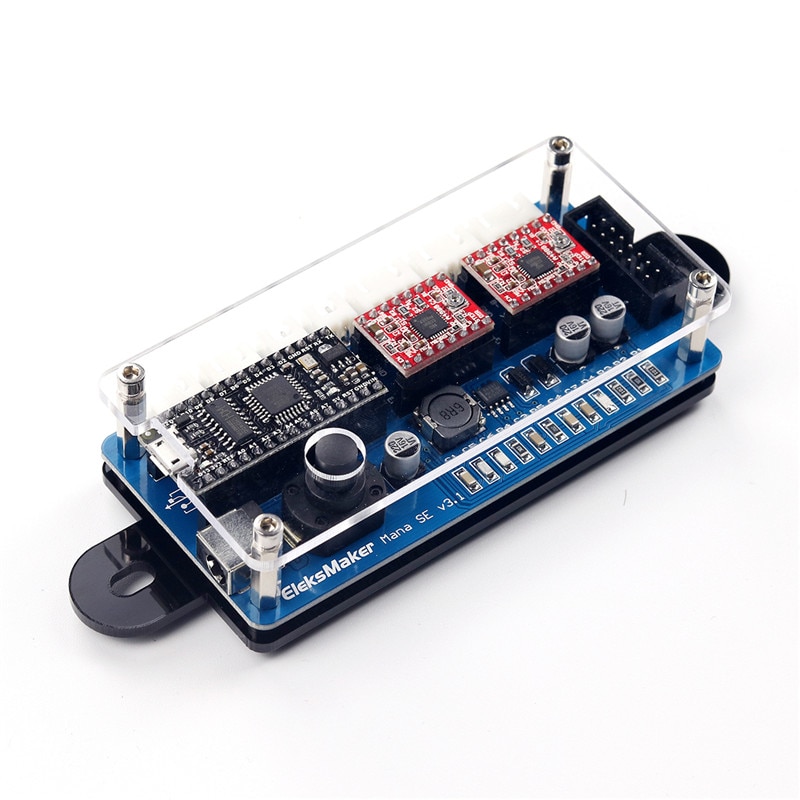

1 x NEW ManSE 2-axis Controller Board w/ Mounting Holder

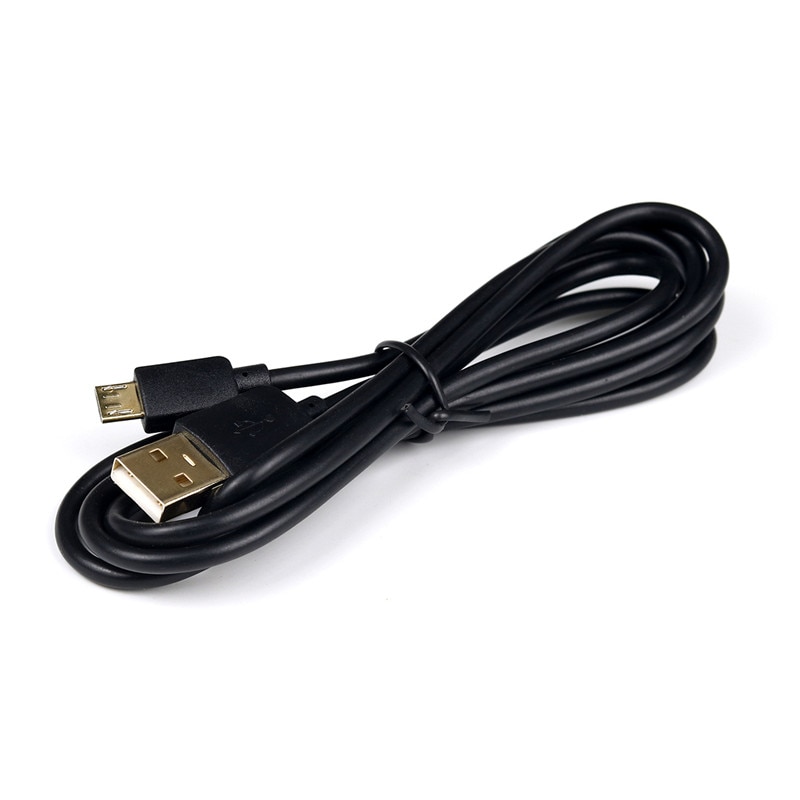

1 x USB Cable

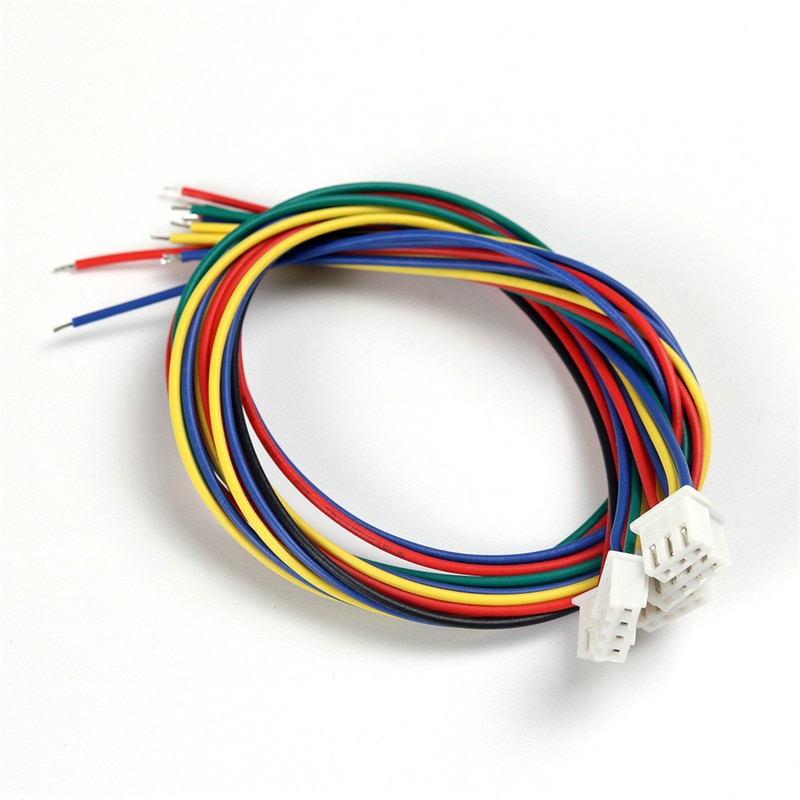

4 x Connector Wires
