Description

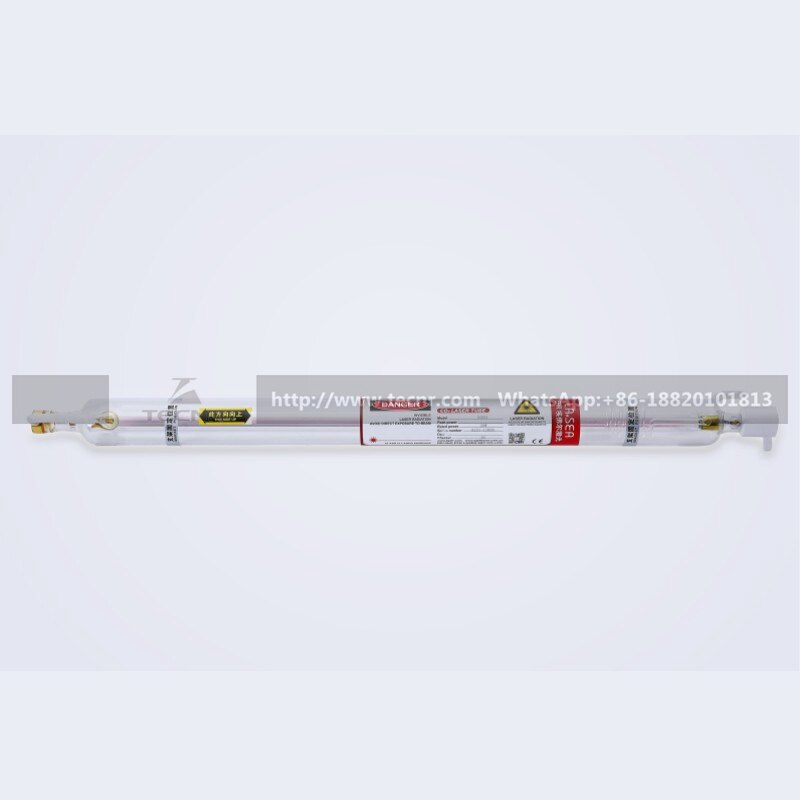

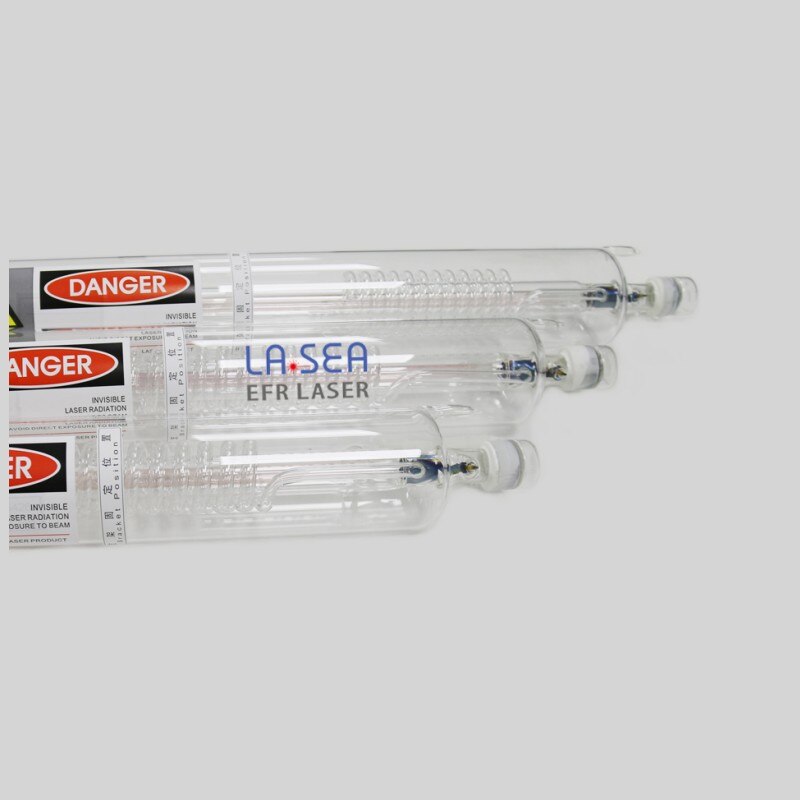

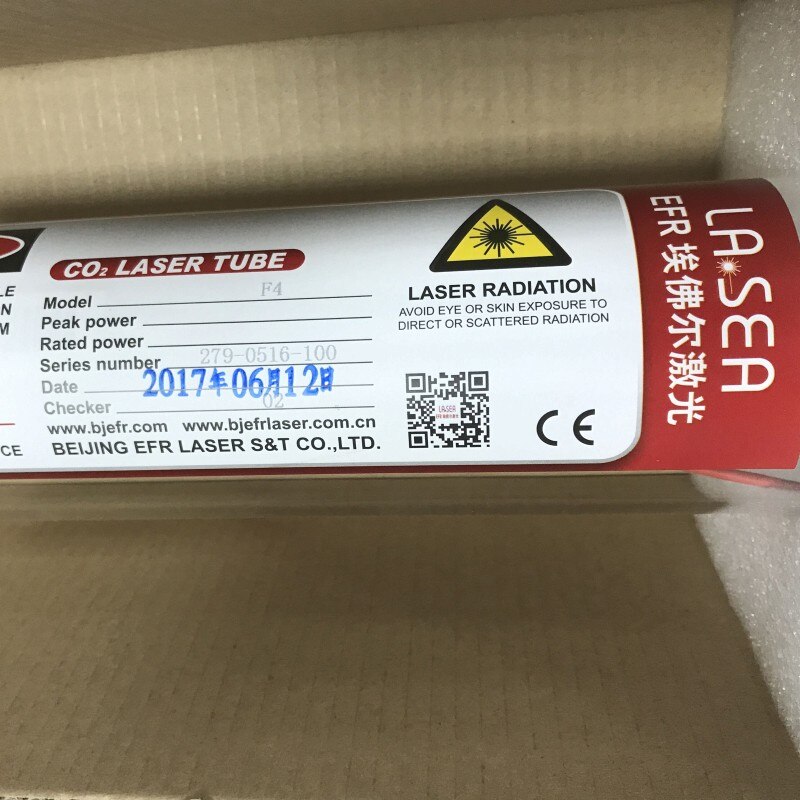

EFR F4 100W CO2 glass laser tube 80mm diameter 1450MM length for CO2 laser engraving machine
Working Life: up to 6000 Hours
Warranty: 300 Days
Model : F4 1450
Name: EFR 100W Laser Tube
Length:1450mm
Diameter: 80mm (±2)
1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00.
The power is table. It is competitive for industrial application.
2. Power: The power is 30% higher than other laser tube with same length.
3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is
more stable, avoid power weaken during long time working.
| F series CO2 Laser Tube | ||||||||
| Model | （mm） | （mm） | （W） | （W） | （mA） | Catalyst | Lifespan | Warranty |
| Length | Outer diameter | Output Power | Maximum Power | Operating Current | Hours | Months | ||
| F2 | 1250±20 | Ø80±2 | 80 | 95 | 28 | YES | 6000 | 10 |
| F4 | 1450±20 | Ø80±2 | 100 | 120 | 30 | 6000 | 10 | |
| F6 | 1650±20 | Ø80±2 | 130 | 150 | 30 | 6000 | 10 | |
| F8 | 1850±20 | Ø80±2 | 150 | 165 | 30 | 6000 | 10 | |
| F10 | 2050±20 | Ø80±2 | 170 | 185 | 30 | 6000 | 10 | |
woodern case
