Description

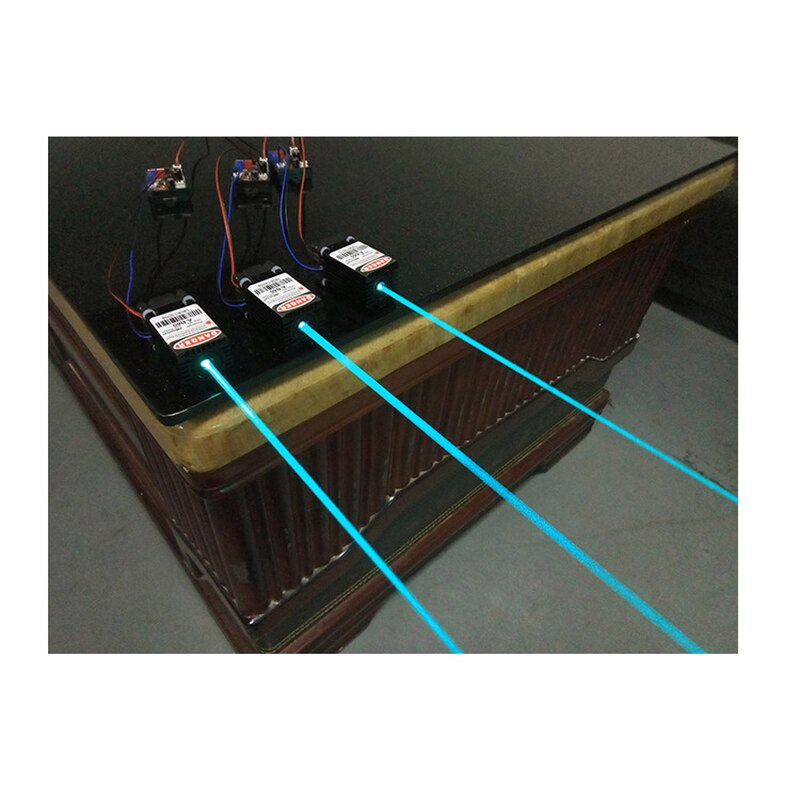

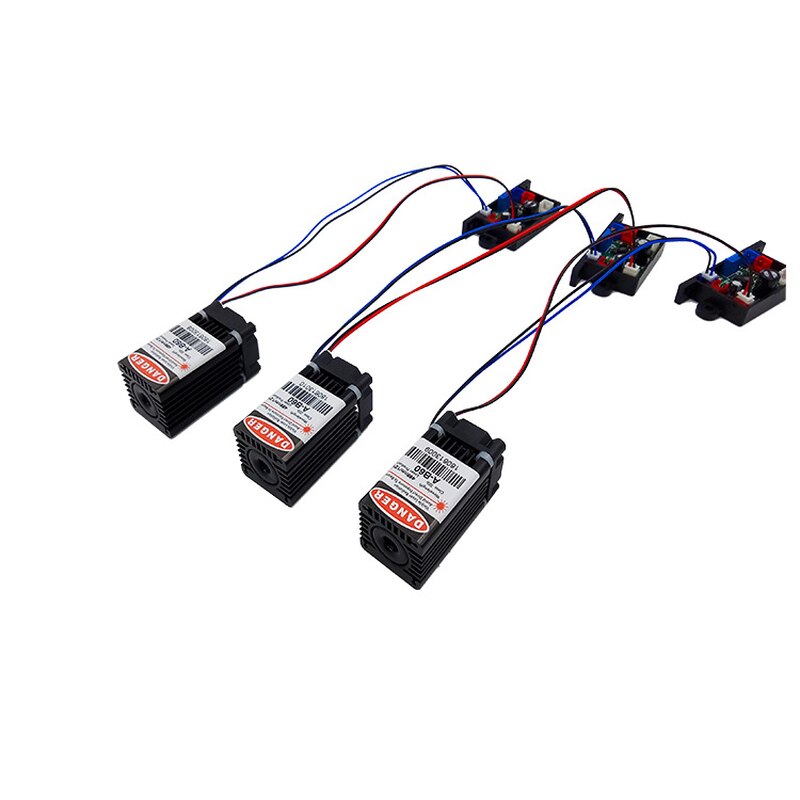

Dyue Laser Diode 60mW blue laser module 488nm laser head LD with driver for medical and stage laser light

Specification
Item name: 60mw 488nm blue laser diode
Model:ST-A-B60

Wavelength: 488nm

Outpower: 60mW (more than or equal to 60mW)

Beam mode: dot

Beam divergence: 1 mrad (less than or equal to 1 mrad)

Laser class: Class 3

Modulation mode: TTL (Analogue is optional)

Input stability: 5% (plus or minus 5%)

LD input voltage: DC7V
LD input current: 180mA

Power consumption: 2.1W

Woking Temperature: -10~40 degrees celsius

Lifetime: 10,000 hours
Wire Length: 100mm

Size: 30X30x45mm

Weight: 0.1kg

Packing listing:
1pcs laser diode
1pcs driver board

Warm note: (Because the product will continue to upgrade and  improve,the above datas and pictures are just for your reference, specific please in kind prevail, before place your order, please contact us,tell us your specific requirements, we will try our best to meet your requirements )
