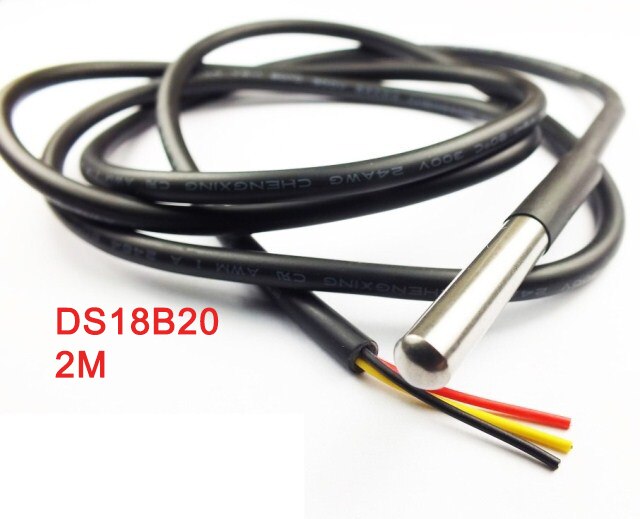

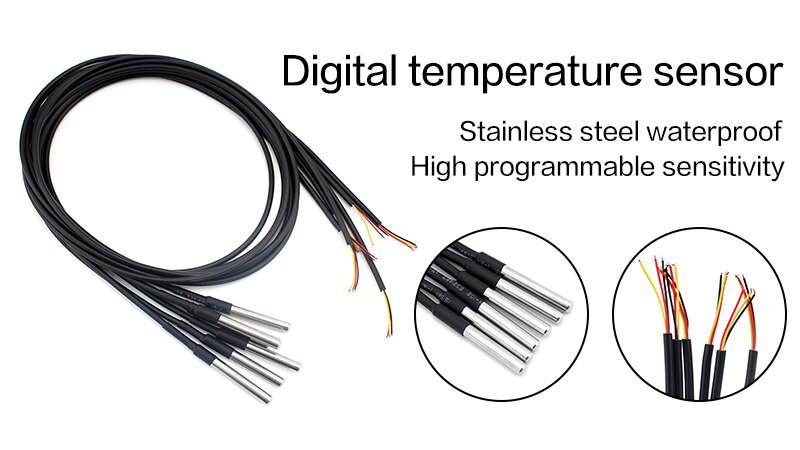

DS18B20 waterproof temperature sensor

Temperature sensor supply voltage: 3.0V～5.5V
Temperature sensor resolution: 9～12 bit adjustable resolution
The temperature display range is -10°C to +85°C (error ±0.5°C)
Operating temperature range: -55 to 125°C (-67°F to +257°F)
(The lead can only withstand a maximum temperature of about 85 degrees)
Temperature sensor output lead: green (DATA), red (VCC), yellow (GND)
Adapter connection line: 3-wire interface: divided into A type and B type, please pay attention to your sensor interface before wiring.


Type A: red wire (VCC), black wire (GND), yellow wire (DATA)
Type B: red wire (VCC), yellow wire (GND), green wire (DATA)

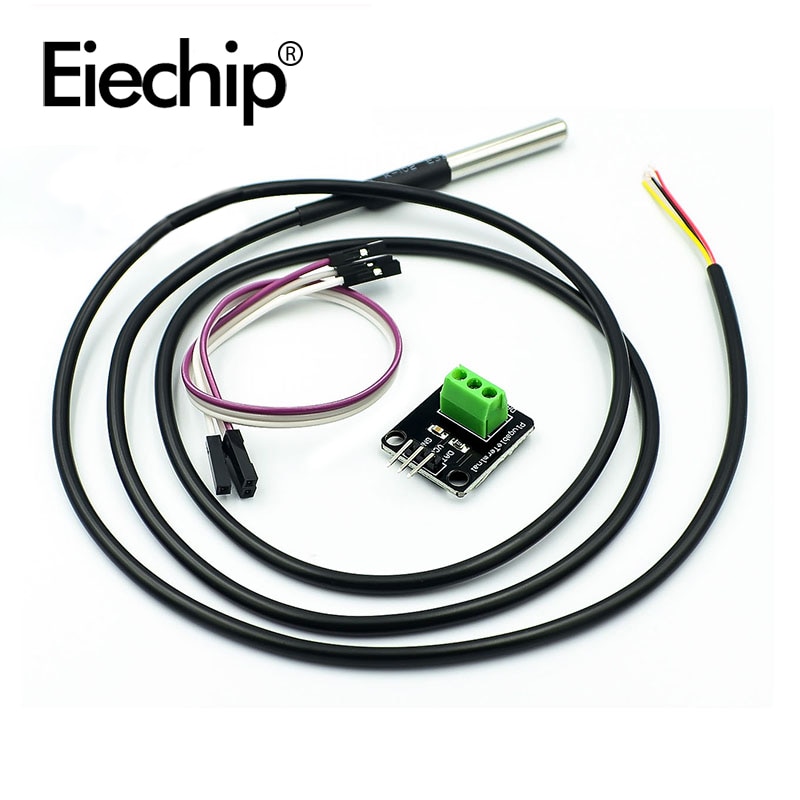

DS18B20 waterproof digital temperature sensor 1

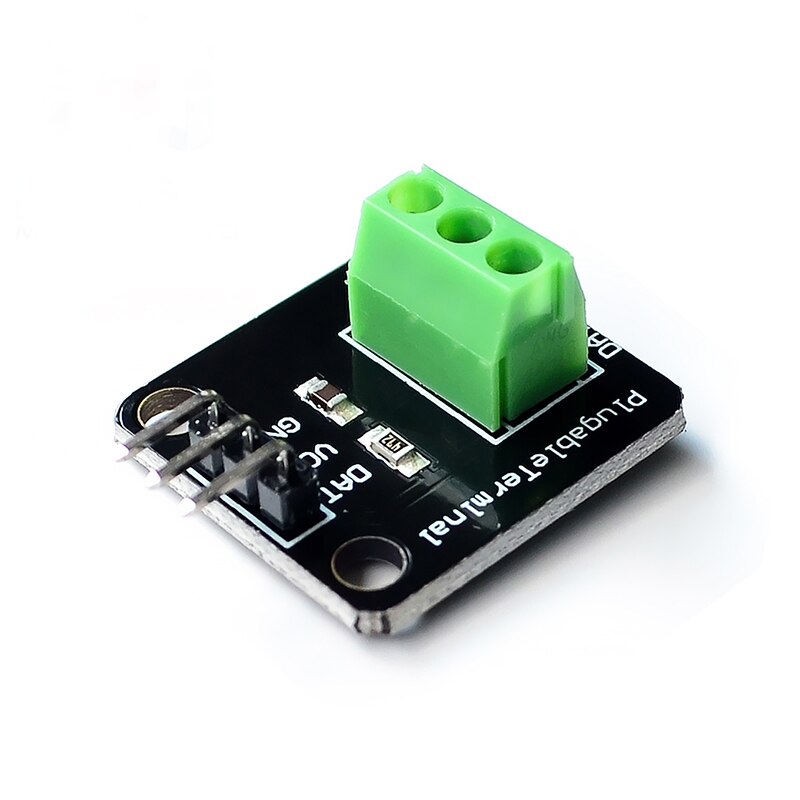

DFR0055 Plugable Terminal adapter 1
FIT0011 digital sensor cable 1

Please copy the link to download the following documents and data.

Product database (English instructions for use)
http://www.dfrobot.com/wiki/index.php/Terminal_sensor_adapter_V2_SKU:DFR0055
DS18B20 data sheet
http://www.dfrobot.com.cn/image/data/DFR0198/DS18B20.pdf
Arduino 1.0 sample code
http://www.dfrobot.com.cn/image/data/DFR0198/DS18B20%20for%20Arduino%201.0.zip
Sample code below IDE 1.0
http://www.dfrobot.com.cn/image/data/DFR0198/DS18B20%20sketch%20for%20Arduino%20IDE%20under%201.0.zip
Single-line database
http://www.arduino.cc/playground/Learning/OneWire
How DS18B20 and Arduino work
http://tushev.org/articles/electronics/42-how-it-works-ds18b20-and-arduino
Compressed file of all the above documents
http://www.dfrobot.com.cn/image/data/DFR0198/DFRobot%20DFR0198.zip

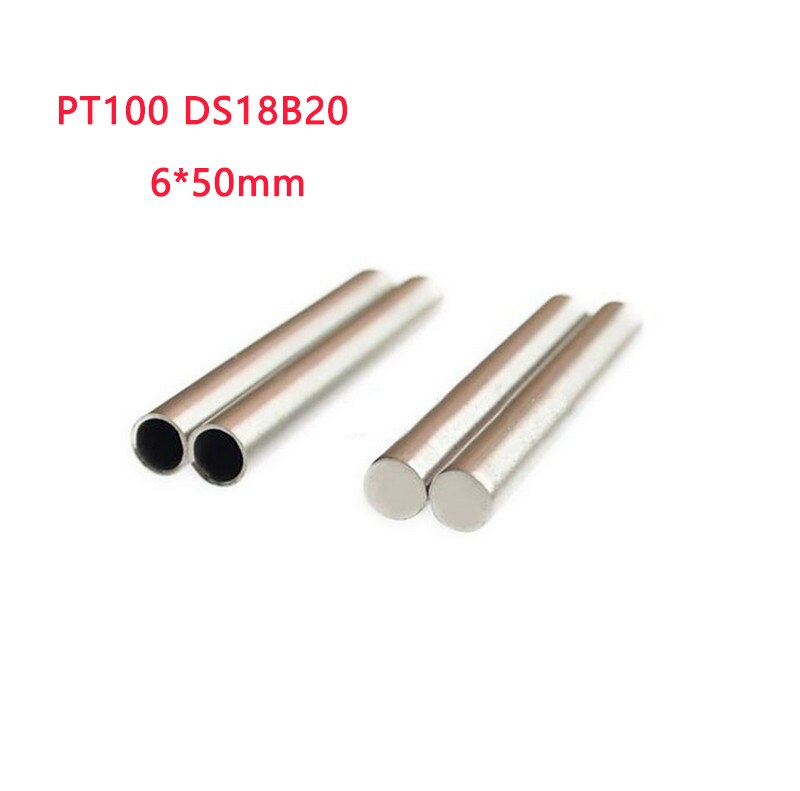

Temperature sensor PT100 DS18B20 stainless steel sleeve blind tube protective sleeve 6×50 mm

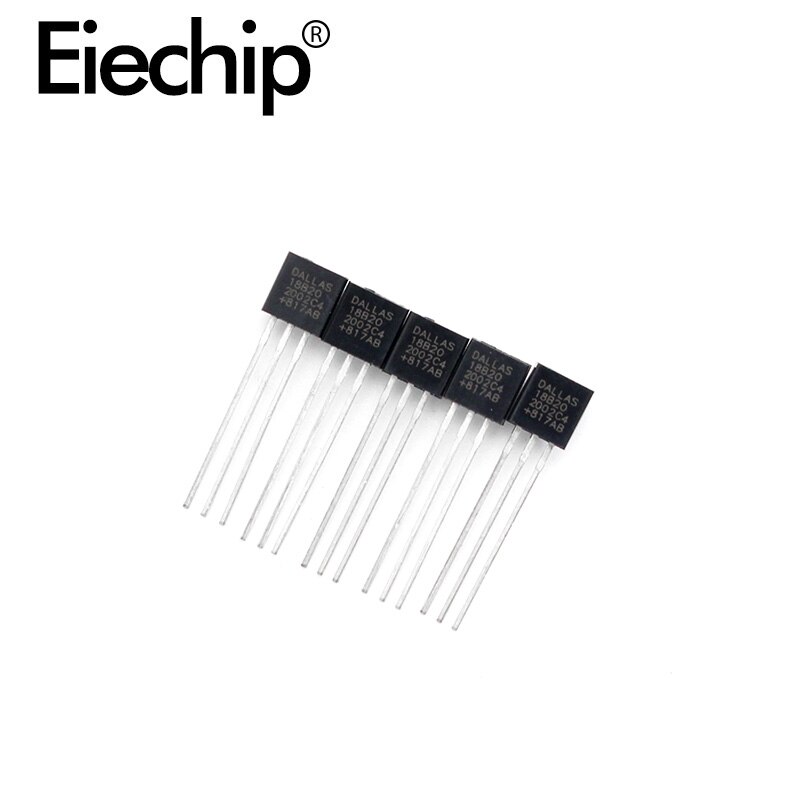

DS18B20 TO-92 18B20 chips Temperature Sensor

Features:

● Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures Outside Programmed Limit
● Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability

● Reduce Component Count with Integrated Temperature Sensor and EEPROM

●Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
