Description

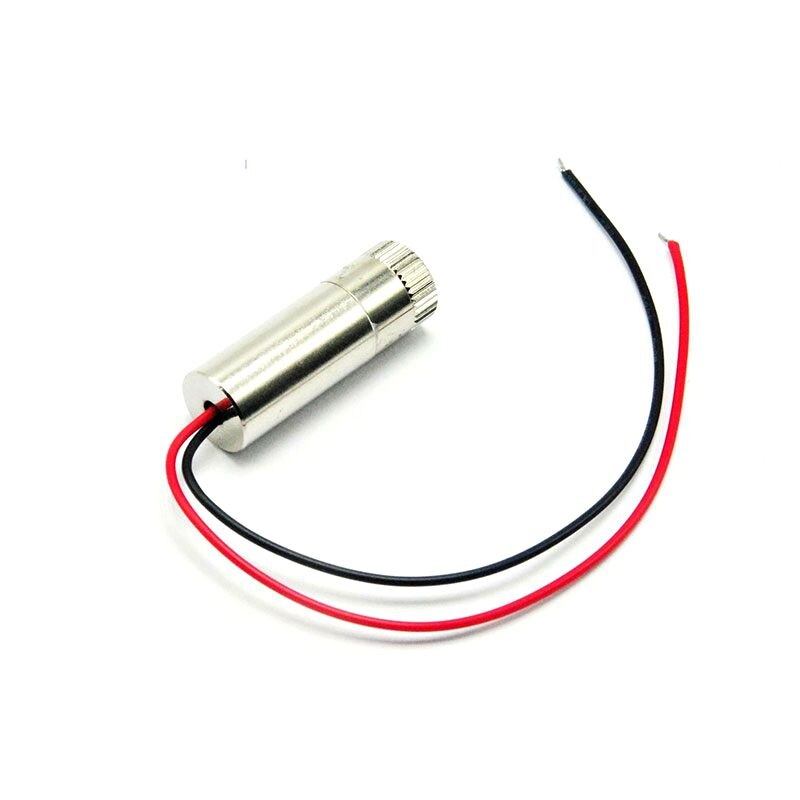

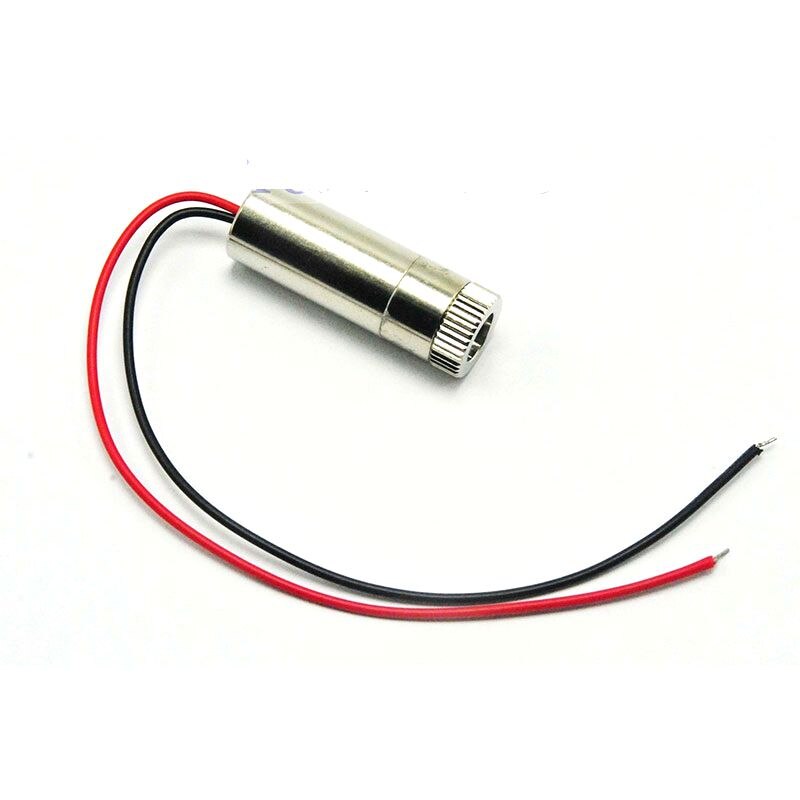

Dot/Line/Cross Adjustable 30mw 980nm IR Infra-Red Laser Module w 12mm Heatsink

Please note that this is IR Lasers which can not be seen by naked eyes.You can get the light by night vision camera or IR detection card.

Parameters
Wavelength:980nm
Output Power:30mw
Working Voltage:DC3V-5V
Working Current:I <100mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot(rectangular to oval)/Line/Cross
Focusable:yes
Material:Aluminium
Dimension:12x30mm or 12x40mm

Features
1.Two-wire input, the red line is positive, black line is negative.
2.This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.Please wear 980nm laser protection goggles when you work on it.

Package
1pcs 30mW Focusable 980nm IR Infrared Dot Laser Diode Module 12x30mm DC3V-5V

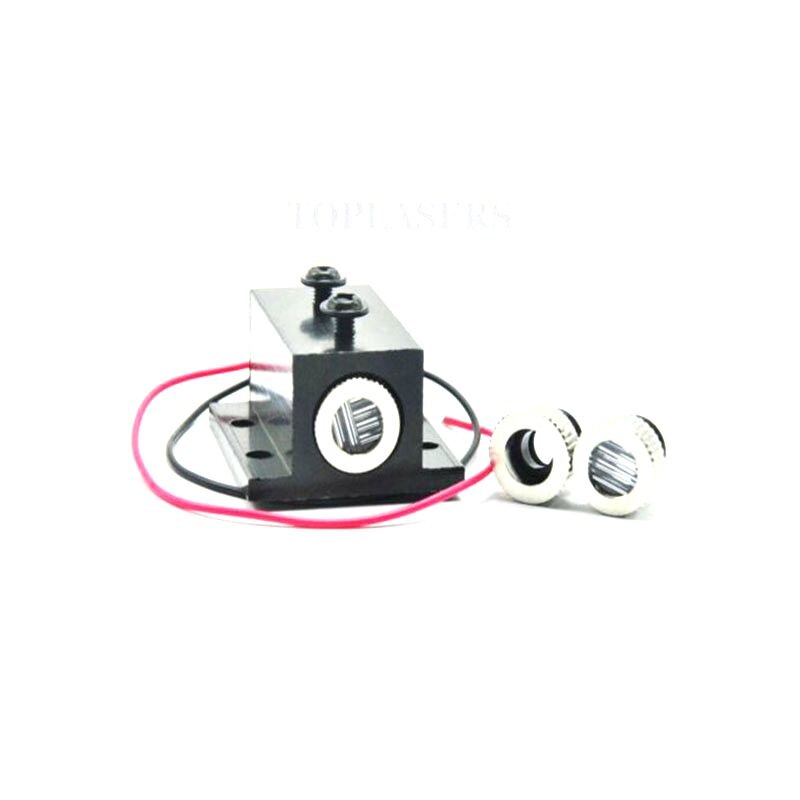

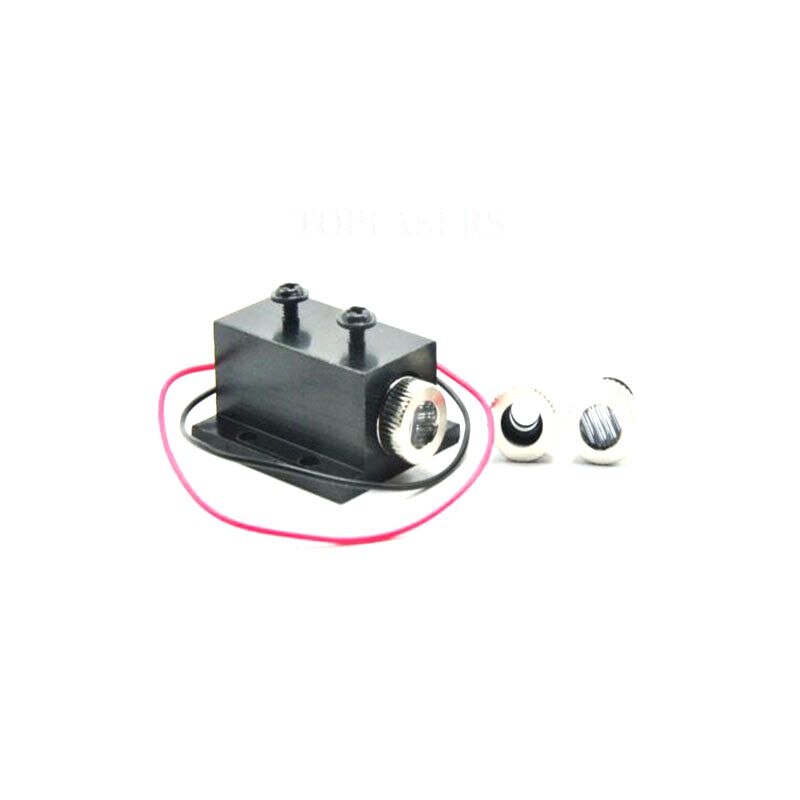

1pc heatsink
2pcs caps
