Description

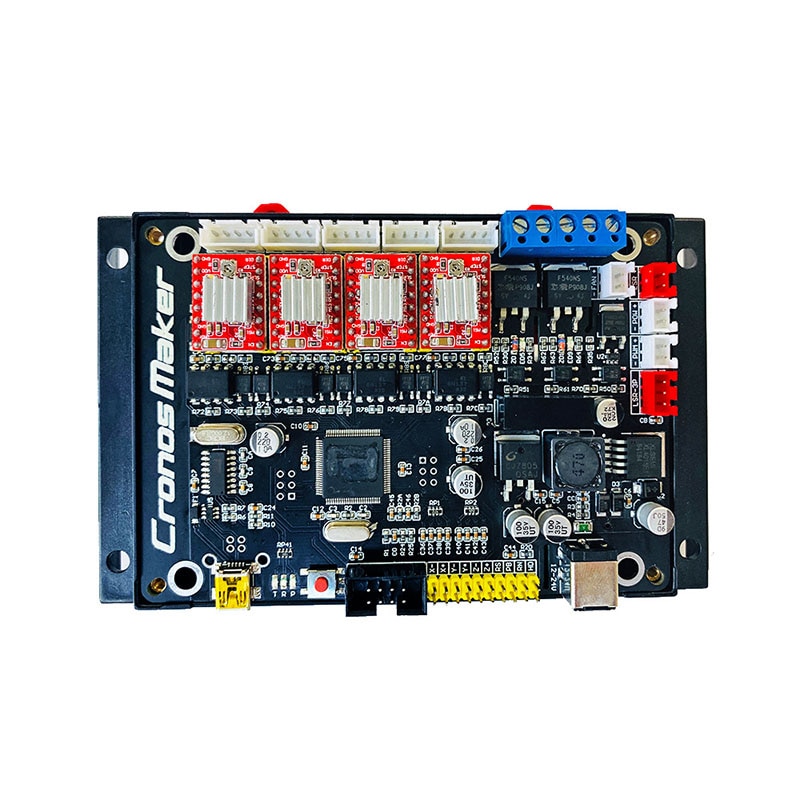

DIY laser engraving machine GRBL 4-axis control board offline CNC control board 3018 2418 applicable

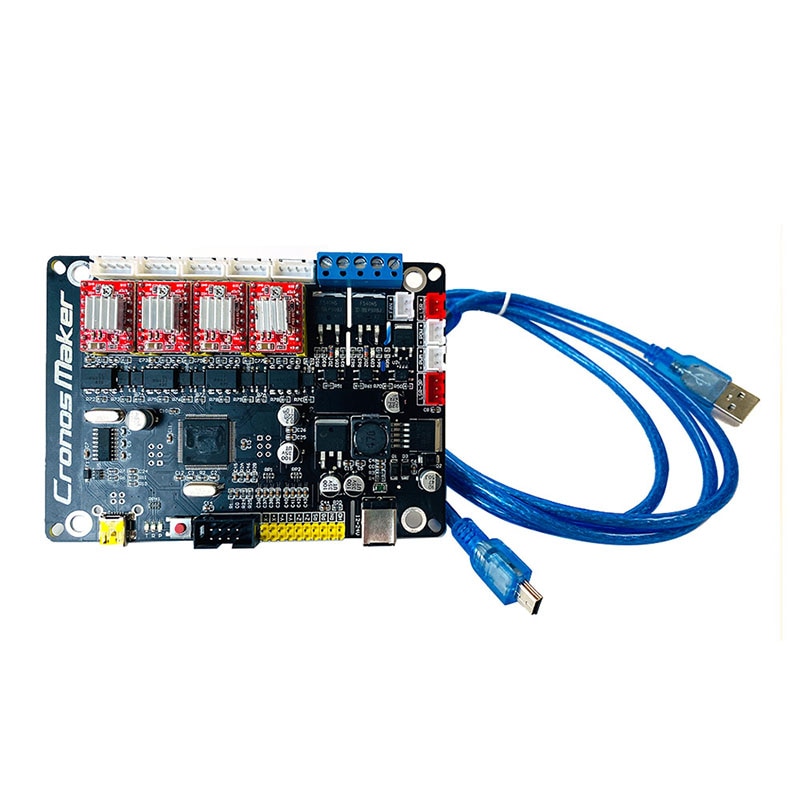

Product include:
1*Control board
1*USB Data line
Double Y-axis, all-round use
Support for laser or 775 motors.
Supports 12V TTL laser and no TTL laser.
The drive current can be adjusted.
Support xyz limit switch, probe interface.
The A4988 can be replaced with the 8825 driver.
Applicable: 2-phase 4-wire stepper motor; laser module within 10W (supports 2P interface/3P interface)
4axis controller board
Control board features:
With power isolation, all-optical isolation and anti-interference, can be connected to high-power drivers, support 48V 300W / 500W (500W is recommended to be cooled by a fan) spindle operation, 16 times motor subdivision, XZY limit interface, support offline operation, customization LaserEngraver software, TTL / PWM software adjust laser power, with housing protection to support custom development!
Shipping list: 1: control board 2: USB data cable: 3: protective shell
