976nm Direct Diode Laser System



Direct Diode Laser System

 Up to 300W output power
 Air cooling
 Fiber delivery
 Red aiming beam (optional)
 Temperature control
 Compact design

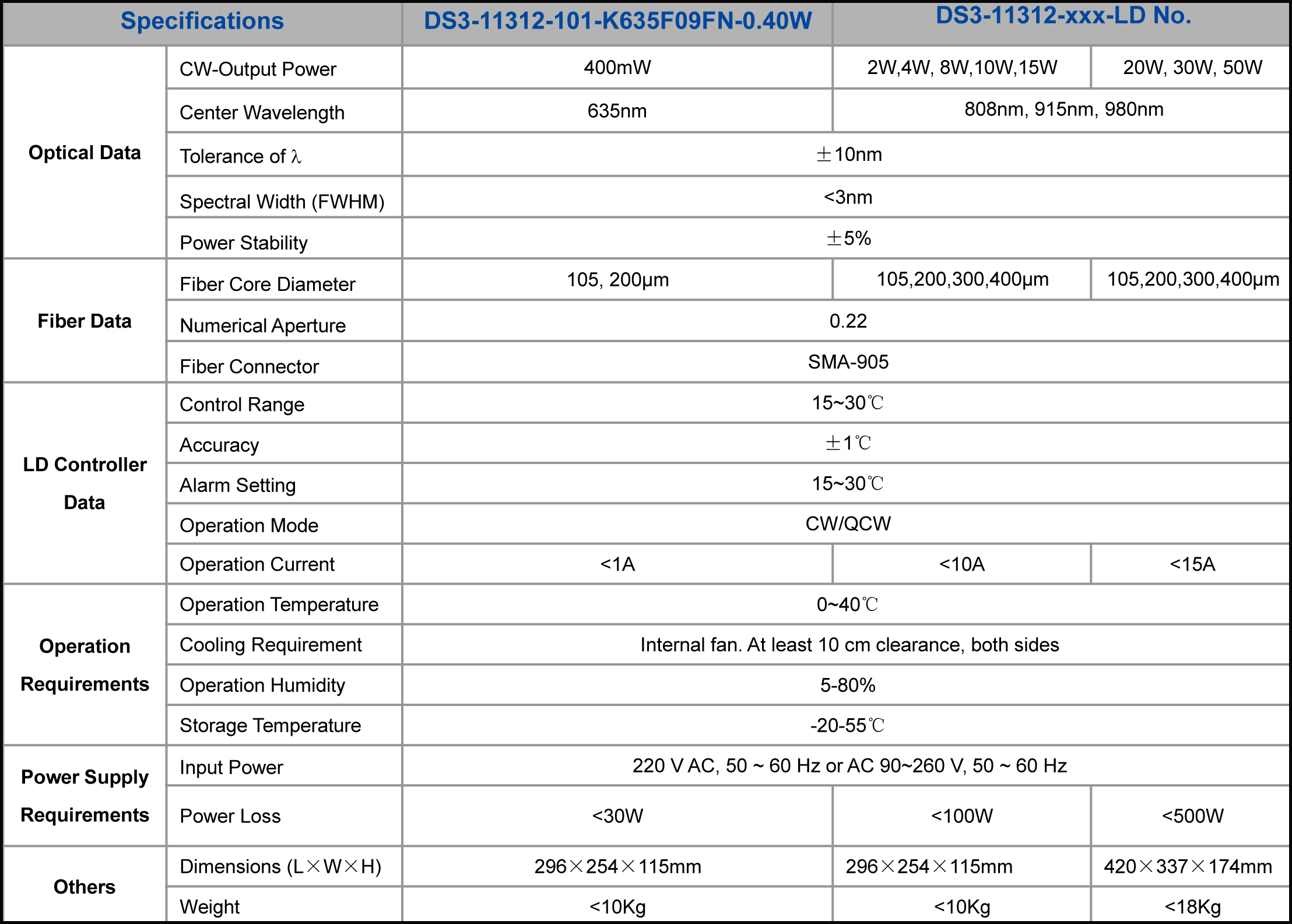

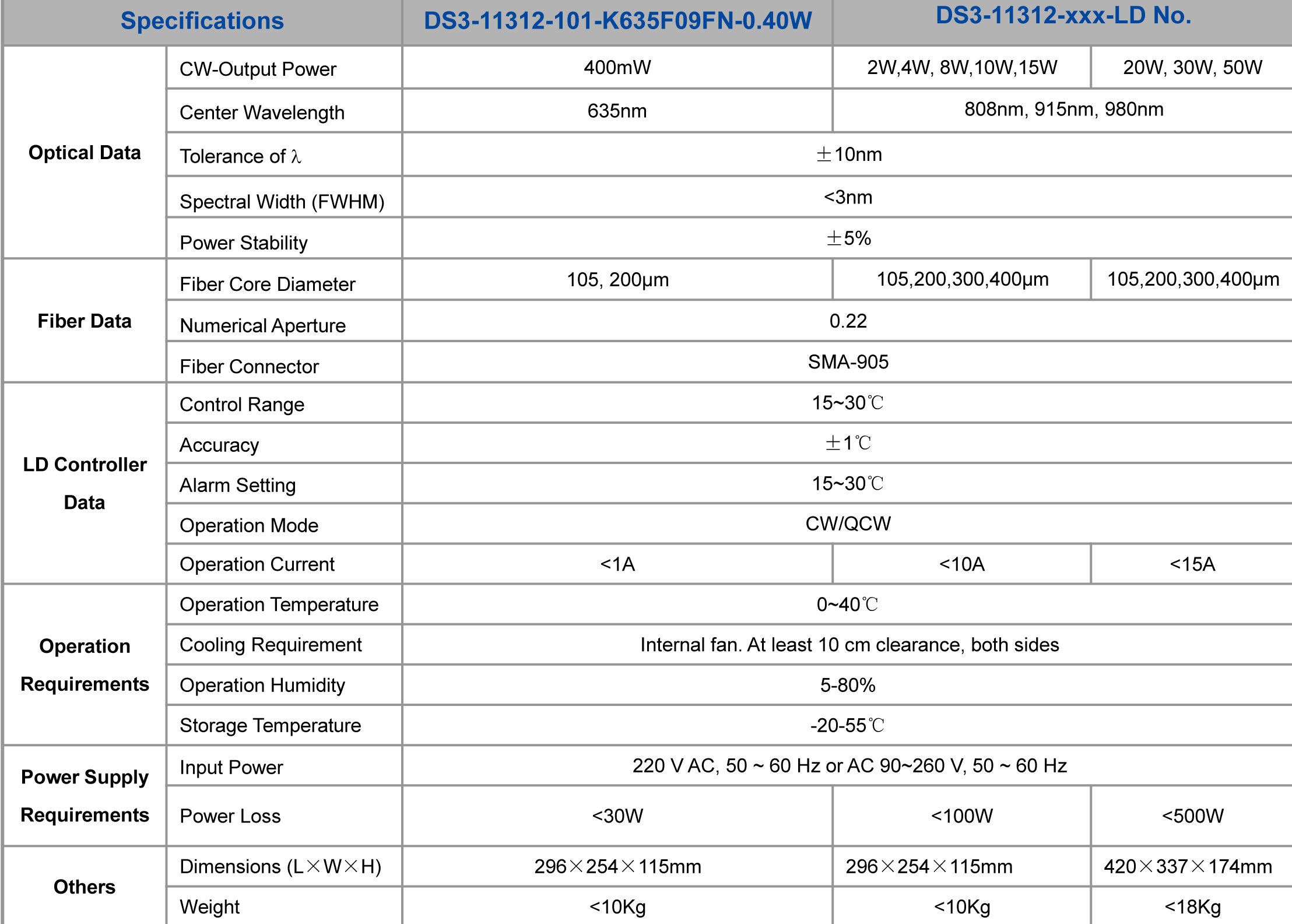

Optical Data:

CW-Output Power:400mW

Center Wavelength:635nm

Tolerance of :±10nm

Spectral Width (FWHM):<3nm

Power Stability:±5%

Fiber Data:

Fiber Core Diameter:105, 200µm

Numerical Aperture:0.22

Fiber Connector:SMA-905

LD Controller Data:

Control Range:15~30℃


Alarm Setting:15~30℃

Operation Mode:CW/QCW

Operation Current:<1A

Operation Requirements:

Operation Temperature:0~40℃

Cooling Requirement:Internal fan. At least 10 cm clearance, both sides

Operation Humidity:5-80%

Storage Temperature:-20-55℃

Power Supply Requirements:

Input Power:220 V AC, 50 ~ 60 Hz or AC 90~260 V, 50 ~ 60 Hz

Power Loss:<30W

Others :

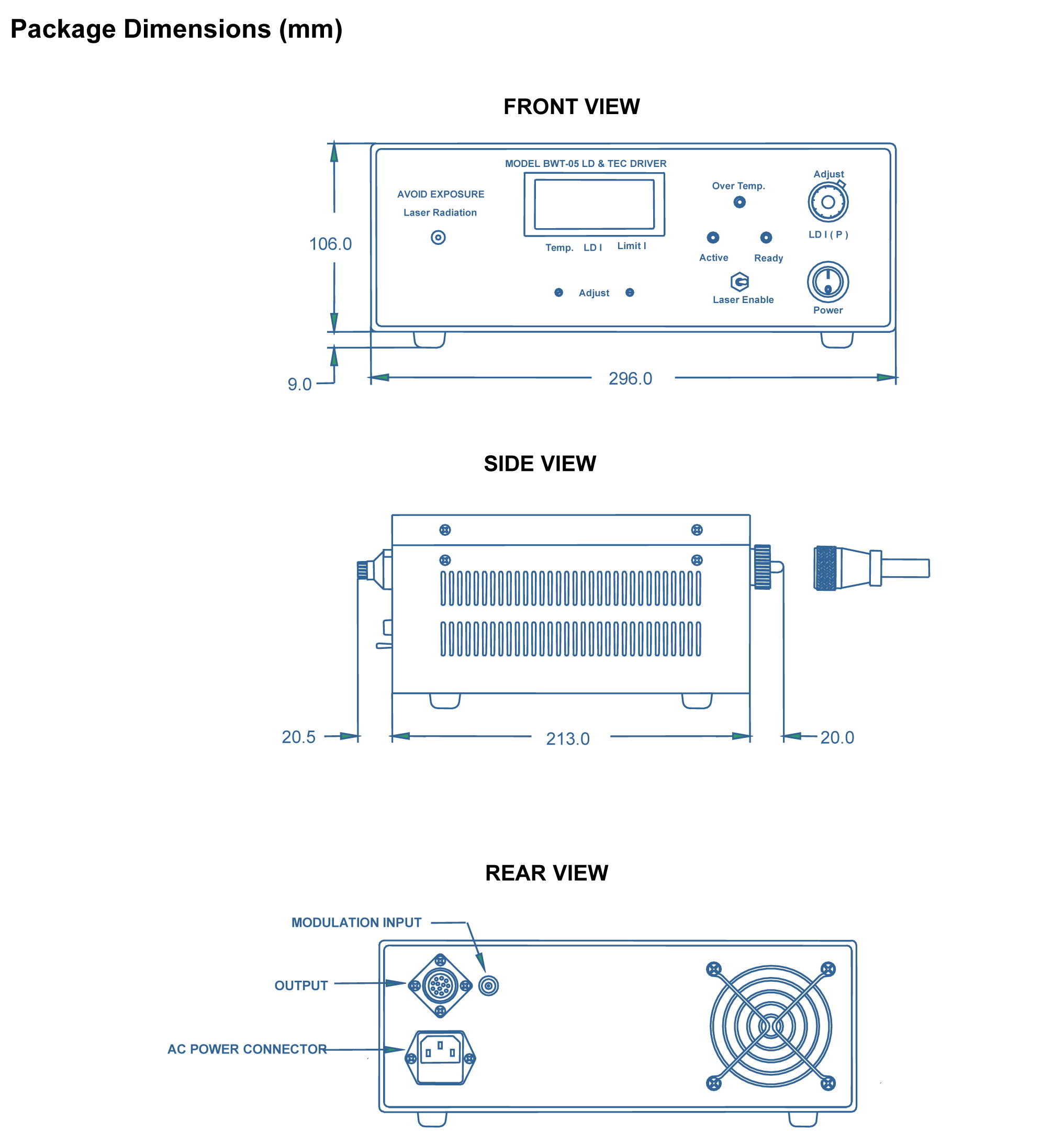

Dimensions (L×W×H):296×254×115mm


976nm Fiber Coupled Diode Laser

Beamq manufactures diode laser subsystems ranging from wavelength 450nm to 1550nm and the output can be up to 300 watt. The system can integrate several functions upon customizable request. Compact and operate-friendly designs make it very easy to use. To meet customer’s specific demanding and provide high quality products and laser solutions are our eternal pursuit.
