Description

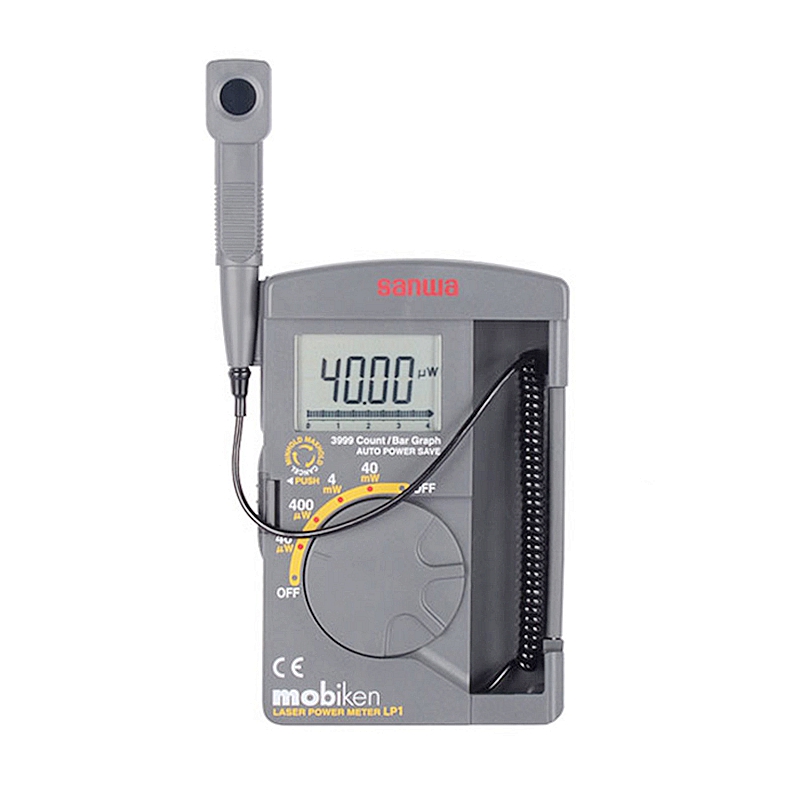

Digital SANWA LP1 Laser Power Meter Pocket optical sensor 400nm~1100nm 0.01uW~39.99mW
[Features]
*Wide optical power measurement range
*Silicon photodiode
*Sensor can be all neatly contained and protected within the folding case.
*Max / Min hold
*Auto power save (30min.)
*500mm sensor cord
[SPECIFICATIONS]
Name: SANWA LP1 Laser Power Meter
Brand: Japanese SANWA
Optical sensor: Si photodiode( Φ9mm)
Wavelength range: 400nm~1100nm
Wavelength: 633nm(He-Ne laser) reference wavelength Convert by a table of spectral sensitivity characteristic(representing value)
Display: Numeric:3999 full scale,Bargraph:42-segment
Sampling rate: Approx. 2 times/sec.for numeral display.
Approx. 20 times/sec. for bargraph.
Measuring range: 40.00uW(0.01uW~39.9uW);
400.0uW(0.1uW~399.9uW)
4.000mW(0.001mW~3.999mW)
40.00mW(0.01mW~39.99mW)
Accuracy: ±5%(1mW:4mW range, 633nm)
23℃±2℃
Battery: 1.5V LR44 x 2 (Not Include)
Power consumption: Approx. 6mW
Operating temperature: 0℃~40℃ max.80% RH no condensation
Storage temperature: -10℃~50℃ max. 80% RH no condensation
Size/Mass: H117xW76xD18mm / approx. 120g
Sensor probe: H84xW16xD10mm
[Package includes]
1 x Laser Power meter
1 x Instructions
1 x Certificate
1 x Box
