Description
DC3.3-5V 200nm-370nm Response Wavelength UV Detection Sensor Module Ultraviolet Ray UV Sensor Module
Ultraviolet Sensor
Overview
- Output voltage boosts along with the ambient ultraviolet intensity increases
- Onboard amplifier circuit with adjustable amplification factor
Specifications
- Response spectrum: 200nm-370nm
- Dimension: 22.0mm * 16.0mm
- Mounting holes size: 2.0mm
Applications
- Ultraviolet tester
- Outdoor ultraviolet detector
- Germicidal lamp
How to Use

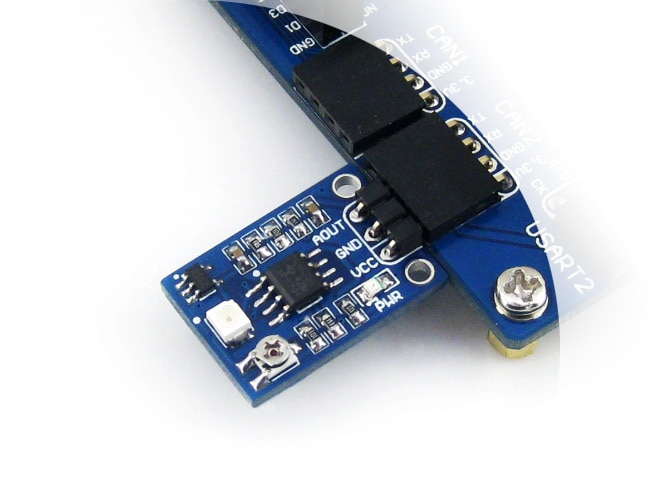

In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.0V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)

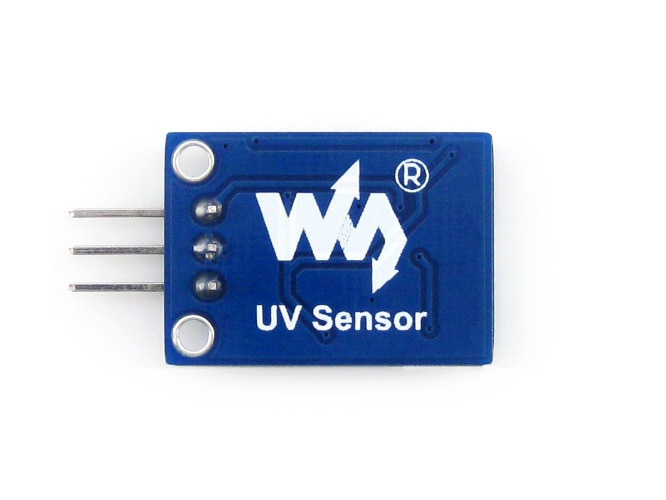

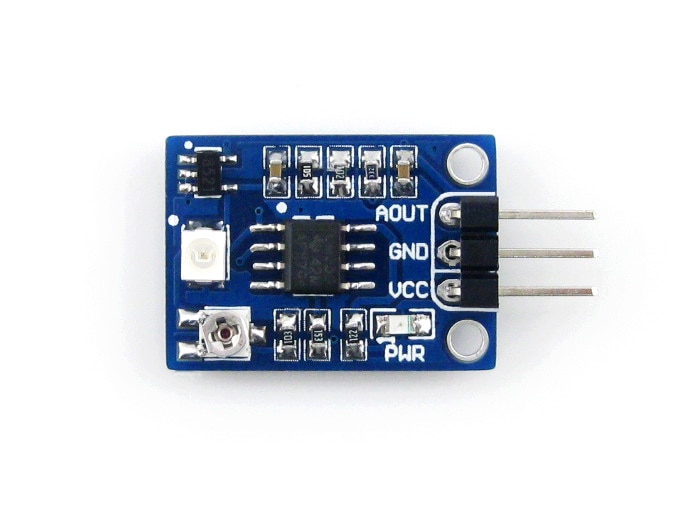

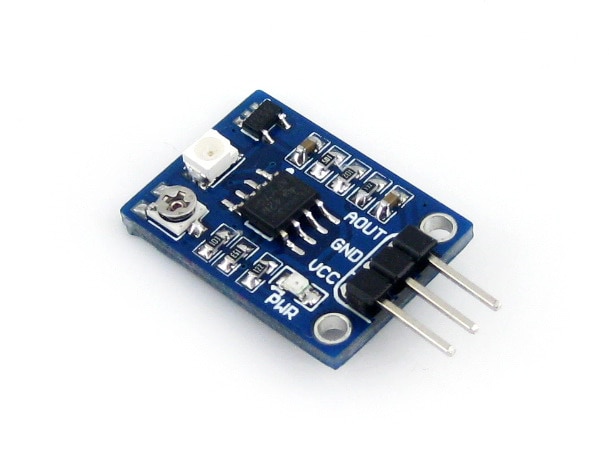

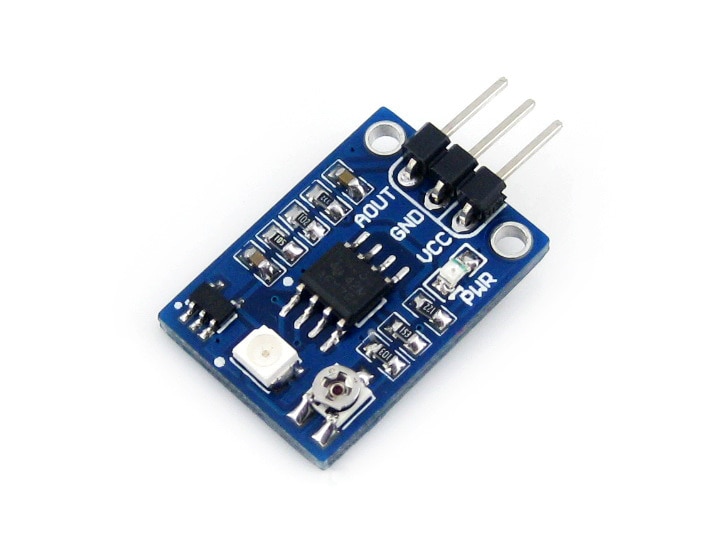

Photos
Package Contains
- UV Sensor × 1
- 3-pin custom connector jumper wire × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
www.wvshare.com/downloads/accBoard/Sensor-Kits.7z
For large quantity please feel free to contact us for quotation!
