Description

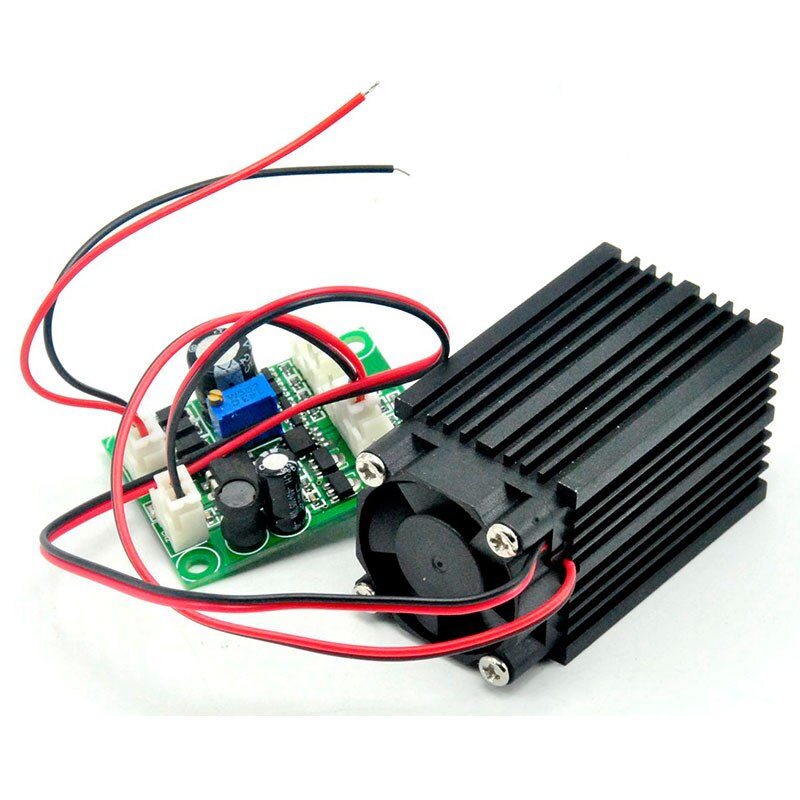

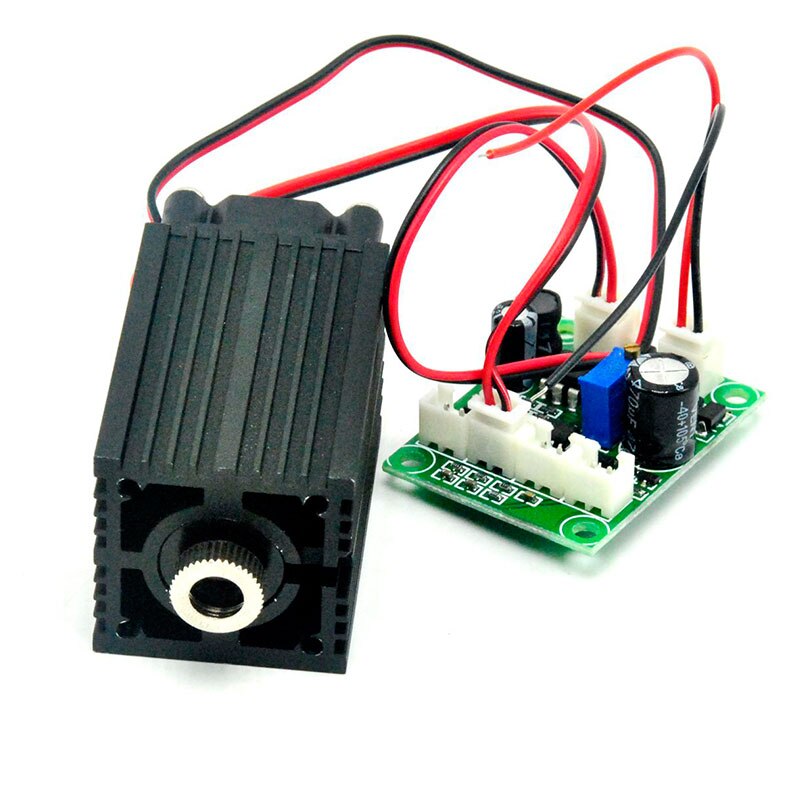

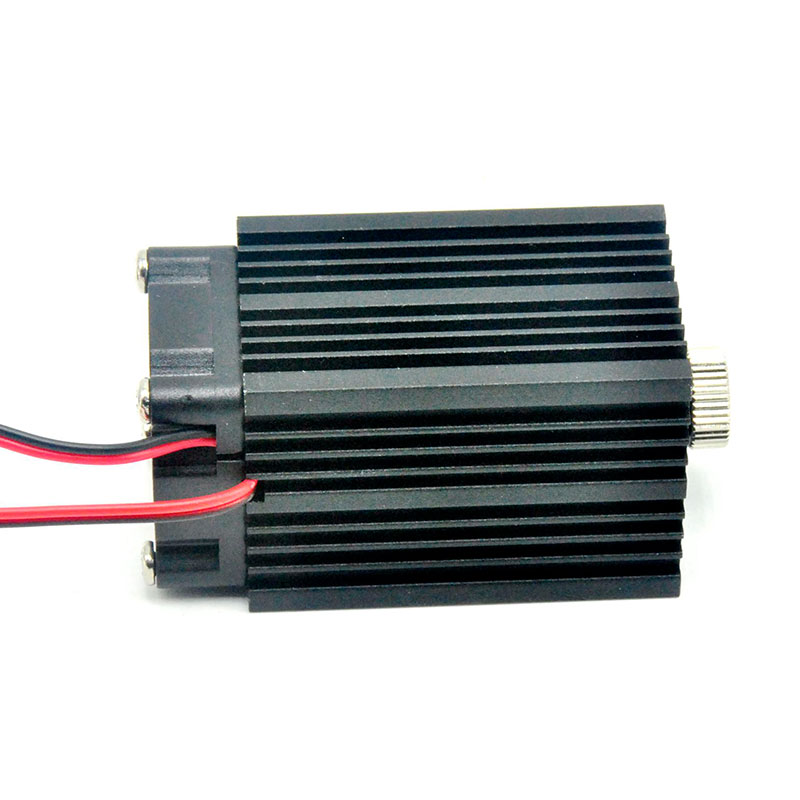

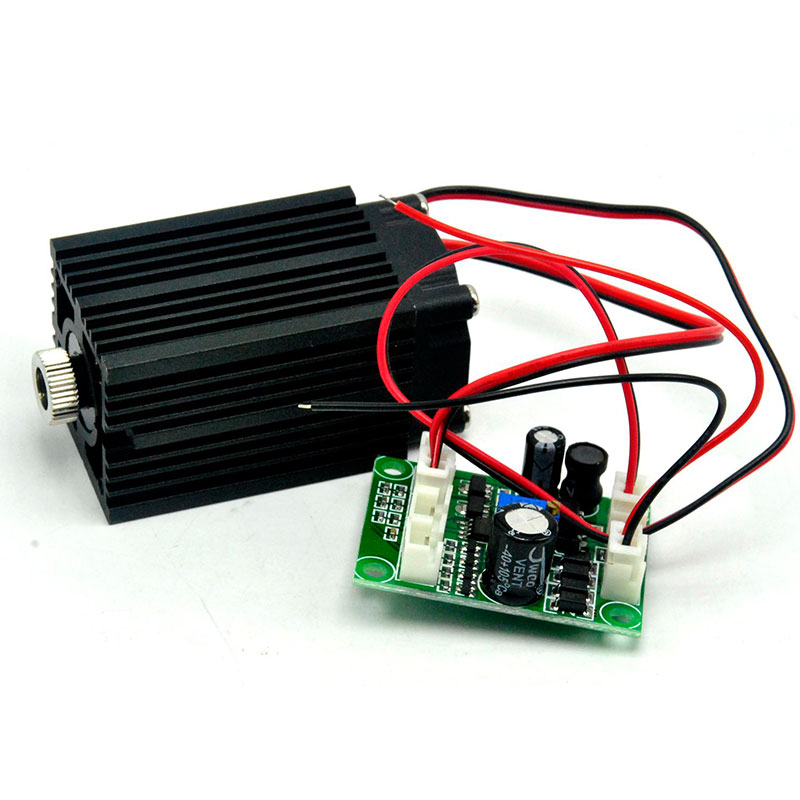

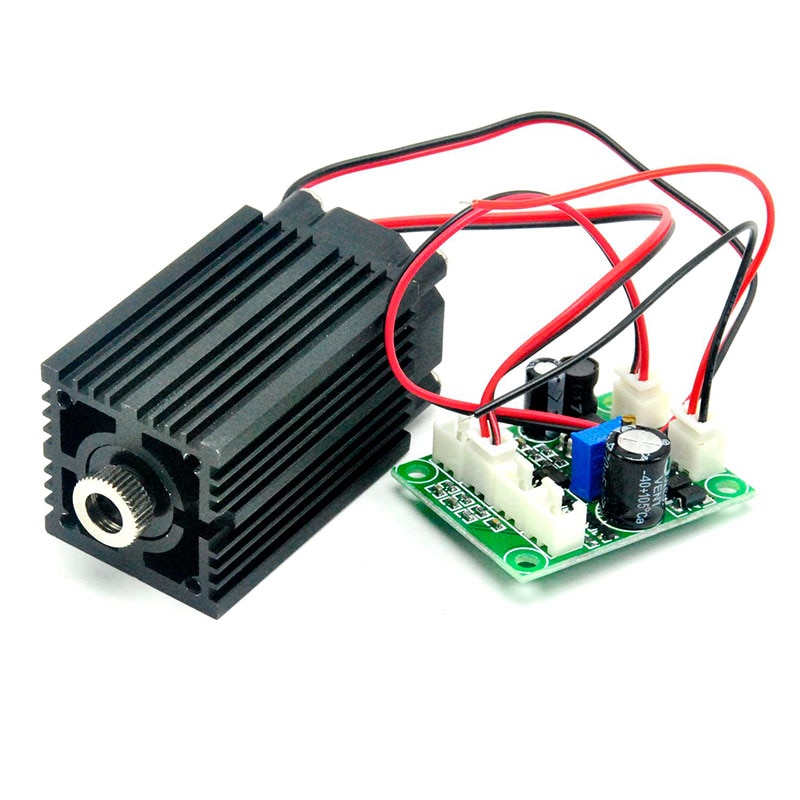

DC12V 532nm 80mW Green Laser Module Point Dot Stage Lights w/ Protection Goggles

Parameters
wavelength: 532nm
Output Power: 80mW
Spot ellipticity:> 0.9
Light Height: 15mm
Laser Shape:dot
Divergence angle: <1.2mrad
Beam diameter: <3mm
Operating temperature: 0 ~ 40 ℃
Modulation: TTL level (0 ~ 20Khz)
Input voltage: DC 12V
Laser Size: 50 (L) X33 (W) X33 (H) mm
Power Dimensions: 45 (L) X34 (W) mm

Features
1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

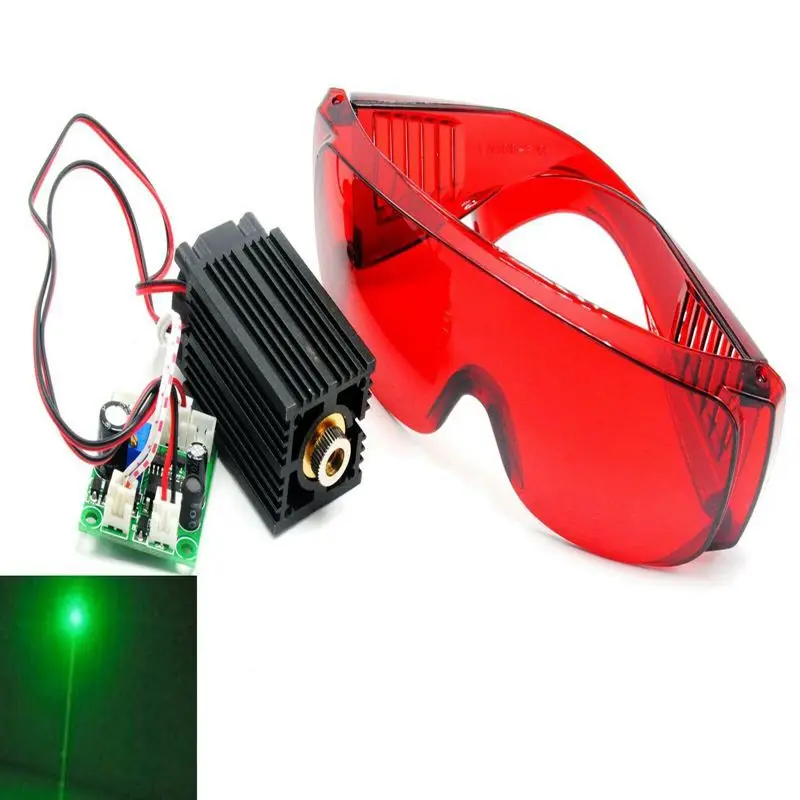

Package
1pc 12V 532nm 80mW Green Ray Laser Diode Module
1pc 532nm protective goggles
