CW DPSS 50W Laser Diode 1064nm Pump Module for cutting
1.Introduction
Oriental-Laser has develped a full product line of Diode-Pumped Solid State laser modules for industry applications.
This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 50W up to 500W (@1064nm).
These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.

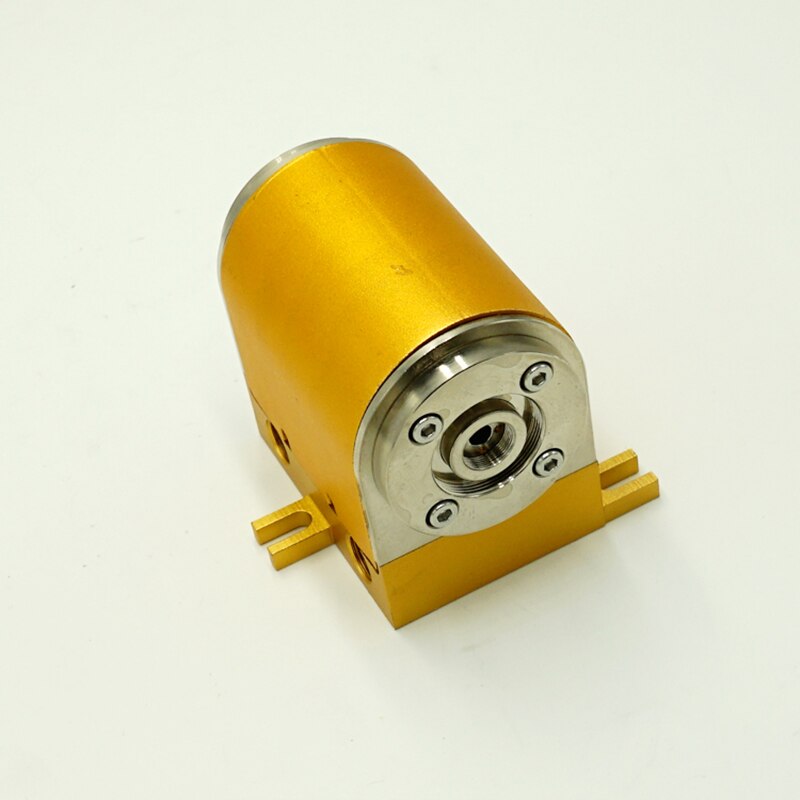

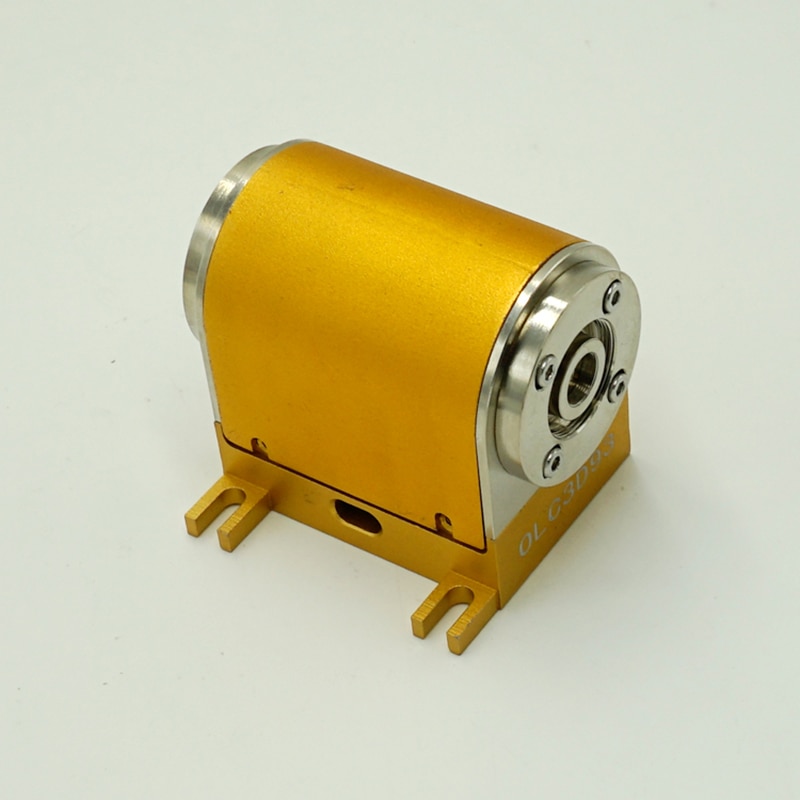

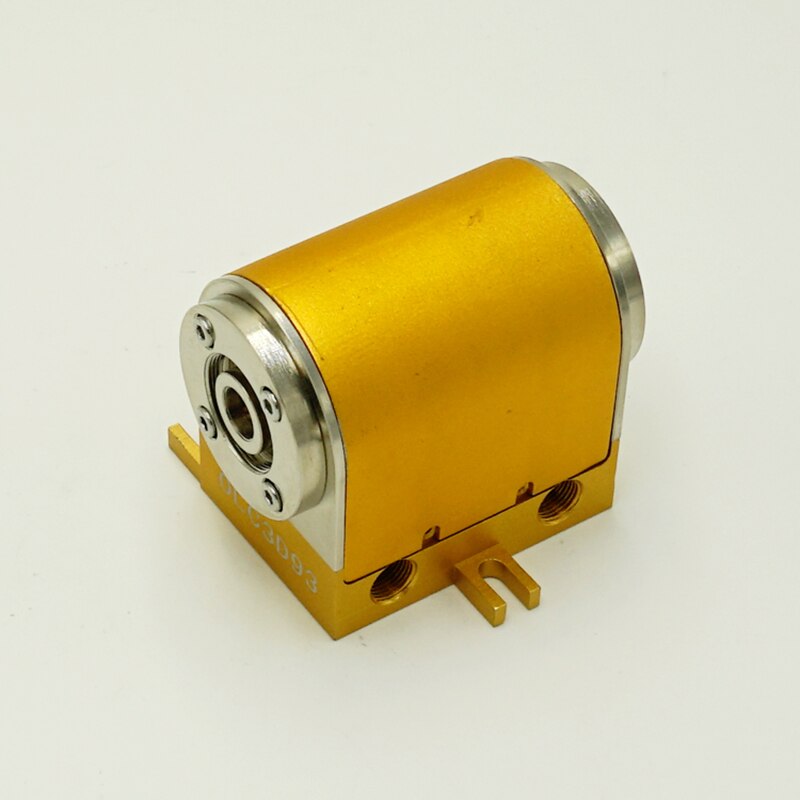

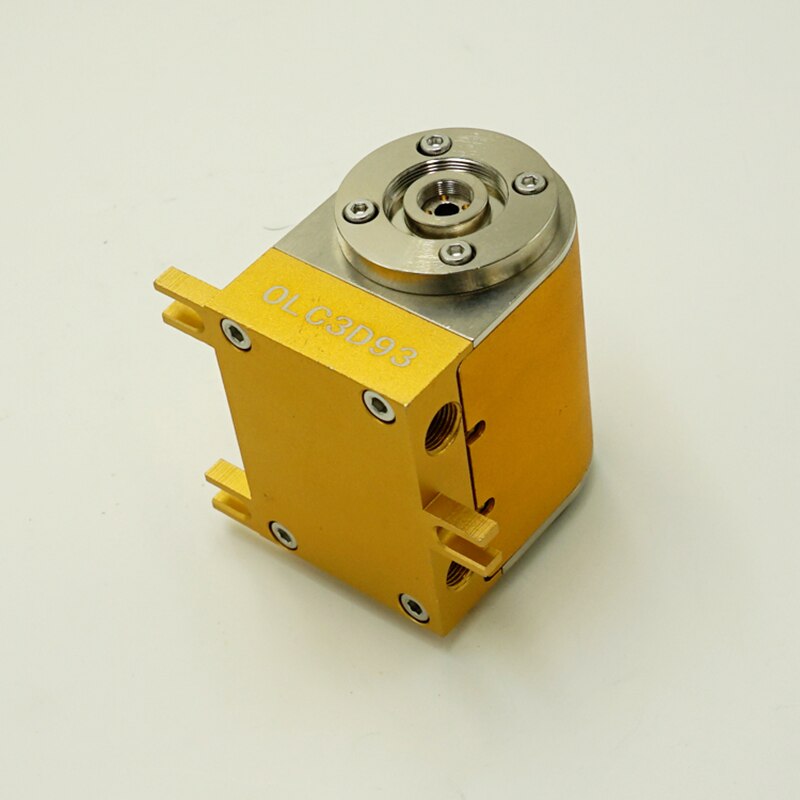

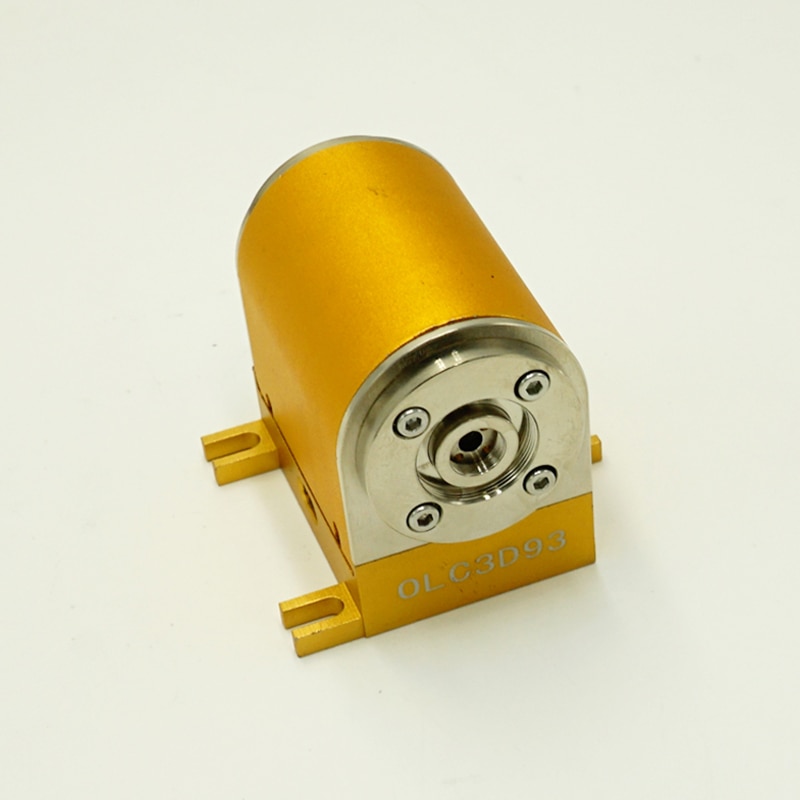

2.Product display
CW Diode Pumped Laser Modules (DPSS laser modules at 1064nm) are designed by side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. Oriental-laser is now providing high power laser modules with power from 50W up to 500W. It is widely used for industry, such as laser marking, engraving, welding, cutting, drilling and etc.
3.Specifications
Module No GN50-E Unit
Central Wavelength 1064nm nm
Typical Output Power 50 W
Typical Operating Current 25 A
Current Limit 35 A
Typical Operating Voltage <18 V
Threshold Current Around12-14 A
Nd:YAG Diameter 3 mm
Nd:YAG Length 65 mm
Nd:YAG Center Height 40 mm
Nd:YAG Doping 0.6%
–
4.Drawing
5.Application
1. Direct industry application 2. As laser oscillator or laser seed.
3. As laser amplifiers 4. To get high peak power with Q-switch.
5. Other lab & medical applications. 6. High repetition rate laser rangefinder.
7. High pulse energy military applications.
（Metal marking； Diamond cutting； Laser welding and cutting； Cleaning）
Other products
Advantage
1.Diode laser bar is from Germany Jenoptik
2.our high skilled and experienced technicians perform the assembly and test of laser moudle in our 10K class and part of 100K class big clean lab.
