CW DPSS 1064nm laser diode pump module for / metal marking / diamond cutting / laser welding and cutting / cleaning
Description

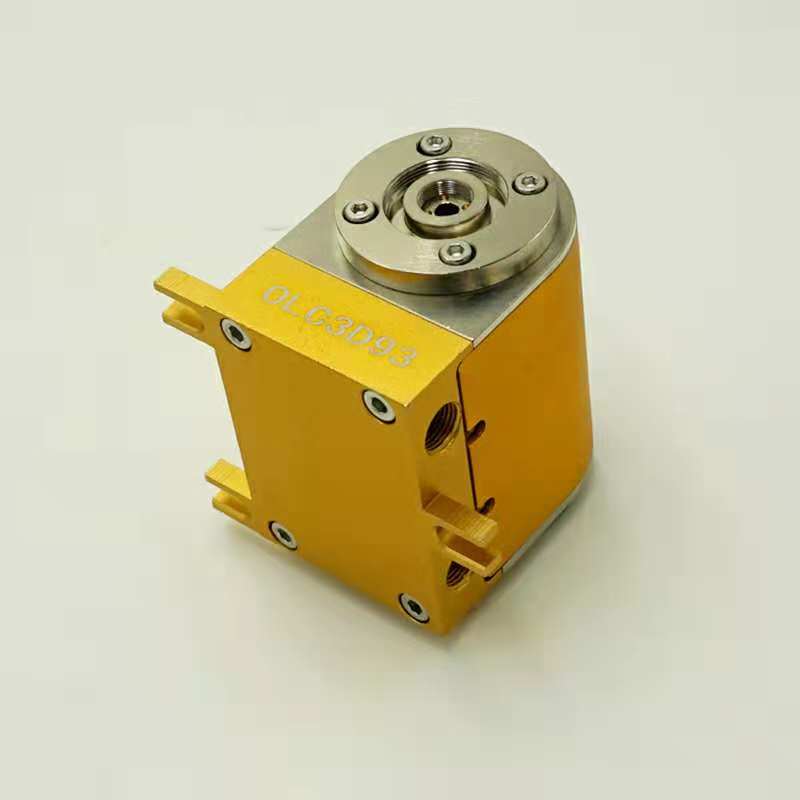

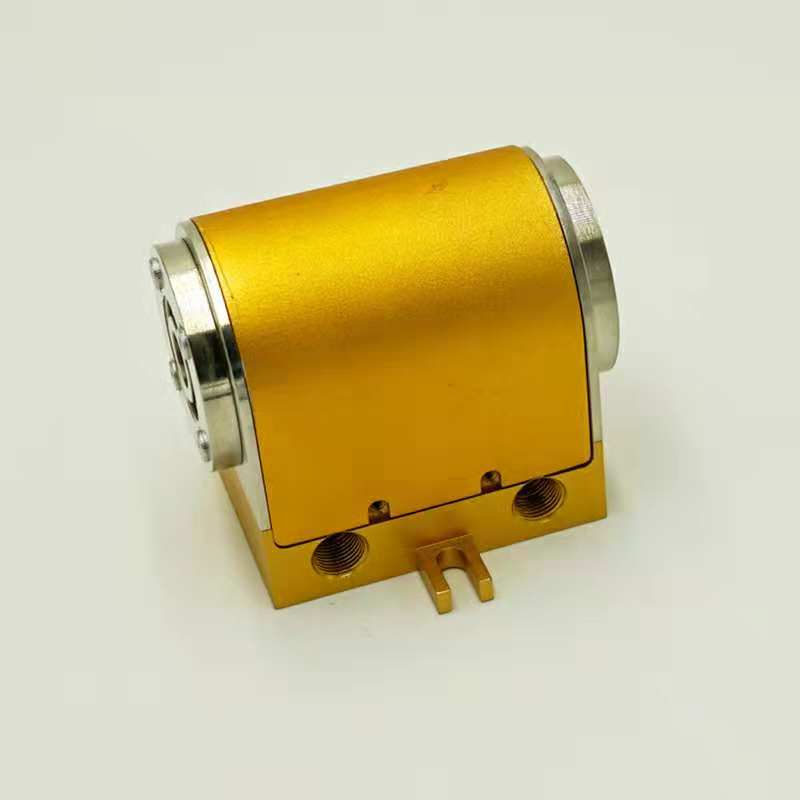

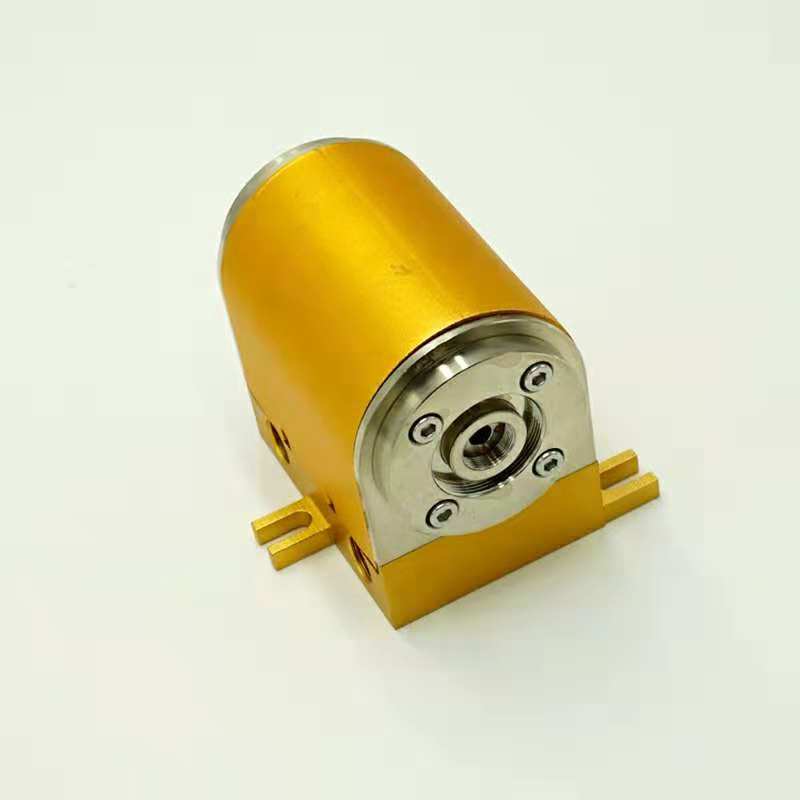

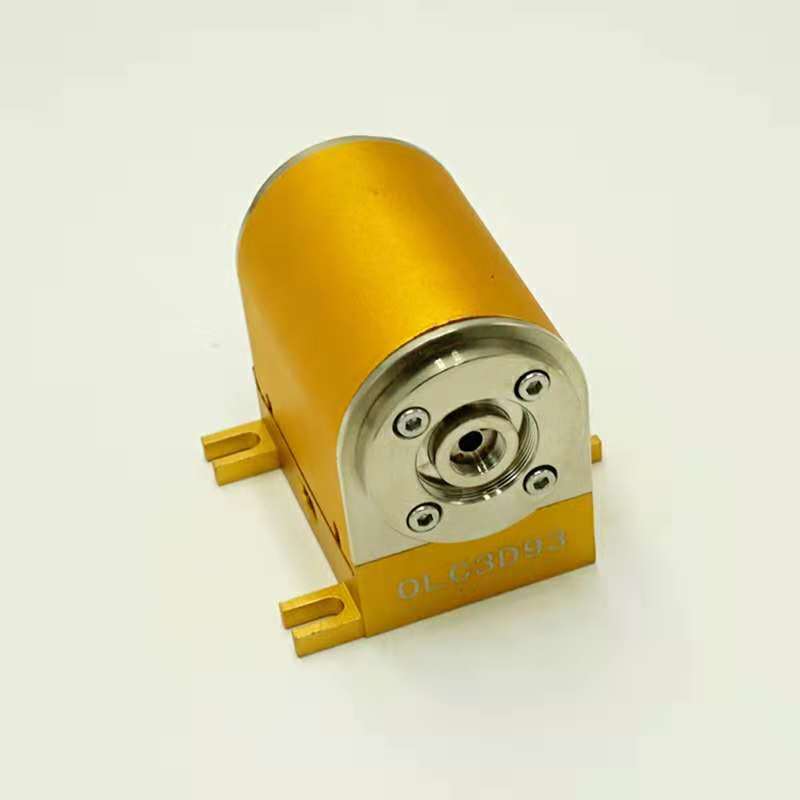

Oriental-Laser has develped a full product line of Diode-Pumped Solid State laser modules for industry applications. This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 20W up to 500W (@1064nm). These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.
Application
1. Metal marking
2. Diamond cutting
3. Laser welding and cutting
4. Cleaning
Specification and Dimension
Output Power: 20-500W (1064nm, CW)
Working Mode: CW
Wavelength: 1064nm
ND: YAG, Doping at 0.6%
Water-cooled
Expected life: 10000 hours
Warranty: 12 months
Diode Provider: Germany
Classification and Parameters
|
Model No. |
Output Power |
Nd:YAG |
Operating current |
Voltage |
Diode Driver |
|
GN35 |
35W |
2 |
18A |
<18 |
GN520 |
|
GN50-H |
50W |
2,3 |
20A |
<18 |
GN720 |
|
GN50-E |
50W |
3 |
25A |
<18 |
GN720 |
|
GN75-H |
75W |
2,3 |
20A |
<24 |
GN520 |
|
GN75-E |
75W |
3 |
25A |
<24 |
GN720 |
|
GN100 |
100W |
3,4 |
25A |
<30 |
GN920 |
|
GN150 |
150W |
4 |
25A |
<40 |
GQ40 |
|
GN200 |
200W |
4,5 |
25A |
<50 |
GQ50 |
|
GN300 |
300W |
4,5 |
25A |
<70 |
GQ70 |
|
GN400 |
400W |
5,6,6,6.35 |
25A |
<80 |
Contact Us |
|
GN500 |
500W |
7,8 |
25A |
<100 |
Contact Us |
|
GN1000 |
1000W |
7,8 |
25A |
<200 |
Contact Us |
Advantage
1.Diode laser bar is from Germany.
2.our high skilled and experienced technicians perform the assembly and test of laser moudle in our 10K-class and part of 100K-class big clean lab.
