Description

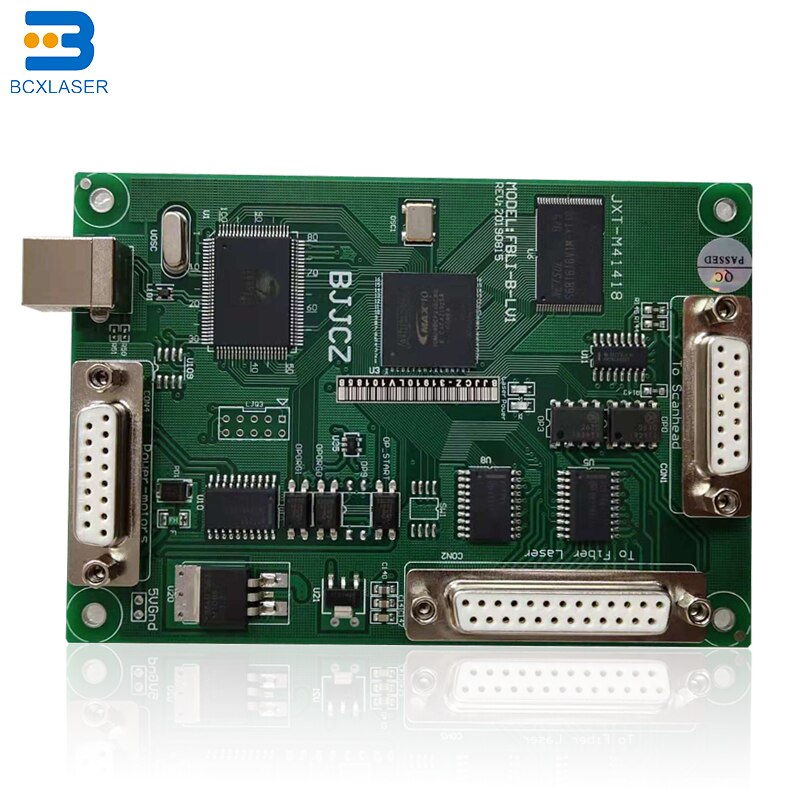

CO2 laser control system laser control card for laser marking machine
Wuhan BCXLASER technology Co.,Ltd, as a professional manufacturer of sign making equipment, Wuhan BCXLASER technology Co.,Ltd. has been dedicated in designing, producing and exporting laser welding machine,laser engraving machines, laser cutting machines to America, Europe, the Middle East and Asia for 12 years. Only top quality components from the USA and Japan are used in our products to ensure that quality standards are met for international and domestic markets.
BCXLASER—YAG jewelry metal Laser welding machine* Fiberlaser marking machine*Laser cutting machine*laser parts–BCXLASER.
Product Description
Applicable laser:IPG RYCUS JPT MAX V-GEN
l Galvo control signal is digital, which can be connect to most scanhead directly.
l on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely.
l Multiple system function. One computer can control up to 8 control board to mark different pattern simultaneously
l Extension axis(step motor or sever motor): two set of direction/pulse signal can be used to
control 2 step(server) motors.
l 16 general input signals(TTL campatible): In0-In13, XORG0(IN14), YORG0(IN15).
l 14 general input signals(TTL campatible): Out0-7 coming out of Con5. Out8-13 coming out
of CON2. Out0 – 3 ,out8 and out13 are TTL outputs. Out4-7 can be configured as OC output or TTL output by jumpers. Out 9-12 are OC outputs.
l ReMark(REpeat MARKing signal): in the case of high speed marking of a same pattern, a foot pedal can be connected to this pin. If some variables are in the pattern or the pattern is too big for the cache in board, the foot pedal can be only connect to general input pins.
l Laser signal: we provide both high level effective and low level effective signals.
l PWM signal: both differential and TTL signal is provided.
l A specified red light pointer signal is now added.
l Two analog signal that control power/frequency is now added.
l Using USB2.0 specifications.
Company Information
Our commitment is to continue to improve the level of technology by research and development, standardization of scientific management, excellent product quality and customer service concepts. Xintian technology has won an excellent reputation in the global market, and with Germany, the United States, Japan, Britain, Russia, Malaysia and other countries it has collaborated with well-known companies and domestic laser research institutes maintained a long-term friendly cooperation. Over the years, our products have been exported to more than one hundred countries and regions.
Certifications
Packaging & Shipping
| Size | Depending on the size of the product |
| Weight | Depending on the weight of the product |
| Packing Details | The normal package is wooden box(Size:L*W*H)If export to countries,the wooden box will be fumigated.If container is too tigher,we will use be film for packing or pack it according to customers special reques |
