Description
(OEM compatible production services, enterprise customized solutions)
(Our company is a laser head manufacturer, actual power, actual wattage, high technical content, stable quality)
(To determine whether the store is a laser module manufacturer, you can check the store’s company business license information in the commercial information on the product page, and you can know the actual business of the store)
(The product parameters and product information we describe are the results of rigorous testing (not exaggerated))
(On the market, 30W can only cut 3mm plywood. The 7W produced by our company can cut 4mm plywood. This is the actual power. The actual wattage. The emitted light beam is strong enough. This is the best way to tell the truth (false power)
7W can cut 4mm plywood, one cut without repeated cutting, and can engrave stainless steel and oxide metals, which means that the output power of the laser head is very powerful. The greater the power, the greater the wattage, the stronger the laser output, and the thicker the cut. This is the actual power and actual wattage. According to this standard, calculate and learn how to buy a laser head with actual power and actual power. This is the easiest way to identify true and false power.
(Industrial laser module, heavy and stable beam precision, very practical, industrial level, international standard)

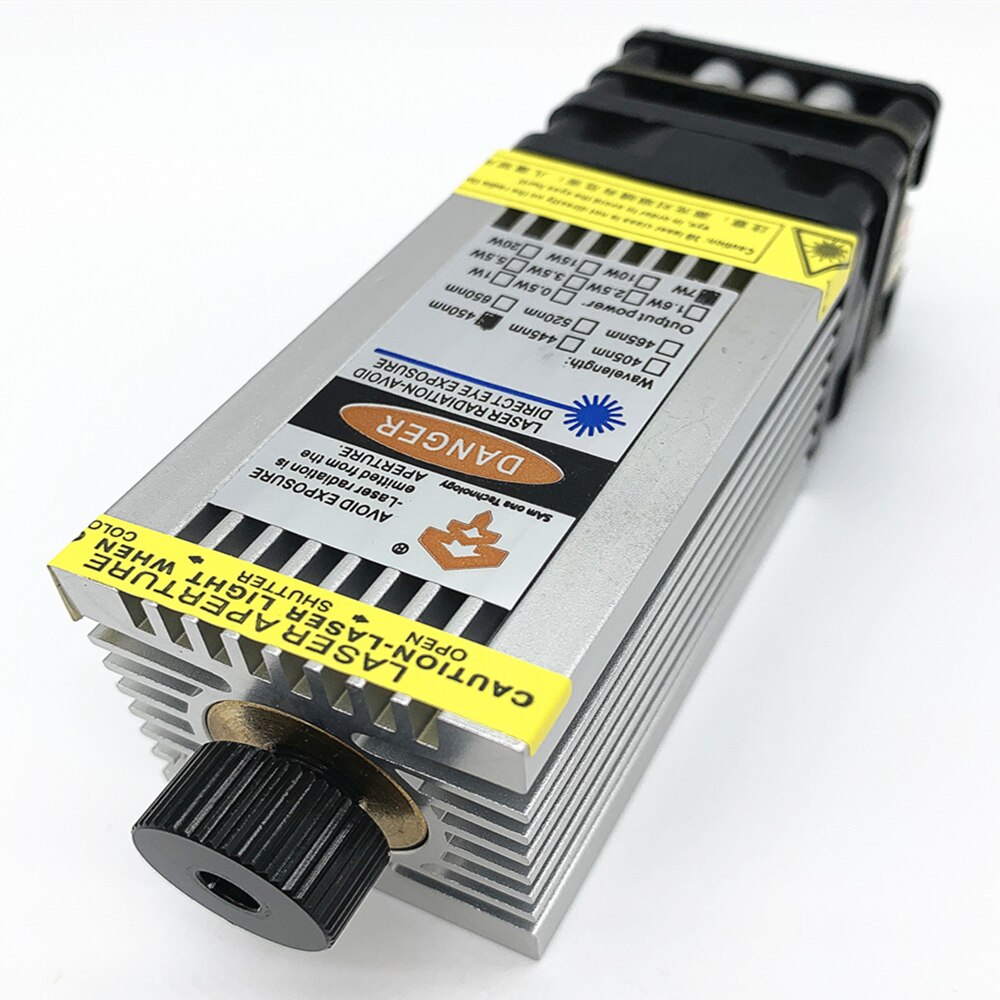

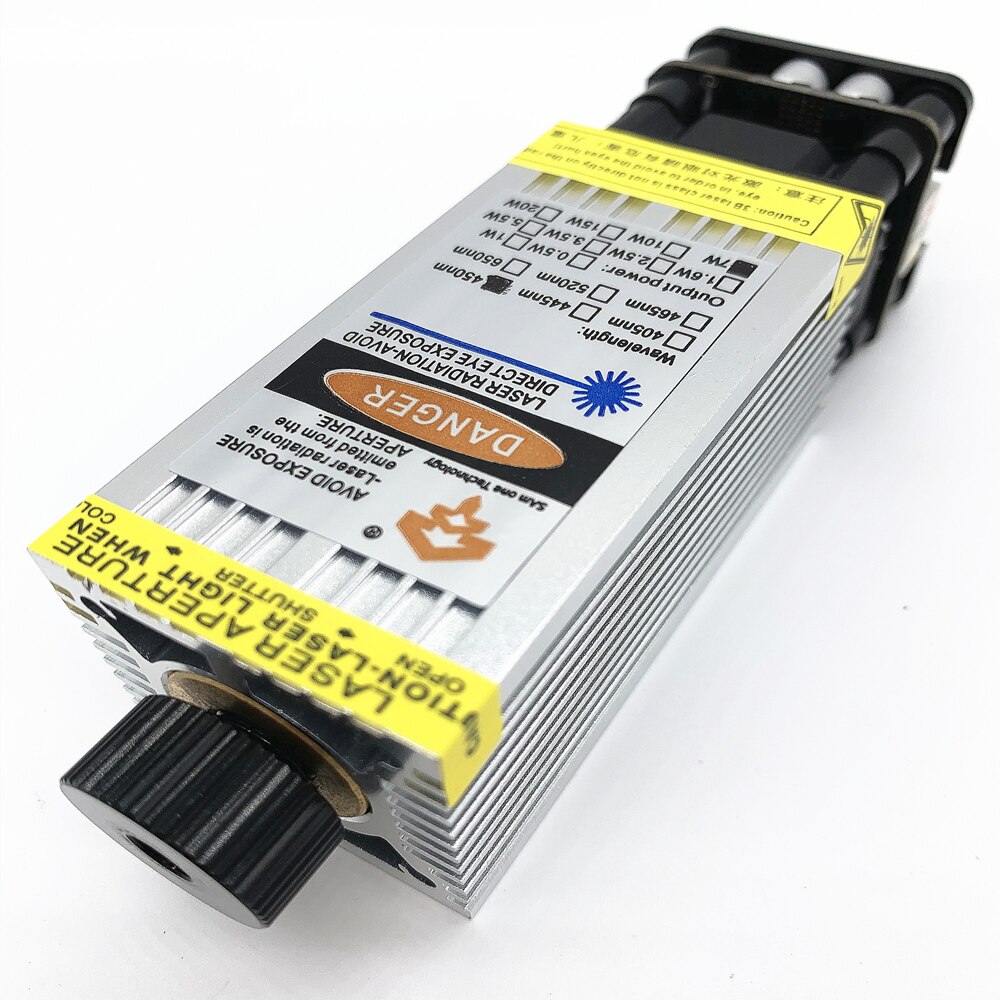

Technical Parameters
Total length of laser + fan: 100mm-105mm
Laser light source: semiconductor blue light
Shell material: aircraft aluminum
Module center material: copper
Color: Oxygen silver

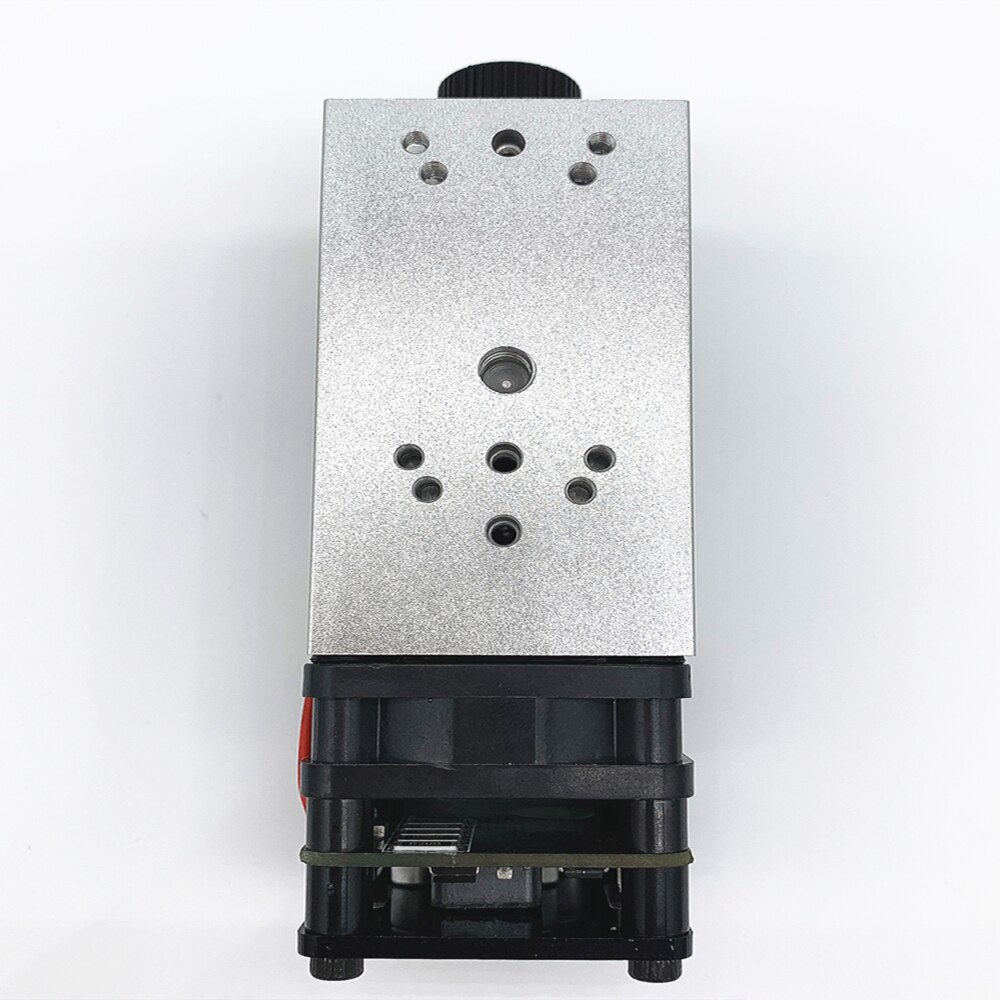

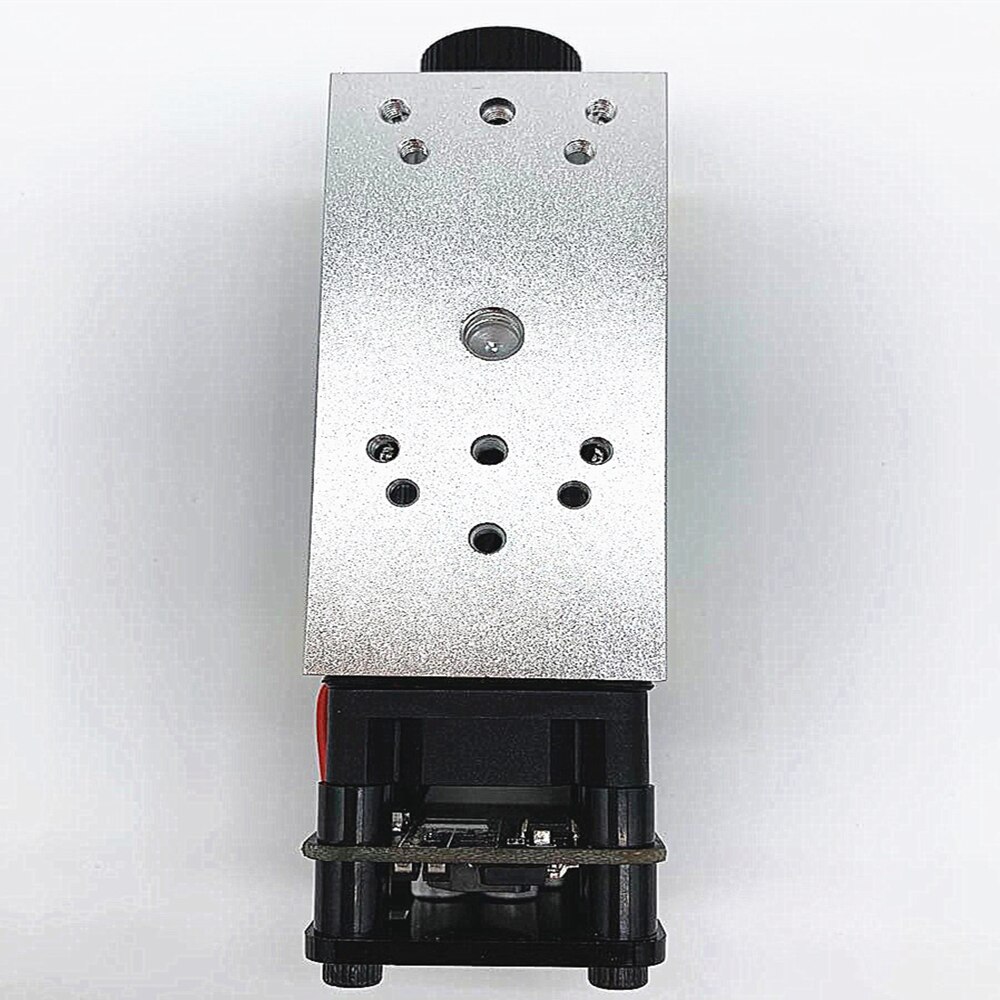

Shell size: (33×33×70mm) (40×40×70mm)
Optical power output: 7W
Laser wavelength: 450nm
Optical lens material: efficient light transmittance
Supply voltage: 12V
Power control: PWM TTL
Power supply current: 3.5A
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: dot, adjustable focal length
The life span is 10500 hours. (If the smoke is blurred, please add a fan when engraving or cutting)
The list includes: 3P line to 4P line*1, 2 head 3P line*1, short-line DC interface*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
Buyers read: Please pay attention to the order of wires: 3P wire link mode, red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace, please check carefully
Buyers read: Please pay attention to the sequence of wires: 4P wire link mode, red wire 12V+, black wire 12V-, yellow wire TTL+, white wire TTL- please check carefully
Note: For industrial use only, eye contact is prohibited, children are prohibited from contacting this laser product, and the consequences are at your own risk.

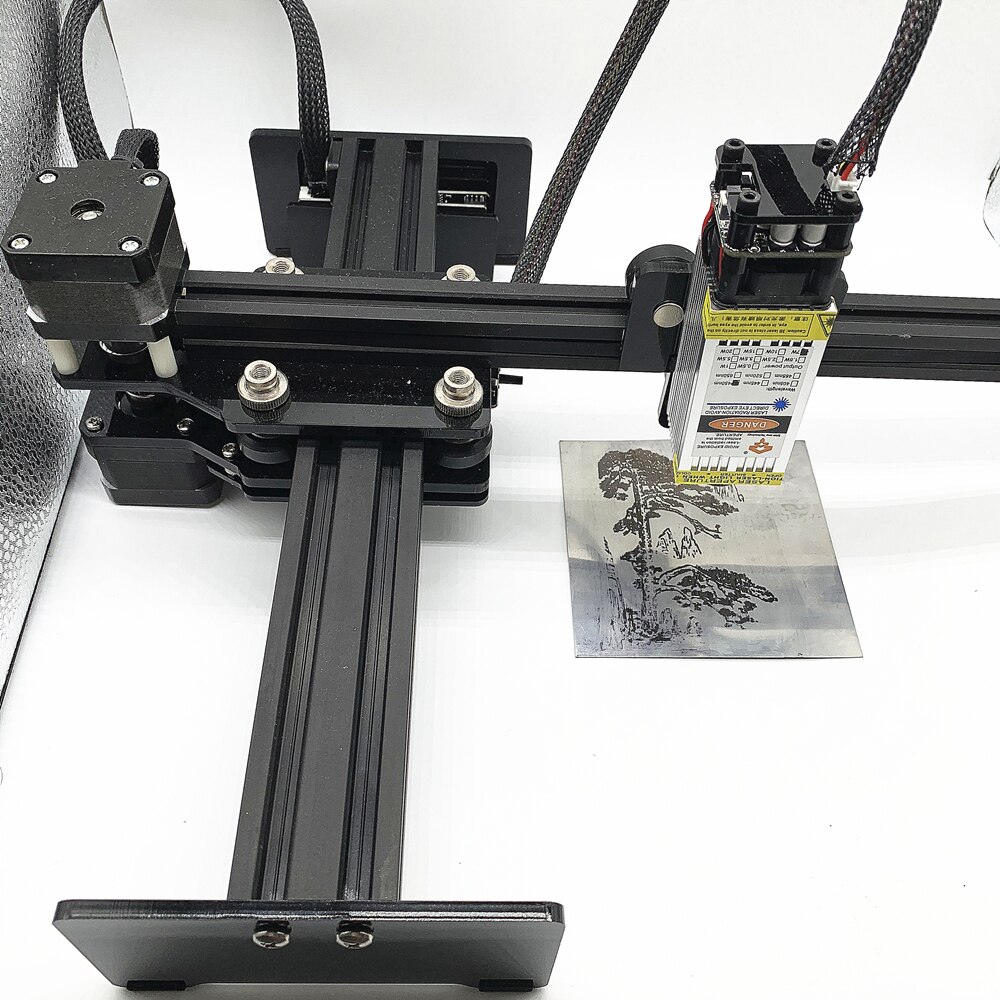

Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.
It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,
Cutting material: cut plywood, black acrylic board, leather, paper, etc.
Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.
Engraving must know: Engraving reflective objects must be blacked before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
You need to know which size is suitable for installing the engraving machine.
If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a clear picture, you can see the letters displayed on the interface between the engraving motherboard and the laser module.
