Description

Specification:

Profile dimensions: 400x330x240mm (excluding motor extensions)

Stroke (engraving range): 300x180x45mm

Screw: Professional T8 screw, lead 4mm, double copper nut eliminates the difference

Stepper motor: New 42 stepper motor, reliable quality

Voltage: 12V, phase current: 1.3A, phase resistance: 2.1 ohm, torque: 0.3N.m

Spindle:775 spindle motor (12-36V) 24V: 10000 rpm

Laser head: 2.5W laser head

Power: 24V 5A power adapter (input voltage 110-240V)

Countertop: 300x180mm

Rack: 2020 profiles

Interface: USB

Gray part material: Plastic

Control software: GrblControl

Design software: All CAM software can be

System requirements: Windows XP SP3, win7, win8, win10. (32/64 is OK)

Note:

Delivery is in the form of a piece, you need to have some hands-on ability!

Package:

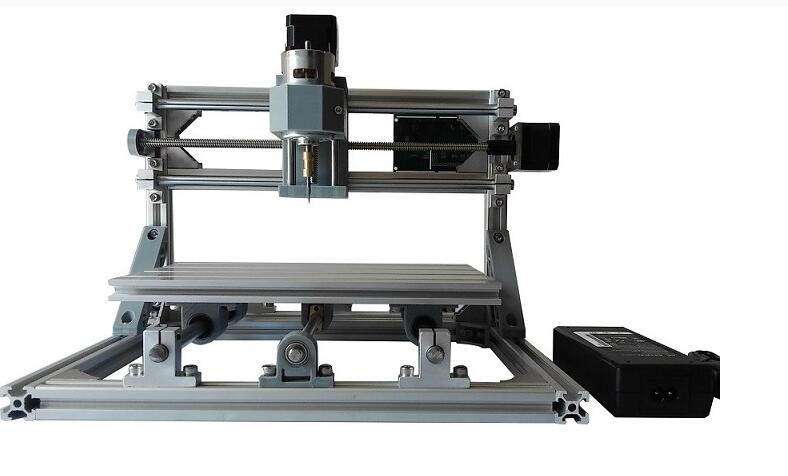

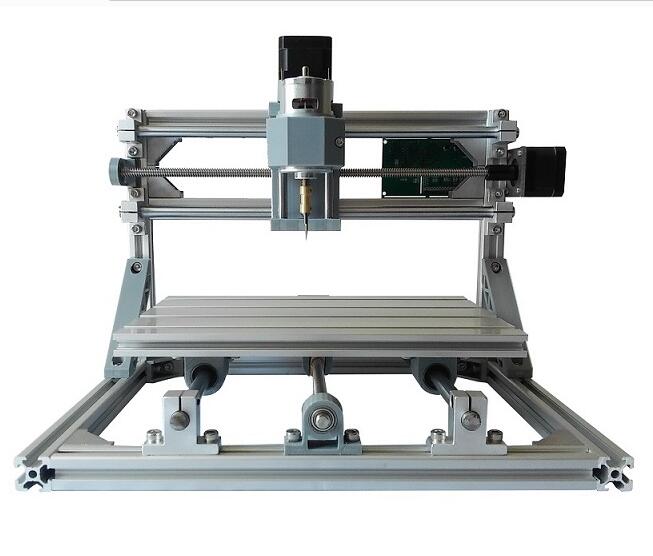

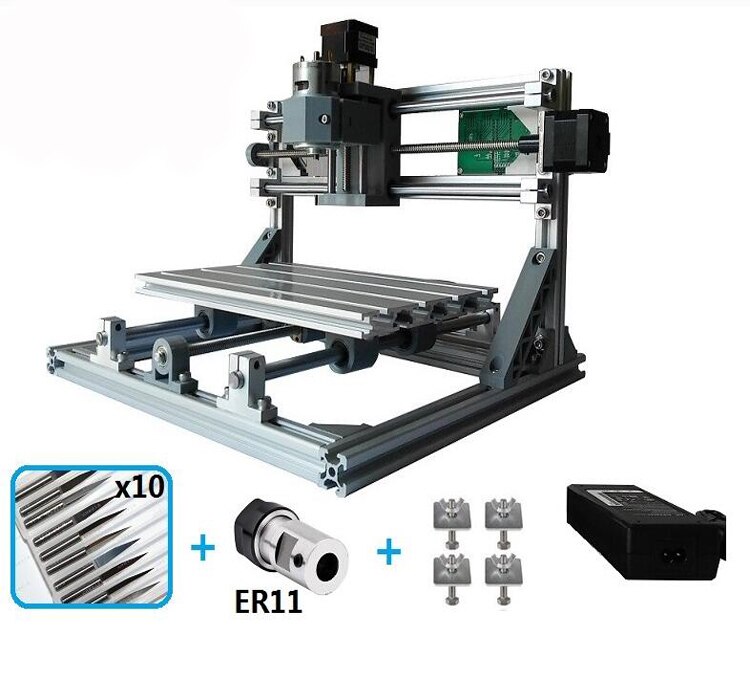

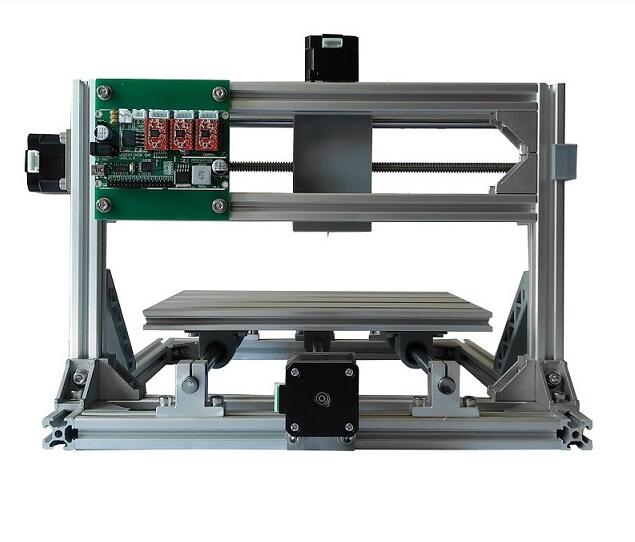

1*CNC3018 engraving machine
