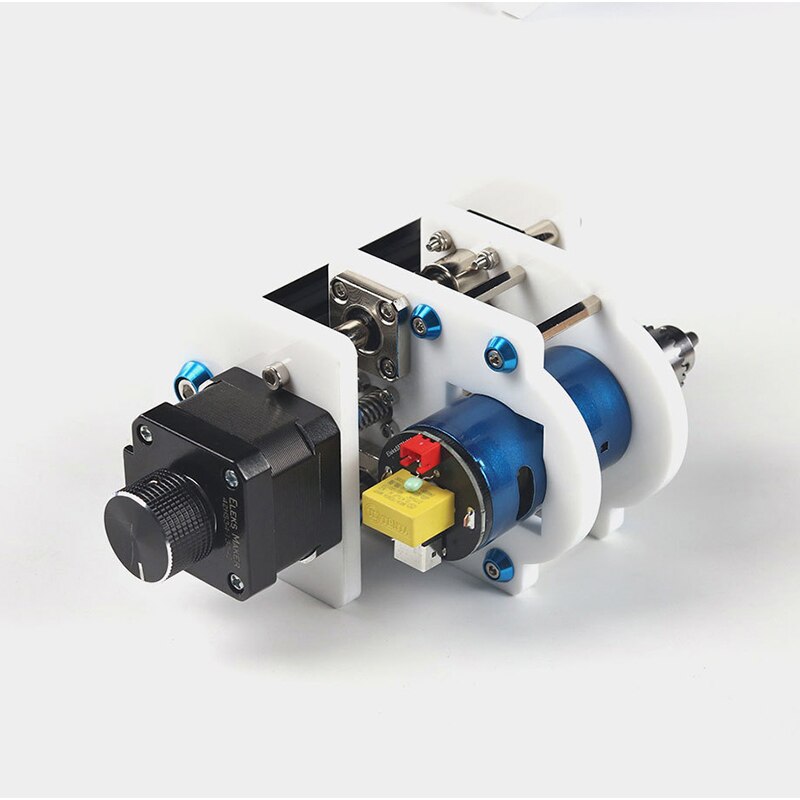

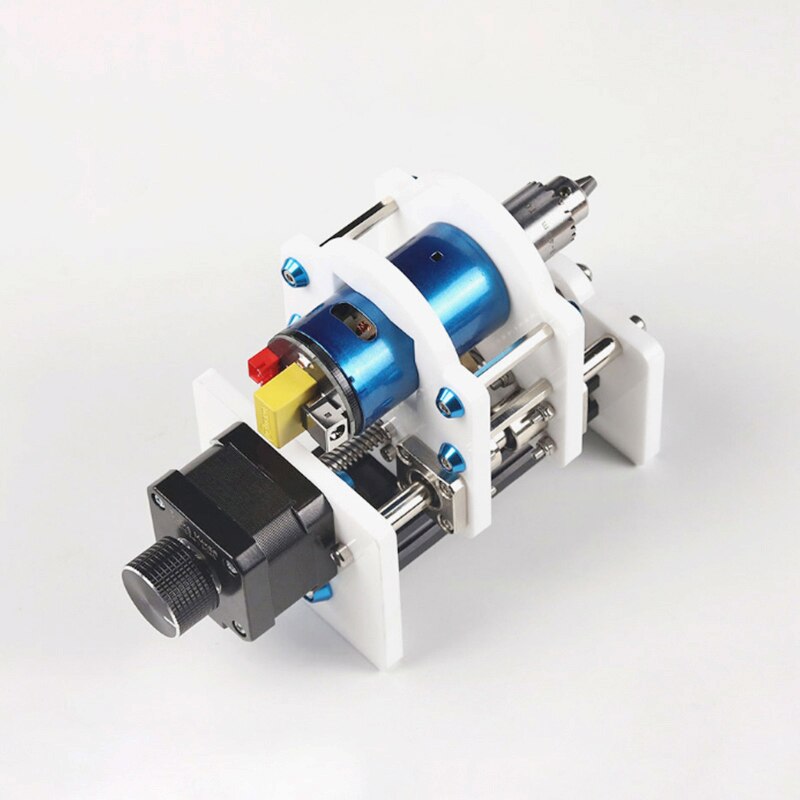

Zaxis Kit Laser Module Holder Spindle Motor Holder DIY CNC Laser Cutter Engraving Machine Z axis Module for 3axis cnc Router



Specifications:

Product Name: Z axis kit

Product Size: 170*80*120mm

Actual Route: 40mm

​Motor Modle: 42HS34-1304S

Optical Axis Diameter: 8mm

Spindle Parameters: 12V 8000rpm

Fixture Parameters: JT0 0.3-4mm

Screw Rod Parameters: T8-8mm



Features:

– Suitable for holding laser module, spindle motor.
– This pecfect DIY kit can add an adjustable Z Axis to your engraver.
– If install it on EleksMaker A3 / A5 engraver, you need to replace the original ManaSE 2 Axis Board with Mana 3 Axis Board or other 3 Axis Board



Packing Include:

1×Z axis holder kit

1×555 spindle motor

1×fixture

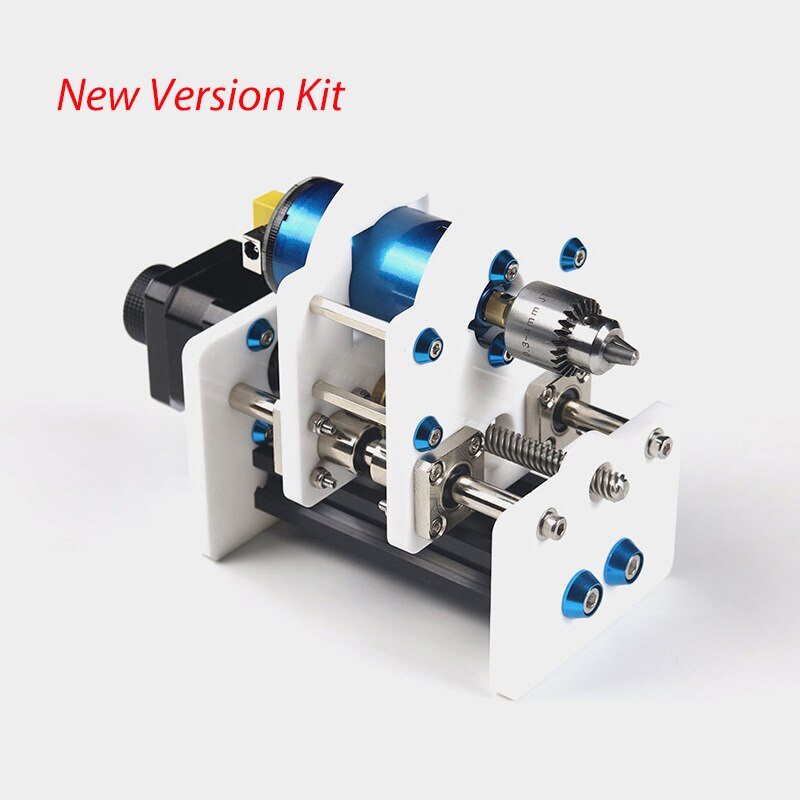

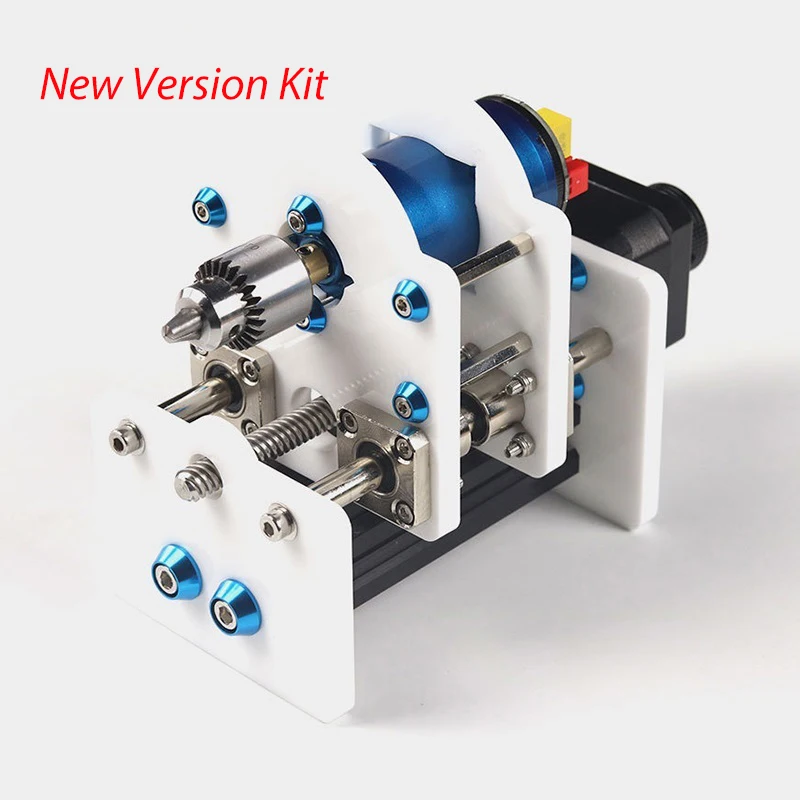

What’s the improvement of the new version kit is not only a Zaxis holder, but also equipped with a spindle motor and a drill chunk which means it’s a more powerful and ready-to-use integrated set.

​
