Description
- Brand Name: CRONOS
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: 15w
- CNC or Not: CNC
- Is Smart Device: no
CNC Laser Engraver 15w 40mm/51mm Fixed Focus Laser Module PWM/TTL For DIY Wood Route Engraving Machine
- Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it will cause permanent blindness, the consequences at your own risk.
- Do not use in flammable and gas atmospheres to avoid fire and explosion
- Prohibit children from exposure to this laser product.
- Do not open the module to avoid damage.
- Optical Lens:φ6 glass
- Fan:12V
- Service life:10000 hours
- lutput:12V 2.5A
- Optical Output Power:5-6w
- Electric Power:15W
- Wavelength:450NM
- Precision:0.01MM
- Lens focallength:20MM
- Speed of the Fan:15000RPM
- Interface:3Pin
- Product metarial:Aluminum 6061 anode/copper H59
- Cooling copper core:60mm copper with screw thread
- Cutting depth:Max 5MM (repeatedly)
- Laser Beam Module:Dot
- PWM:5V,0-20Hz
- Working Temperature:0℃ -60℃
Packing list:
- 15w laser

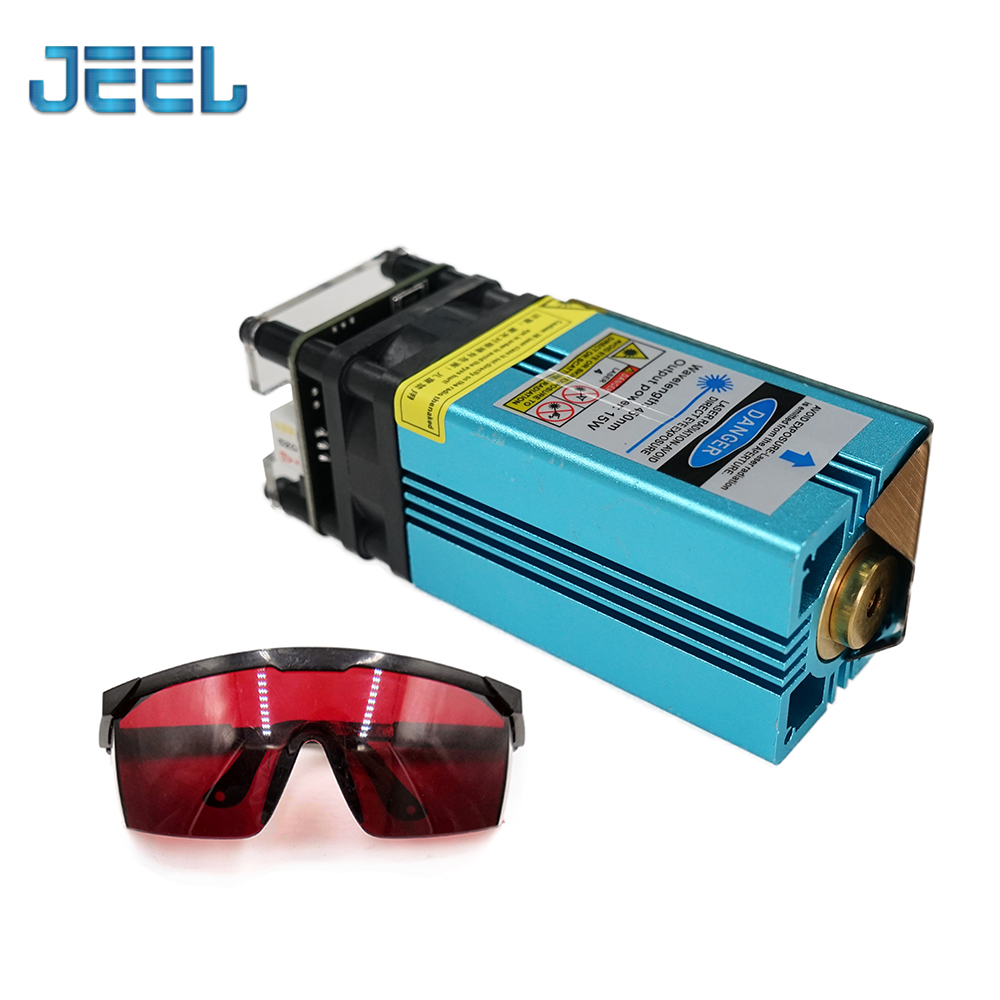

- protective glasses
- 2cm fixed focus column
- connection cable
PS:Generally, materials that can be used or burned can be engraved. If it is transparent, the latter is highly reflective and combustible. It needs to be blackened with a whiteboard pen and then engraved, otherwise it will easily damage the laser.
40mm width
51mm width
