Package including:

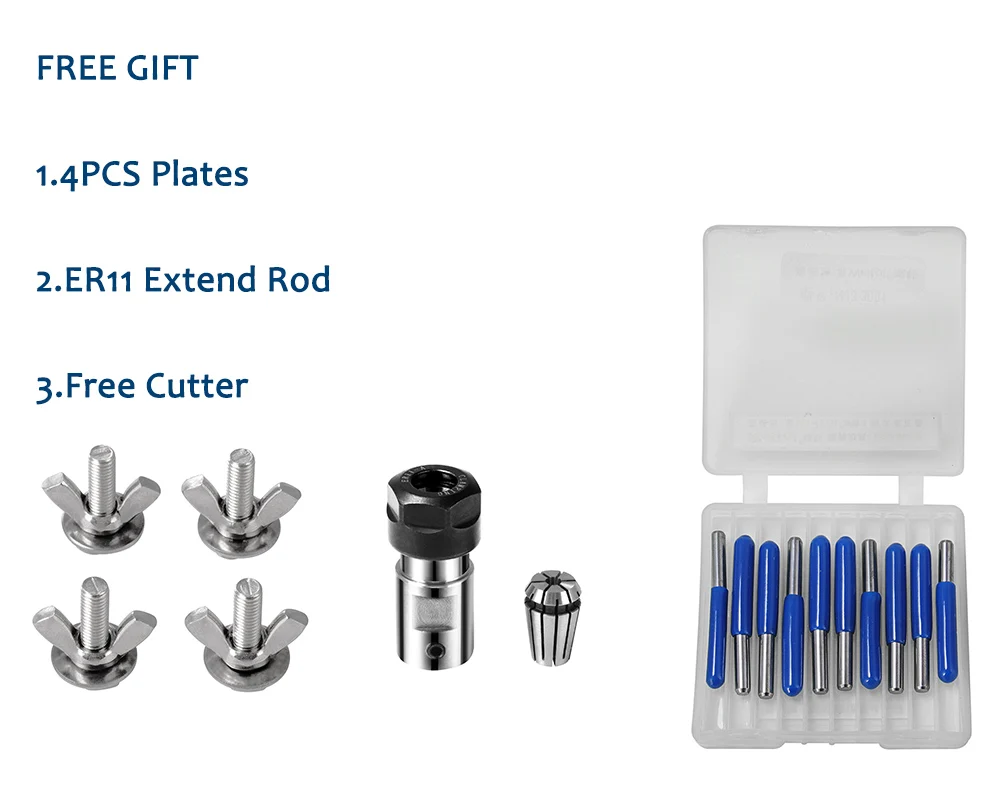

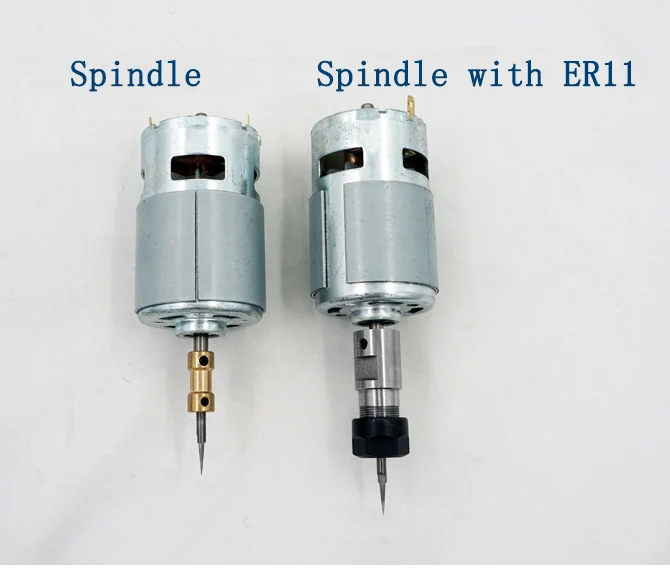

Standard: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters + 1pc ER11 collet + 2pcs wrenchs
Add Offline Controller: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters + 1pc ER11 collet + 2pcs wrenchs
+ Offline Controller
Add Laser: CNC3018 PRO-Max + 4pcs clips + 10pcs cutters +1pc ER11 collet + 2pcs wrenchs + Goggle
+ Laser(Which one you choose)
Feature:
|
Supported system: Windows XP / Win 7 / Win 8 / Win 10
Screw: professional T8 T-screw, lead 4 mm, pitch 2mm, double copper nut and poor
Power Supply: 24V 5A power adapter
Controller Board: Upgrade GRBL Offline XYYZ 3 Axis Control Board with upgrade A4988 drives

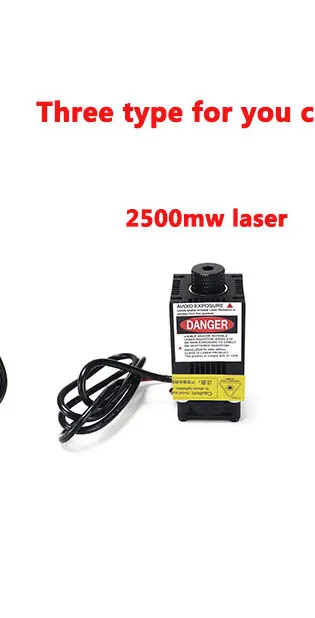

Laser Module (Options): Brand new and updated blue lasers, which is 33mm 3P connection, supports PWM/TTL, 0-100% adjustable
Offline work: Surpport
Offline controller : new version with button battery, 1.8in LCD monitor with installed SD card .
Application:
Laser Can Engrave:
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper
/Anodized Aluminum/Ceramics/Stone/ only 201, 316 type Coated Stainless steel (with 15W)
Laser Can Not Engrave:
Metal/Glass/PCB/Reflective Material/Transparent Material
15W Laser Can cut:
About 3mm wooden materials
Cutters can engrave:
plastic, wood, acrylic, pvc, pcb, wood or the like material
Summary:

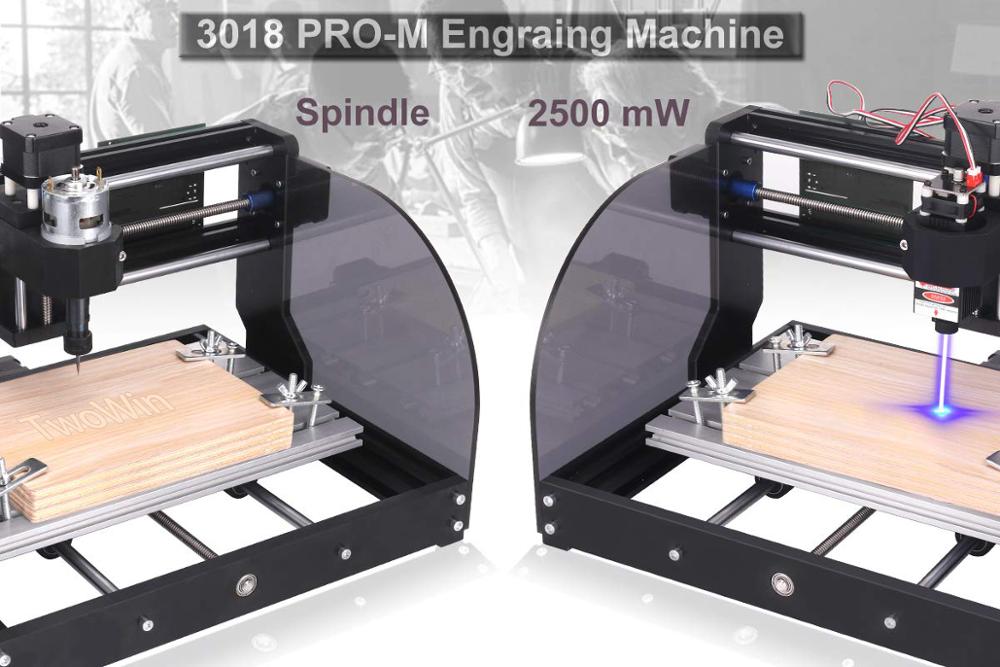

Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.

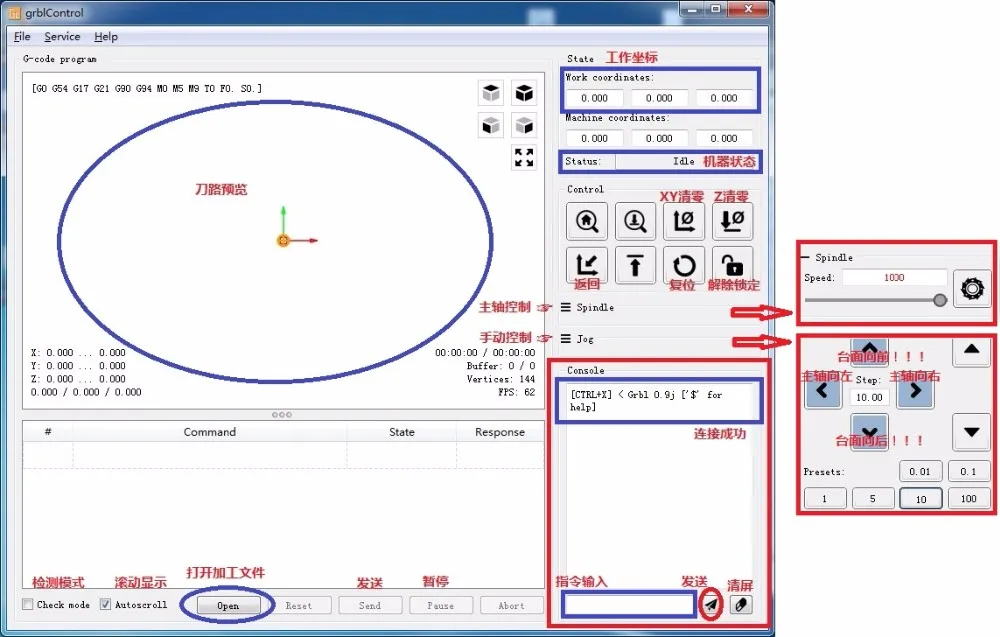

Control Software: GrblController

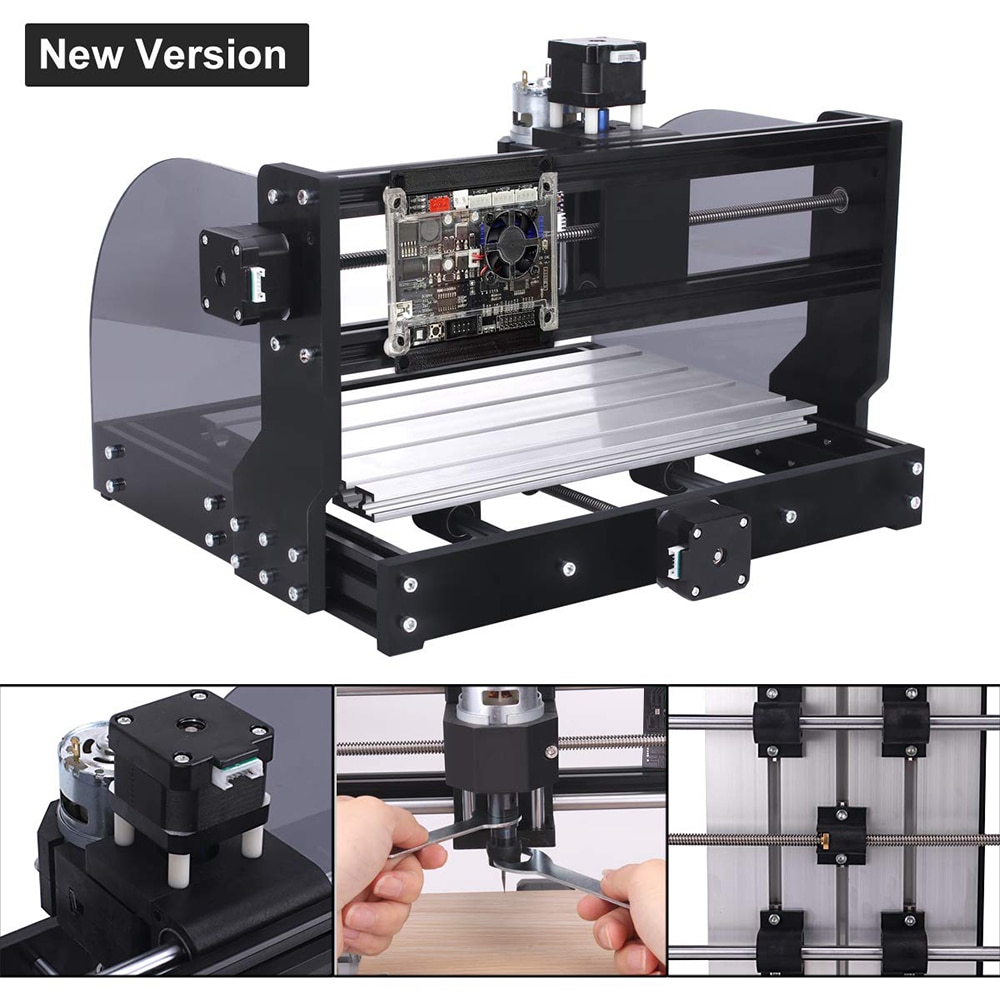

Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack

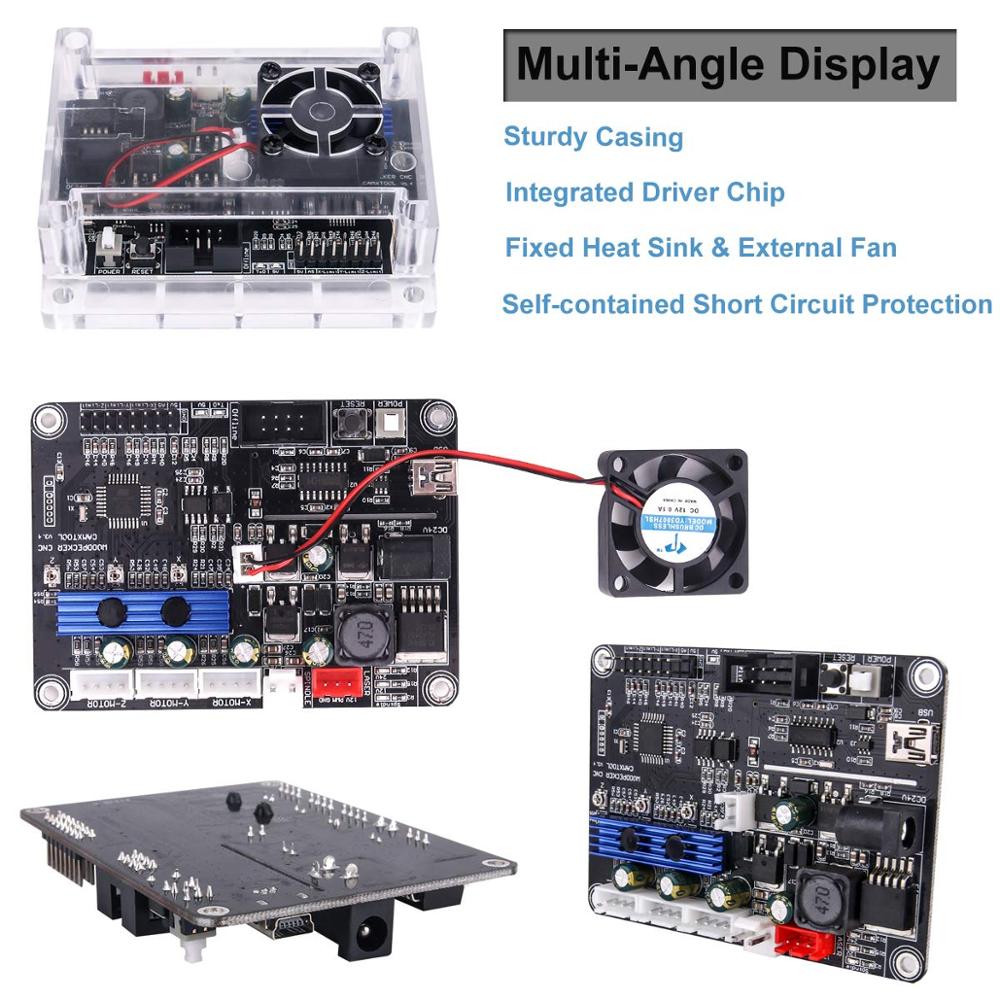

New upgrade of the control panel!
1. Grbl1.1f firmware, stable performance;
2. Offline carving in the whole process (offline module is selected), offline knife setting and carving;
3. Supporting 2P/3P laser, PWM/TTL signal control; power 0-100% adjustable;
4. The spindle supports 0-100% adjustable PWM power;
5. Stepper motor overcurrent protection avoids damage; upgrade DRV8825 drive performs far better than A4988;
6. Laser directly imported into the picture engraving, no programming, no design, simple and convenient!
If you want to buy the Control board or the offline controller, please click the picture directly.
Usage : can be engraved on plastic, wood, acrylic, pvc, pcb or the similar material.
Notice:
For 15W laser module, the line sequence of control board terminal should be
Red — “12V”, Yellow — ” TTL/ PWM”, Black– “GND”.
If the laser can not be connected, please check the line sequence of control board terminal.
The line sequence of laser is right, you just need to change one end of the cable.
If you don’t know how to change it, please contact our service online directly, and we will try our best to help
you solve the problem, please don’t worry.
if you need English Manual, pls leave me your e-mail, we would sent it to you, thank you very much.
Upgraded offline controller:
if you need with laser, pls click belowe pic.
