CNC 3018 PRO Laser Engraver Wood CNC Router Machine GRBL ER11 Hobby DIY Engraving Machine for Wood PCB PVC Mini CNC3018 Engraver

Notice 1

CNC3018 and CNC3018 PRO have the same function and engraving area except the frame material and shape.This 3018PRO is much more light and portable,convenient,Easier to install (Just need about 20 minutes to finish)
Frame Material of CNC3018 PRO: High Quality Phenolic Resin

Frame Material of CNC3018: Aluminum alloy

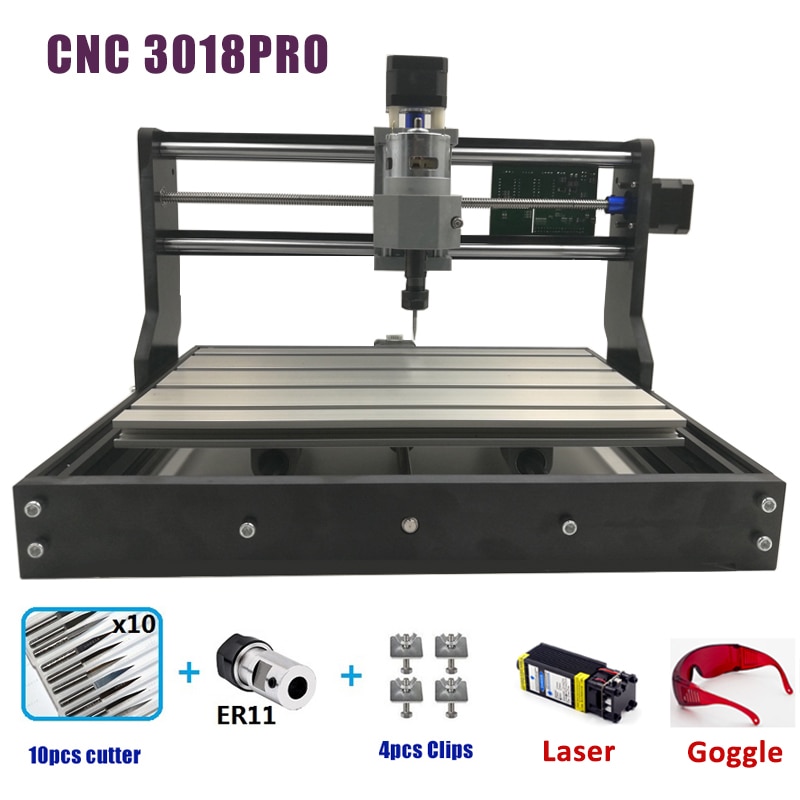

Package include:

Standard: CNC3018 PRO+ER11+4pcs clips+10pcs bits

Add Offline Controller: CNC3018 PRO+ER11+4pcs clips+10pcs bits+Offline Controller

Add Laser: CNC3018 PRO+ER11+4pcs clips+10pcs bits+Goggle+Laser(Which one you choose)

Function and Parameter:

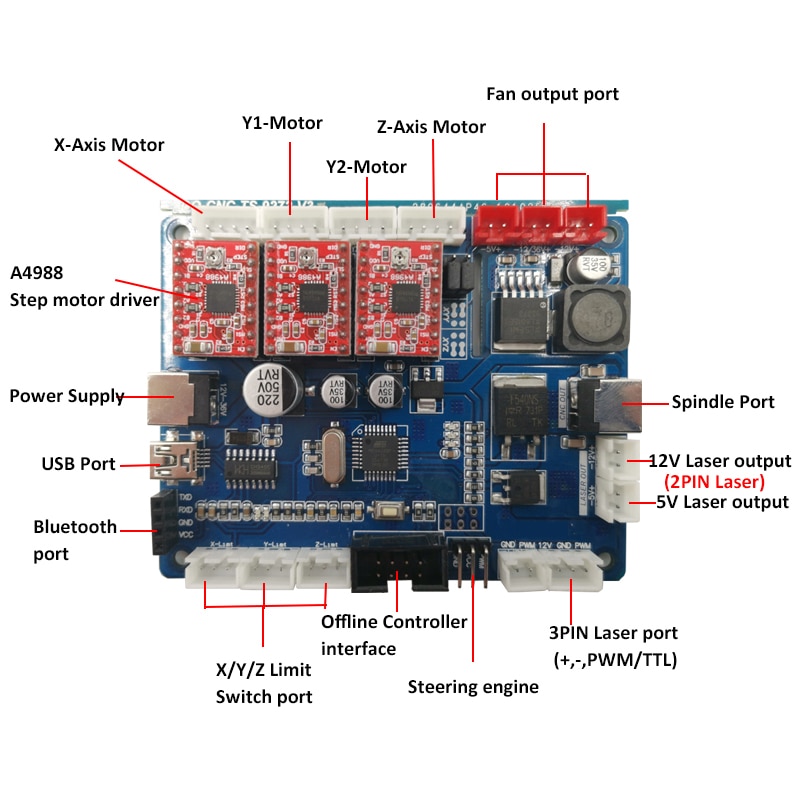

Control Board: CNC-TS-V3
Engraving area: 300x180x45mm;
Aluminum alloy Plate area:300x180mm;
Spindle Motor:DC24V, Max. 120Watt ,10000rpm;
Stepper Motor: Input DC12V,1.3A, 0.3Nm Torque;
Power Supply:Input AC100-240V,50/60Hz, 1.3A, Output DC24V;
Control Software: GRBL Control;
Available System for PC: Windows XP/7/8/10(Not support Mac OS);

3 Axis engraving for: Wood,Plastic,PCB,Acrylic,Plywood,etc.

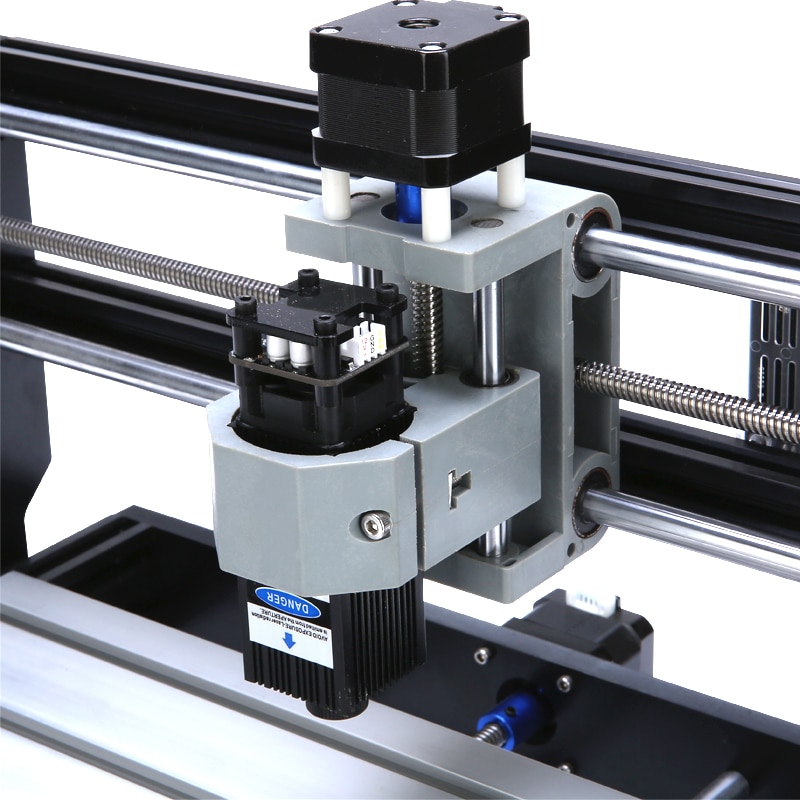

Laser engraving for: Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.
Note:The 10W laser can engrave on stainless steel and anodized aluminum.

Standard
1*CNC3018PRO machine
10*Cutters
4*Clips
1*24VDC power supply
All of connecters and components

Add Laser
1*CNC3018PRO machine
10*Cutters
4*Clips
1*24VDC power supply
All of connecters and components
1*Laser (Which power you choose)
1*Red protect goggle

Add Offline Controller
1*CNC3018PRO machine
10*Cutters
4*Clips
1*24VDC power supply
All of connecters and components
1*Offline controller
1*1GB Memory TF Card
