Description
(OEM compatible production services, customized solutions for enterprises, customized solutions for individuals or amateurs)
(Our company is a laser head manufacturer, please contact us if necessary, you can customize the actual power. The actual wattage, high technical content, stable quality)
(To determine whether the store is a laser module manufacturer, you can view the store’s company business license information in the commercial information on the product page, and you can know the actual business of the store)
(The product parameters and product information we describe are the results of rigorous testing (not exaggerated))
(One reaches the actual wattage. The actual power laser head is very powerful in the application process. Industrial level, international standard.)
Technical Parameters
Total length of laser + fan: 100mm
Laser light source: semiconductor blue light
Shell material: aircraft aluminum
Module center material: copper
Color: Oxygen black
Shell size: 33×33×70mm
Optical power output: 2.5W
Laser wavelength: 445nm
Optical lens material: high efficiency light transmittance
Power supply voltage: 12V
Power control: PWM TTL
Power supply current: 1.7A
Interface specifications: 3 fight lines 2.54
Light shape: dot, adjustable focal length
New heat dissipation method: high-speed double ball fan cooling at 13,000 rpm, safer and more durable
New extension: 48 hours of continuous work, 10500 lifespan

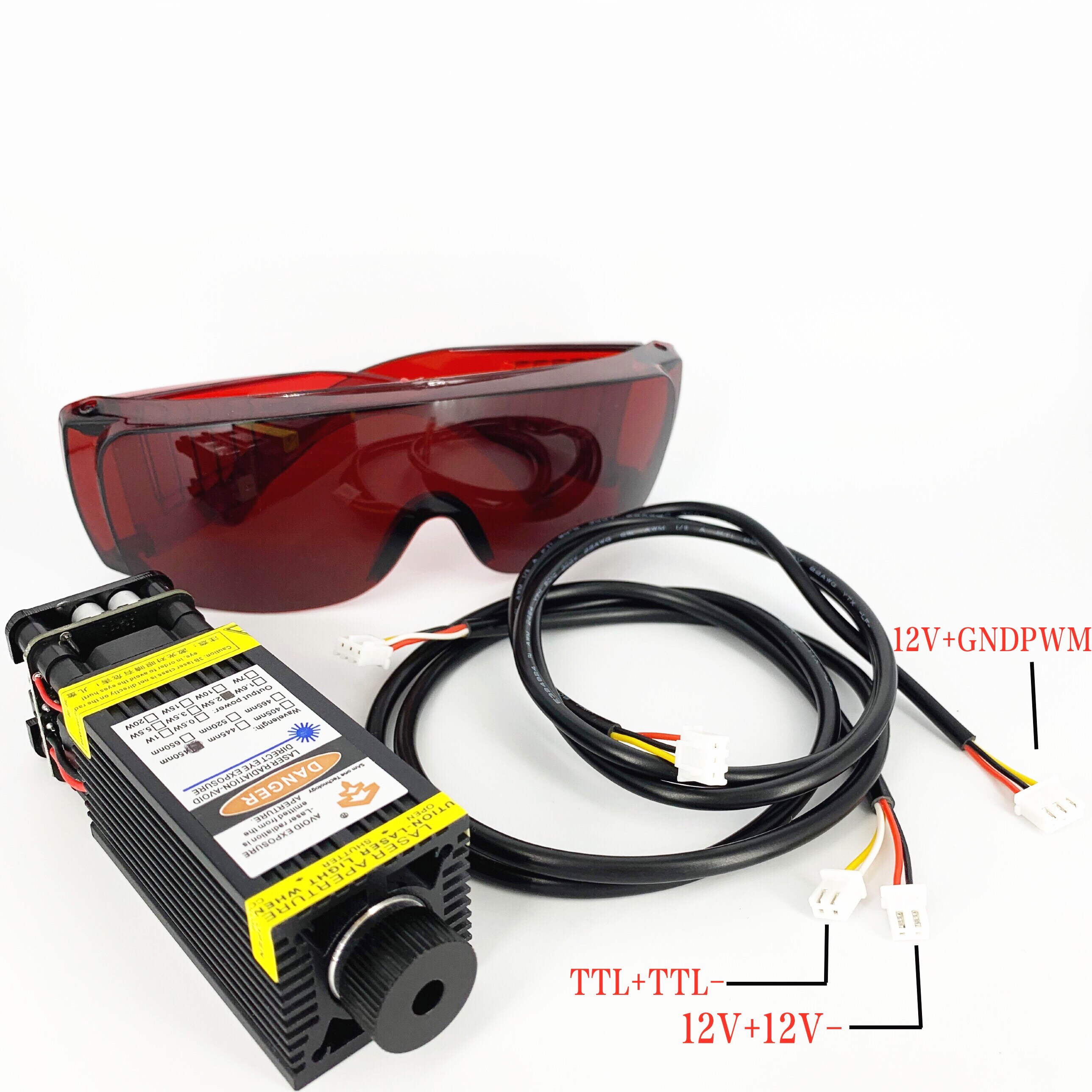

The list includes: 4P line*1, 3P line*1, short line DC*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
Buyers read: Please pay attention to the wire sequence: red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace it, please check carefully.
You need to check whether your engraving machine motherboard has a corresponding socket. The port specification is 2.5, 12v+ GND PWM. The voltage is 0-5V (12+ 12V- TTL+ TTL- The voltage is 0-5V). This laser head is plug and play.
Note: For industrial use only, eye contact is forbidden, children are forbidden to come into contact with this laser product.
If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a clear picture, you can see the letters displayed on the interface between the engraving motherboard and the laser module.
