Description
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Package: TQFP
- is_customized: Yes
- Supply Voltage: 5v
- Dissipation Power: Linear Position Sensor
- Application: Linear Position Sensor
- Operating Temperature: -40~ 85
Product Features

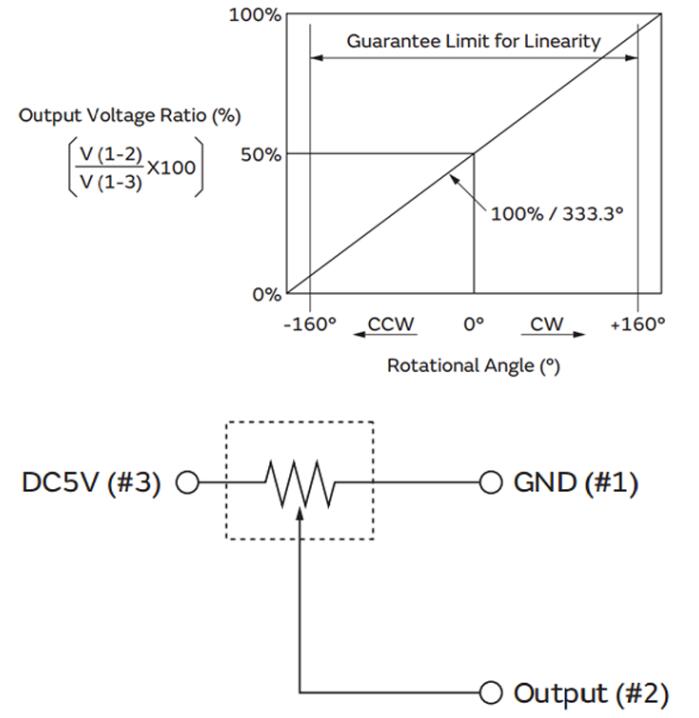

The rotation angle sensor uses a linear potentiometer. The rotation angle changes the resistance of the potentiometer, and the output voltage also changes.
Product Parameters
Supply voltage: DC 5V
Working environment temperature: -40 ° C ~ 85 ° C
Rotation life: 300K times
Rotational torque: 1mN.m (Ref.: 10.5gf.cm)
Effective rotation angle: 333.3°
Linearity: ±2%
Potentiometer total resistance: 10KΩ ± 30%

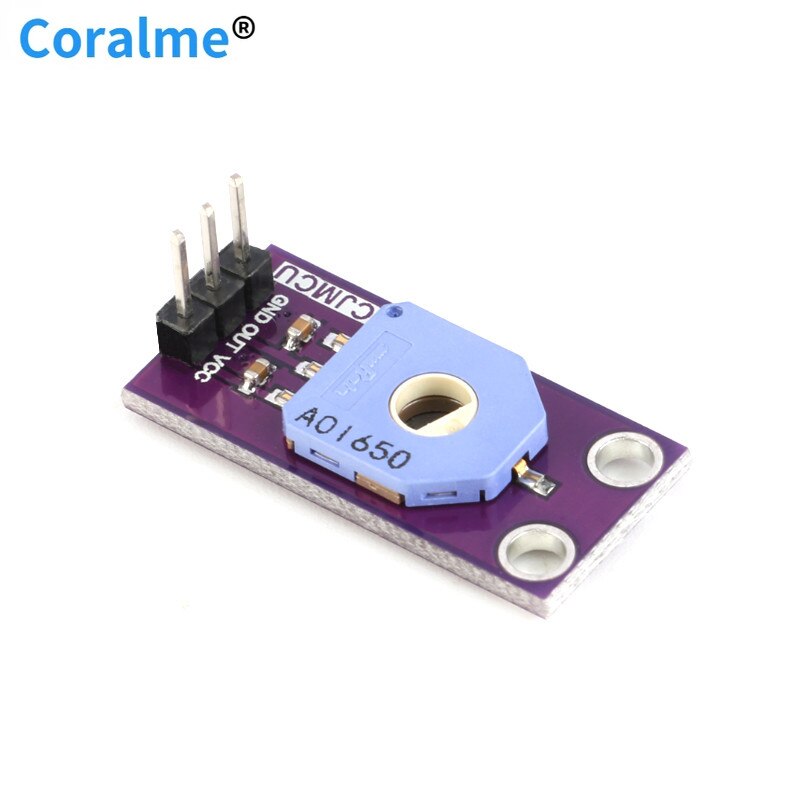

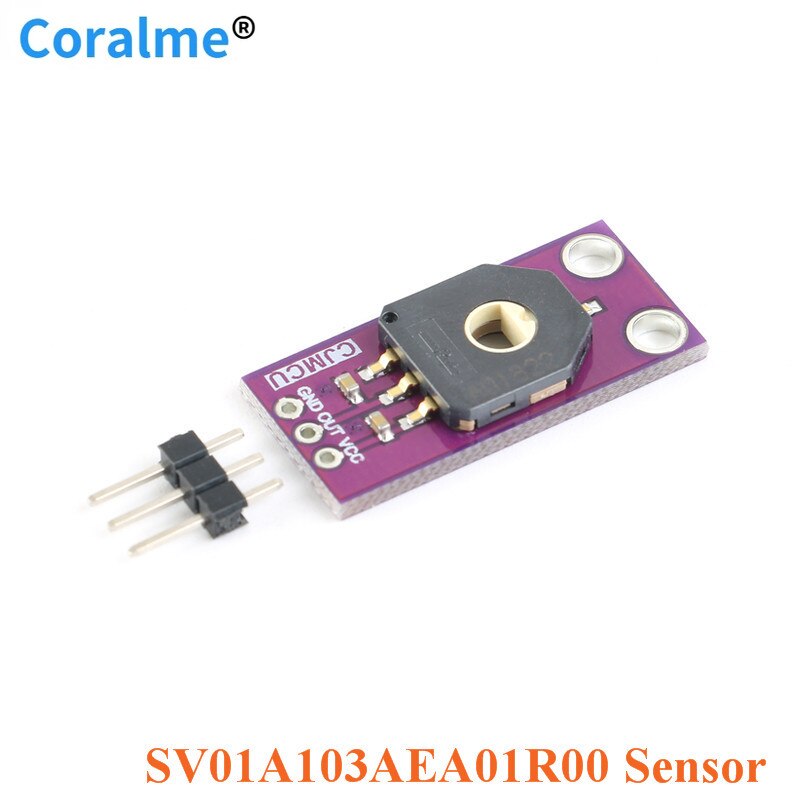

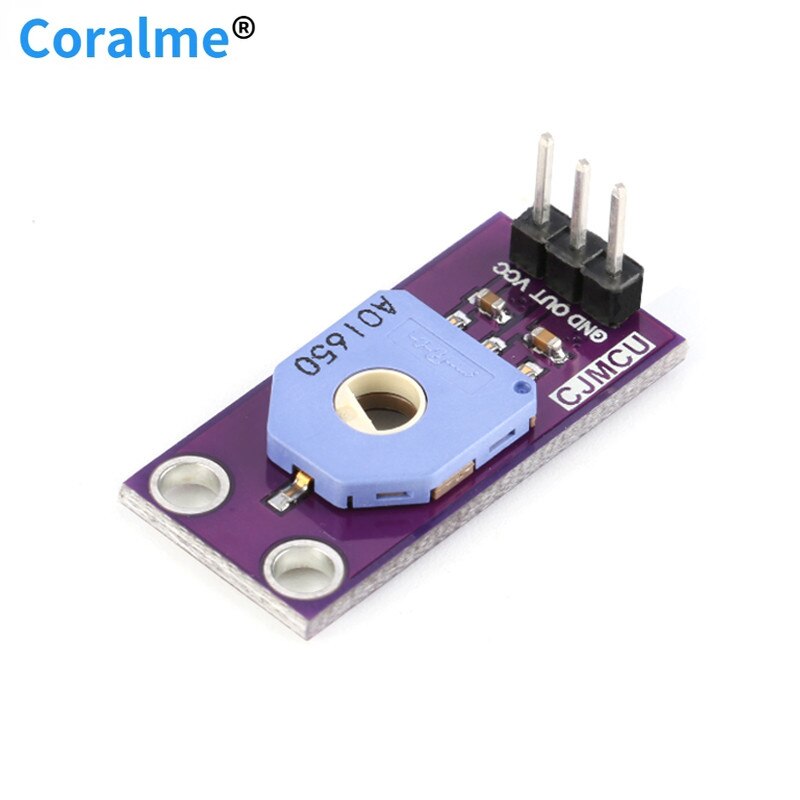

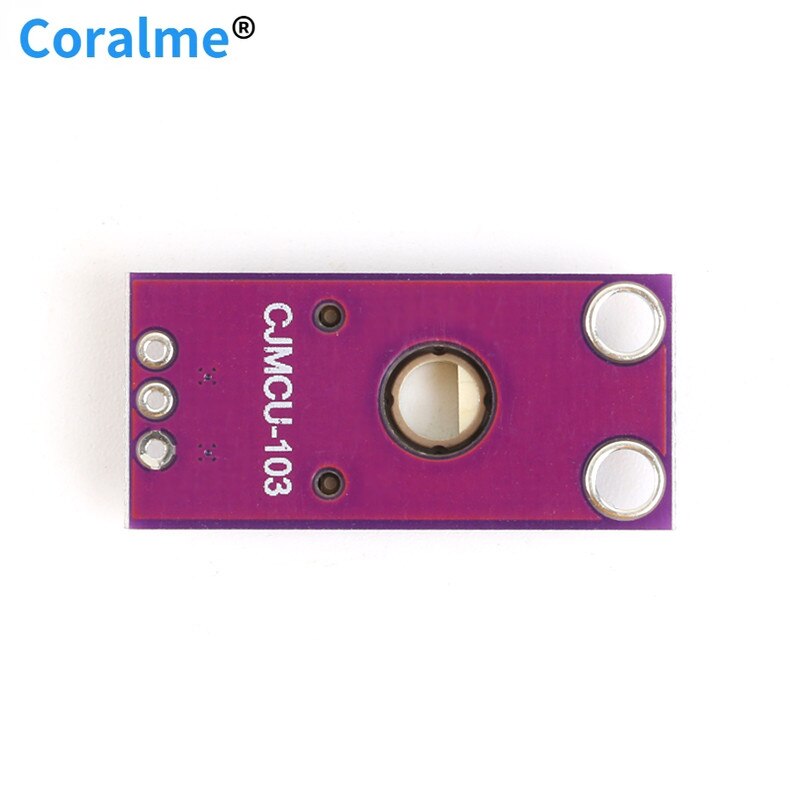

Module size: 28.1mm*13.1mm*3.8mm with two M3 mounting holes
Instructions for use

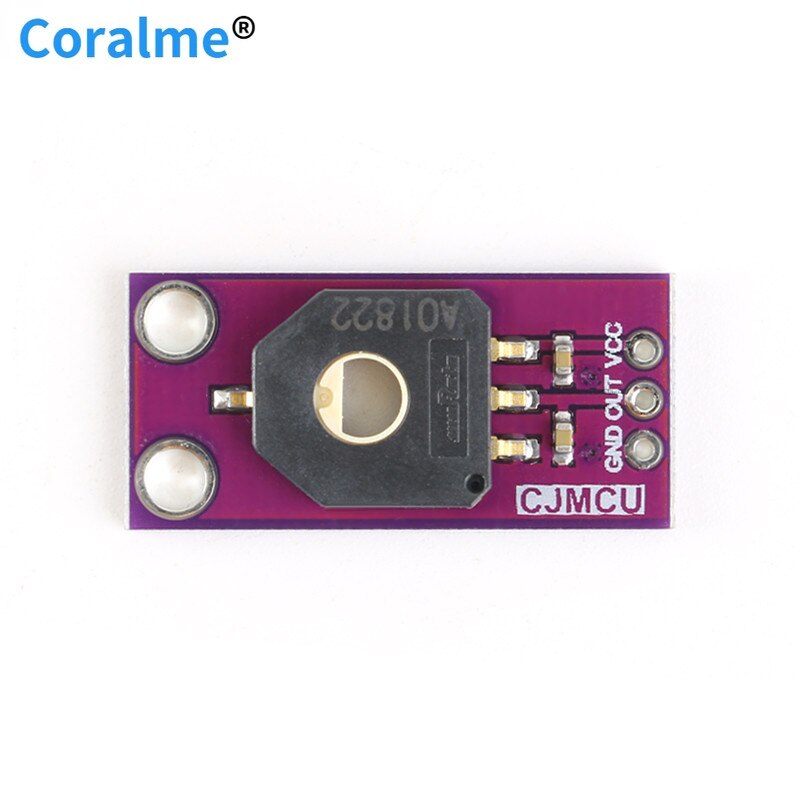

OUT voltage output, VCC power supply 5V
