Description
CATV -50~+26dBm TL510C Optical Power Meter with FC SC Connector
Welcome to our store
Our Target:
High Quality , Best Service ,Fast Respond
Welcome to China market,you can direct buy goods from China.I am glad you are interested in our items,we are the professional supplier in China, hope we can have good business here.
Shop announcement:
When you order the items,can select any items from my store together.
Top quality ; Competitive price ; Fast shipping;Drop shipping available;Best and Timely Service;100% Satisfaction ;Big discount for big order.
Warmly welcome to do Drop Shipping and Wholesale

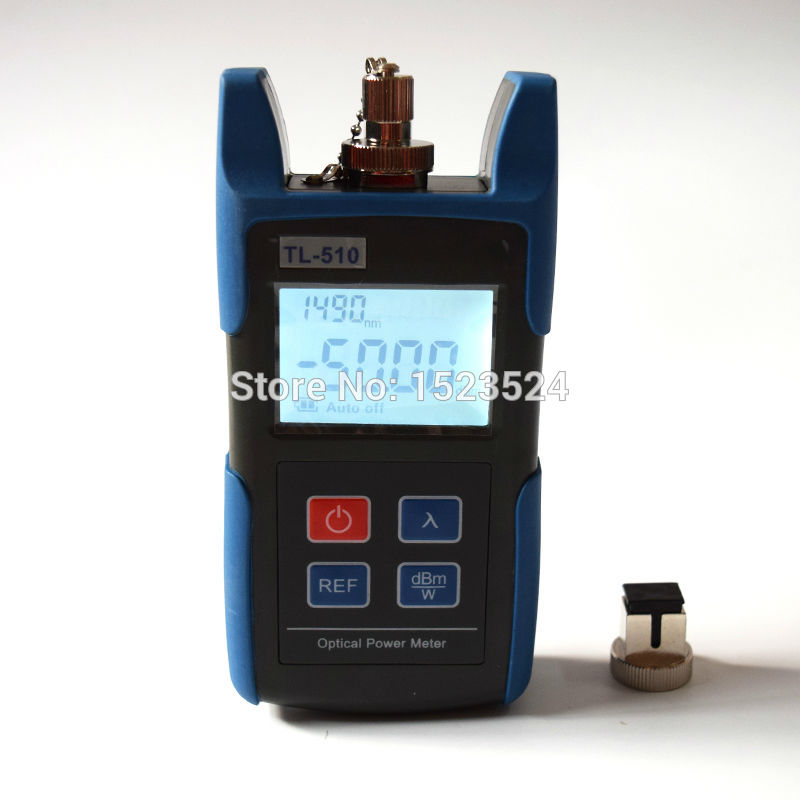

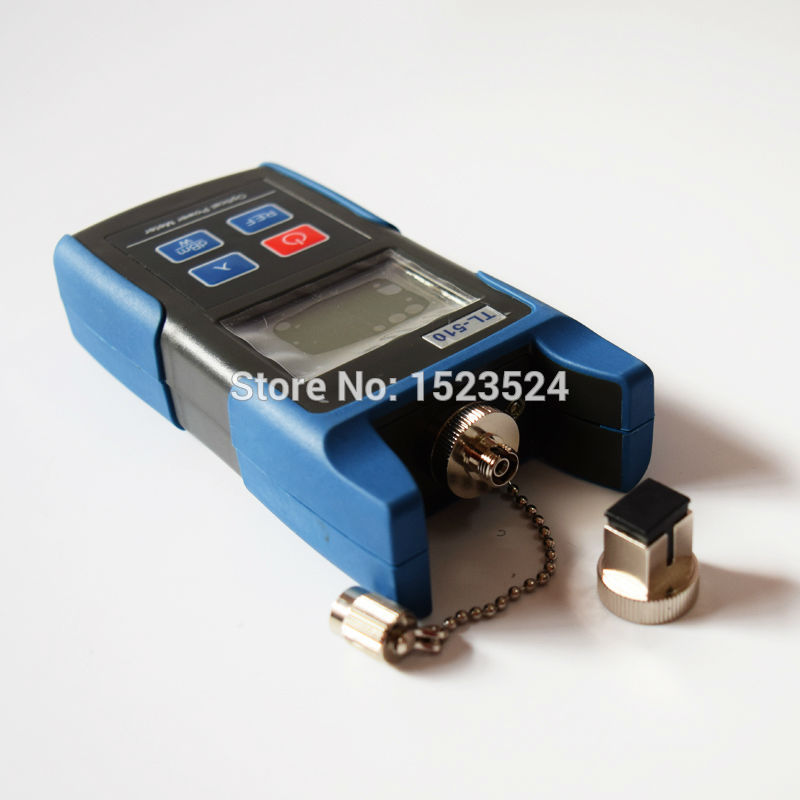

TL510 miniature handheld optical power meter is for installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient portable test instrument. With clever appearance, can choose to switch back light display, automatic shutdown function, super wide optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design.
TL510A:-70 ~ + 10 dBm, used in telecommunications, unicom, mobile data communications
TL510C:-50 ~ + 26 dBm, applied in the broadcast TV, video monitoring, etc
Features:
* High sensitivity, big dynamic range

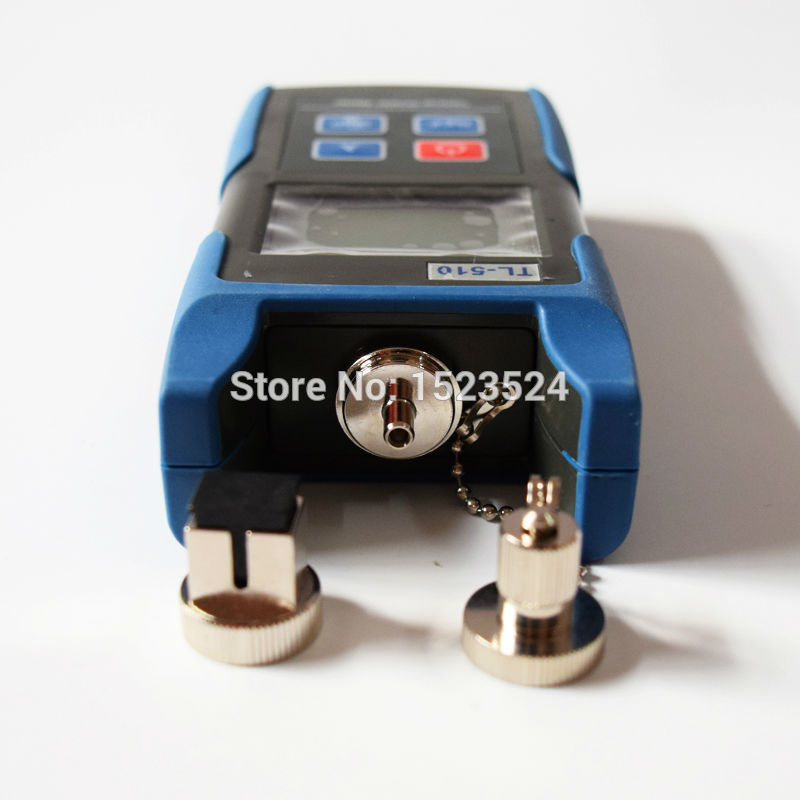

* Common interface design: FC/SC/ST interface, with standard FC, SC, ST adapter interface
* Miniature chassis protection design, compact and easy, prevent accident drop damage instrument detectors.
* Rapid response, no preheating
* Low voltage function display
* The automatic shutdown function can be chosen
* Automatically shut off the backlight function can be chosen
* New user auto-calibration function
* Logarithm power (dBm) and linear power (xW) measurement
* Larger screen and LED backlit
Specifications:
| Model | A Type | C Type |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+10 | -50~+26 |
| Uncertainty | <±3%(-10dBm, 22°C) | |
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550, 1625 | |
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | |
| Optical Connector | FC/SC | |

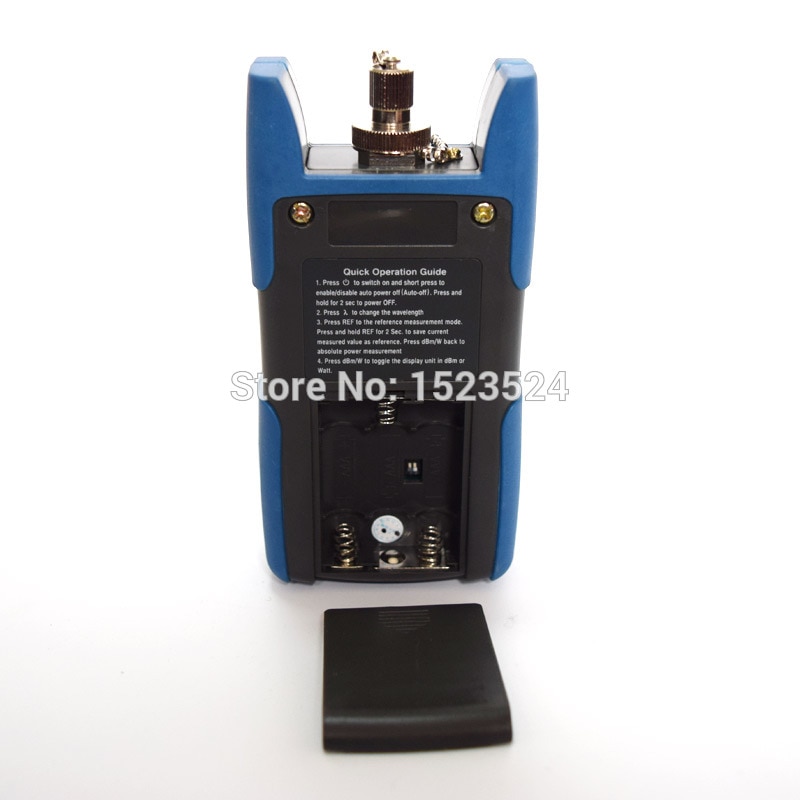

| Power Supply | Alkaline Battery(Battery not included) | |
| Battery Operating Time | 120 h with 1.5V Battery(3) | |
| Operating Temperature(°C) | -10 ~ +50°C | |
| Storage Temperature(°C) | -20 ~ +70°C | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 130 x 63 x 29 | |
| Weight(g) | 160 | |

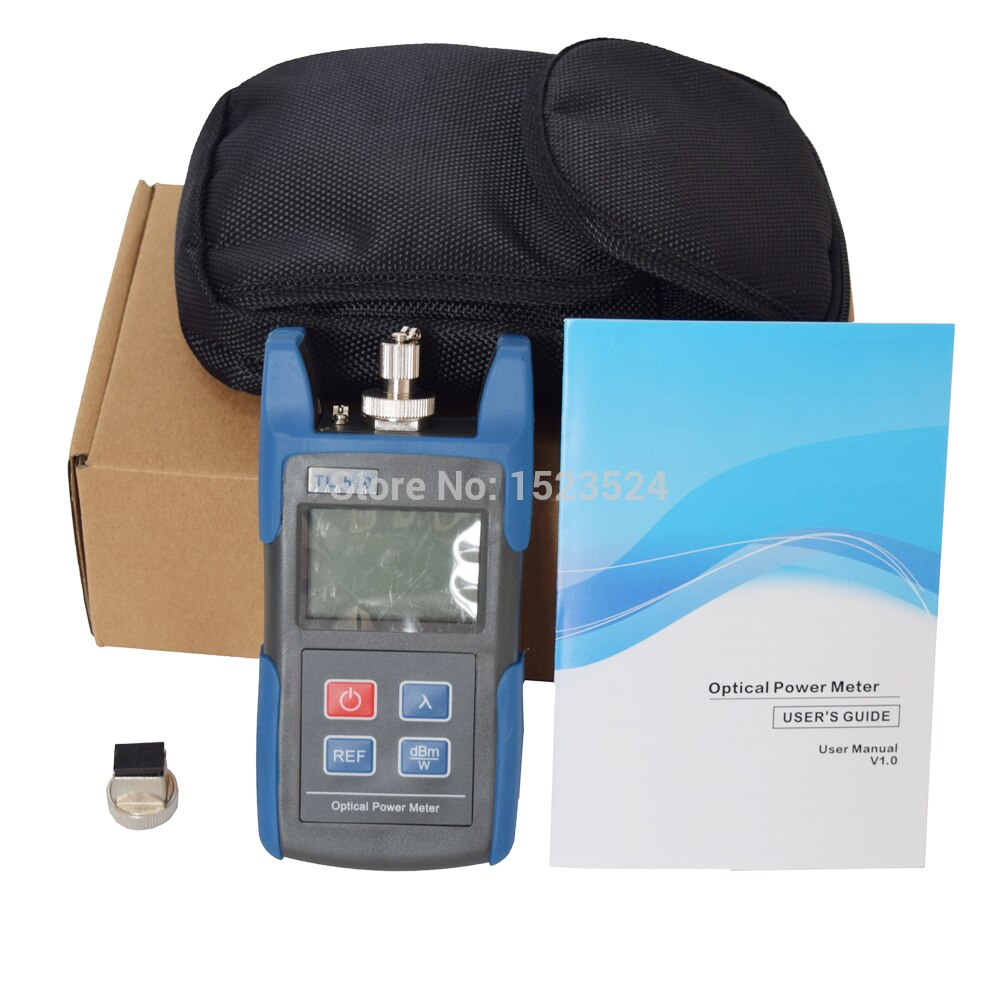

Package includes:
1 x TL510C power meter
1 x Carrying case
1 x FC,SC connector
1 x English manual
