Description

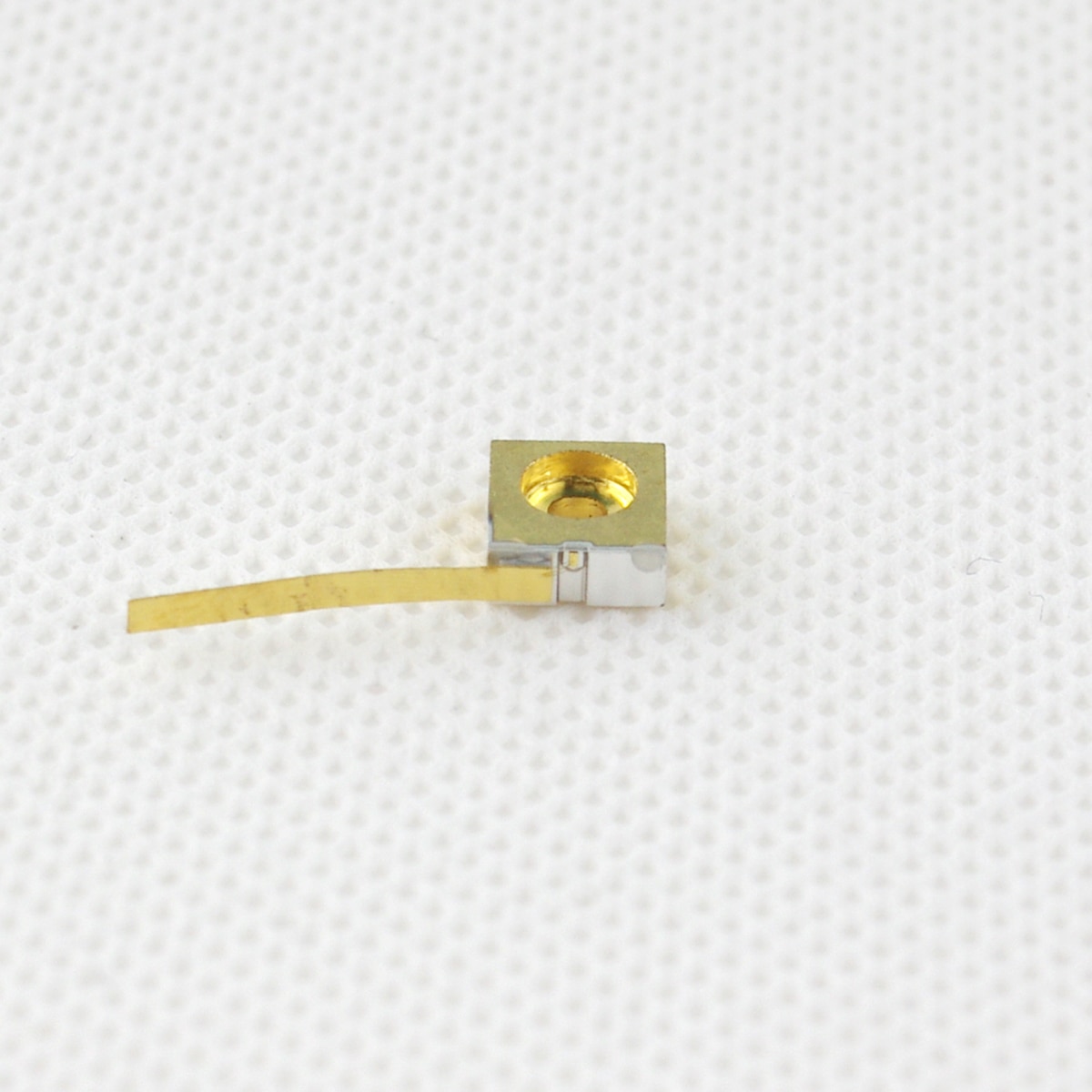

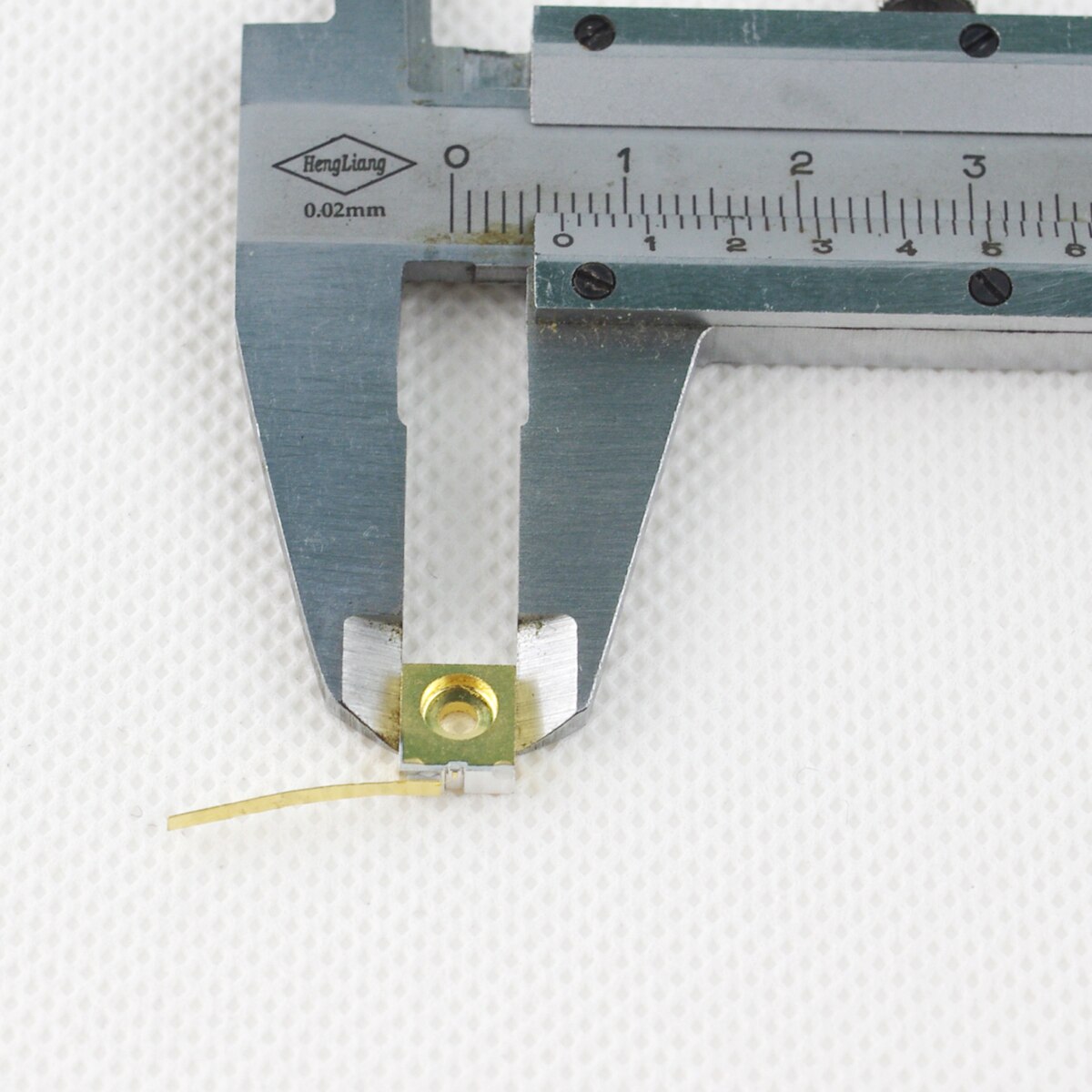

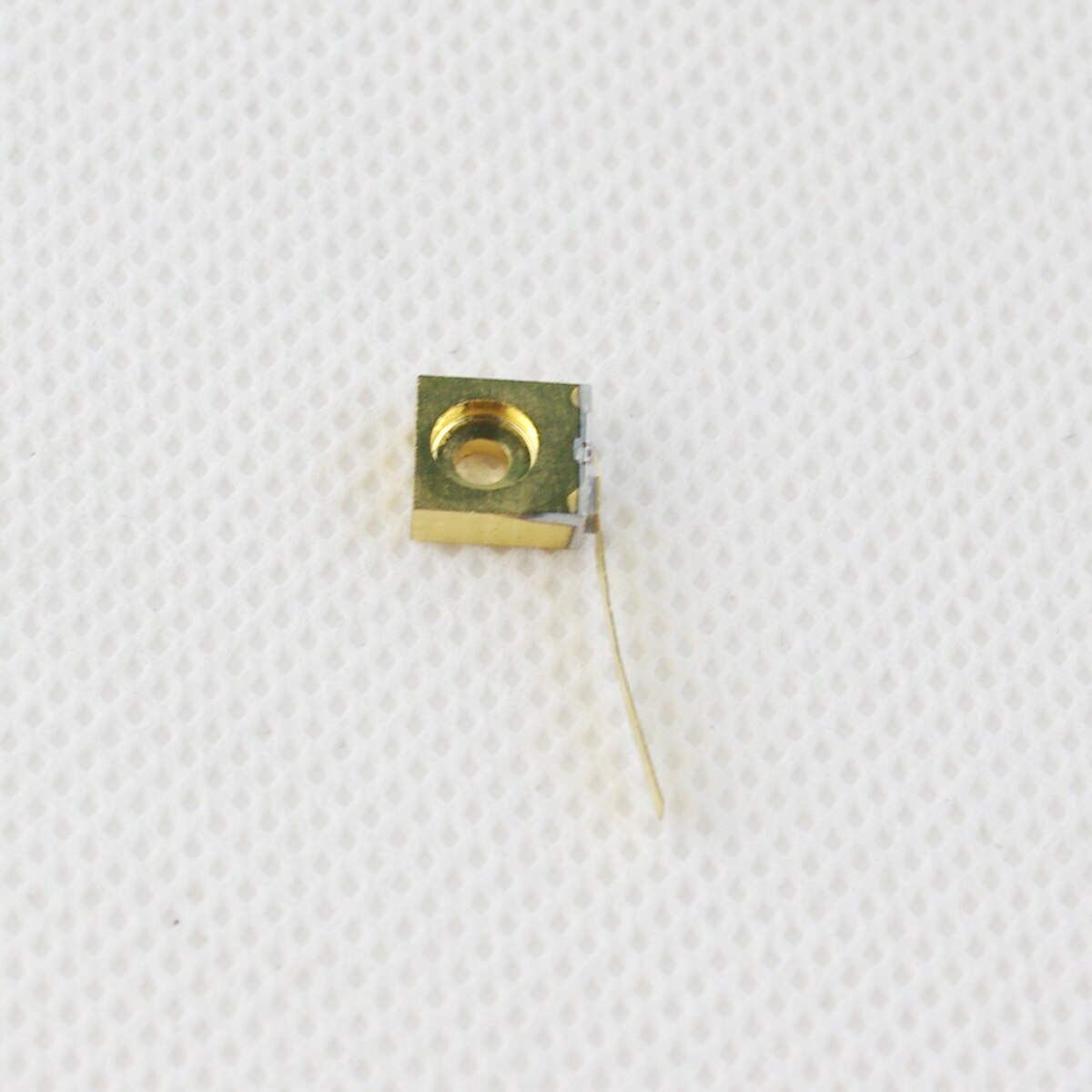

C-mount Package 5000mW 5W 980nm 976nm Infrared IR Laser Diode LD with FAC High Power

Specifications

wavelength: 976nm+-3nm

output: 5w

Spectral width FWHM: <=4

Spectrual Width FW90%E:<=6

Fast Axis Divergence(FWHM):35

Slow Axis Divergence(FWHM):8

Polarization mode: TE

Wavelength Temp. Coefficient: ~0.34

Operating Current: <=5.2

Threshold Current: <=0.8

Operating Voltage: <=2

Slope Efficiency: >=1

Power Conversion Efficiency =52

Operating temperature: 15-30 c

Storage Temp. 0-55c

Recommended Heatsink Capacity: >=10

Package: one pc

PN:11091053
