Description

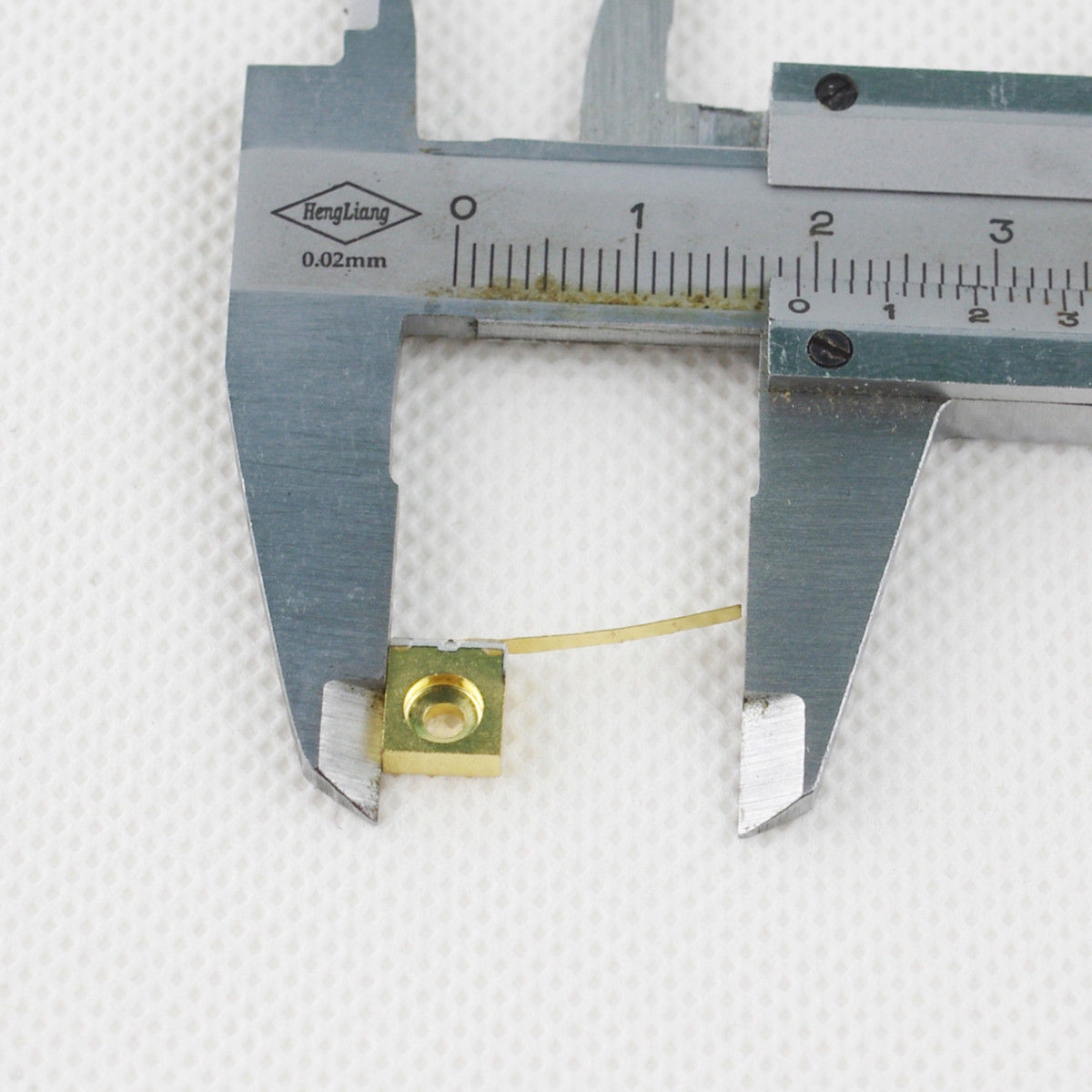

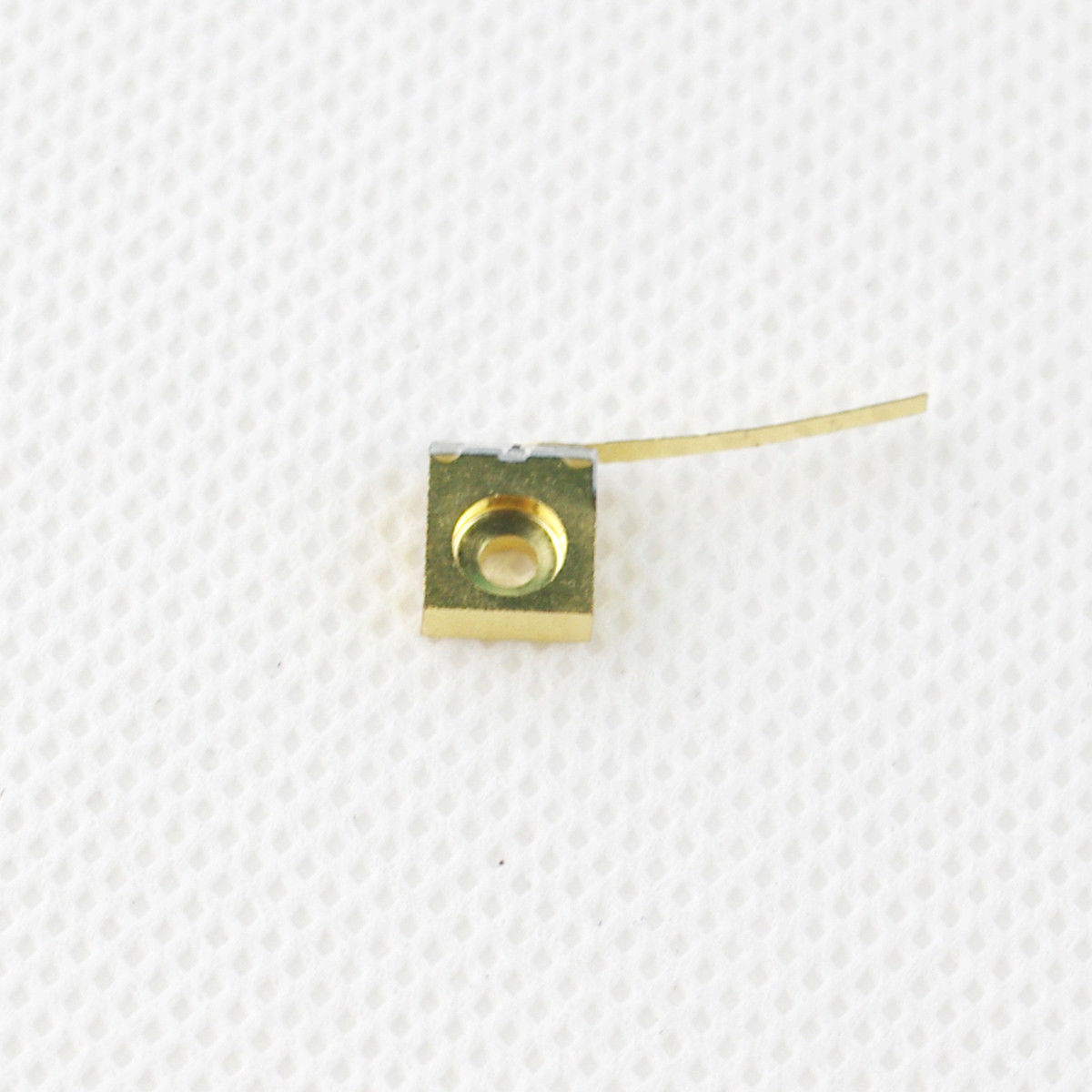

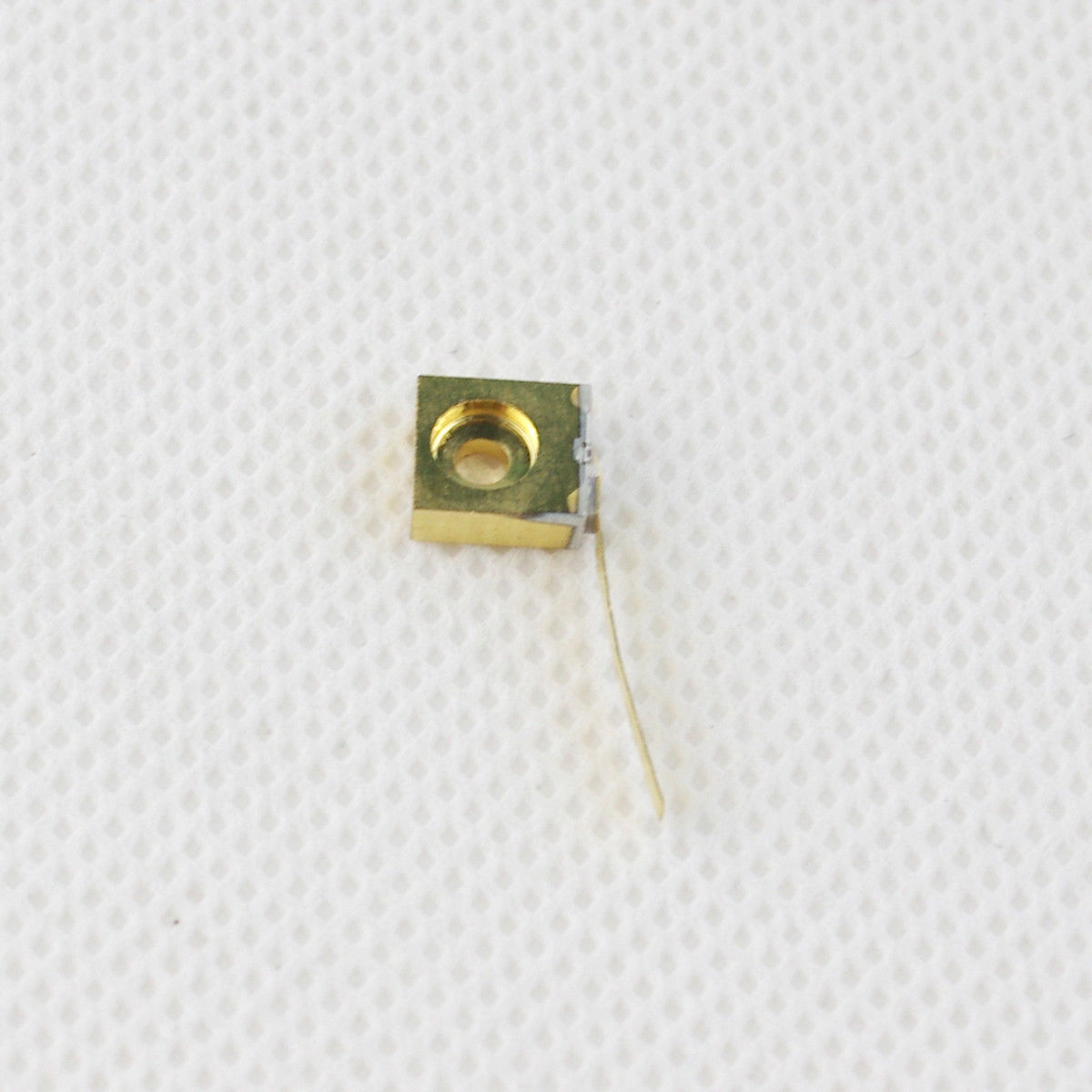

C-mount Package 5000mW 5W 980nm 976nm Infrared IR Laser Diode LD with FAC
Specifications
wavelength:976nm+-3nm
output:5w
Spectral width FWHM:<=4
Spectrual Width FW90%E:<=6
Fast Axis Divergence(FWHM):35
Slow Axis Divergence(FWHM):8
Polarization mode:TE
Wavelength Temp. Coefficient:0.34
Operating Current:<=5.2
Threshold Current:<=0.8
Operating Voltage:<=2
Slope Efficiency:>=1
Power Conversion Efficiency =52
Operating temperature:15-30 c
Storage Temp.0-55c
Recommended Heatsink Capacity:>=10
