Description

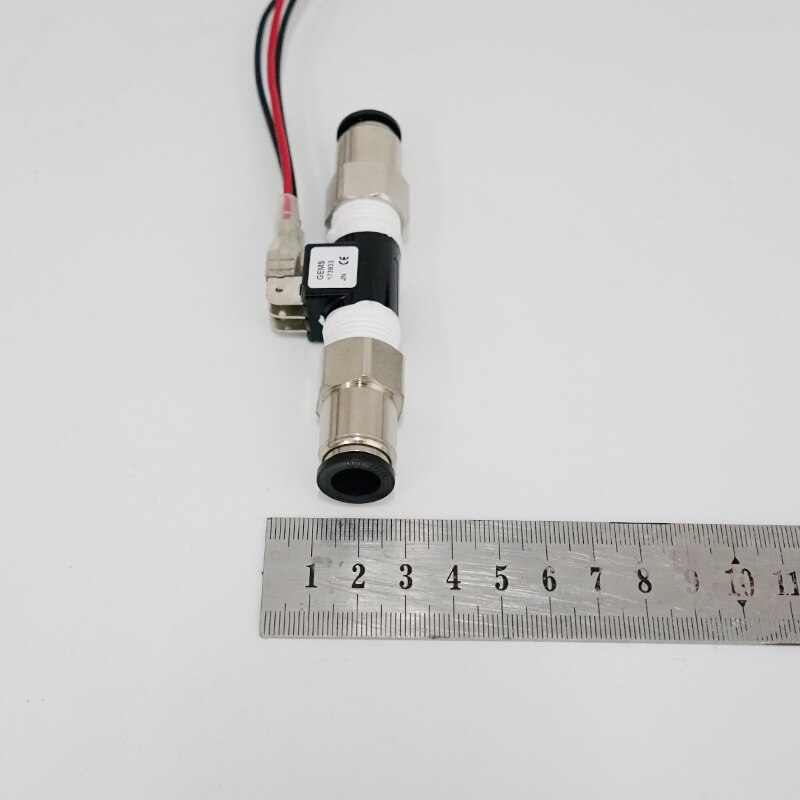

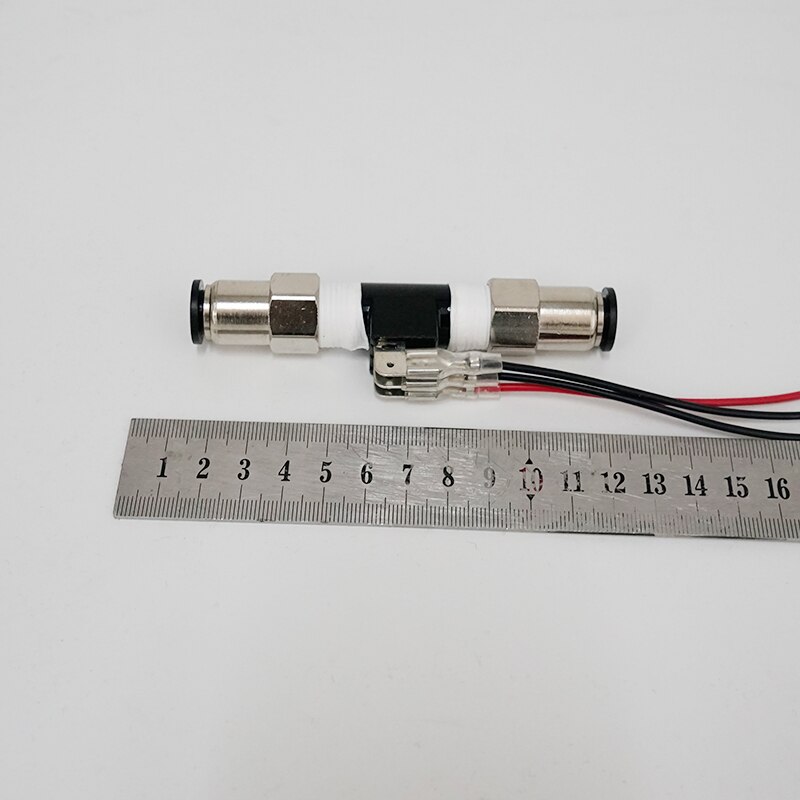

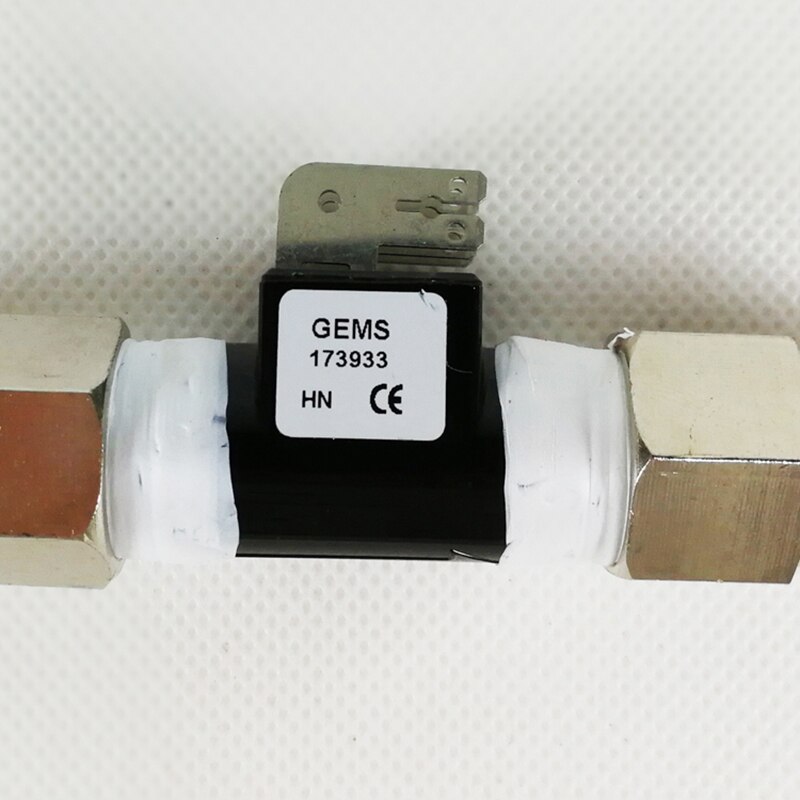

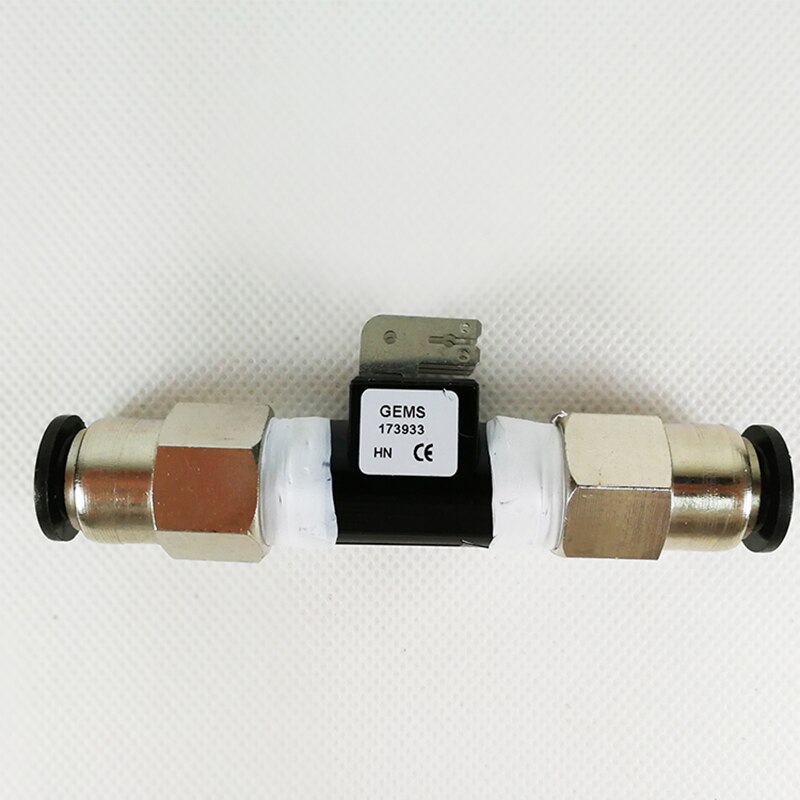

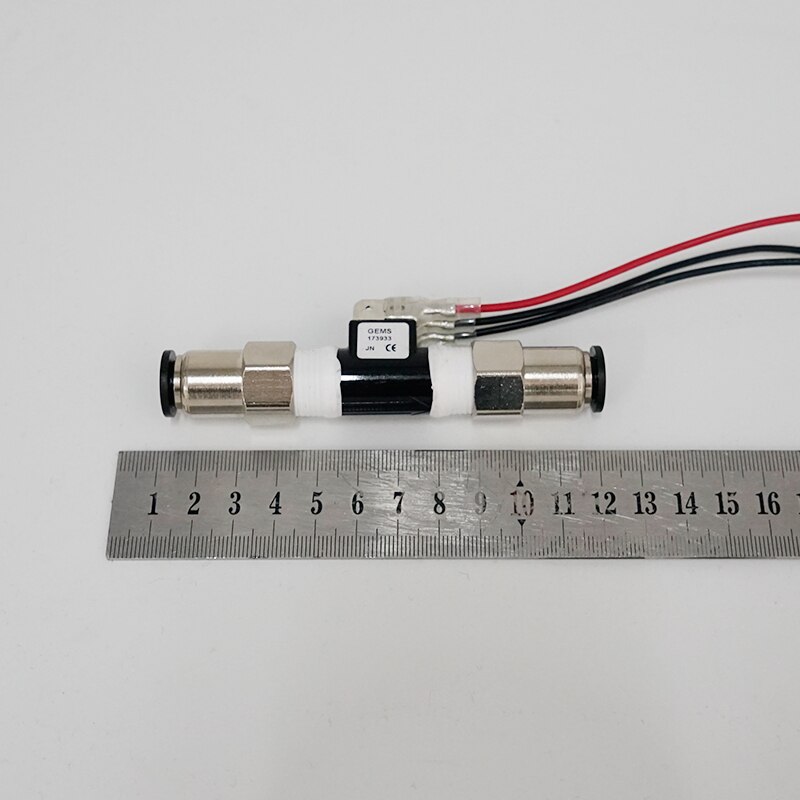

Water Flow Sensor FT110 for laser diode hair removal equipment

Water Flow sensor FT110 is imported from USA originally, so its quality and price will be very good.

And for hair removal machine, all of us know the importance of temperature and moisture controlling. So we usually use USA imported Flow sensor, especially you want the cheaper price and most cost-effective we will change China brand flow sensor.



Details of specification for Flow sensor FT110:

Low Flow Rates of 0.5 to 30 L/Min (.1 to 8 GPM)

Accuracy ±3% of Reading

Mounts in Any Orientation

Gems™ hall effect turbine flow rate sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Unlike timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. The sensor’s standard power and output specifications make it easy to retrofit to existing controllers.

Please find the details of FT110 Following attached dimensions:



Water flow sensor specification:

Water flow rate	1-30l/min
voltage	5v
Model:	OL-5
Wires	3 wires
The red wire	Connect the positive electrode
The black wire	Connect the negative electrode
The yellow wire	Signal output wire

4.water sensor with 2 fast water pipe connector for 10mm diameter water pipe

Water flow sensor need connected our controller board and feedback water flow rate to controller board and show on the screen. Below is newest controller board which is designed by our R&D department. please click it get more information.

​
