BeamQ Powerful 20W 450nm blue laser module DIY laser head for Master Series CNC laser engraving machine Accessory with Wrench

$48.36$124.53

SKU: 4000214914745 Category:

Description

https://ae01.alicdn.com/img/pb/252/065/676/676065252_296.jpg



This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.


Features:
Professional laser head with high speed, high precision and high stability.
Bright blue light, easy for locating when engraving.
Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Laser head is more durable and stable after high temperature and long time aging.

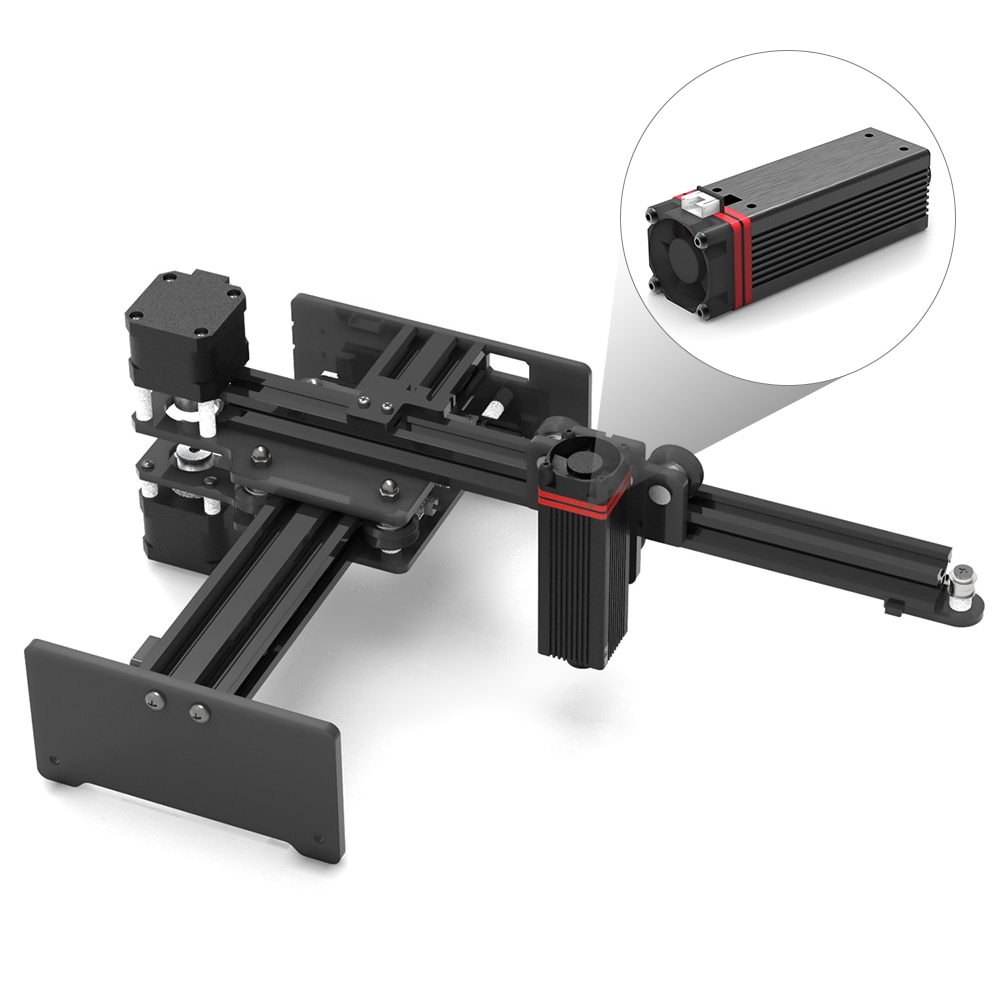

Suitable for Master series DIY engraving machine, easy to install.
Main applications: cutting, metal engraving, drawing depth engraving, etc. (Especially good at cutting, It can cut wood (3-8mm). It supports metal engraving including alumina oxide, copper and other non-reflective materials, depth of engraving (0.5-3mm wood). Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, copper, etc.


Note: It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser. Master series engraving machine comes standard with 12V2A charger. If you want to use 20W laser head, you need to prepare another 12V3A power supply.(except Master 20W engraving machine )


Specifications:

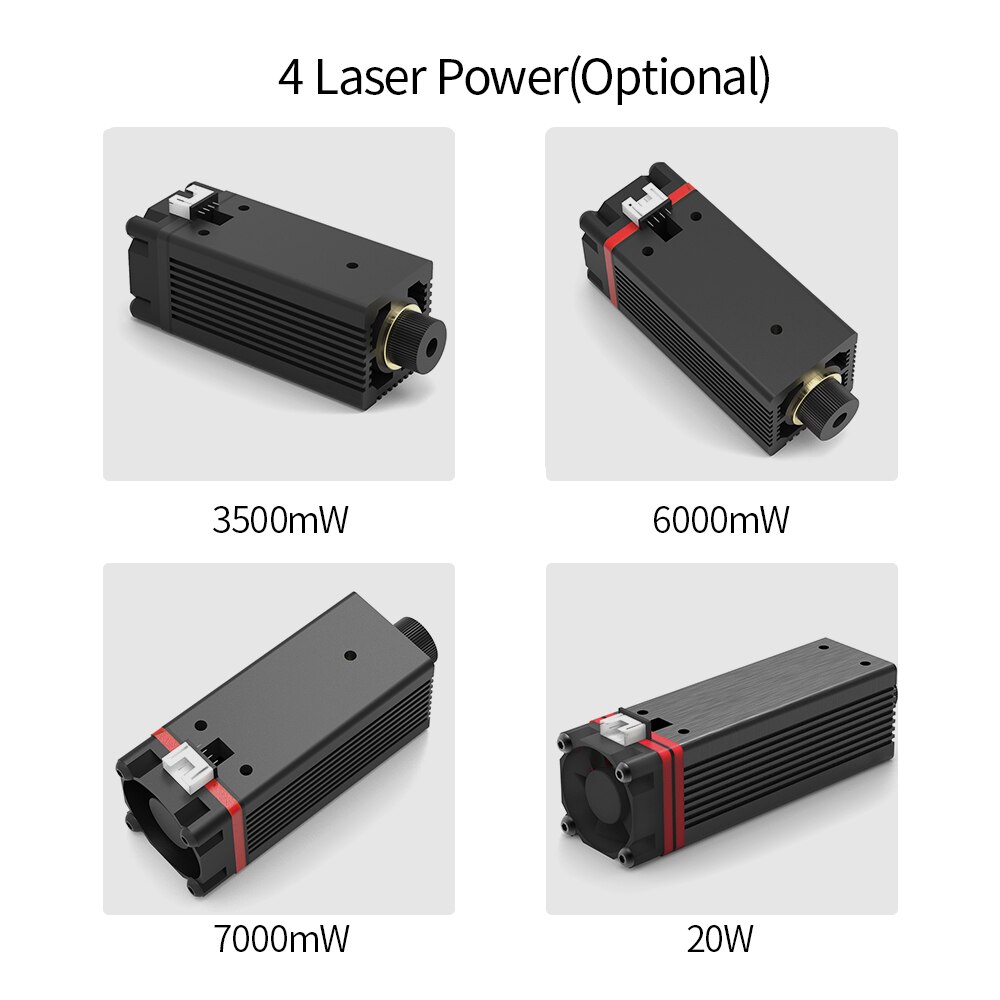

Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)
Material: Copper + Aluminum
Light Color: Blue
Power: 20W
Wave Length: 450nm
Input power: approx. 12V 2A (without fan power)
Drive Position: Built-in
Is the Power Adjustable: PWM can be adjusted
Drive Protection: Surge protection, overvoltage protection
Line Length: 300mm
Line Length Material: Sports silicone
Control Line Installation Method: Pluggable
Interface Specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Radiator Size: 30 * 80mm
Fan Size: 30 * 10mm
Fan Speed: 15,000 rpm
Controllable Temperature: Less than 60 degrees Celsius
Focus Range: 5 ~ 50mm (best focus: 10mm from the light exit)
Item Size: Approx. 110 * 30 * 30mm / 4.33 * 1.18 * 1.18in
Item Weight: Approx. 202g / 7.14oz
Package Size: Approx. 20 * 15 * 3cm / 7.88 * 5.91 * 1.18in
Package Weight: Approx. 224g / 4.73oz


Package List:
1 * module
1 * Wrench
2 * Screw
2 * Gasket



https://ae01.alicdn.com/img/pb/253/065/676/676065253_146.jpg

1 - E8201-4-1-1b0d-pl902 - E8201-4-1-1b0d-mqjn3 - E8201-4-1-1b0d-01td4 - E8201-4-1-1b0d-VT1r5 - E8201-4-1-1b0d-EpBi6 - E8201-4-1-1b0d-PEp87 - E8201-4-1-1b0d-Bvem8 - E8201-4-1-1b0d-CYwa

9 - E8201-4-1-1b0d-06Oy10 - E8201-4-1-1b0d-TLFb11 - E8201-4-1-1b0d-n3LJ12 - E8201-4-1-1b0d-BjsQE10014-1-baf7-WKkl
