Description

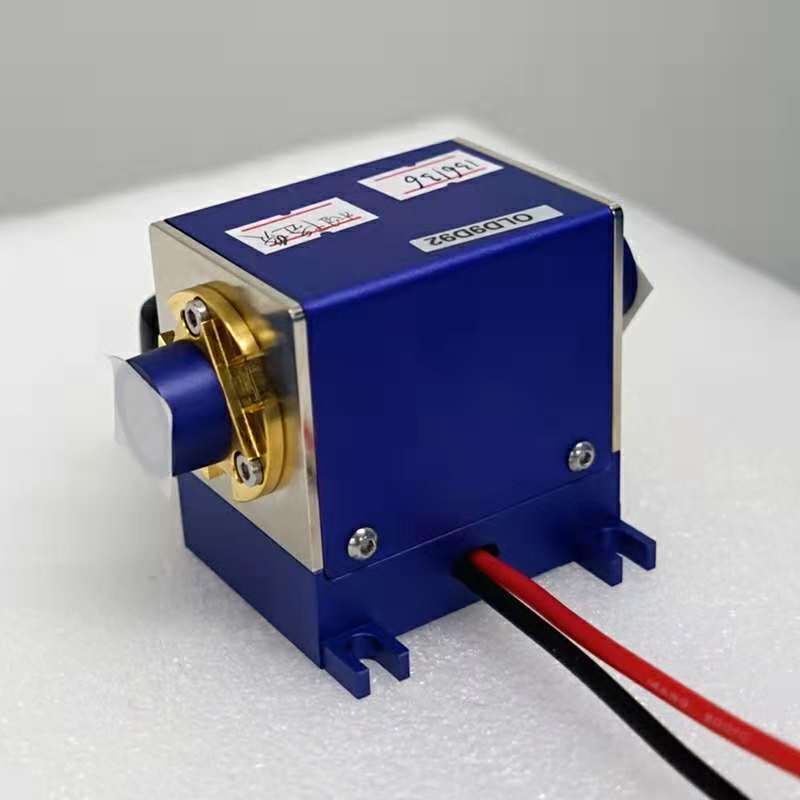

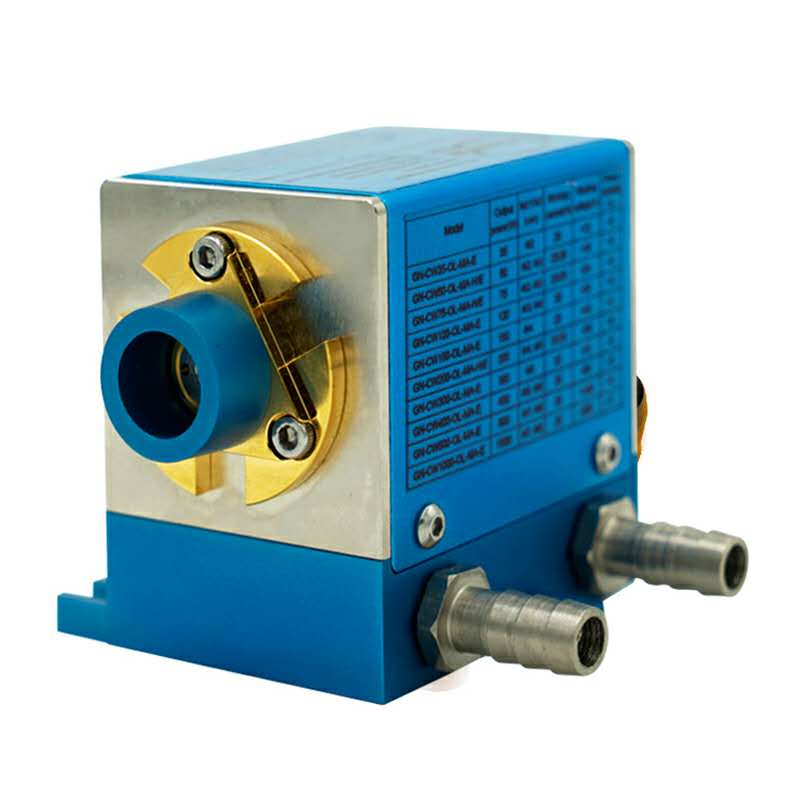

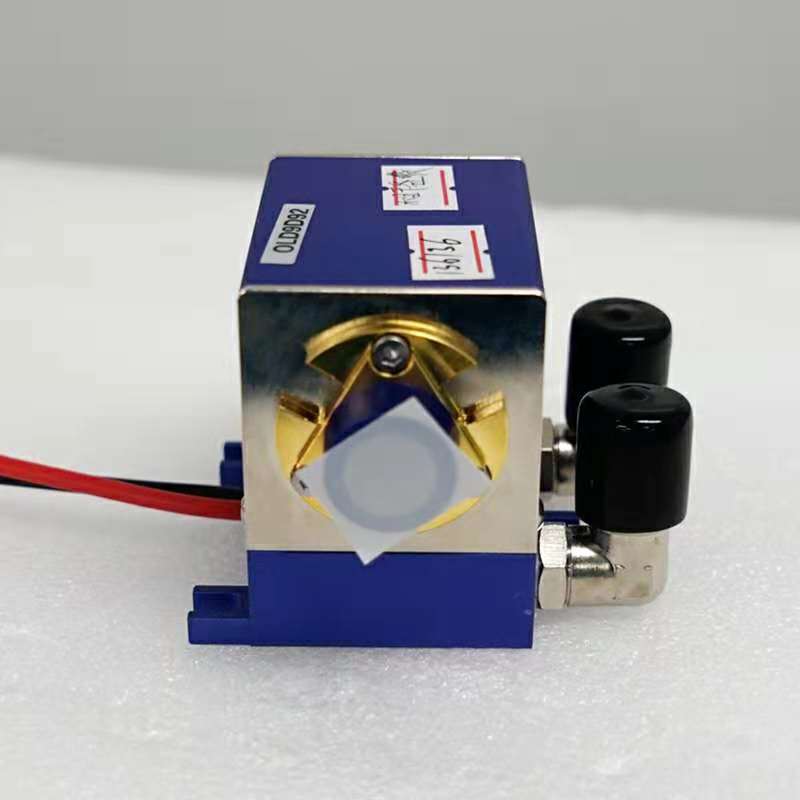

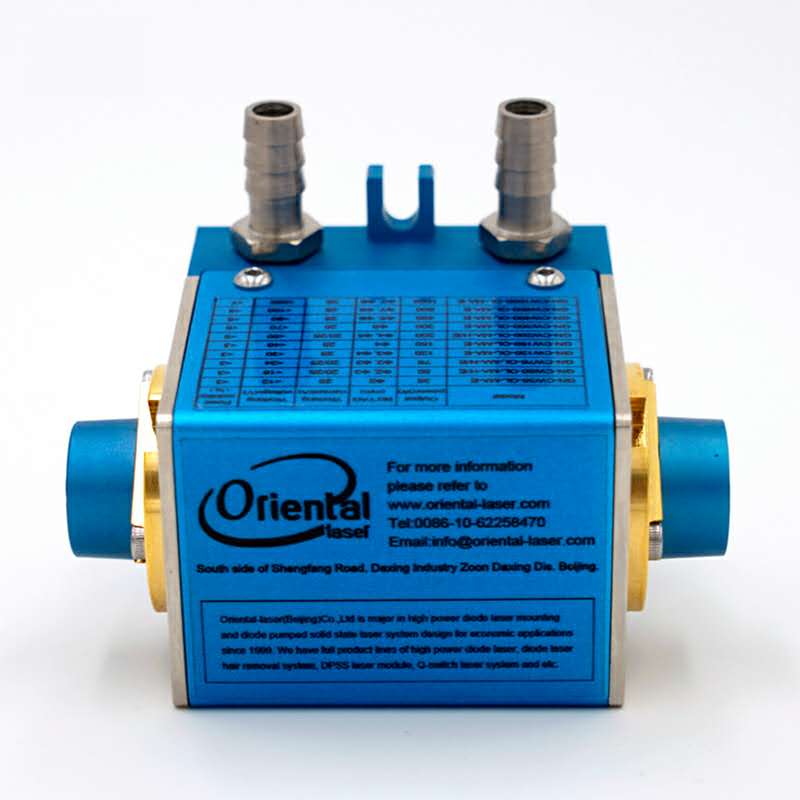

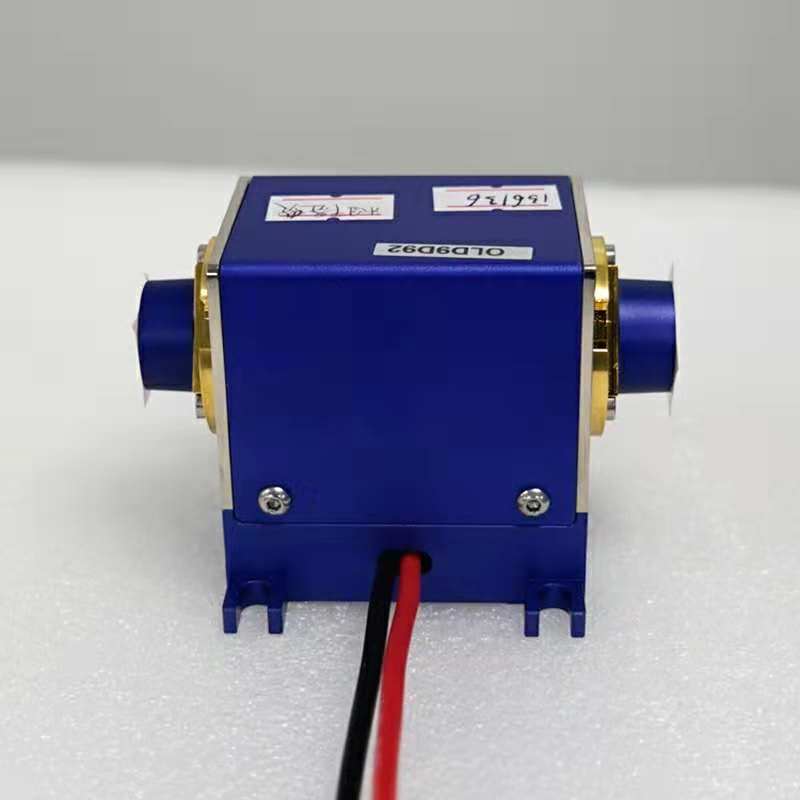

75w CW DPSS 1064nm laser diode pump module GN50 for / metal marking / diamond cutting / laser welding and cutting / cleaning
Description
Oriental-Laser has develped a full product line of Diode-Pumped Solid State laser modules for industry applications. This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 20W up to 500W (@1064nm). These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.
Application
1. Metal marking
2. Diamond cutting
3. Laser welding and cutting
4. Cleaning
Specification and Dimension
Output Power: 20-500W (1064nm, CW)
Working Mode: CW
Wavelength: 1064nm
ND: YAG, Doping at 0.6%
Water-cooled
Expected life: 10000 hours
Warranty: 12 months
Diode Provider: Jenoptik (Jena, Germany) 40W bars.
Classification and Parameters
|
Model No. |
Output Power |
Nd:YAG |
Operating current |
Voltage |
Diode Driver |
|
GN35 |
35W |
2 |
18A |
<18 |
GN520 |
|
GN50-H |
50W |
2,3 |
20A |
<18 |
GN720 |
|
GN50-E |
50W |
3 |
25A |
<18 |
GN720 |
|
GN75-H |
75W |
2,3 |
20A |
<24 |
GN520 |
|
GN75-E |
75W |
3 |
25A |
<24 |
GN720 |
|
GN100 |
100W |
3,4 |
25A |
<30 |
GN920 |
|
GN150 |
150W |
4 |
25A |
<40 |
GQ40 |
|
GN200 |
200W |
4,5 |
25A |
<50 |
GQ50 |
|
GN300 |
300W |
4,5 |
25A |
<70 |
GQ70 |
|
GN400 |
400W |
5,6,6,6.35 |
25A |
<80 |
Contact Us |
|
GN500 |
500W |
7,8 |
25A |
<100 |
Contact Us |
|
GN1000 |
1000W |
7,8 |
25A |
<200 |
Contact Us |
Advantage
1.Diode laser bar is from Germany Jenoptik
2.our high skilled and experienced technicians perform the assembly and test of laser moudle in our 10K class and part of 100K class big clean lab.
