Description

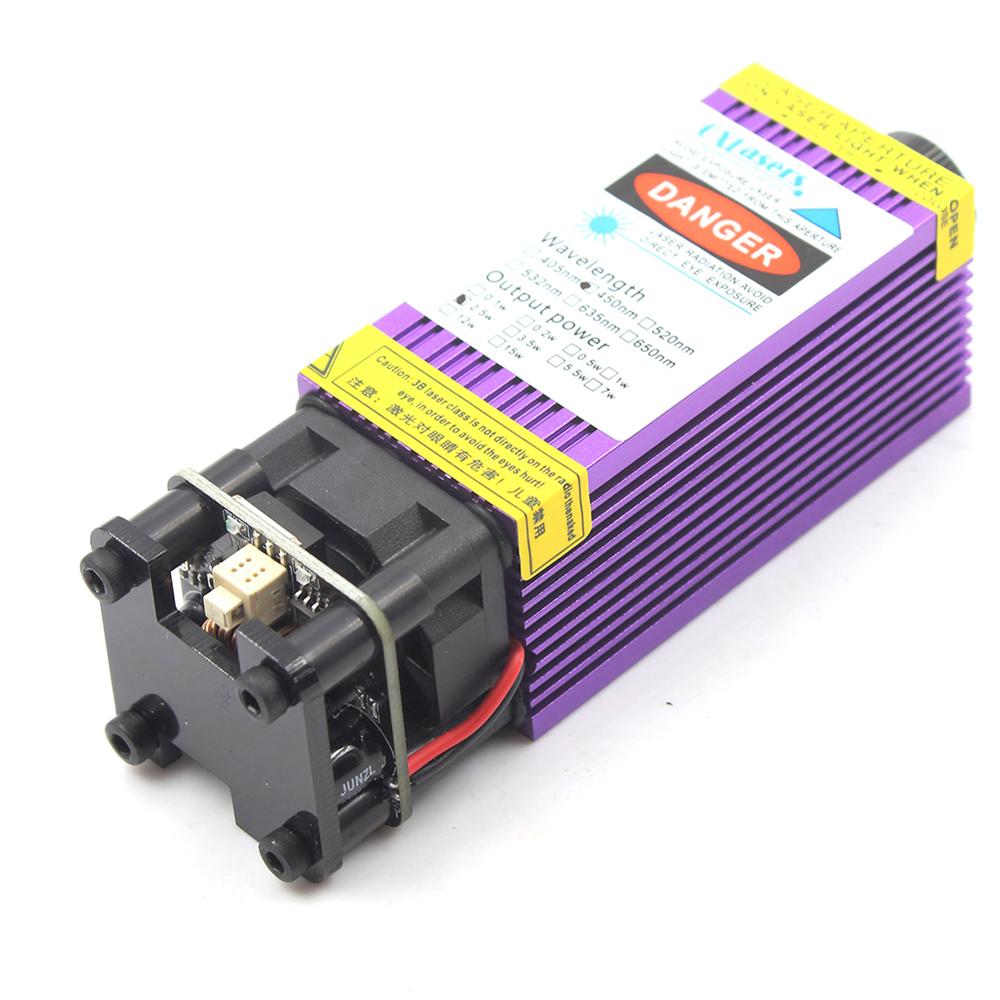

Technical Parameters:
Laser wavelength: 445nm-450nm blue laser
Spot type: dotted (adjustable)
Output power: 2.5W(True Power)
3.5W(True Power)
5W(real output is:3.8-4W, can cut 3mm plywood with 100-150mm/min speed, and 3-4 passes)
5.5W(true power)
15W(Fixed Focus, Not Focusable)

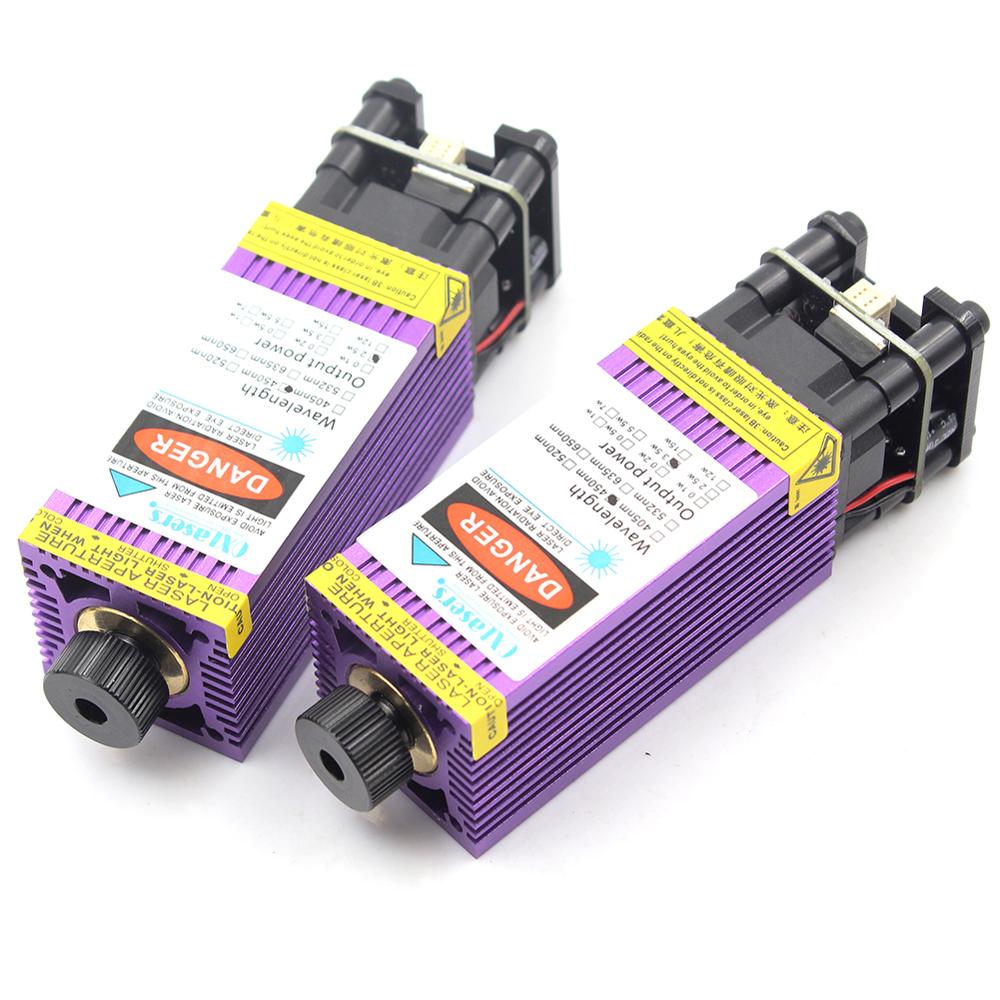

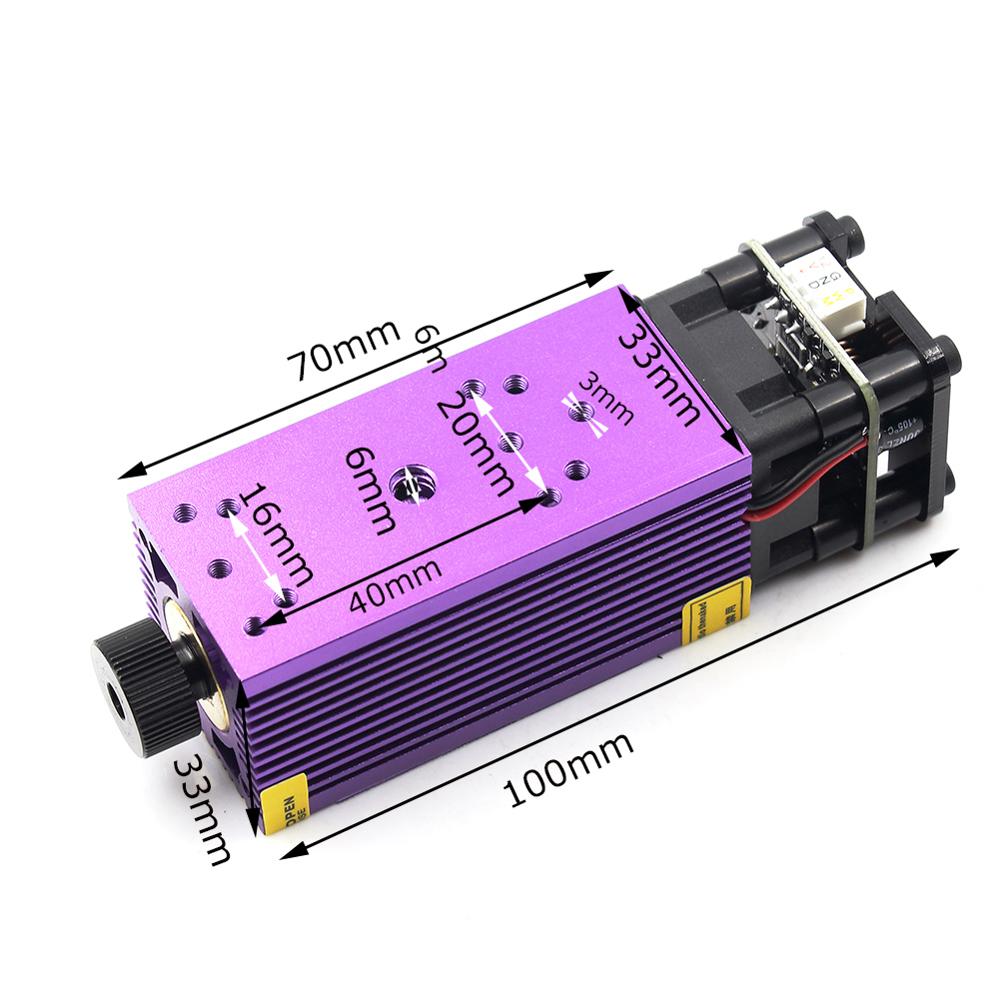

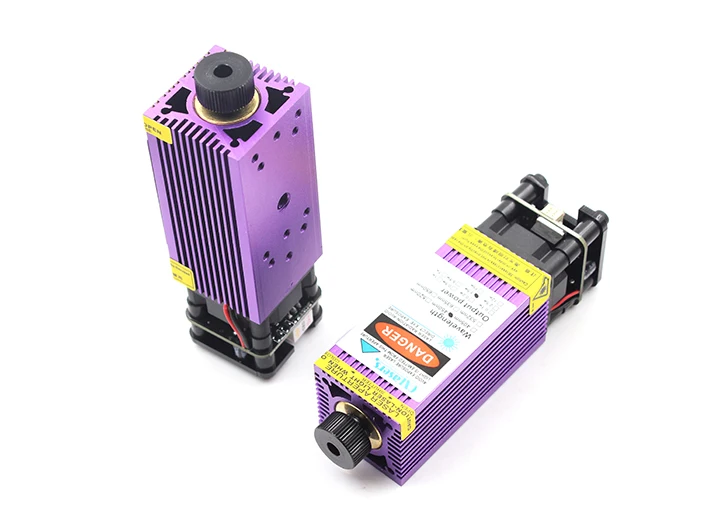

Size: 2.5W(33*70mm) , 3.5W(33*70mm) 5W(33*70mm) 5.5W(40*70mm) 15W(40*70mm)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating
HEAT SINK COLOR: Purple

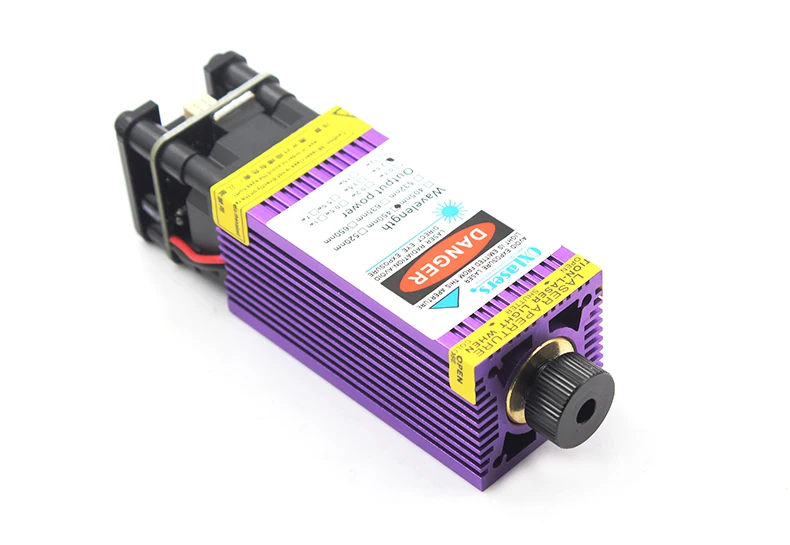

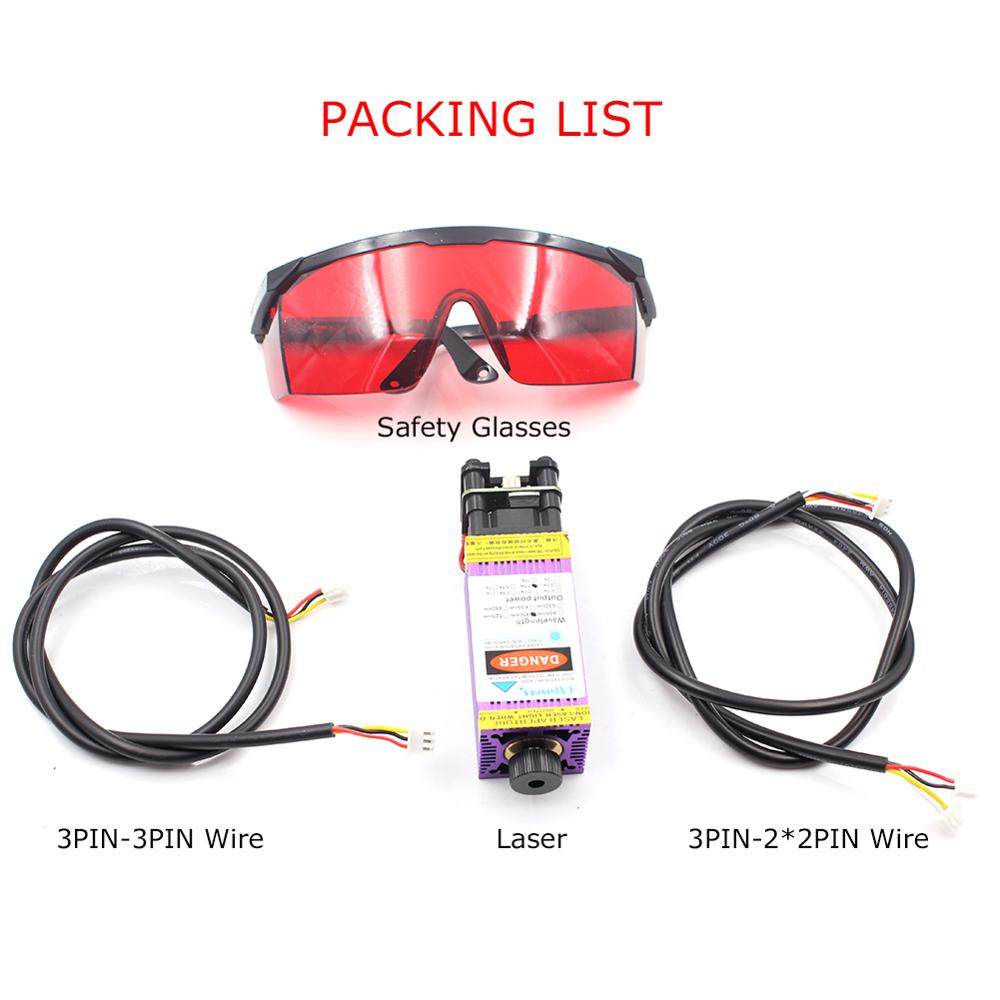

PACKING LIST:
LASER*1
3PIN CABLE*1
3PIN TO 4PIN CABLE*1
SAFETY GLASSES*1
BUYER MUST READING:

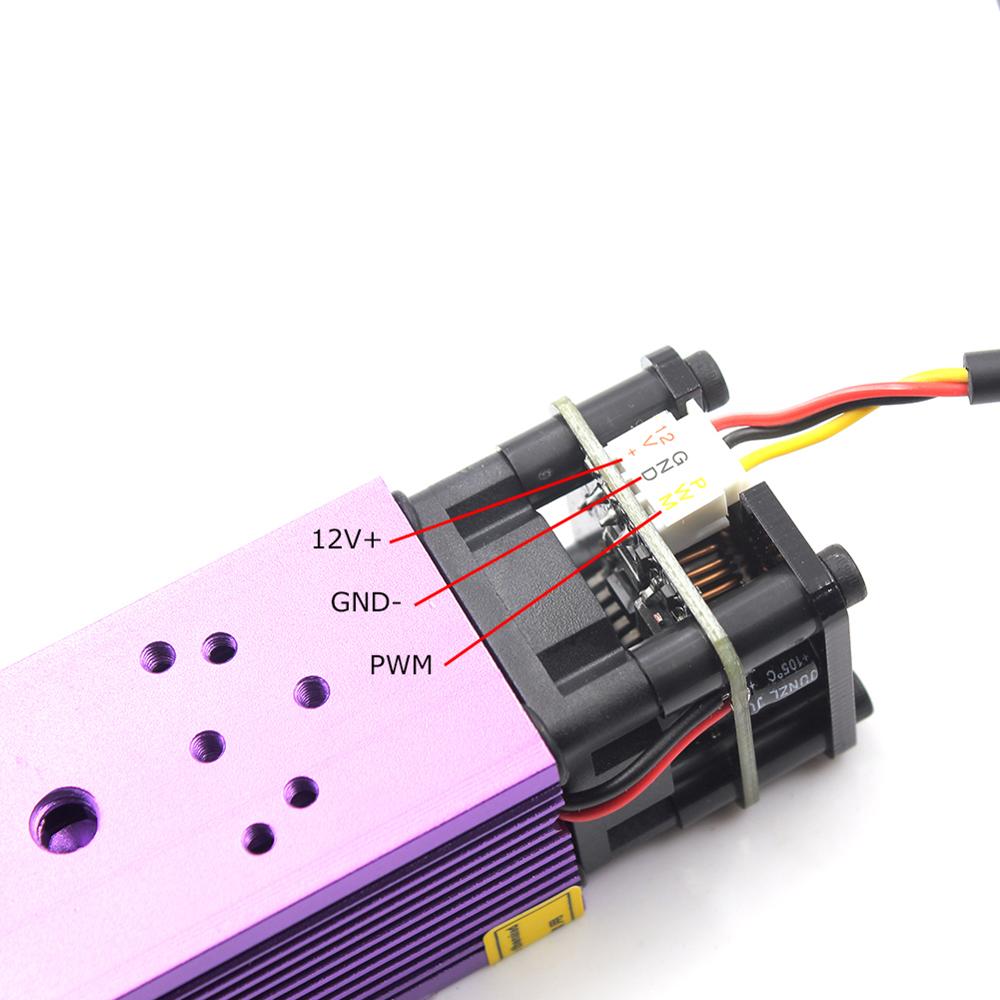

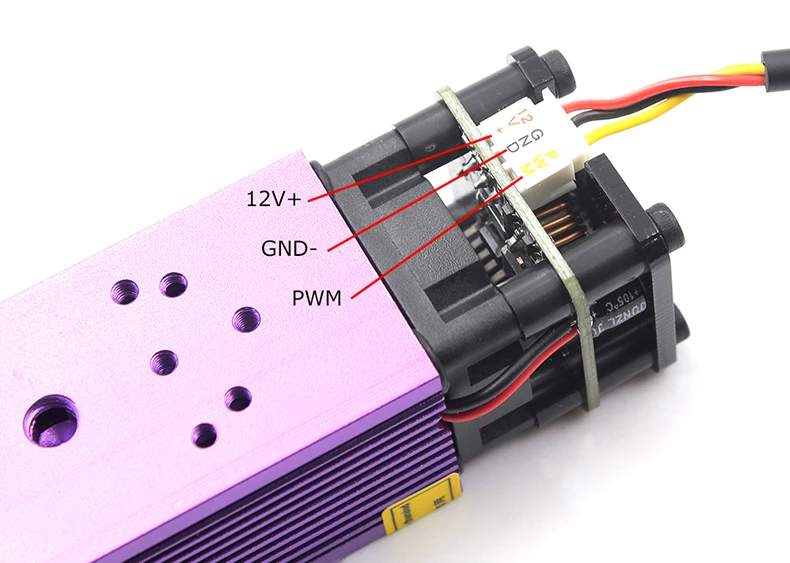

When you first receive the laser, before connectting laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL,red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin, if you use 3-4pin wire, White wire should be connected to the PWM- pin.
if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.
Frequency: <15khz, PWM/TTL: 0-5V
Please add a fan when engraving or cutting, in case smoke damage its lens
15W is not focusable
