Description
- Brand Name: Pipo
- Certification: CE
- Certification: None
- Accessory Type: Battery Accessories
- Origin: CN(Origin)
- Model Number: Battery Equalizer Balancer Board

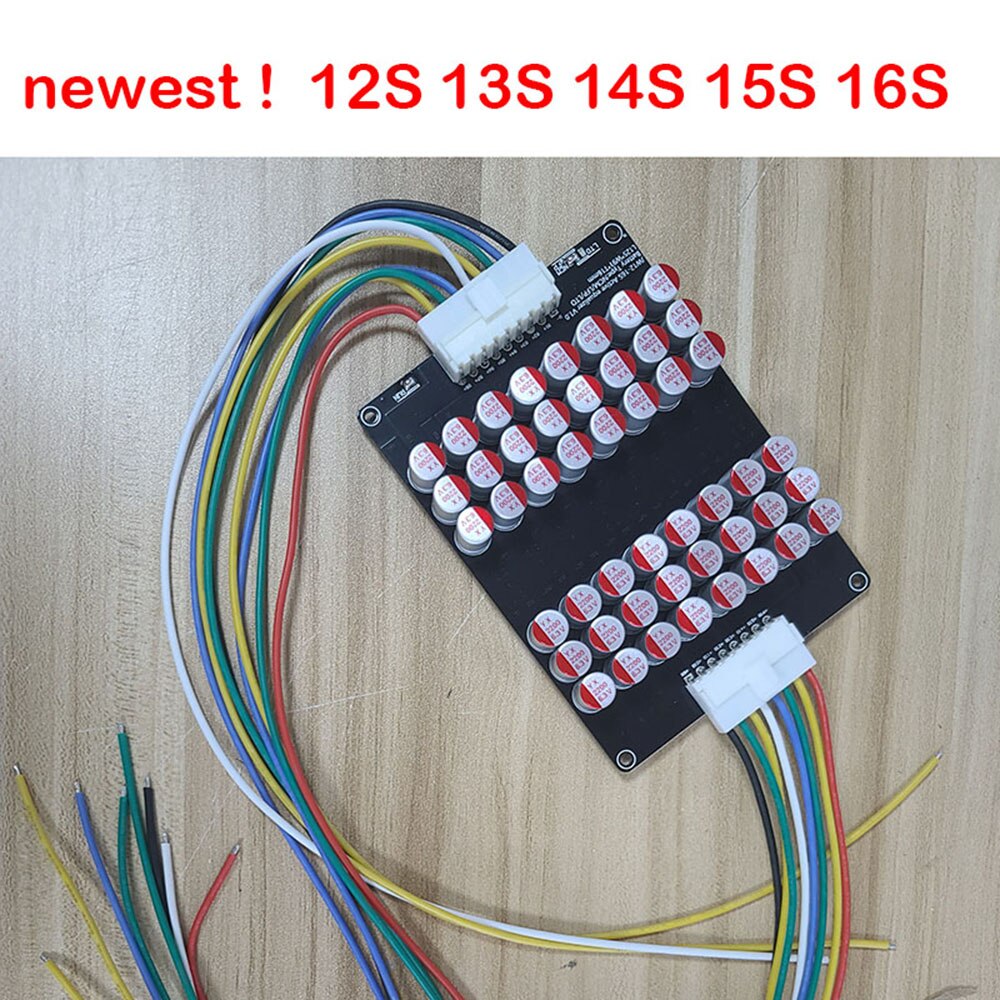

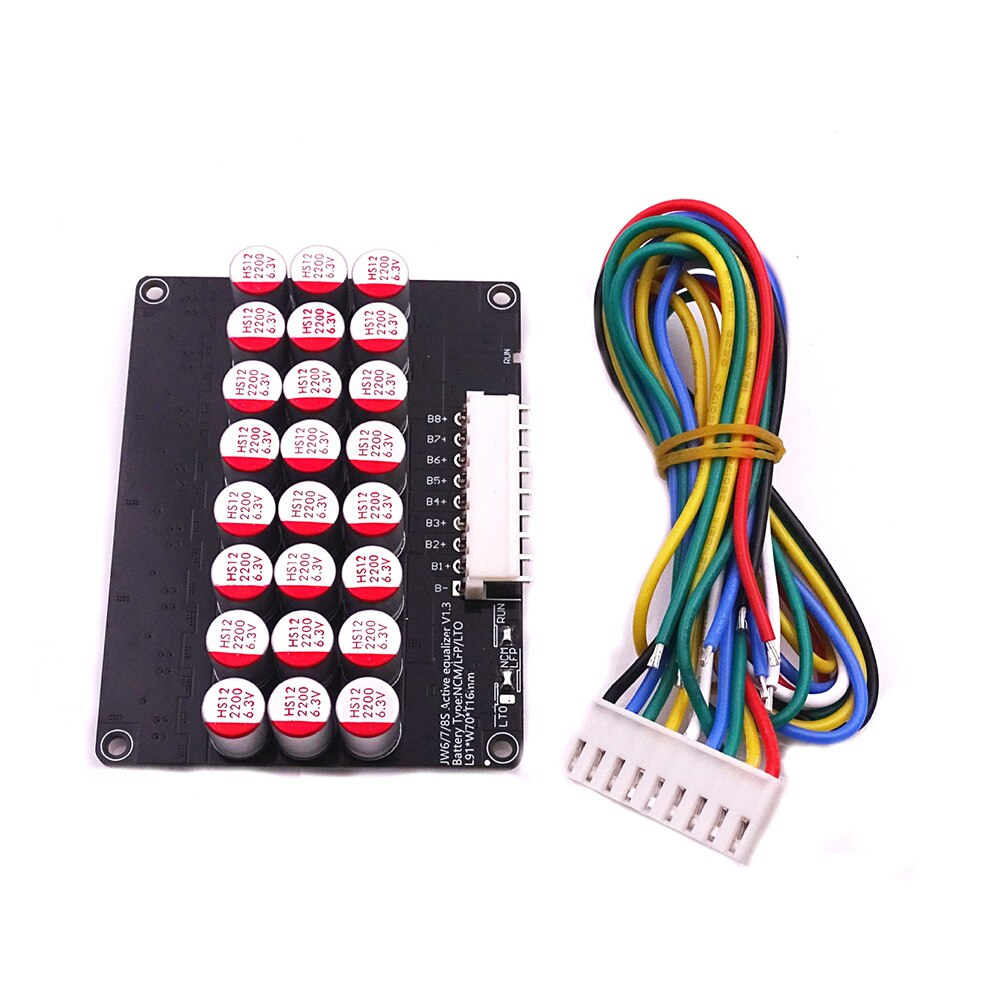

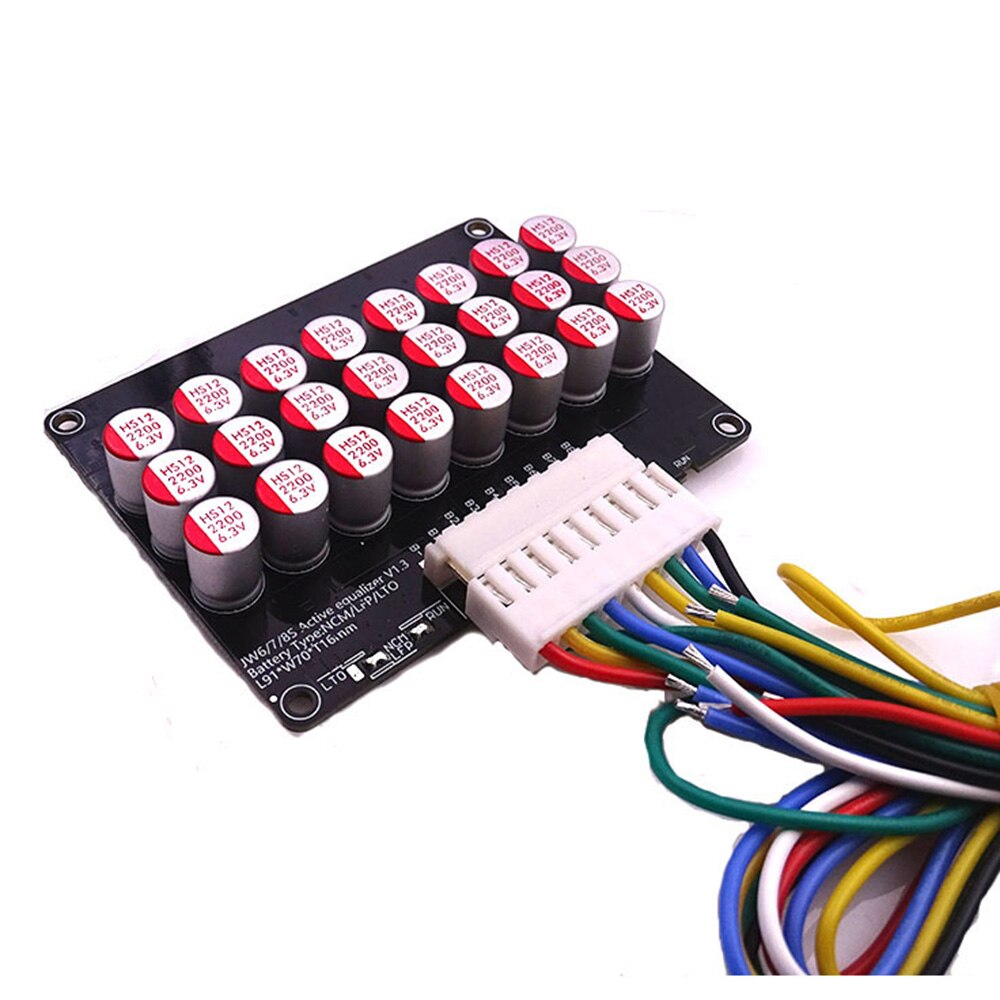

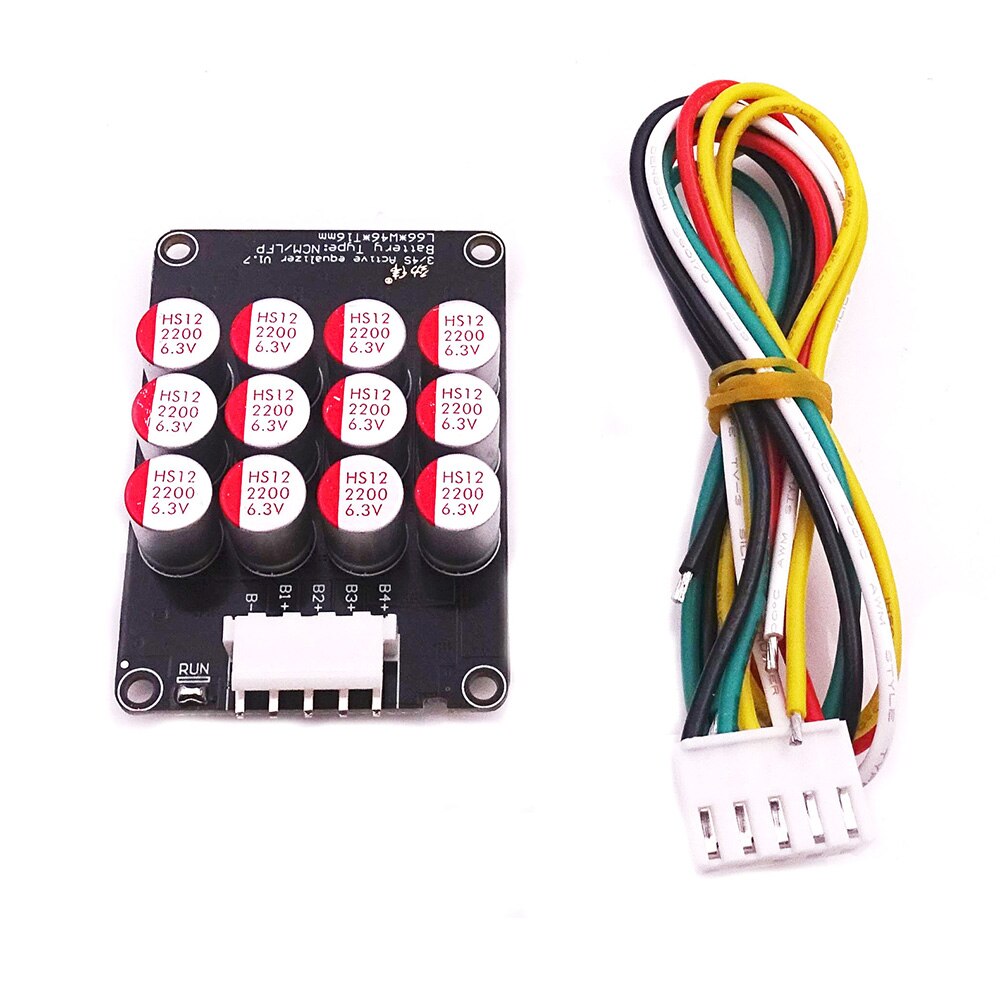

Balance Li-Ion Active Lithium Battery 5mV Precision Equalizer Balancer Board Capacitor BMS 3S 4S 5S 7S 8S 8S 10S 16S 20S
Description:
1. The wire-free version makes installation more convenient and faster!
2. Capacitive energy transfer equalization board (high precision 5mv, the whole group equalization, not adjacent equalization)
3. Capacitive energy transfer balance board (upgraded version)
4. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.
5. The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.
6. With under-voltage sleep protection, the voltage will automatically stop and enter the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.
Specification:
Working voltage: 1.8V-4.5V
Accessory type: Battery Accessories
Model number: Active Balancer
balance type: Capacitor
– Working principle, the capacitive fit transfers the charge porter, the balance board is connected to the battery to start the balance work, the original ultra-low internal resistance MOS, 2OZ copper thickness PCB, balance current 0-5.5A, the more the battery, the smaller the balance current, The wiring position of the dormant switch is reserved, the working current of the dormant power-off mode is less than 0.1mA, and the balance voltage accuracy is within 5mv!
Note:
-There might be little error of size for manual measurement.
-Due to different lighting effects and monitor settings, the actual item’s color may not exactly reflect the color on pictures.
Packing list
Package Includes:
1 x Balancer Board
1 x Cable
