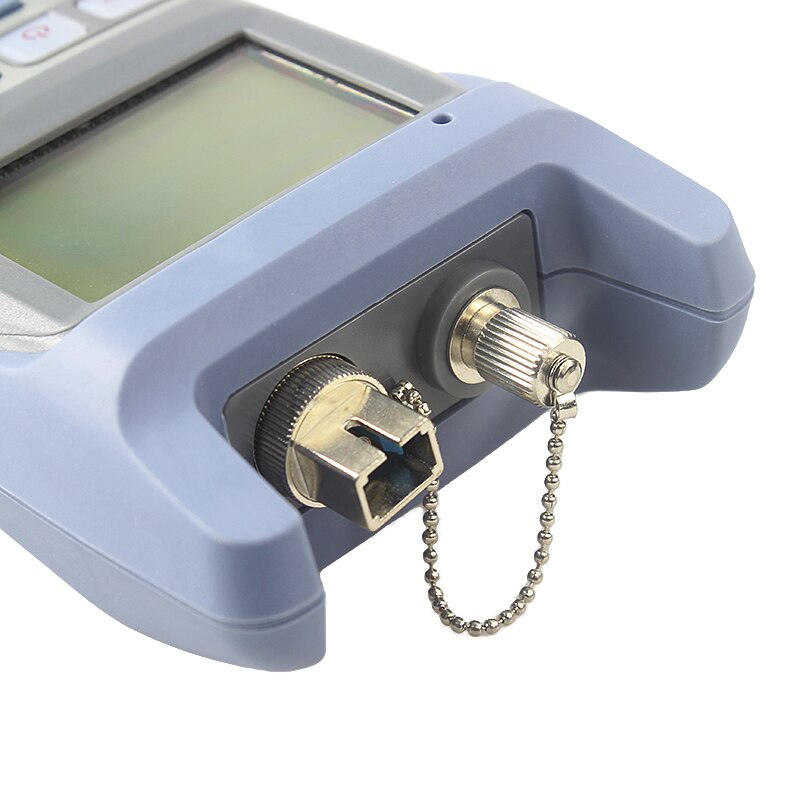

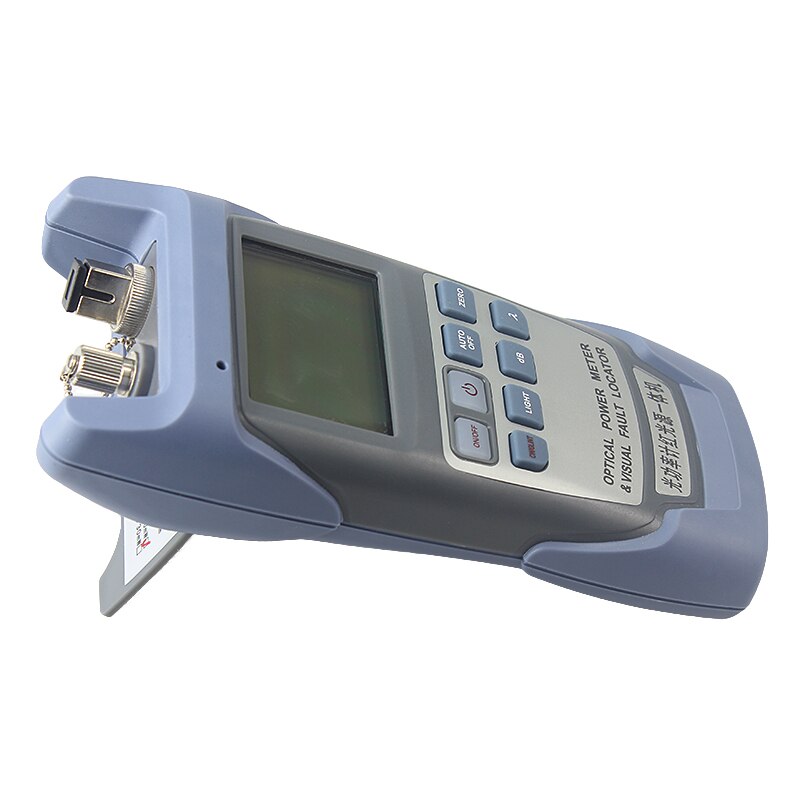

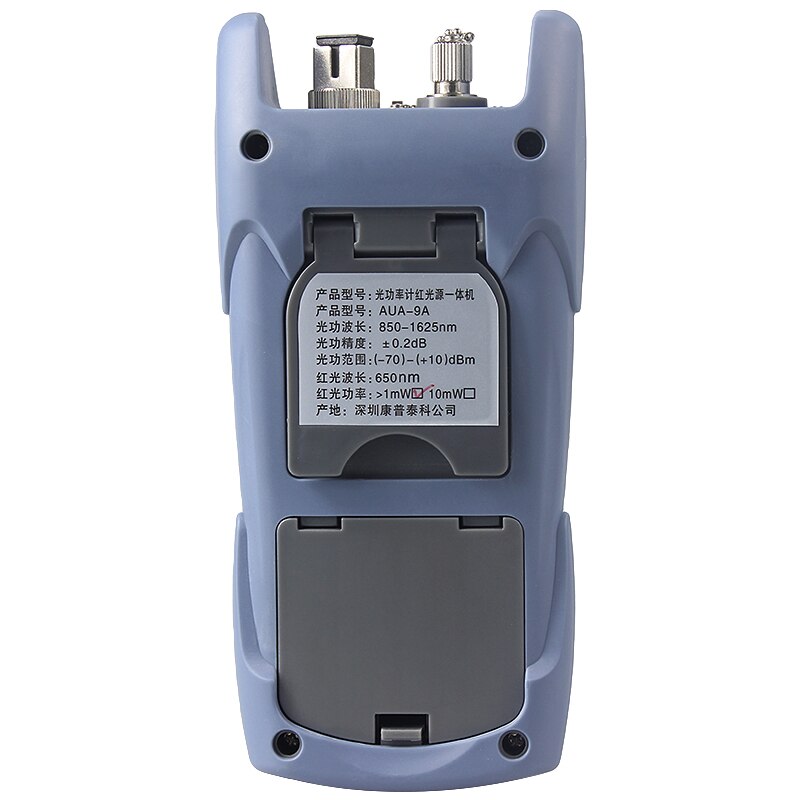

AUA 9 Laser Power FTTH Fiber Optic Optical Power Meter Cable Tester Free Delivery

$49.00

SKU: 1005001468470598 Category: Tag:

Description

NOTICE:



1.Buyer is responsible for the customs duty and local import taxes etc. The price here not

includes the destination fee in buyer’s side.

2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the

order

3.For some sepcial countries, like Brazil, Mexico, E-packet and China Post delivery time may

be around 20-90 days

Product Introduction

Descriptions:

Optical Power Meter Description

This type of Handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
Application
Telecom Maintenance
CCTV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project
Features
Supports 6 wavelength Testing
Auto-off function
with Backlight
self calibration
48 hours super long standby time
simple interface
support sc/fc/st interface
working hour over 8 hours without charging

Specifications

Model A
Wavelength(nm) (800nm to 1700nm )
Detector InGaAs
Measurement Range (dBm) -70~+3
Uncertainty ±5%
Calibrated Wavelength(nm) 850,980,1300,1310,1490,1550,1625
Resolution(dB) Linear 0.1% or Non-linear 0.01dBm
Optical Connector FC/SC

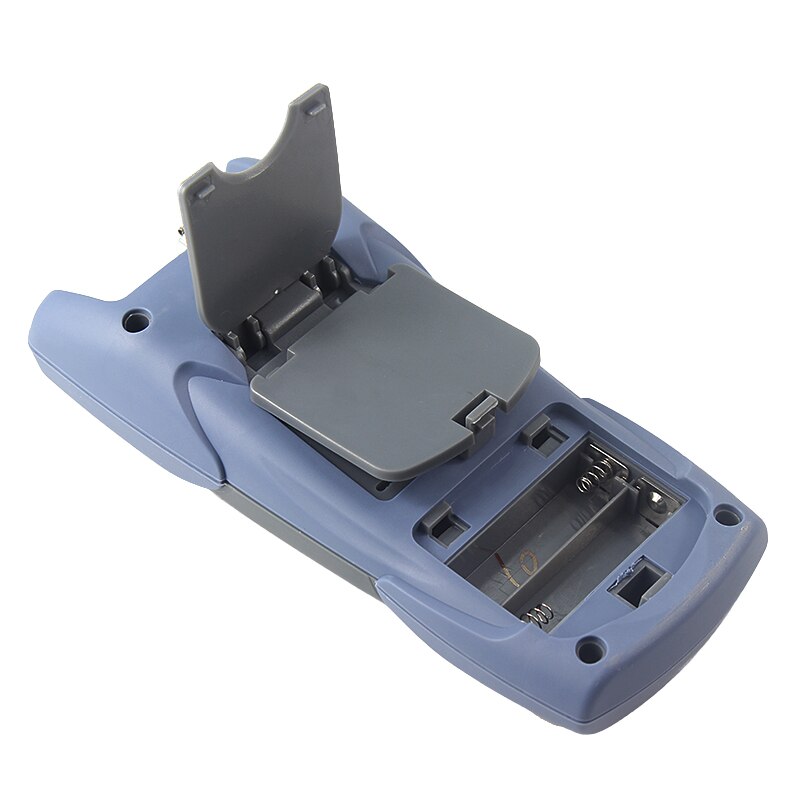

Power Supply Alkaline Battery(2 AA 1.5V batteries)
Battery Operating Time 48 hours
Operating Temperature(°C) -10 ~ +60 °C
Storage Temperature(°C) -25 ~ +70 °C
Relative Humidity 0 to 95% (non-condensing)
Dimension(mm) 180x83x28
Weight 400 g

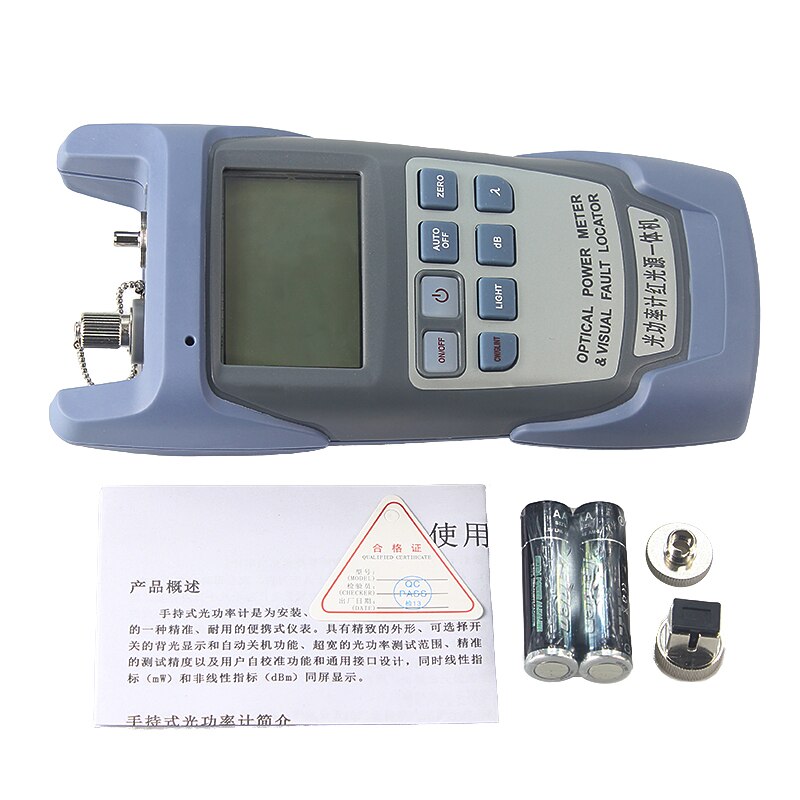

Packing List:

Optical Power Meter x1

FC Connector x1

SC Connector x1

Fiber_Optic_Power_ meter(1)Fiber_Optic_Power_ meter(2)Fiber_Optic_Power_ meter(3)Fiber_Optic_Power_ meter(5)Fiber_Optic_Power_ meter(7)Fiber_Optic_Power_ meter(8)
