Description

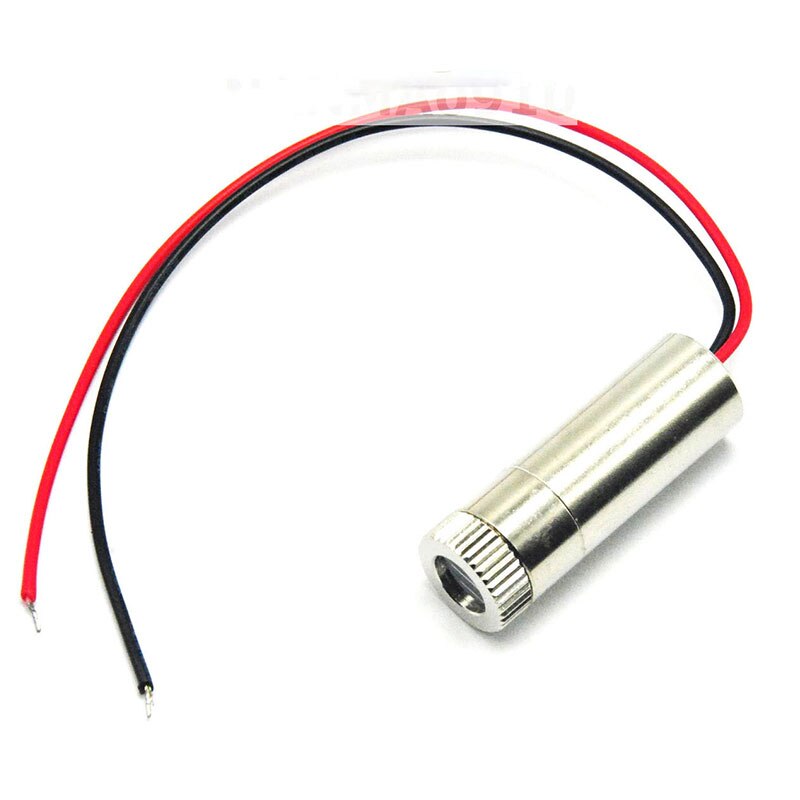

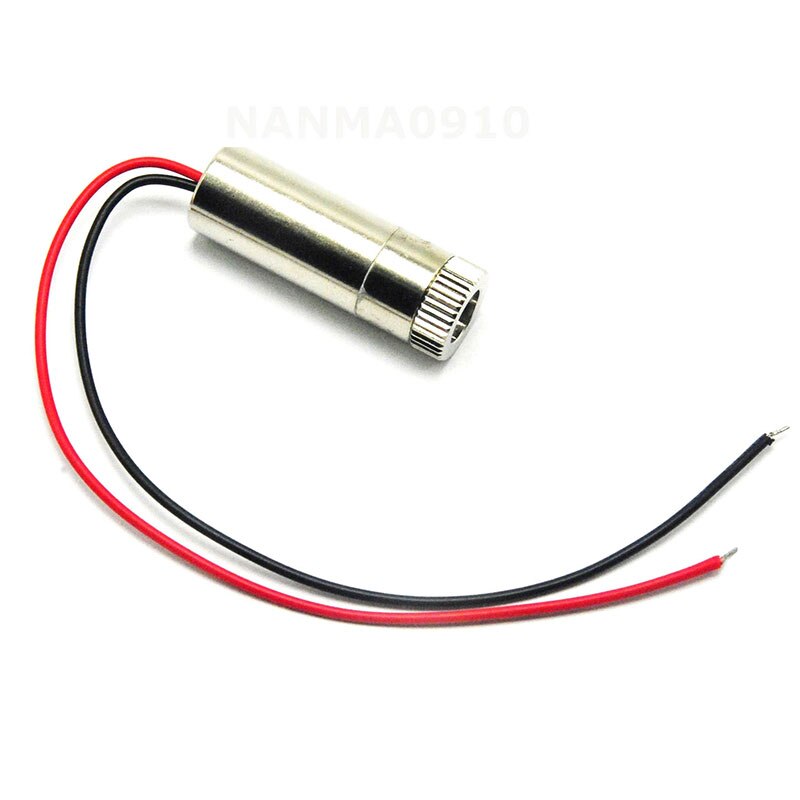

Adjusted 808nm 100mw Infrared IR Laser Module w Focus Dot Head DIY 12mmx40mm

Please note that this is 808nm IR Lasers which can only be seen a weak red light and the spot is rectangular.It’s normal.

Parameters
Wavelength:808nm 810nm
Output Power:100mw
Working Voltage:DC3V-5V
Working Current:I <200mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:dot(rectangular to oval)
Focusable:yes
Material:Aluminium
Circuit control: APC circuit
Dimension:12x30mm or 12x40mm

Features
1.This 808nm laser diode is an industrial electronic component and  used for as Industrial testament, Lab, DIY.
2.It is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.The laser module is very powerful, please add heatsink on laser holder and wear laser protection goggles when working on this module!
4.Please wear IR laser protection goggles when you work on it.

Package
1pc Focusable 100mW 808nm 810nm Infrared IR Laser Diode Module DC5V 12x40mm
