Description
Specifications:
Wavelength: 515nm
Output power: 30mW
Supply voltage: 12V
Operating current: 88mA
Spot mode: Line
Product material: aviation aluminum
Working temperature: +-50°C

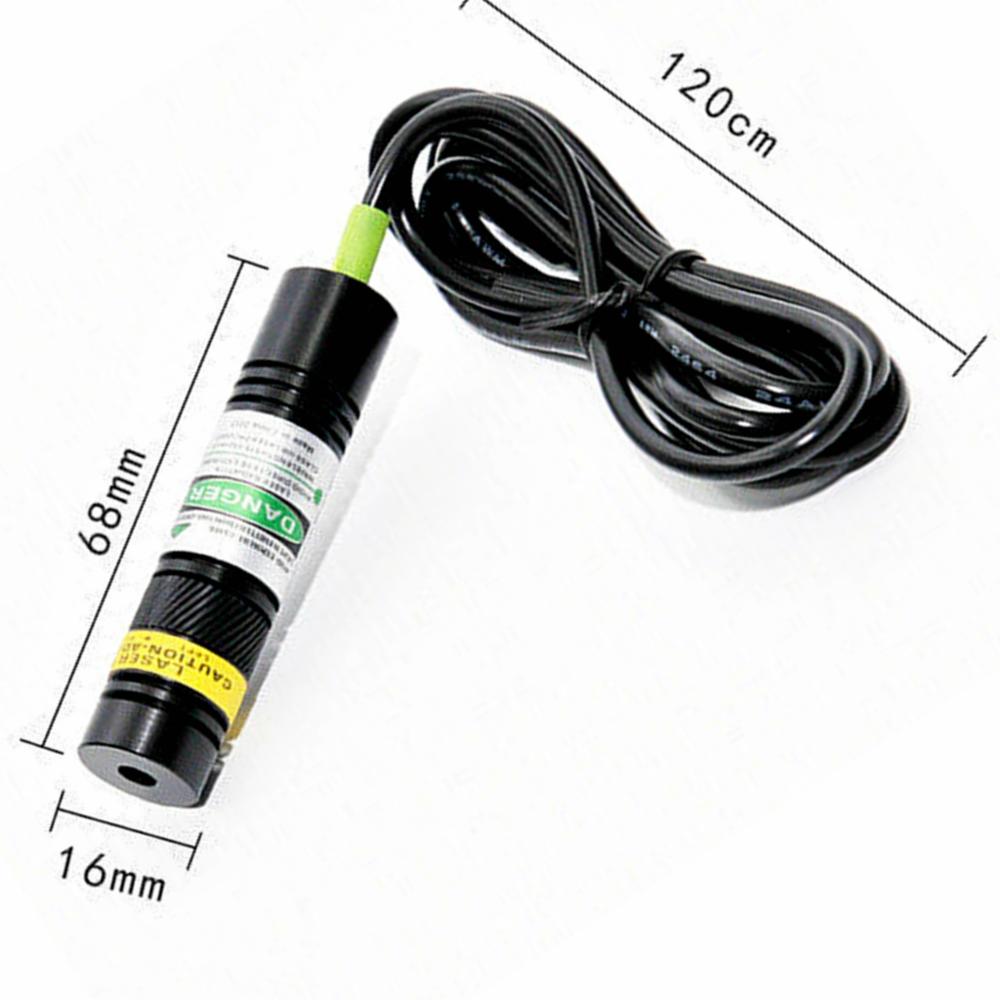

Dimensions: 16*68mm (focusable)
Output band: visible light
The best working distance: 0-15 meters
Features:
1. dedicated power supply:
Supporting special power supply, with strong anti-interference, high stability, suppression of inrush current and slow start, etc., especially suitable for harsh working environment, can effectively ensure product stability and service life.

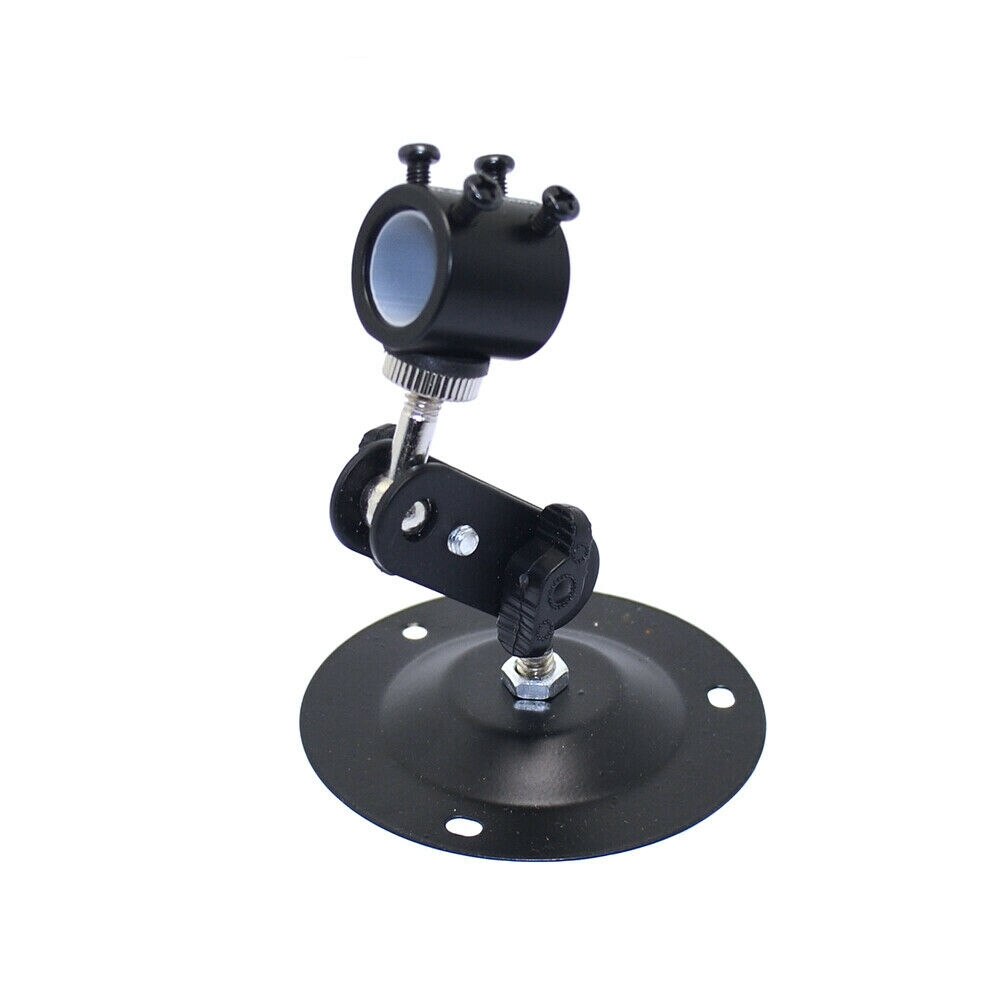

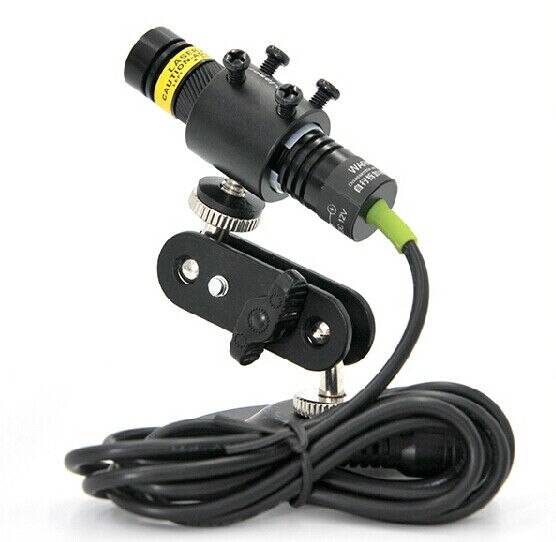

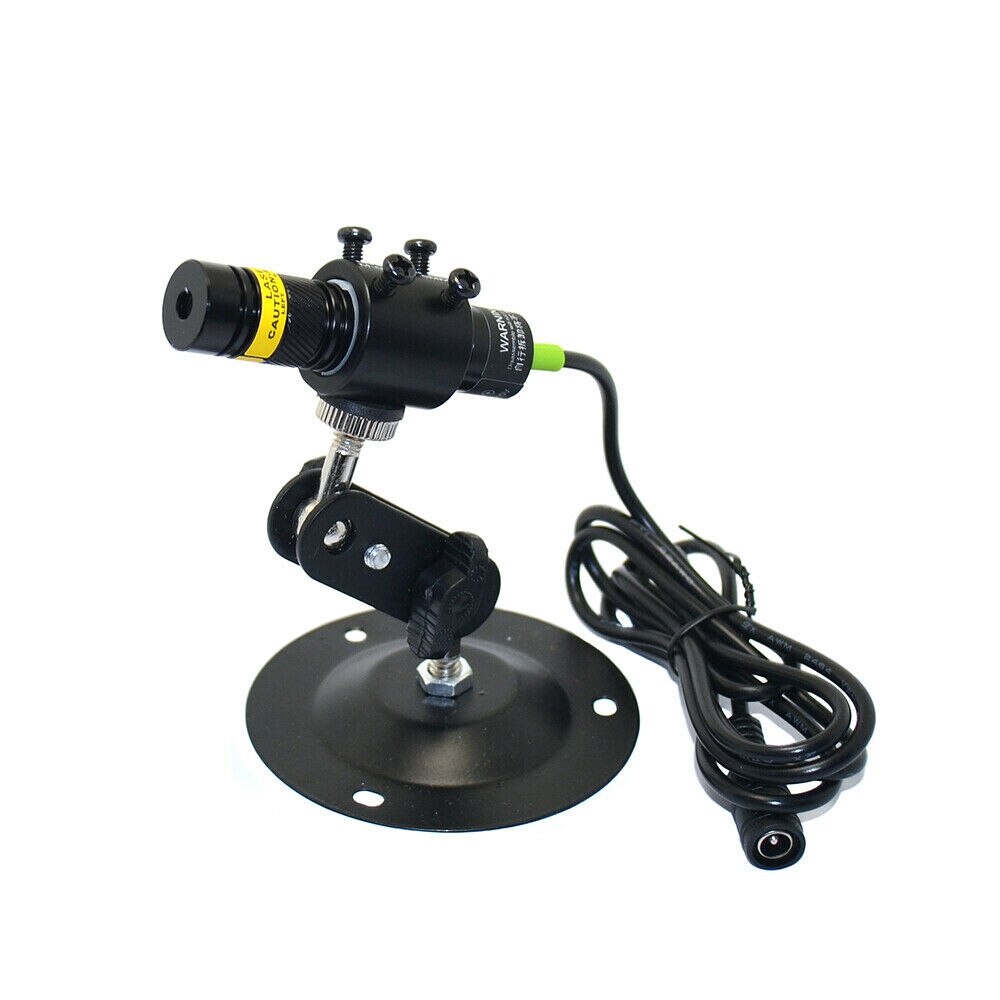

2. Industrial bracket:
Supporting special brackets, with good thermal conductivity and flexibility, so that the laser sniffer can be installed in any vertical or horizontal plane, and make it adjustable 360 degrees in any angle of three-dimensional space, has achieved the best results.
3. Laser:
Adopt original imported diode, small volume, clear light, large angle of light, high straightness. Can fix the focus while also adjusting the thickness of the light, the customer can adjust the focus according to various requirements
Applies to:
Printing Machines / Embroidery Machines / Stitching Machines / Apparel Processing / Cutting Machines / Sewing Equipment, etc.
Package:
1*515nm 30mW Line laser module
1*holder
1*12V Power Adapter
