Highlights:

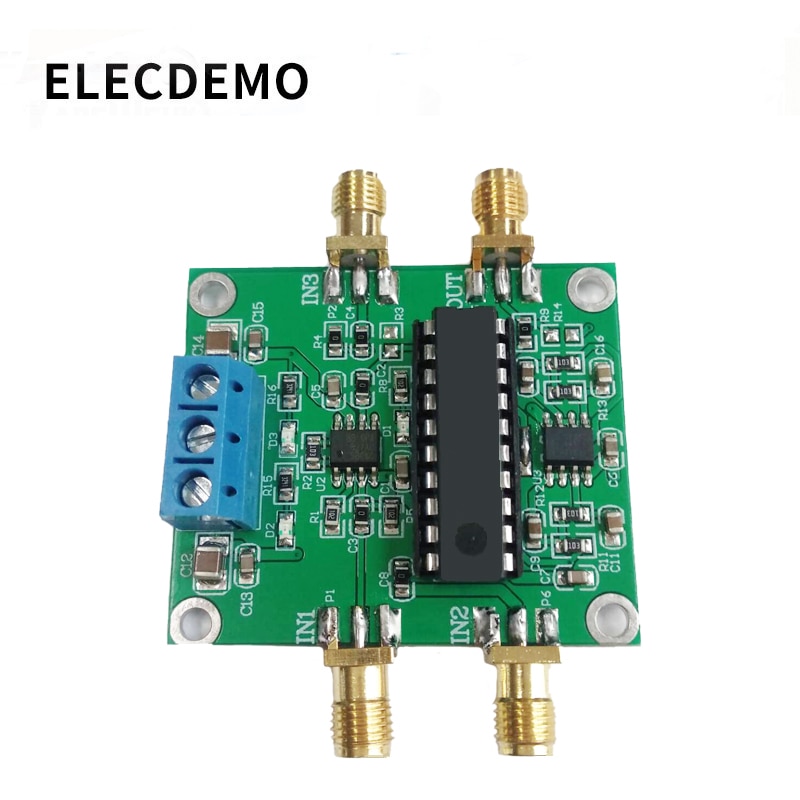

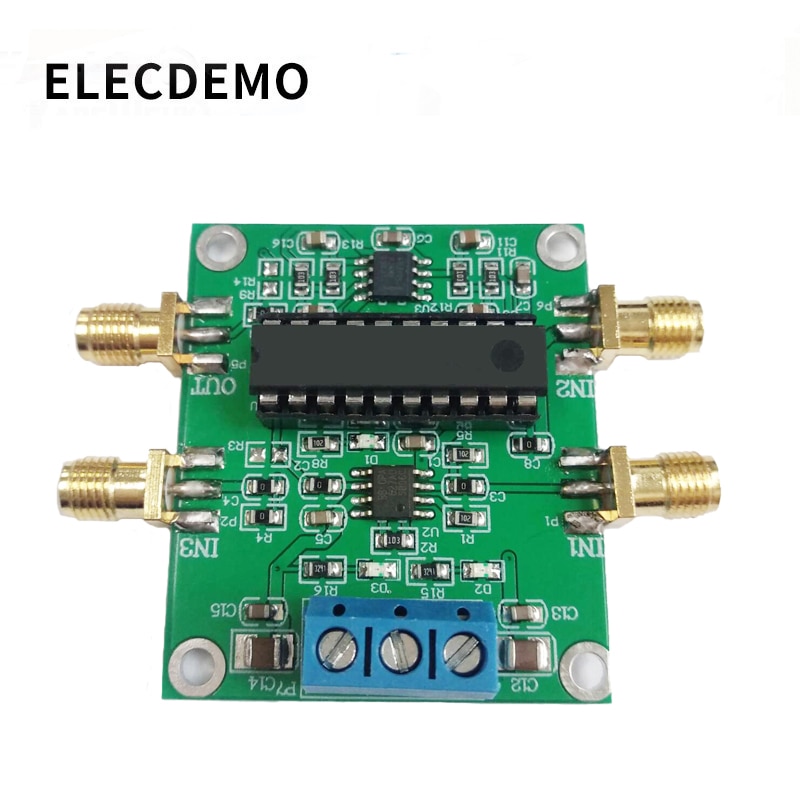

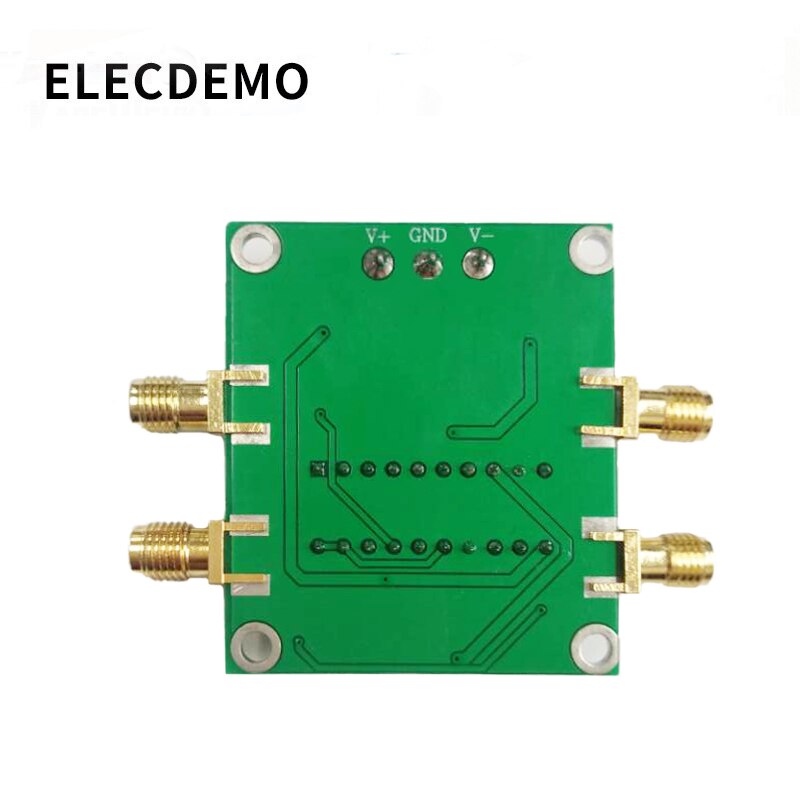

This AD630 phase-locked amplifier is an integrated preamplifier OPA627 and 4-order ultra-low-pass Butterworth filter, forming a minimum system of phase-locked amplification, which can detect and extract weak signals, but also can be used for AD630 modulation function.





Parameters：





Function:

The module has two modes of operation, one is a phase-locked amplifier, the other is a balanced modulator.

Balanced modulator can leave a message or change the circuit itself after receiving the goods. The method is as follows:

1、Remove R4 (0-ohm resistance) and shorten or weld R3 to 0-ohm resistance

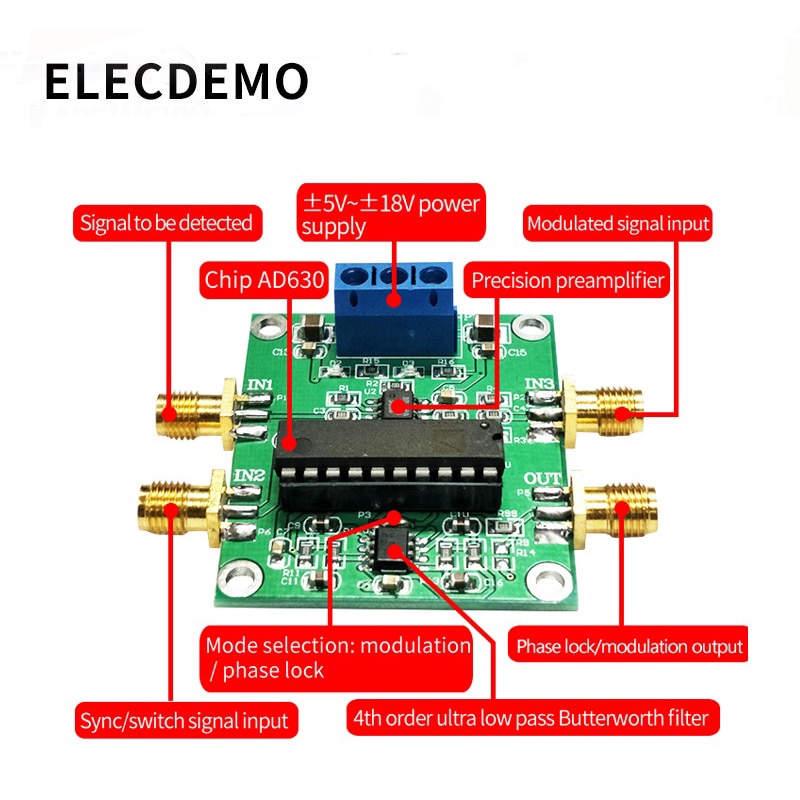

2、As shown in the figure, the mode selection is connected to the left and selected as the modulation mode.

3、Short-connect R14

Lock-in amplifier connection diagram:

Phase Lock Signal Input, IN1 Input 1K 100mvpp, IN2 Input 1K 1Vpp, IN1 and IN2 Input in the same frequency and phase

Phase lock signal input, IN1 input 1K 100mvpp, IN2 input 1K1Vpp, IN1 and IN2 differ by 90°

Phase lock signal input, IN1 input 1K 100mvpp, IN2 input 1K1Vpp, IN1 and IN2 are 180° different.

Balanced modulator connection diagram:

Modulation input IN3 input 10K1Vpp modulation signal, IN2 input 100K1Vpp modulation signal
