Description
(OEM compatible production services, customized solutions for enterprises, customized solutions for individuals or amateurs)
(At iyoubol Solutions, we have 8 years of experience in manufacturing molds and parts customization tools. We have manufactured more than 500 customized parts for laser heads, laser modules, and other consumer electronics products)
(Our company is a laser head manufacturer, if you have any needs, please contact us, you can customize it privately, with powerful power, high technical content, and stable quality)
(How to distinguish true and false power, according to the standard calculation that 15W can cut 5mm balsa)
(15W cutting 5mm balsa wood is done in one cut without repeated cutting, this is the real actual power)
The 15W laser head produced by our company has reached the industrial level, so that powerful power can cut 5mm balsa wood, which is impossible for most companies. 15W can cut 5mm balsa wood, which is considered to meet international standards.
technical parameter
Total length of laser + fan: (15W 33mm 100mm) (15W 40mm 105mm)
Laser light source: semiconductor blue light
Shell material: high-density aluminum
Color: Oxygen silver
Module center material: copper

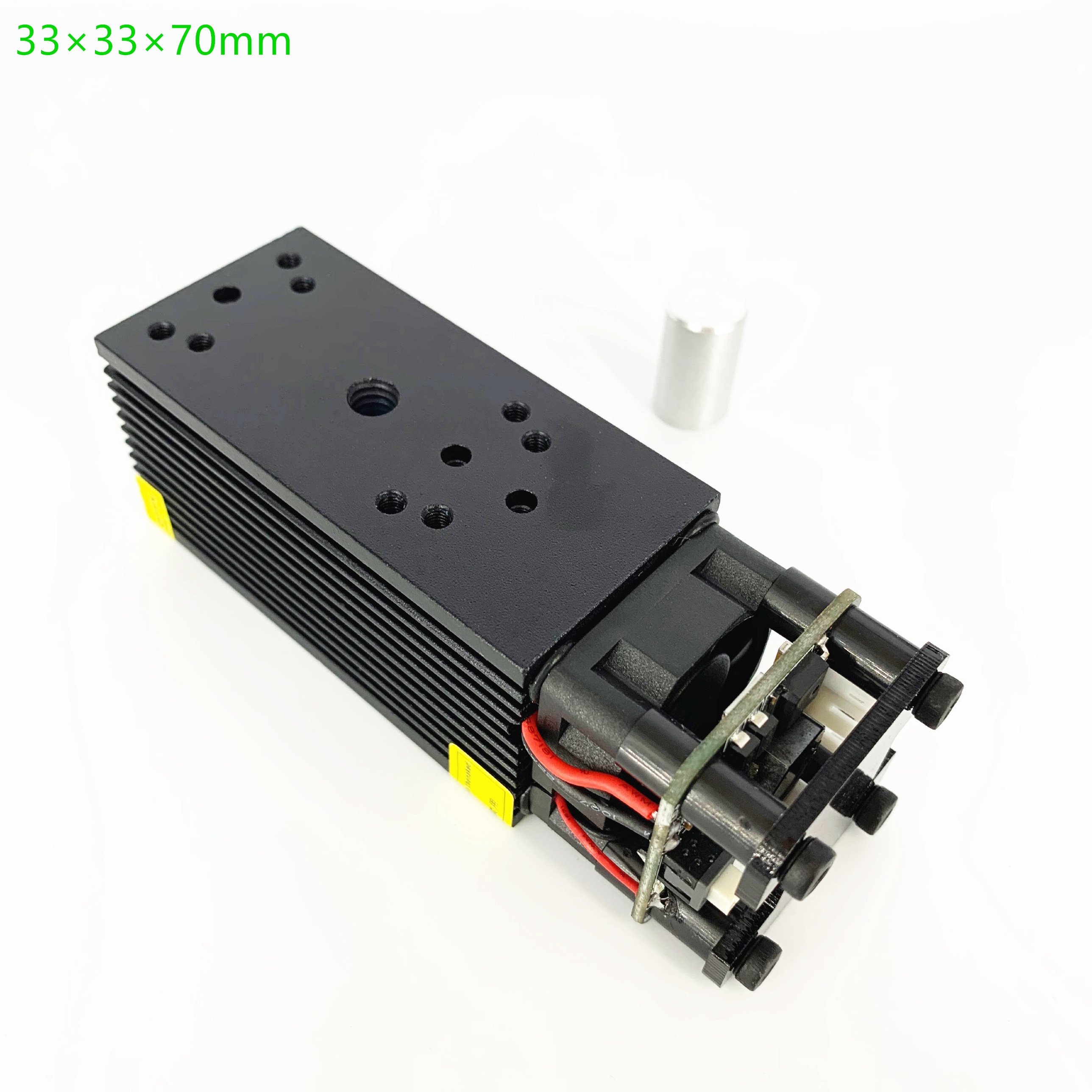

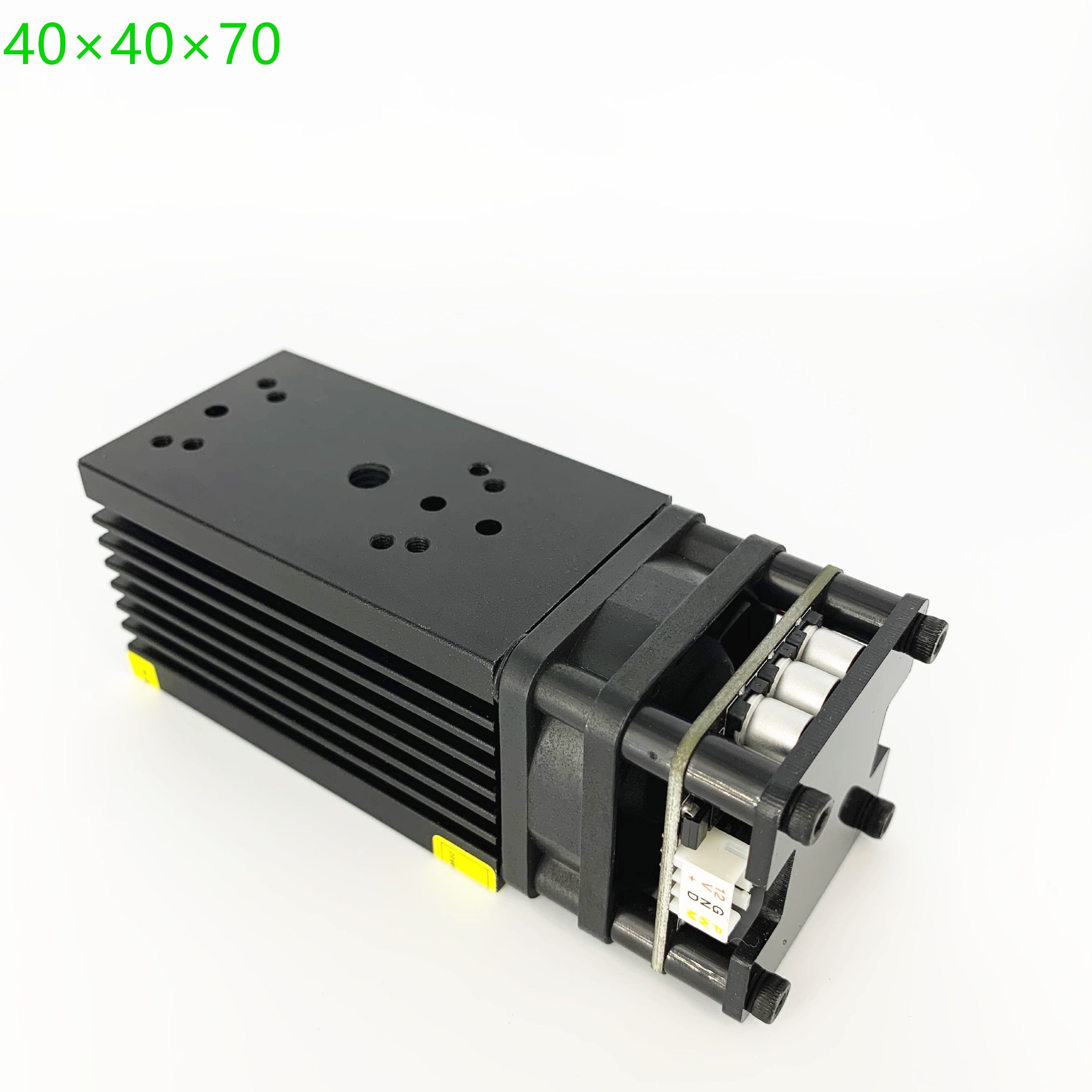

Shell size: (15W 33×33×70mm) (15W40×40×70)
Optical power output: 15W
Laser wavelength: 450nm
Optical lens material: D-ZK3 high efficiency light transmittance
Supply voltage: 12V
Power control: PWM TTL
Power supply current: 4.2A
Interface specifications: 3 fight lines 2.54
Light shape: point-like fixed focus (the focal length of the carving object is 1.8 cm)
New innovative laser technology: The finest focus is between 0.2-0.3.
New heat dissipation method: high-speed double ball fan cooling at 13,000 revolutions per minute, safer and more durable.
New extension: 48 hours of continuous working hours and 1,050 hours of life. (If the smoke is blurred, please add a fan when engraving or cutting)

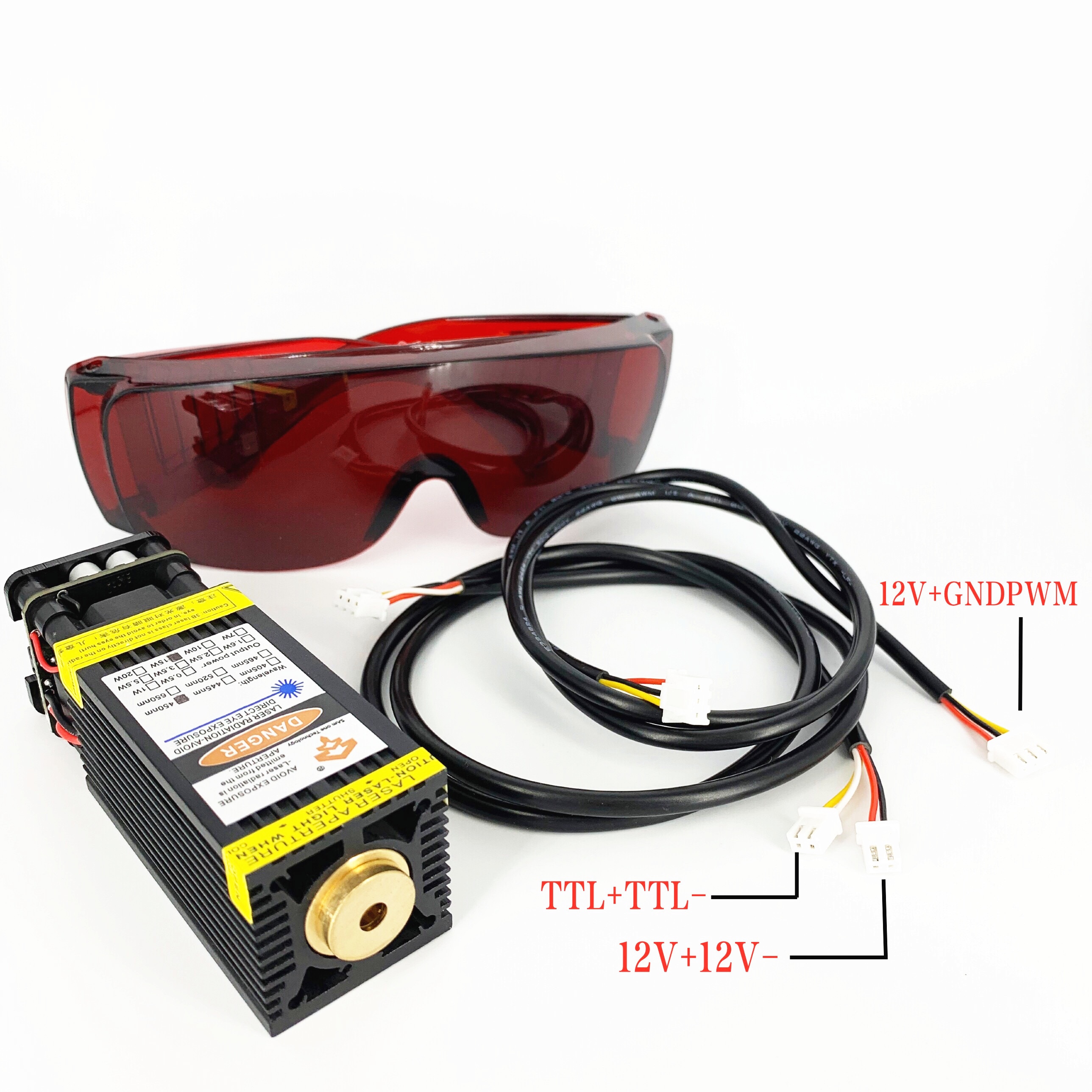

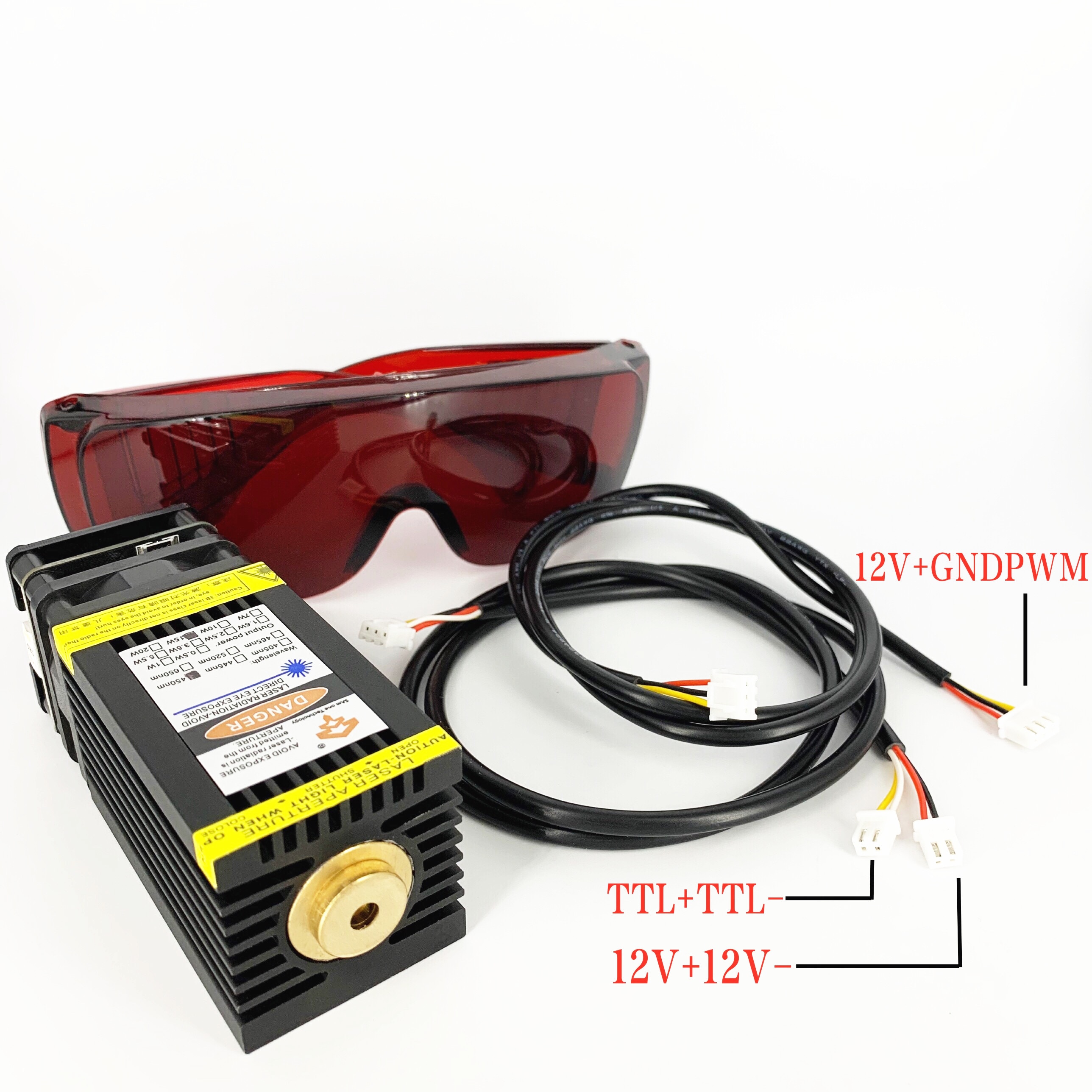

The list includes: 3P line*1, power wiring*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
You need to know whether this size laser head is suitable for installing your machine.
Engraving must know: engraving reflective objects must be blacked first, then engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
Buyers read: Please pay attention to the wire sequence: red wire 12v+, black wire GND -, yellow wire pwm+, please check carefully if you need to replace it
Note: For industrial use only, eye contact is prohibited, children are prohibited from contacting this laser product, and the consequences are at your own risk.
Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.
It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Cutting material: It can cut light wood 1mm-5mm, black acrylic board, leather, paper, etc.
Purchase notice: The price of this laser head does not include customs duties. You need to pay customs duties after arriving in your country. If you have suggestions, please communicate with us, but we will give you some good suggestions.
