Description

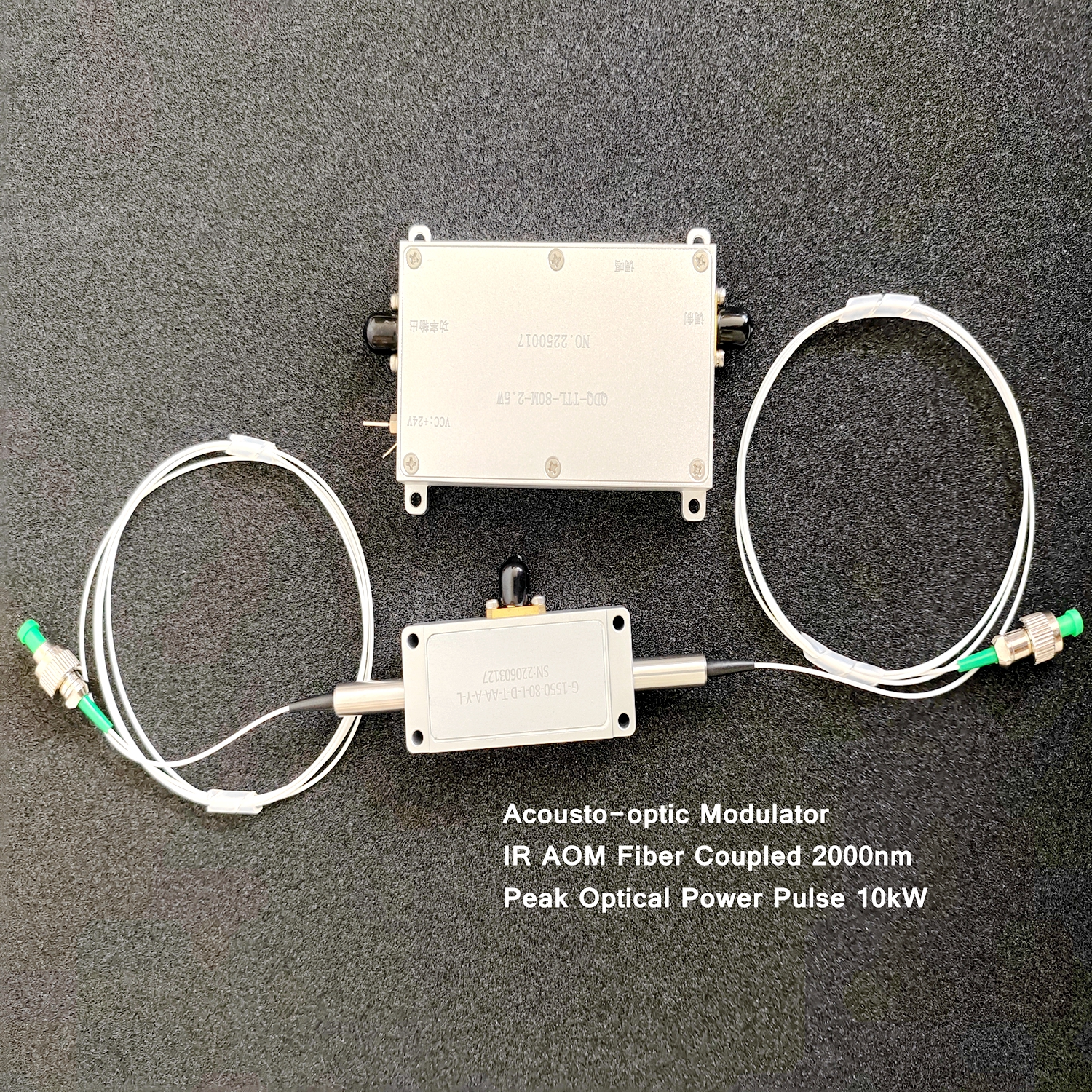

Acousto-optic Modulator IR AOM Fiber Coupled 2000nm Peak Optical Power Pulse 10kW

Interaction Material:Tellurium dioxide
Signal Wavelength:2000nm (IR AOM)
Operating Wavelength Range:+-30nm
Frequency:80MHz
Ultrasonic Velocity:4200m/s
Insertion Loss:2.5dB
Extinction Ratio(Turn On / Off):55dB
Polarization Extinction Ratio:18dB
Rise-Time/Fall-Time:25ns
Return Loss：40dB
Voltage Standing Wave Ratio (VSWR): 1.5:1
Average Optical Power:0.5W
Peak Optical Power (Pulse): 1kW
Input impedance:50
RF Power:2.5W
Device Interface:SMA Fiber
Fiber Type:PM1550
Fiber Length:1m
Fiber Connector:FC/APC
Operating Temperature℃:20 ~ +60
Storage Temperature℃:30 ~ +70

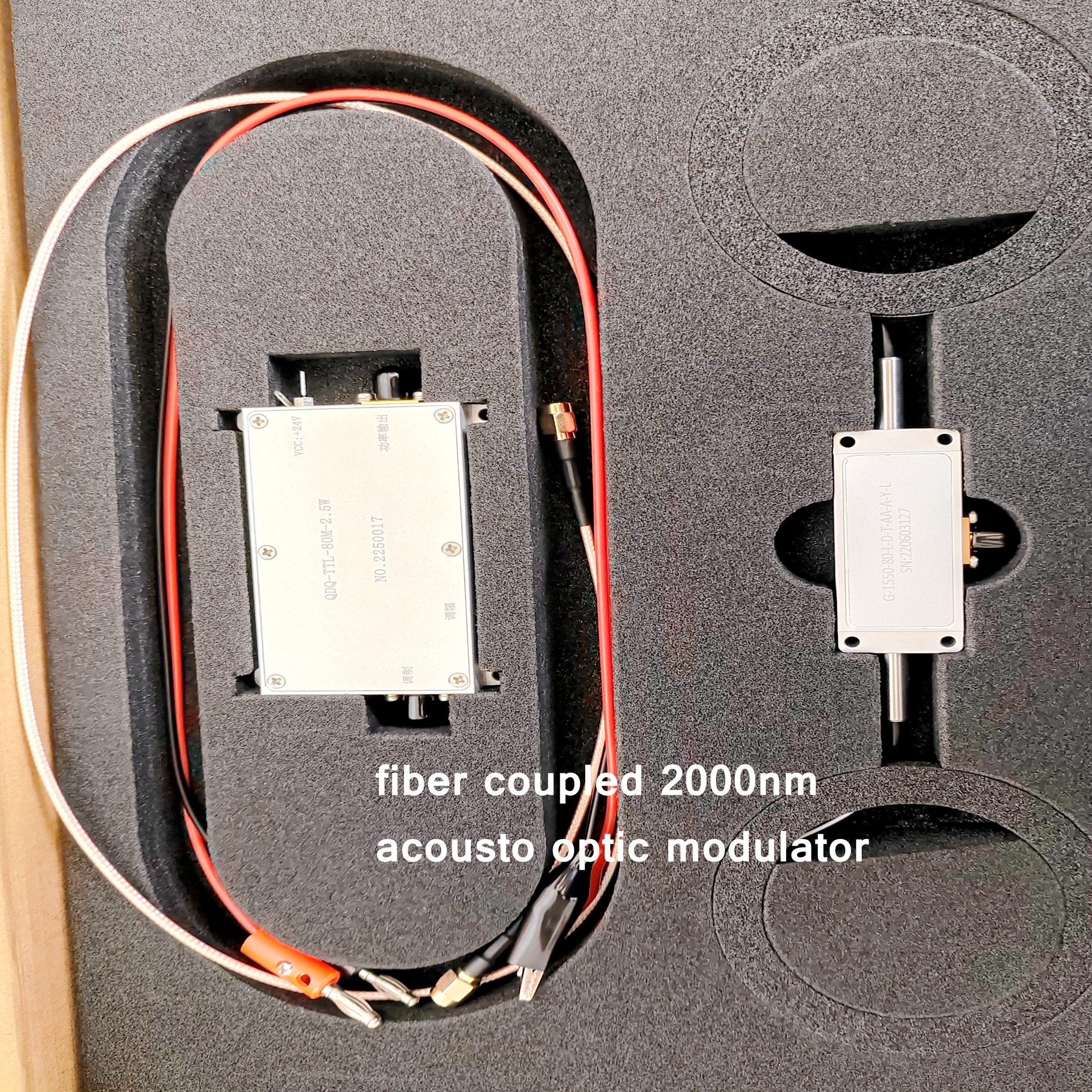

This is fiber coupled 2000nm AOM, if you need free space AOM or other 2000nm AOM, check this category for more 2000nm IR AOM.

And this fiber coupled acousto optic modulator 2000nm can be customized according to your requirements.

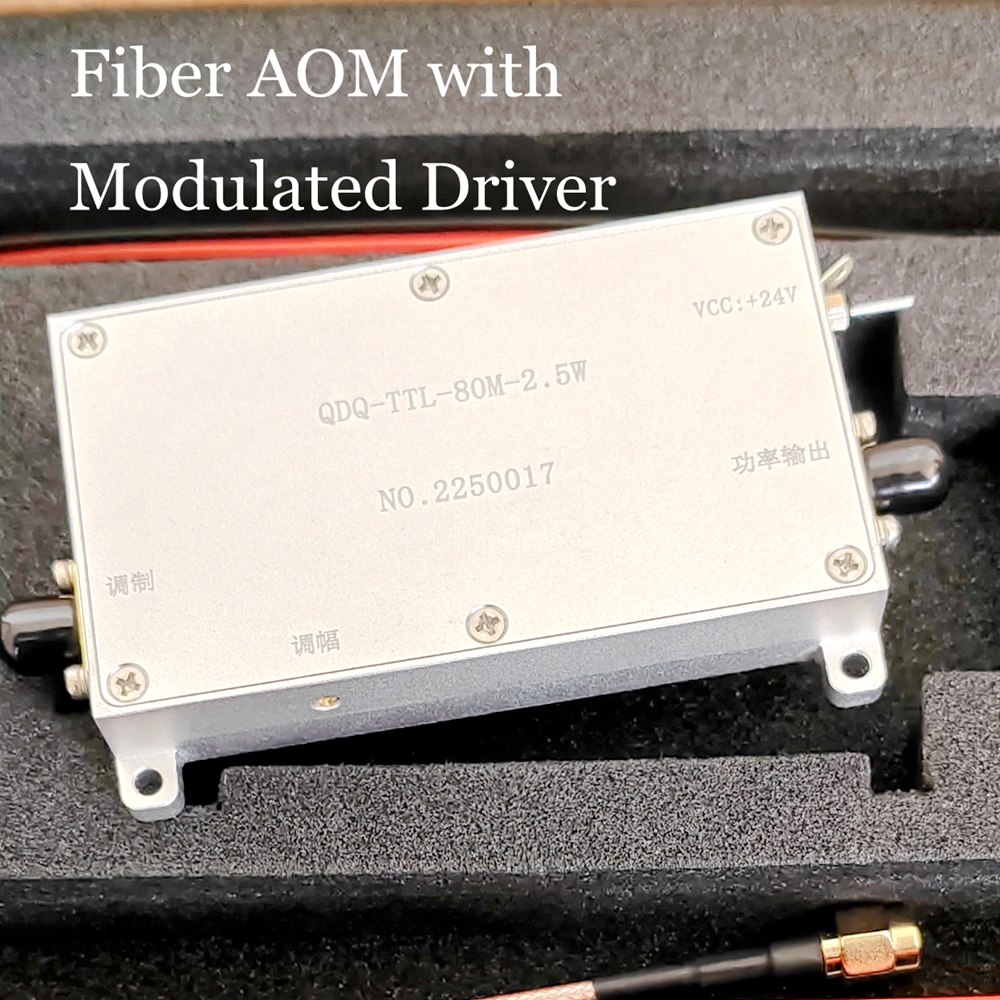

With the following RF driver included.
