Description
Other Voltages Are Not Available In Stock And Can Be Customized, AC110V AC24V AC12V DC6V, Please Contact The Merchant
220V Non-pressure Type, With Noise And Jitter, Please Be Cautious If Required
Pressure Type (Inlet Water valve) Suitable for water pressure 0.02~0.8Mpa
Non-pressure Type pressure (drain Water valve) Suitable for water pressure 0~0.01(0~0.02) Mpa
| Action: | Pilot |
| Forms: | Normally closed, Power on and water on (commonly used), normally open, Power on and water off(very useful) |
| Working temperature: | 0-90°C degrees |
| Voltage variation range: | -10%~+10% |
| Working pressure: | pressure type 0.02-0.8Mpa, non-pressure type 0-0.01Mpa |
| Service life: | 500,000 times, temperature 30 degrees, interval 10 seconds, power on for 10 seconds |
| Temperature environment: | 0-50°C |
| The angle of the coil and the valve body: | adjustable 90 180 360 720 degrees |

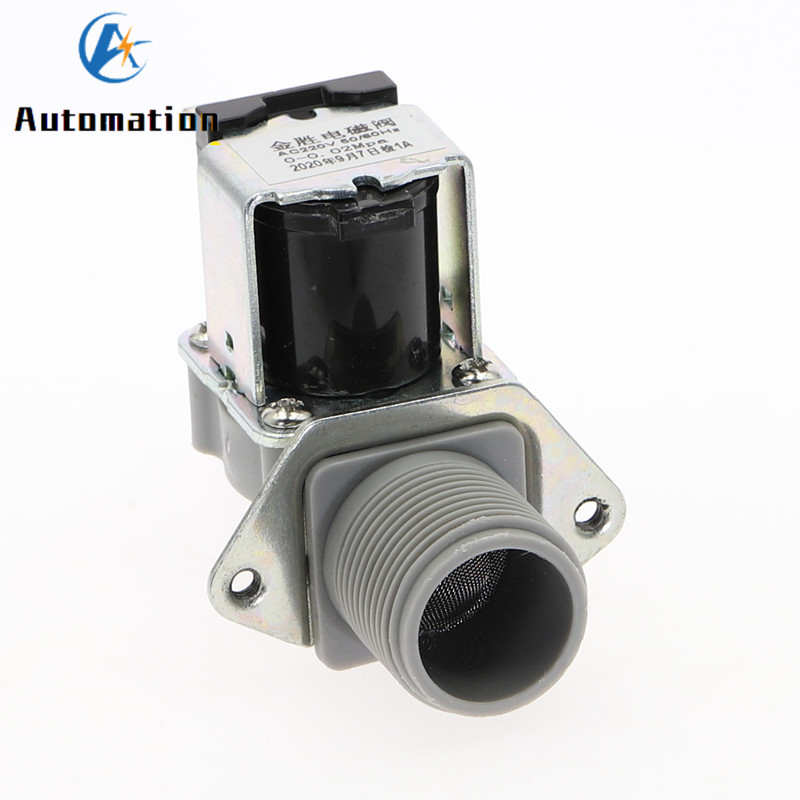

| Filter function: | pressure type with filter, non-pressure type without filter |
| Medium: | suitable for purified water, and drinking water. Not suitable for acid-base, thick, viscous liquids |
| Rated electrical load: | AC220V, 0.045A: DC6V, 0.88A: DC12V, 0.55A: DC24V, 0.23A |
| Watertight performance: | water pressure 0.02mpa, leakage <0.1ml/min. Water pressure 0.03-0.8mpa, leakage <0ml/min |
| Flow characteristics 1: | pressure 0.02Mpa, flow 2L/min. Pressure 0.3Mpa, flow 8L/min. Pressure 0.8Mpa, flow 20L/min. |

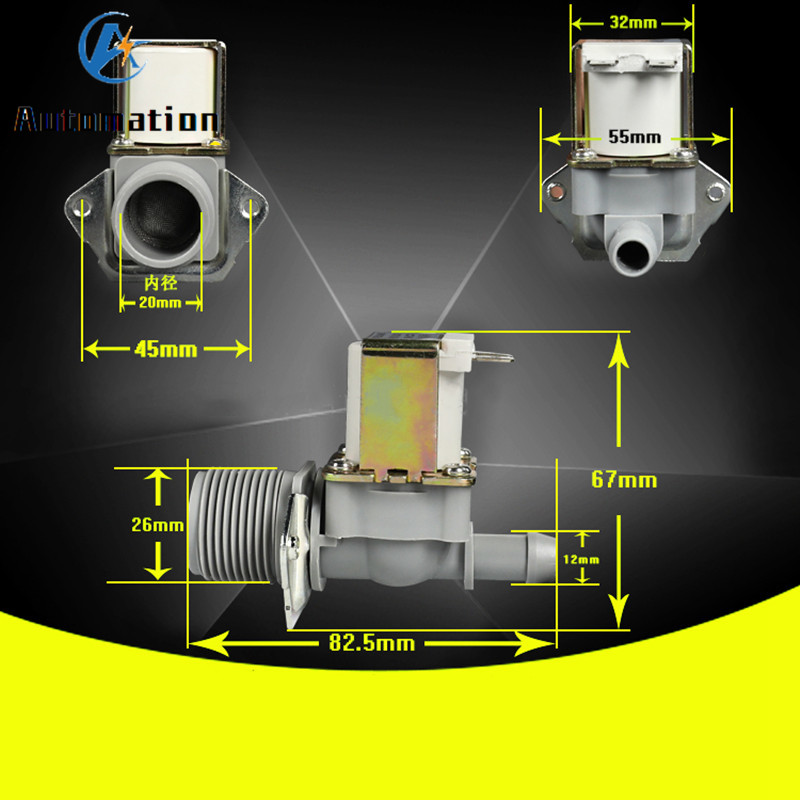

| Thread specification: | G3/4=26mm |
| Pipe diameter | 12mm |
| package | 1pcs X Solenoid Valve 2pcs X Terminal 6.3mm ( 10CM Length Giveaway) |
