Description
Features:
Size: φ18 × 45mm
Material: black alumina
Life: continuous output,
continuous service life> 10000 hours
Output Wavelength: 980nm+/-5nm
Output power: 1000 meters
Spot shape / diameter: oval spot
Circuit control: ACC constant current circuit
Operating voltage: DC = 3V ~ 5V, two dry batteries can be used to start
Working Current: I <180mA
Wire: 120MM red and black electronic wires(red wire is positive +, black wire is negative -)
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -20 ℃ ~ +60 ℃
Feature:
Please use 5V DC to drive this module! Please keep the lens clean to make the laser beam clear and bright.
Note:
Please pay more attention to heat dissipation.
Infrared light is not visible, you need a professional camera to see the spot.
Application of infrared light module
1. Can be used for sight positioning.
2. Can be used for laser testing tools.
3. Can be used for concentricity positioning.
4. Can be used for medical equipment positioning.
5. Can be used to make signal equipment
Package:

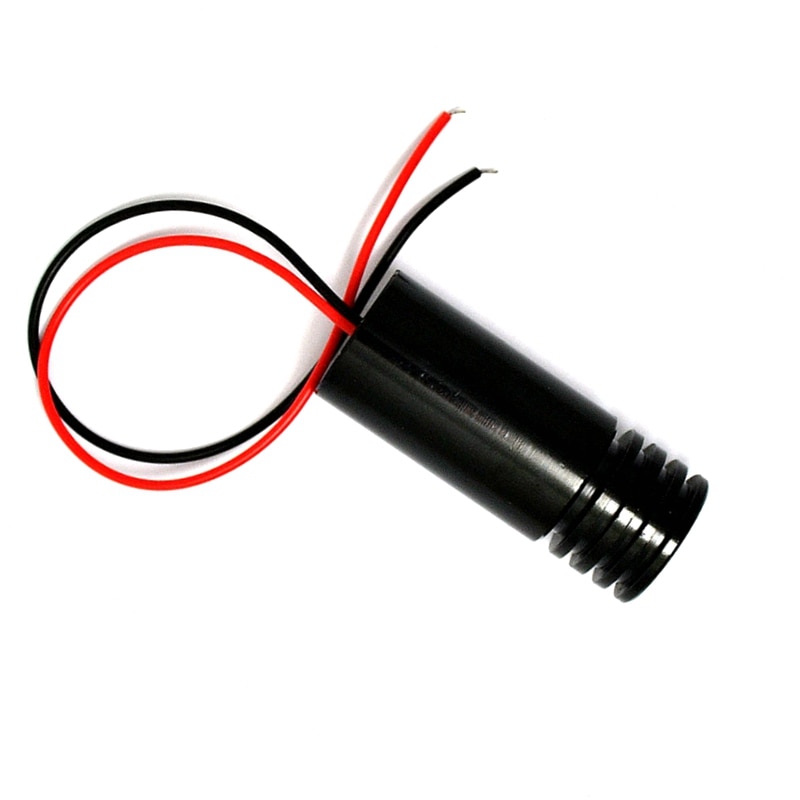

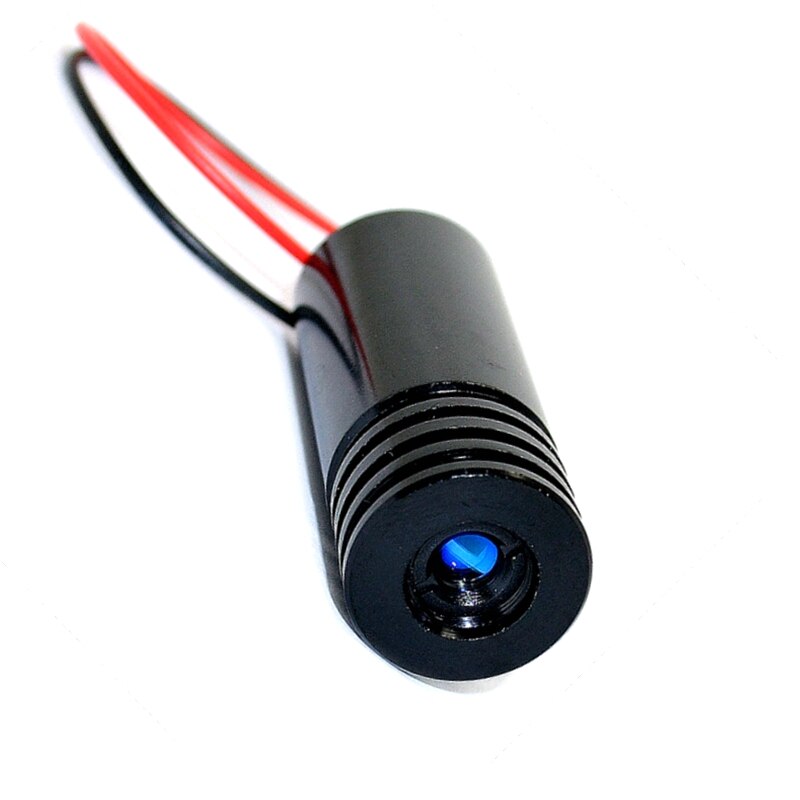

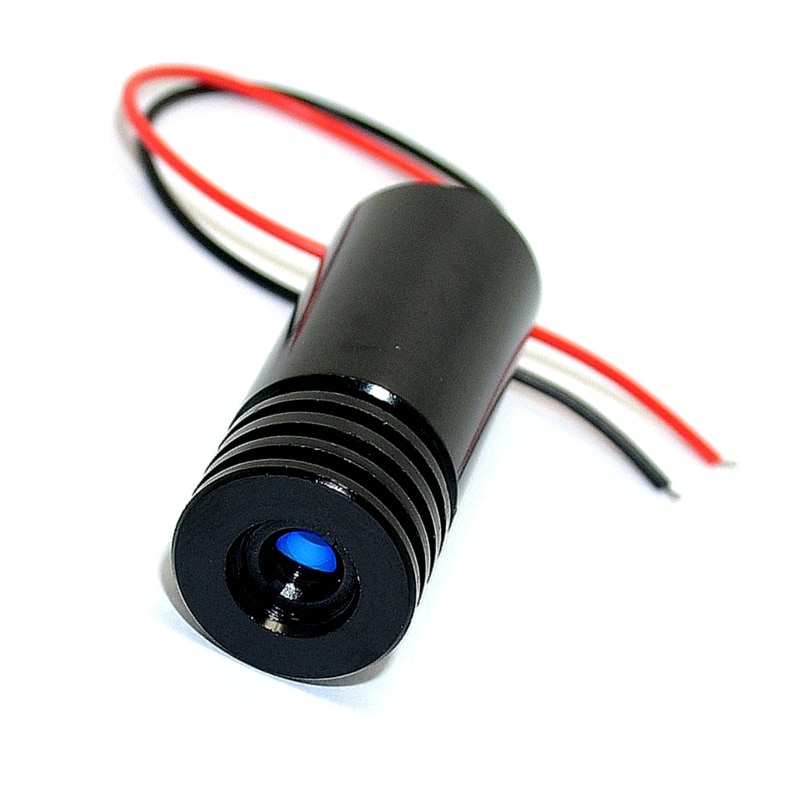

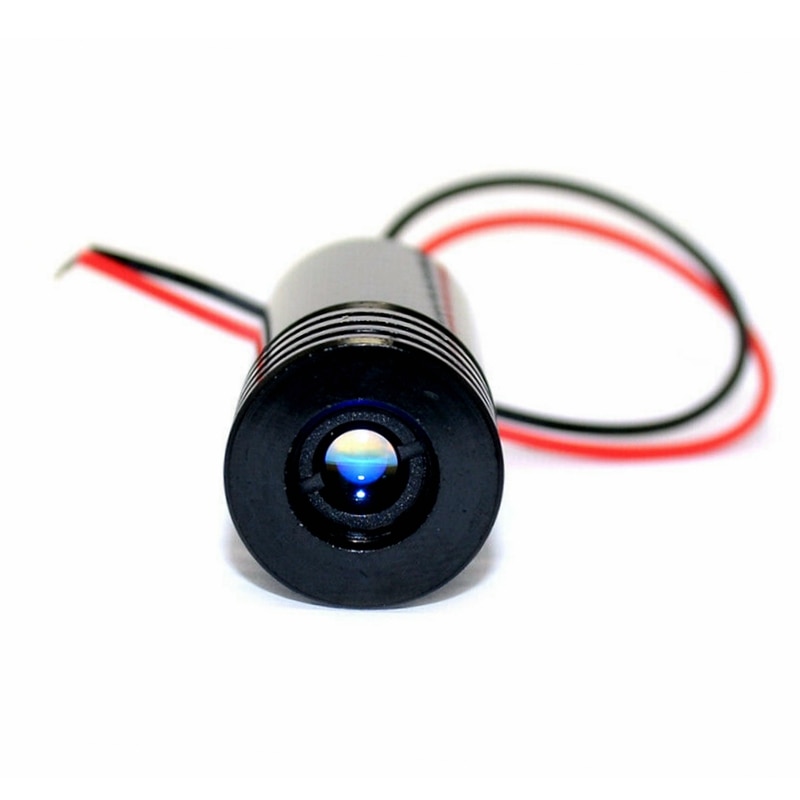

980nm 100mW IR Infrared Laser diode Dot Module 5V with Driver In 18x45mm
