Description
- Brand Name: HKNA
- Origin: Mainland China
- Certification: CE
- Place of Origin: Guangdong, China
- Condition: New
- Warranty: 1 Year
- After-sales Service Provided: Online support
- Spare Parts Type: laser diode
- Video outgoing-inspection: Not Available
- Machinery Test Report: Provided
- Marketing Type: Hot Product 2019
- Brand Name: OEM
- Key Selling Points: Competitive Price
- Showroom Location: None
- Applicable Industries: laser diode material processing
- Weight (KG): 0.1 KG
- Wavelength: 976nm
- Output power: 10W
- Connector type: FC/APC Customized
- Pigtail length: 1.2m
- Application: Fiber laser pumping/Medical use/Material processing
- Operating temperature: 10℃~ 40℃
- Storage temperature: -20℃~ 80℃
- Certification: RoHS/Telcorida GR-468
- After Warranty Service: Online support
- Local Service Location: None

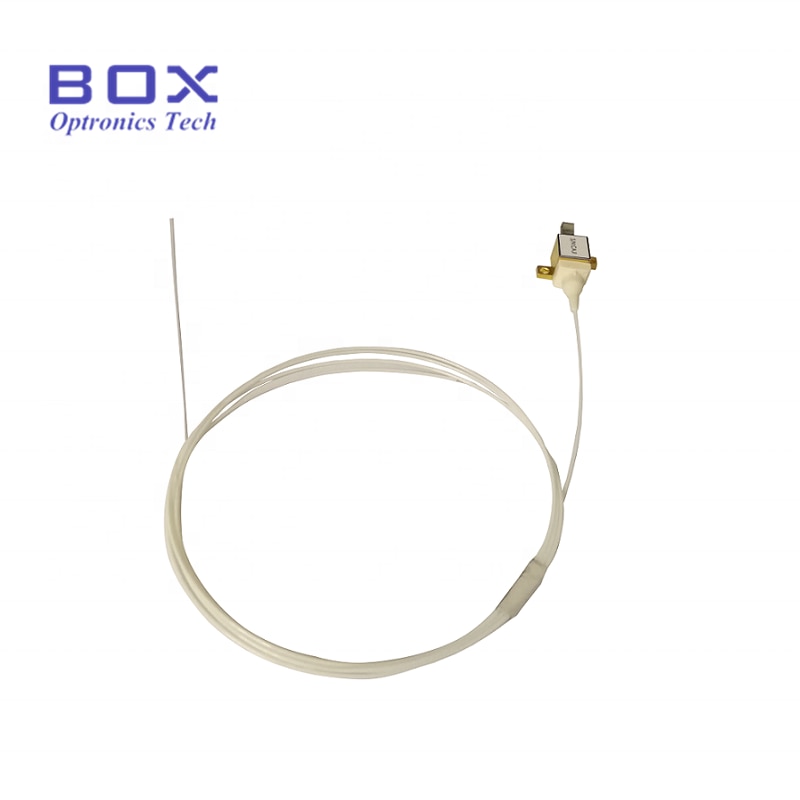

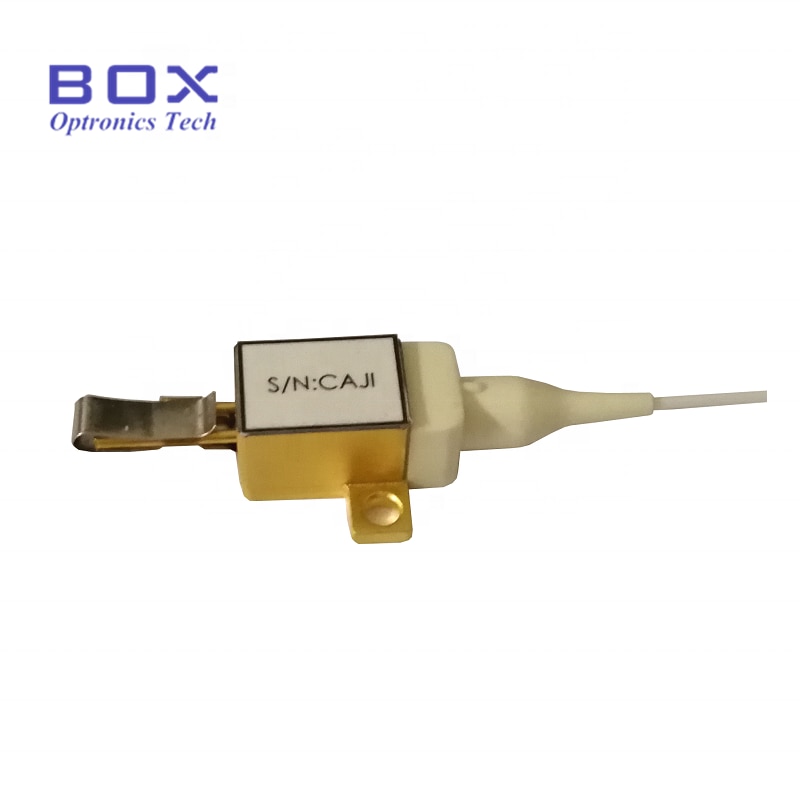

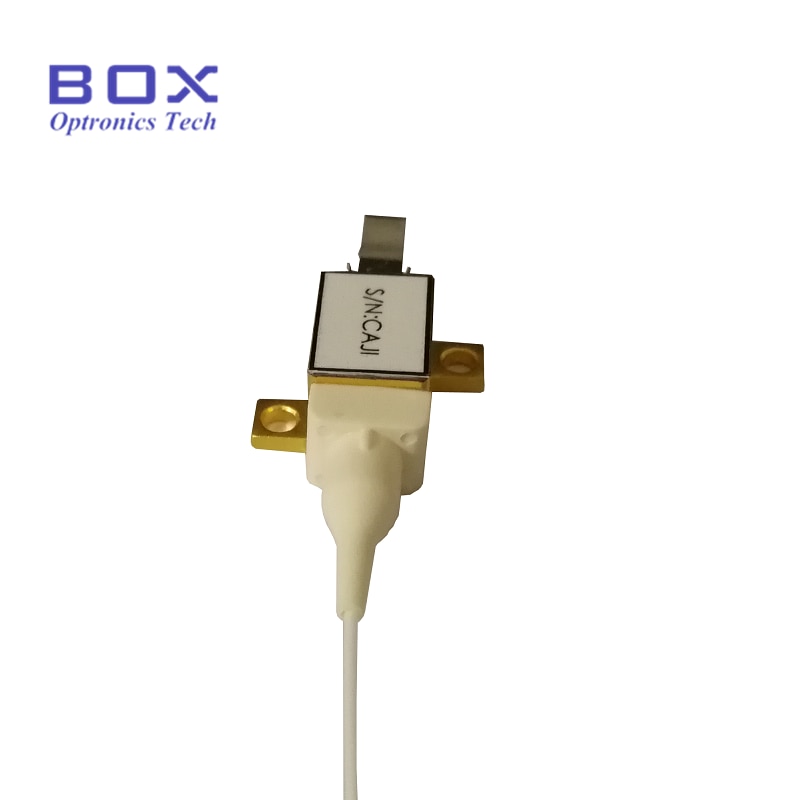

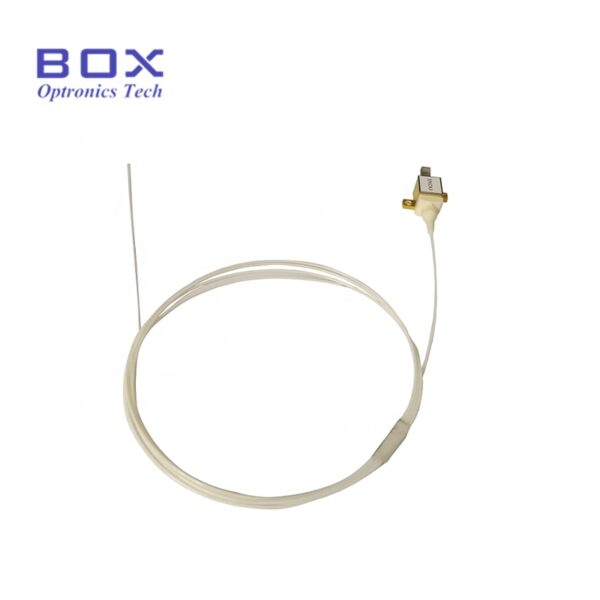

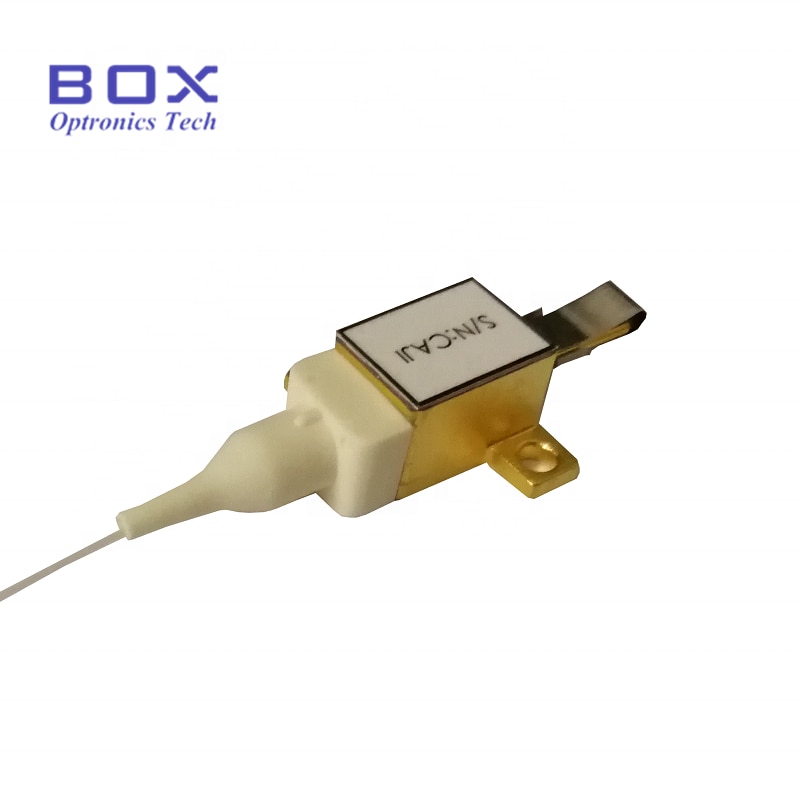

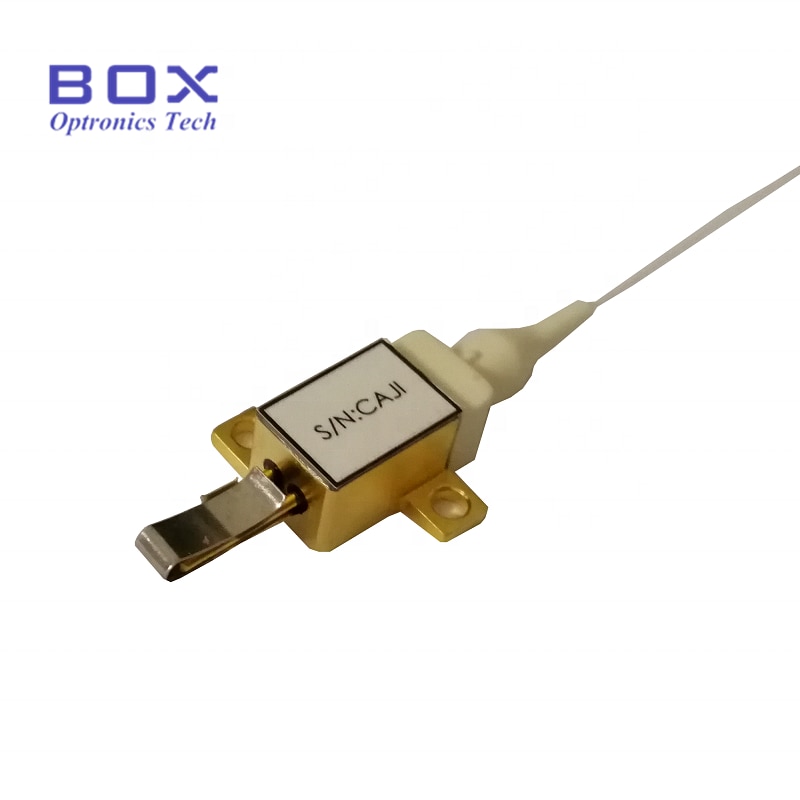

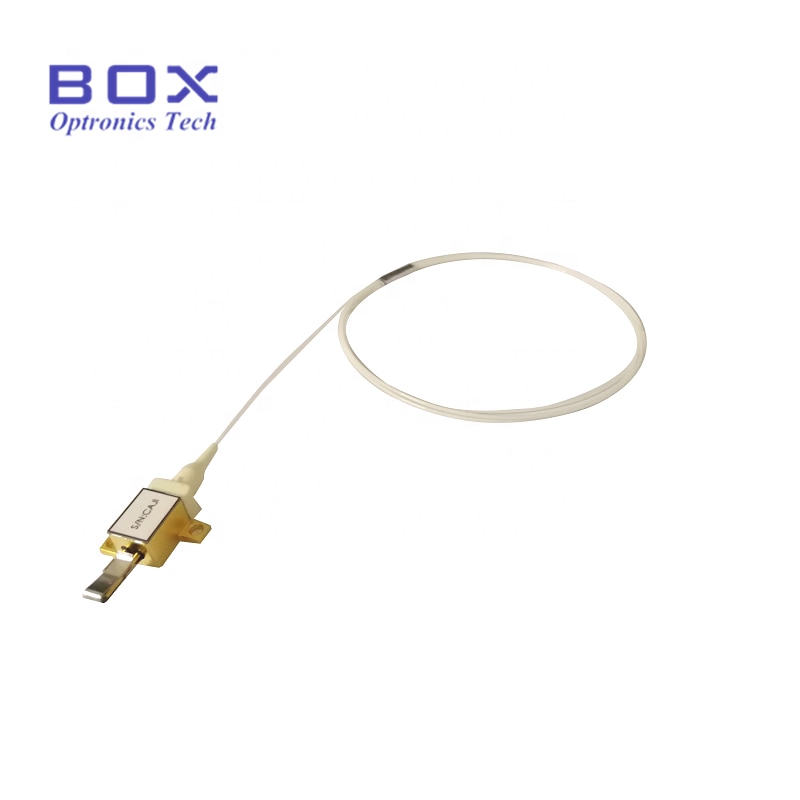

976nm 10W Fiber Coupled Laser Diode
Features of 976nm 10W Fiber Coupled Laser Diode:
High coupling efficiency;
High brightness;
Reliable Au/Sn bonding;
RoHS Compliance.
Application of 976nm 10W Fiber Coupled Laser Diode:
Fiber laser pumping;
Medical/Life and health sciences.
Optical Characteristics(T=25℃) of 976nm 10W Fiber Coupled Laser Diode:
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Operating output power |
Pout |
10.0 |
– |
– |
W |
|
Range of available wavelength |
λ |
965 |
975 |
985 |
nm |
|
Spectral width @ FWHM |
Δλ |
– |
3.5 |
7.0 |
nm |
|
Wavelength temperature coefficient |
Δλ/ΔT |
– |
0.3 |
– |
nm/℃ |
|
Fiber numerical aperture |
NA |
– |
0.22 |
– |
– |
|
Fiber length |
Lf |
– |
1.5 |
– |
m |
|
Operating temperature range |
TOP |
15 |
– |
55 |
℃ |
|
Storage temperature range |
TST |
-30 |
– |
70 |
℃ |
Package drawing&PIN-OUT Definition(Unit:mm) of 976nm 10W Fiber Coupled Laser Diode:
Ordering Information:
|
BLD |
-XXX |
X |
X |
-XX |
|
Laser type |
-Wavelength |
-Output power |
-Fiber type |
Connector type |
|
Diode Laser |
808: 808nm 915: 915nm 940: 960nm 976: 976nm |
03: 3W 08: 8W 10: 10W … |
22: 0.22NA(default) 15: 0.15NA 12: 0.12NA |
N0: Null(default) SMA: SMA905 FA: FC/APC Customized |
e.g.: BLD-F976-10-22N0 (Order information: 976nm diode laser with 105/125um multi-mode fiber and 10W output power and without connector).
Packaging
Original Carton Package.
As customers’ requirement.
Shipping
5-10 Working days after receive the payment.
Shipment: Air transportation ( DHL / UPS / TNT / Fedex / EMS/CHINA POST )
Shipping fee depends on the weight and size.
Shenzhen Box Optronics Technology Co., Ltd. is a high-tech enterprises, specialized engaged high power fiber cable, optical communication and optical active device integration technology research and development, production and sales. The company’s idea is quality first, speed first, service first.
Box optronics possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, radar communication, material processing, process control, online detection, investigation equipment, national defense, military and other fields.
Payment
For large orders, T/T ,
For small orders, Paypal are accepted.
Warranty:
All products have been tested before shipping out
All products have 1 years warranty. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
Refund & Replacement:
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
If the items you purchase from our store are not of perfected quality, that is they don’t work electronically to manufacturers specifications, simply return them to us for replacement or refund.
If the items are defective, please notify us within 3 days of delivery.
Any items must be returned in their original condition to qualify for a refund or replacement.
The buyer is responsible for all the shipping cost incurred
