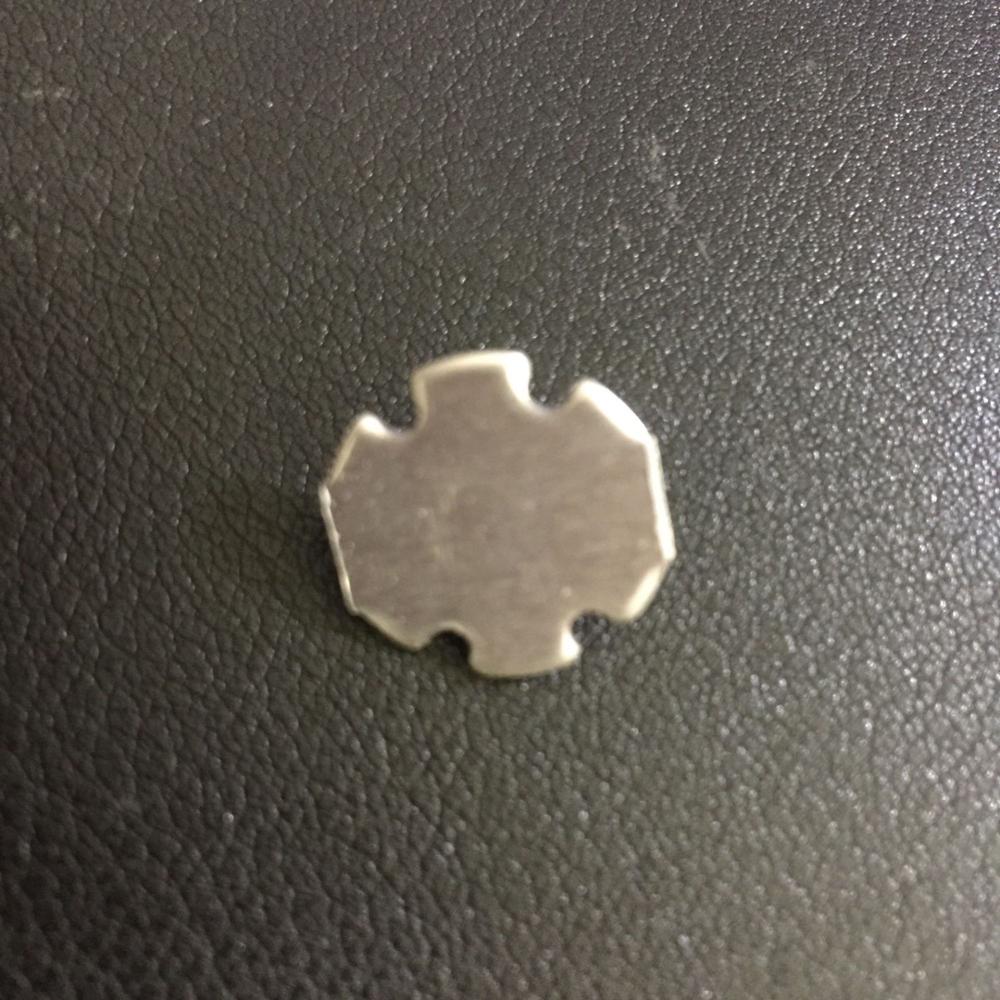

940nm infrared LED IR LED Emitting diode 1W 940nm IR array infrared insivible 40mil chip high power with aluminum base plate

$3.87

SKU: 32964674202 Category:

Description

  • Brand Name: MS-moto
  • Model Number: SD-AR40A1-120
  • Wavelength: 940nm
  • Condition: New
  • Package type: Surface mount
  • Max. Forward Voltage: 1.3-1.6V
  • Max. Reverse Voltage: 5V
  • Max. Forward Current: 1000mA
  • Max. Reverse Current: 300mA
  • Viewing Angle: 120 degree
  • Chip Size: 40mil
  • LED source: invisible infrared
  • Power: 1W

SAMPLE

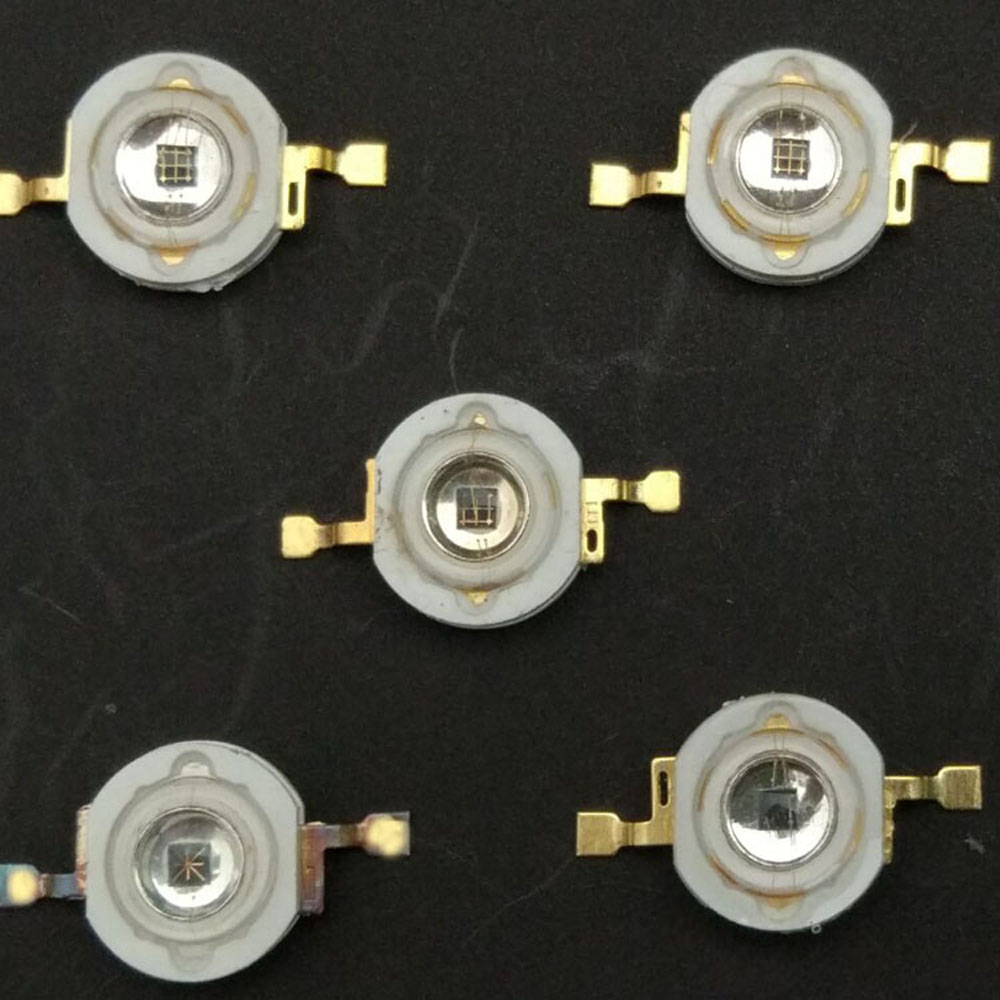

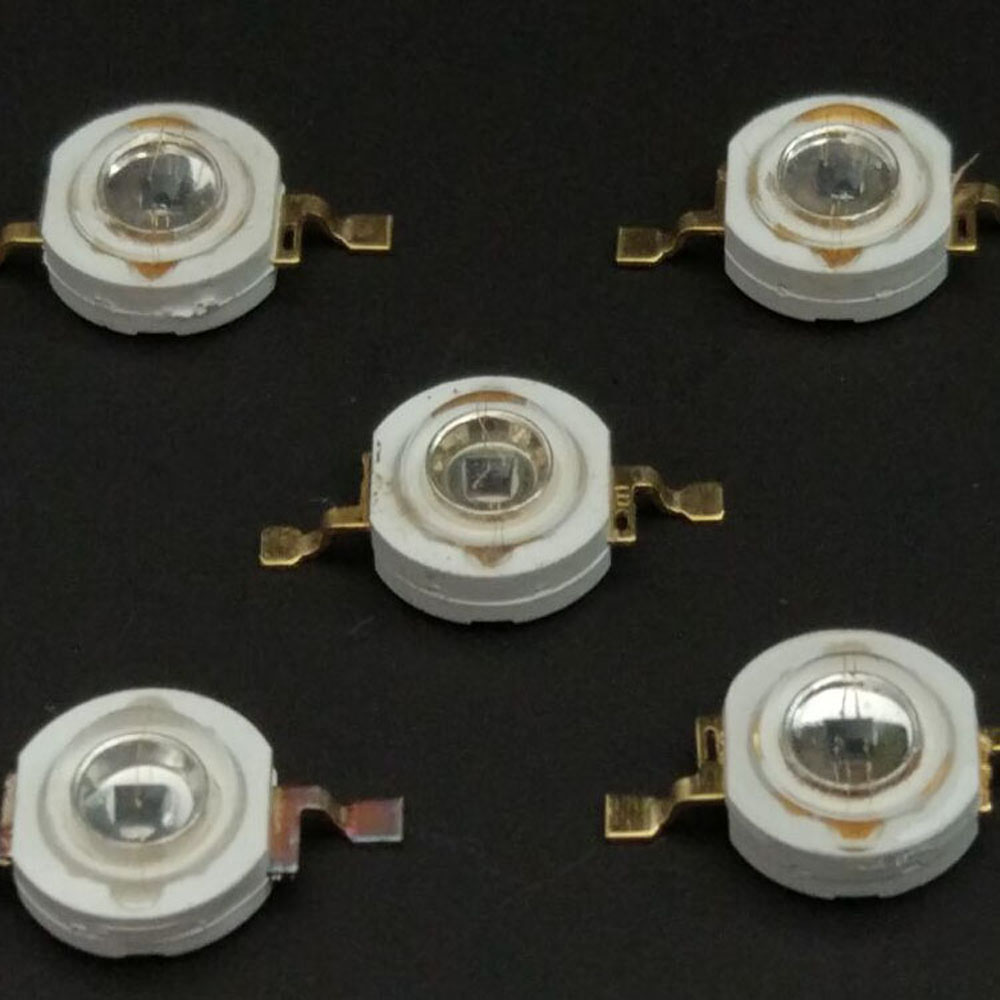

1W 120 degree 940nm infrared led  IR LED

Features

High radiant intensity

Peak wavelength:λp=940nm

High reliability



Package Dimension:

1W

Chip Material: GaAlAs      Lens Color: Water clear    Source Color: Infrared



Notes:

1. All dimensions are in millimeters.

2. Tolerance is ±0.25mm unless otherwise noted.

3. Protruded resin under flange is 1.0mm max.



Max. Reverse Current:
10μA
Max. Forward Voltage:
2V
Package Type:
Surface Mount
Max. Forward Current:
1000mA
Max. Reverse Voltage:
5V
Wavelength:
940nm
Working voltage:
1.4-1.6V
Operating Temperature:
-20°C to 60°C
Storage Temperature:
-30°C to 80°C
Lifespan:
50000h
Warranty:
3 years

Chip Quantity:1pcs.

Emitted Color: Infrared IR

 Viewing angle: 120 degrees.

 Second lens :optional 5/9/15/30/45/60/80/90/120 degrees

 Applied for : IR Camera, remote control



Sometimes bracket is different, it’s normal. If you mind it, don’t make an order.
