Description
- Brand Name: MS-moto
- Model Number: SD-DA10WC9
- Wavelength: 940nm
- Condition: New
- Package type: Surface mount
- Max. Forward Voltage: 1.6V
- Max. Reverse Voltage: 5V
- Max. Forward Current: 7000mA
- Max. Reverse Current: 3500mA
- Viewing Angle: 140 degree
- Chip Size: 40mil
- Voltage: 1A

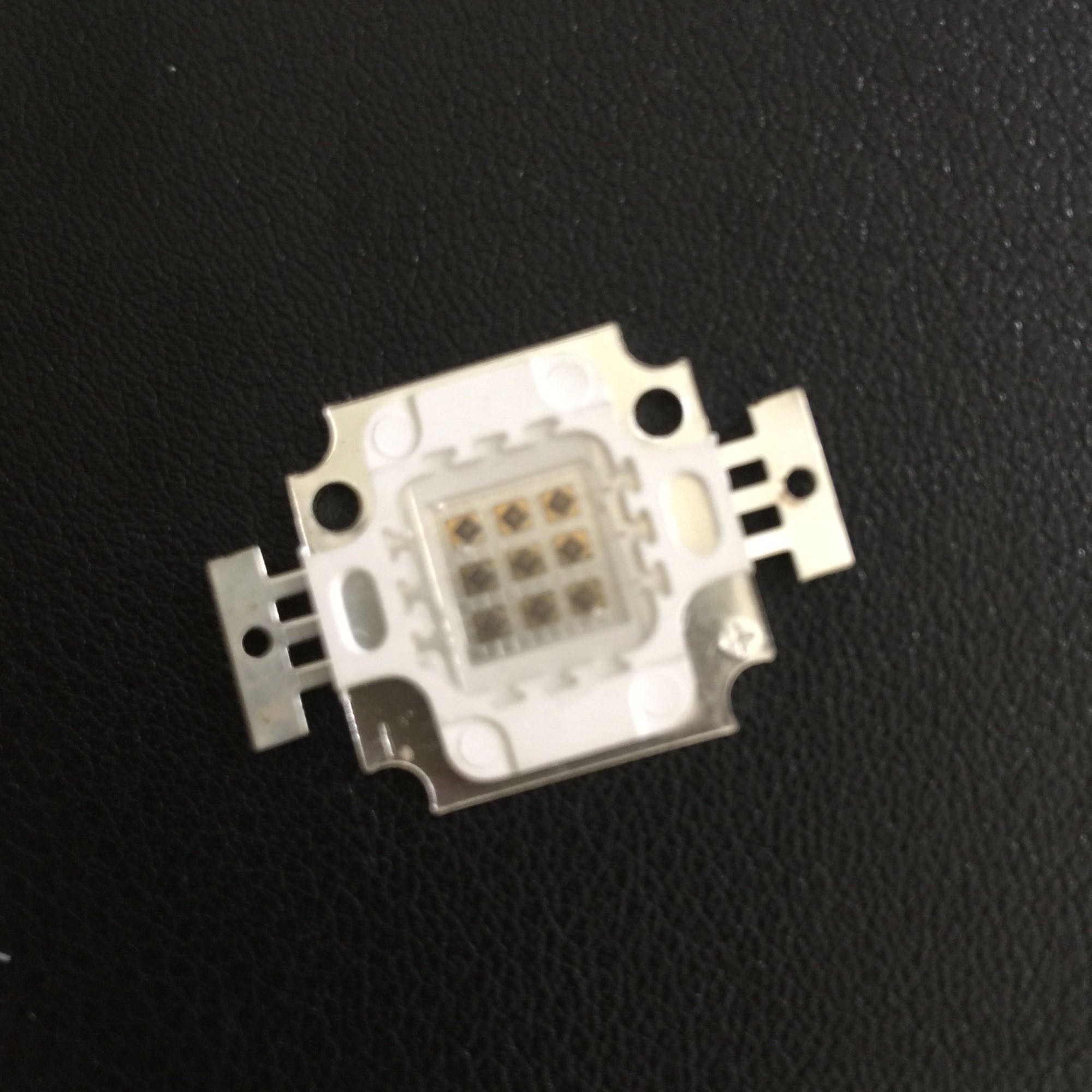

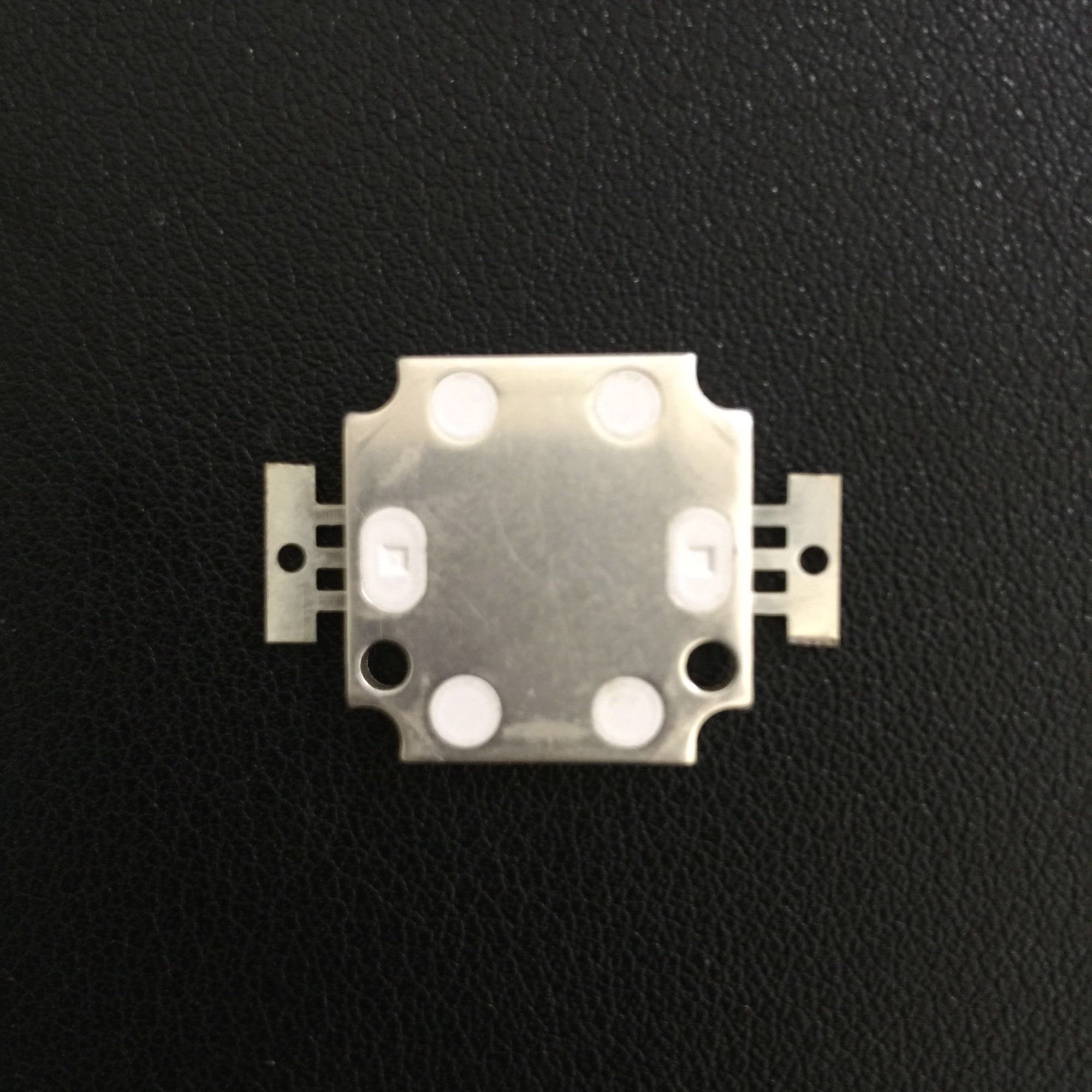

9 chips 10W 940nm COB High Power infrared
Features
High radiant intensity
Peak wavelength:λp=940nm
High reliability
Chip Material: GaAlAs Lens Color: Water clear Source Color: Infrared
-
Electrical / Optical Characteristics at TA=25℃ Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Φ 4000 4500 5000 mw IF =3500mA Viewing Angle 2θ1/2 140 deg IF =3500mA Domain Wavelength Tc K IF =3500mA Spectral Line Half-Width Δλ 940 nm IF =3500mA Forward Voltage VF 1.50 1.60 1.70 V IF =3500mA Reverse Current IR 20 μA VR = 5V Absolute Maximum Ratings at TA=25℃ Parameter Maximum Rating Power Dissipation 10W Peak Forward Current 7000mA (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current 3500MA Derating Linear From 30℃ 0.8mA/℃ Reverse Voltage 5V Operating Temperature Range -20℃ to + 80℃ Storage Temperature Range -30℃ to + 100℃ Lead Soldering Temperature 260℃ for 5 Seconds [1.6mm(.063") From Body] - Lifespan:
- 50000h
- Warranty:
- 3 years
Chip Quantity:9pcs.
Emitted Color: Infrared IR
Viewing angle: 140 degrees.
Applied for : IR Camera, remote control
