Description

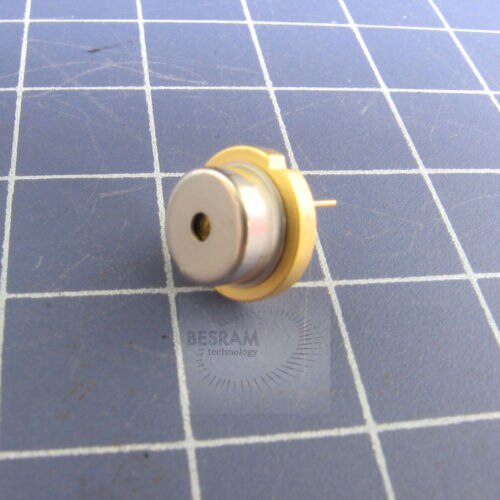

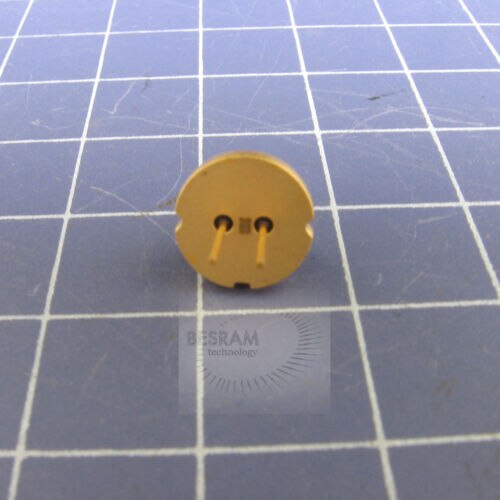

9.0mm TO-5 980nm 250mW IR Infrared Laser Diode LD
Note:
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
Notes of laser LDs:
1. Original as our description. 1) Brand new: no weld point 2) Removed from machines: with weld point and the pin is short 3) Ld of Mitsubishi is open cap. Please avoid dropping it. Otherwise, the chip maybe gets lost. 4) Batch number: different laser get different batch number. The ld you have received may get different batch number with the picture in the description. For example, KSS-121A, the picture of our listing was taken 4 years laser, the batch number you have received now must be different with the batch 4 years before. 2. Please google the schematic before you get it. if you cannot google the schematic, please contact me for it. we can no problem offer you the schematic, but we have suffered a case before that the buyer doubt the schematic we sent to. so that we strongly recommend you google it by yourself. Thank you for your kind understanding. 3. Duty cycle without heat sink: max 1 minute on, 5 seconds off. We do strongly recommend it is 5 seconds on, 1 second off. So that please adds a heat sink on it. That is why we use a housing to cover it as a module. 4. Avoid static, drop, humid and handheld directly. Please do not touch it by your hand directly. Please find the antistatic wrist strap and wear it before you use the ld. The strap is a bonus. If you do not receive the strap, please touch a steel for a while before you handle it. 5. Laser LD is expending light if you do not add a lens on it. 6. Different laser LD has different shape of the laser dot. For example: 405nm and 660nm lds are ellipse, 638nm, 780nm, 808nm, 980nm ld are rectangle. There is only one kind of green laser ld. the manufacturer of it is OSRAM. It is 520nm 50mw. It is very expensive. 7. Warranty: we do not offer warranty if it is incorrectly used.
Differences between laser LD and fiber coupled lasers. This kind of laser LD was popularly used in DVD readers. But now, it is widely used on fiber coupled lasers. This brings some problem: 1. some people may very professional in lasers such as fiber coupled laser, but they may not recognized the difference between fiber coupled lasers and pump lasers. Fiber coupled lasers may not need heat sink and they can be have long duty cycle. Heat of fiber lasers will be released from the fiber, but pump laser does not have this kind of heat sink. 2. Fiber laser can be touch by hands directly. The static of hands does not get too much influence for it. But pump laser is very fragile; the static of hands must burn it out.
Differences between laser ld and laser module 1. Laser LD is the key issue of the laser module. 2. Laser module = laser ld + driver + housing + lens, housing here is a heat sink of the laser and it protects the laser ld be influenced by the static and humid. Driver here reduced the input current and avoid burnt out if there is protective circuit on it.
3. Normally, green laser = 808nm laser LD + KTP crystal. DPSS green laser = 1064nm ld + Nd:YVO4 crystal. |
Buying Tips
Please read item description, datasheet or the manual before using the products. If you are not sure, please contact us via message or email with us. We will help you as soon as possible.
In order to guarantee the successful delivery, please make sure your full name, address and postal code are detailed and correct and your phone number is available for delivery contacting.
We only ship to confirmed address. Please make sure your shipping address is updated. If you want to change to another address, please leave us a message immediately before it is mailed out.
Shipping and Tracking
Shipping Methods and APPROX. Delivery Date
The package is shipped from China Mainland
Economy Shipping (Often Free)
Air Mail Small Parcel
Delivery Date: approx. 10-30 working days to different countries
Standard Shipping
ePacket provided by EMS
Delivery Date: approx. 7-20 working days to different countries
Expedited Shipping UPS, Fedex, DHL or EMS
We will decide the carrier because we have to control the shipping cost for we only charge about 30usd for international express shipping, which is often not enough. If you have special requirement, please contact us to designate your preferred carrier via message)
Delivery Date: approx. 3-10 working days to different countries.
Tracking Method
We provide a tracking number for all orders. This number will be provided by message or email as soon as the package is sent out.
For Air Mail or ePacket you can track the package via your national postal office website, or track your parcel。
For Expedited Shipping, please do the tracking via Carrier website。
About Tax and Customs Affair
Buyer take care of the tax or custom fee. We have not included any tax in the price or shipping fee.
We will assist you in any possible customs affairs according to your requirements.
Contact and Feedback
We will response to any of your inquiries within 24 hours. If you do not get a response from us, please check your junk or spam mailbox.
If you are satisfied with the product you received, please leave us positive feedback. For we really need your support, and your valuable detailed feedback will help and guide a lot of others to buy what they need.
If you are unsatisfied with our item or service, then please follow the good eBay practice to contact us before leaving any feedback. We are committed to resolve all issues in a friendly and satisfactory manner.
Return Policy
All products have been checked and packaged in good condition before dispatch. In case the item is defective, please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed. Or we can refund for you and charge 25% service and handling fee based on the total price of the product (not including shipping fee). Buyer pays both ways shipping if any product is returned.
In 3 month (from the day of shipping out), if any problem happens caused by the item itself, please don’t dismantle it. You can return it in the original package to us. We will repair or exchange new one for you and you just pay for the both way shipment.
