Description

880nm SLED Light Source

Application:
FBG Optical Sensor System
Optical Communication
Optical Passive device testing
Spectrum analyses

Features:
High Precision ATC and APC Control Circuit
High stability and reliability

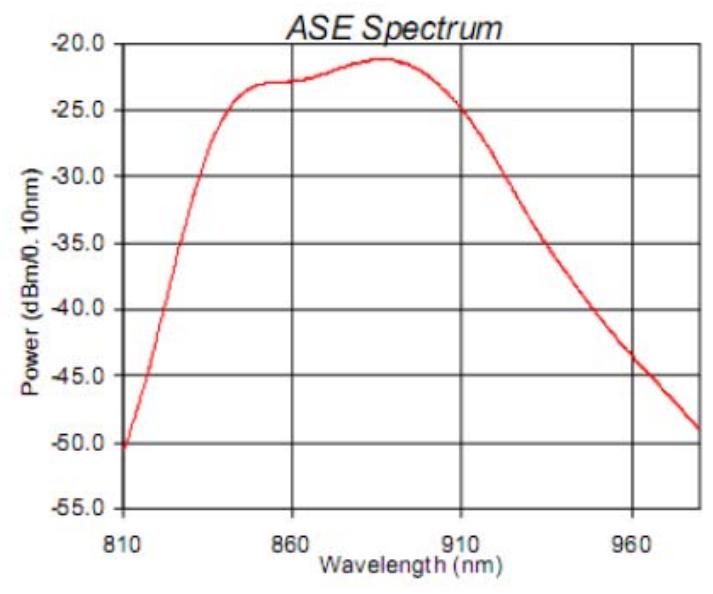

Broadband spectrum

Central wavelength (nm) : 880±20
-3dB spectrum width (nm) : ≥40
Output power (mw) : ≥2.0mW
Short term stability : ≤±0.005dB/15 min
Long term stability : ≤±0.03dB/8 hour
Operating mode : CW, internal modulate, external modulate
Fiber pigtail : HI 1060
Output connector : FC/PC, FC/UPC or FC/APC
Operating temperature : 0℃ ~ 40℃
Storage temperature : -20℃ ~ 70℃
Power supply : AC110/220V±10%, 50Hz, 20W
Dimensions (L×W×H) : 90×70×18 or 322×220×88
