Description
Characteristics
- 7060 package, high reliability, life expectancy up to 50000 hours;
- 7060 flat package, small size and easy to integrate;
- Electro-optic conversion efficiency is up to 40%, low heat
- VCSEL array chip, low optical power density and safer;
- Wide operating temperature range for industrial and military applications;
- Even light intensity distribution;
- Environmentally friendly and low carbon.
application
- Car night vision lighting;
- Monitor night vision lighting;
- Laser ranging / radar;
- Infrared touch screen;
- gesture recognition;
- Smartphone/smart appliance;
- drones;
- machine vision;
- 3D scanning;
- Space high-speed communication;
- Military applications.
Description

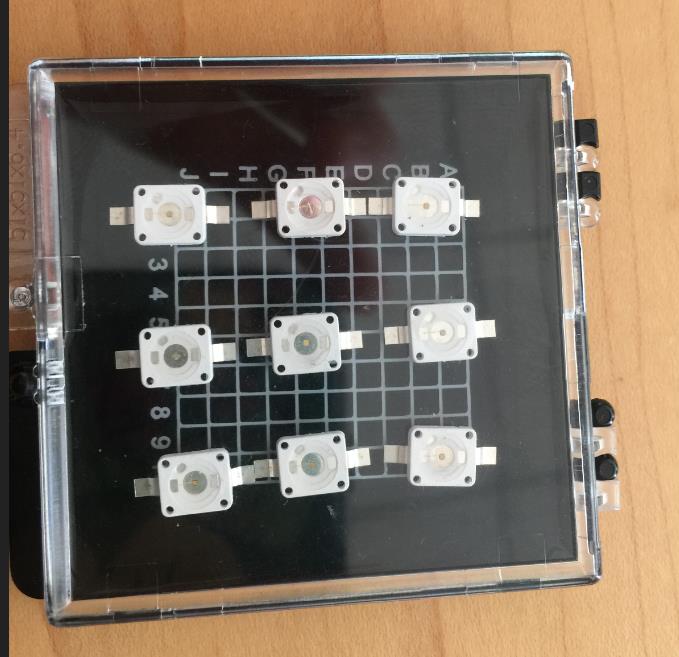

The laser diode is packaged in a 7070 pedestal using a VCSEL chip. The surface is made of imported silicone flat-panel package, which does not change the illumination angle and light intensity distribution of the chip. Compared with the traditional package, the height is reduced, making the package more compact and adapting to a wider range.
The laser diode has an electro-optic conversion efficiency of up to 40%, so the heat is low, and the 7060 package base is used for high reliability. Because of the array illumination, the optical power density is relatively low and the safety is higher under the same power; it is suitable for the automobile. Night vision, night vision, laser ranging and radar, and intelligent terminal control, machine vision and robot control in industrial automation; because of its GHz modulation frequency and high power, it can be used in space optical communication.
technical parameter
| parameters | parameter value | unit | Remarks |
| Product Model | LD0850-B700-0120CP-7060 | – | – |
| Laser mode | Multimode | – | – |
| laser wavelength | 850±10 | nano | – |
| laser power | 650±50 | mwa | Outlet port power |
| spot shape | circle | – | – |
| Divergence angle | 20 | degree | – |
| Working voltage | 2.28 | V | – |
| Working current | 0.8 | 安 | – |
| How it works | continuous | – | – |
| Lifetime | 50000 | hours | – |
| Working temperature | -40 – +80 | degree | – |
| Storage temperature | -40 – +85 | degree | – |
| Power consumption of the whole machine | <1.8 | 瓦 | – |

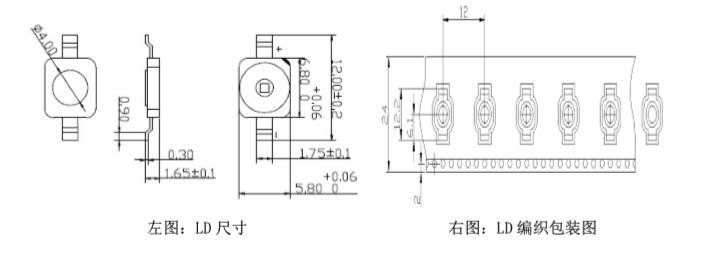

| Appearance size | L6.8×W5.8×H1.65 | mm | – |
| Material | EMC | – | – |
| Appearance color | Silver white | – | – |
| Laser protection level | Class 1 | – | – |
| Surface Package | potting glue | – | – |
