Description
Characteristic
- The AlN ceramic package has high reliability and can last up to 50000 hours.
- * 3535 planar package, small volume, easy to integrate;
- The electro-optical conversion efficiency is as high as 40% and the heat is low.
- The VCSEL array chip has low optical power density and is more secure.
- It has wide working temperature range and is suitable for industrial and military applications.
- The distribution of light intensity is uniform.
- Environmental protection and low carbon.
application
- Car night vision lighting;
- Monitoring night vision lighting;
- Laser Ranging / radar;
- Infrared touch screen;
- Posture recognition;
- Smart phones / smart appliances;
- UAV;
- Machine vision;
- 3D scan;
- High speed communication in space.
- Military applications.
Explain

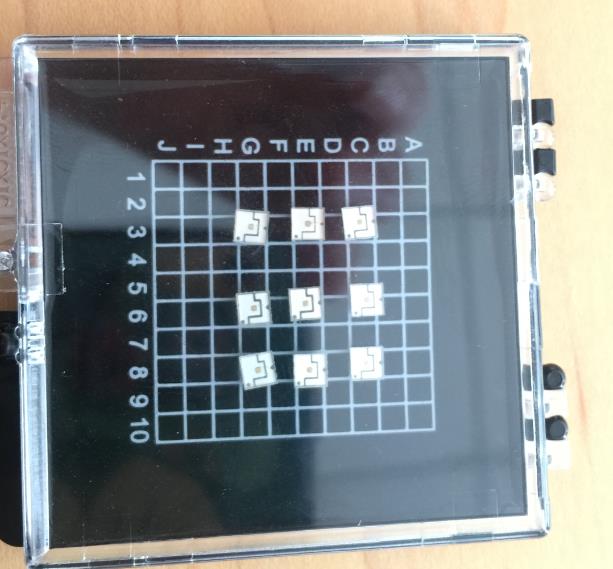

The laser diode is packaged by VCSEL chip and aluminum nitride ceramic substrate. The surface of the chip is encapsulated by imported silicone gel, which does not change the luminous angle and light intensity distribution of the chip. Compared with traditional packaging, it reduces the height, makes the package more compact and has a wider range of applications.
The electro-optic conversion efficiency of the laser diode is as high as 40%, so the heating is low, and the AlN encapsulation base is adopted, so the reliability is high; because of the array luminescence, the optical power density is relatively low and the security is higher under the same power condition; it is suitable for automobile night vision, monitoring night vision, laser ranging and radar and intelligent terminal control. Machine vision and robot control in industrial automation; because it has GHz modulation frequency and high power, it can be used in space optical communication.
technical parameter
| parameters | parameter value | unit | Remarks |
| Product Model | LD0850-B700-0120CP-3535 | – | – |
| Laser mode | Multimode | – | – |
| laser wavelength | 850±10 | nano | – |
| laser power | >=600 | mwa | Outlet port power |
| spot shape | circle | – | – |
| Divergence angle | 20 | degree | – |
| Working voltage | 2.28 | V | – |
| Working current | 0.8 | 安 | – |
| How it works | continuous | – | – |
| Lifetime | 50000 | hours | – |
| Working temperature | -40 – +80 | degree | – |
| Storage temperature | -40 – +85 | degree | – |
| Power consumption of the whole machine | <1.8 | 瓦 | – |
| Appearance size | L3.6×W3.6×H1.4 | mm | – |
| Material | AlN | – | – |
| Appearance color | Silver white | – | – |
| Laser protection level | Class 1 | – | – |
| Surface Package | potting glue | – | – |
