Description
- Certification: NONE
- Origin: CN(Origin)
- Style: DMX Stage Light
- Power: 0.5W
- Model Number: N/A
- Voltage: 2V
- Occasion: Home Entertainment

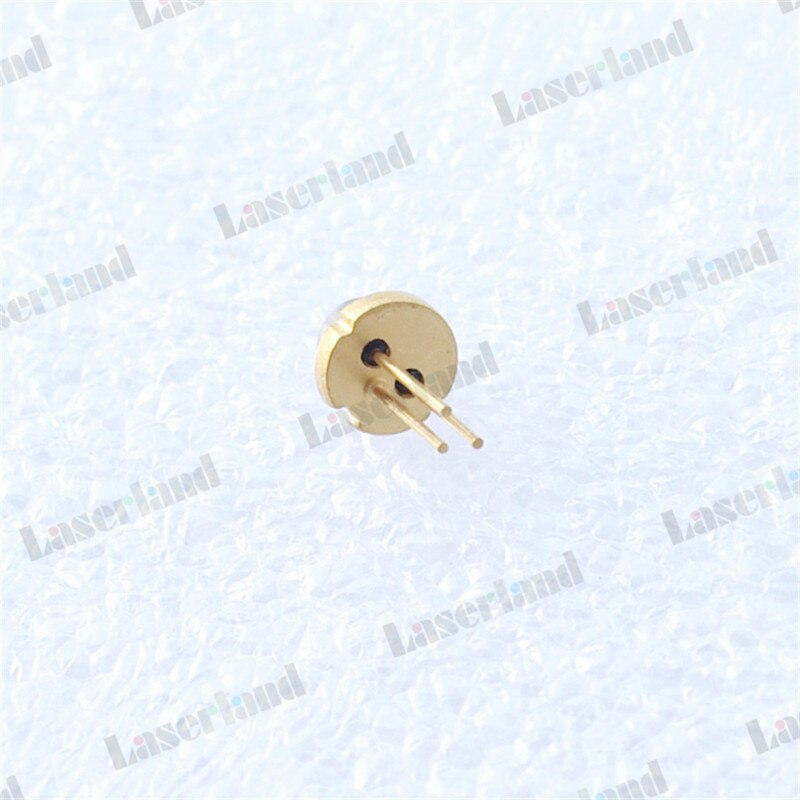

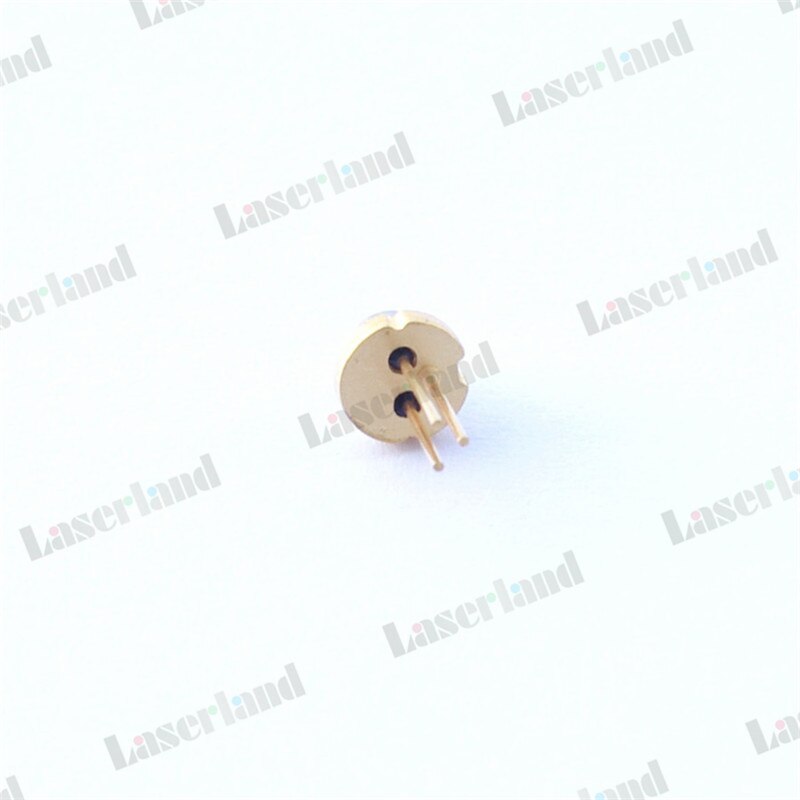

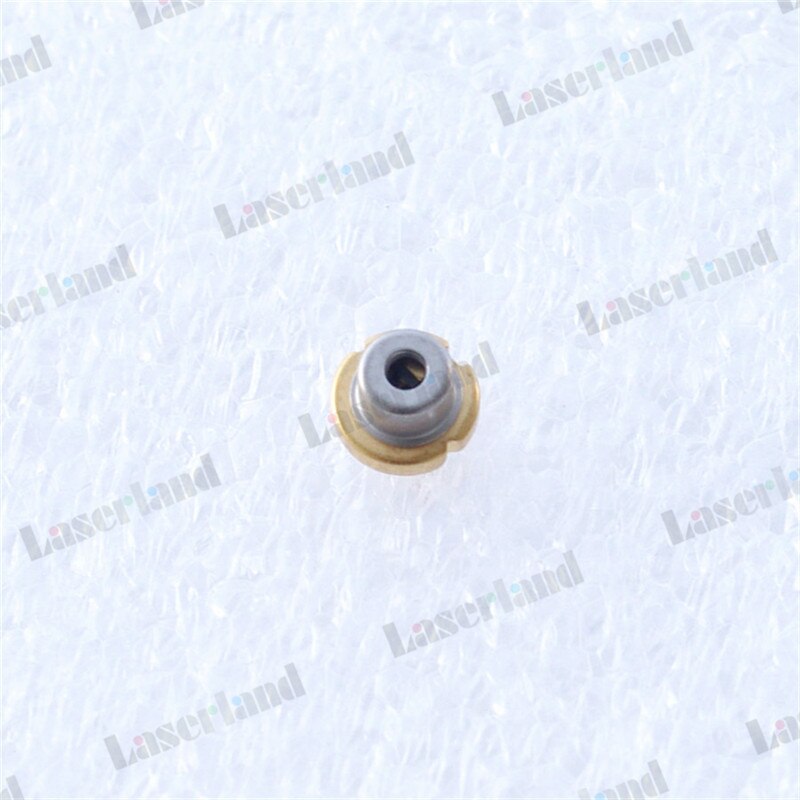

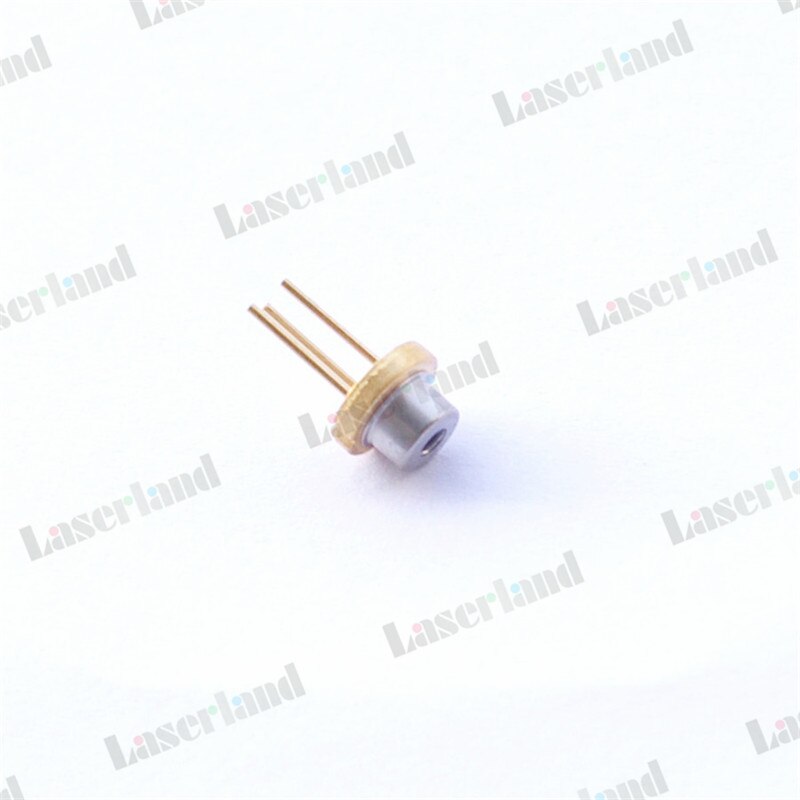

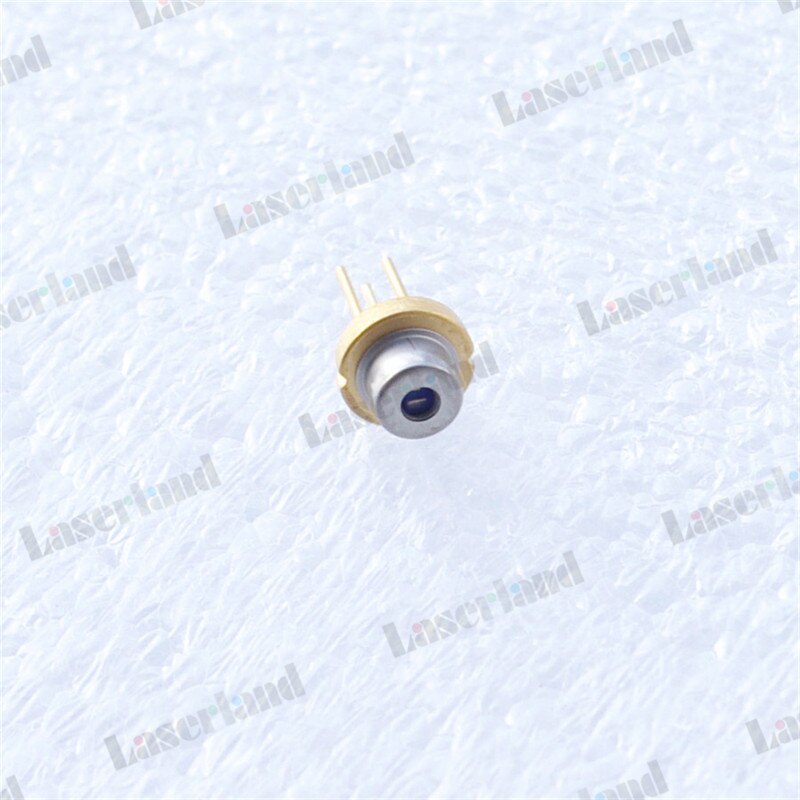

850nm 500mW Laser Diode JDSU With PD IR Infrared Laser Module TO18 5.6mm
Description:
Brand: JDSU
Country of Origin: United States
Wavelength: 850nm
Output power: 500mW
Features: multi-mode, high efficiency, stable performance, long working life
Operating Current: 850mA
Operating voltage: 2.1V
Package: TO-18
Operating temperature: +10 to +50 degrees Celsius
Storage temperature: -20 to +80 degrees Celsius
Working life: more than 10,000 hours
Purpose: Medical, sensing
This component sensitive to static electricity, anti-static measures are not good, do not directly touch the laser tube body; the laser tube driver circuit must be qualified to work, different power voltage the same, but different operating current, the circuit the drive current of the tube needs to be controlled in a safe range, otherwise it will affect life expectancy.
