Description

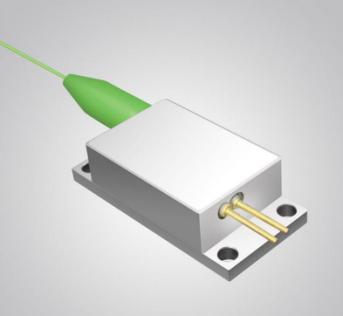

830nm 2W Fiber Coupled Diode Laser for amsky ctp machine laser diode ctp Laser Diode

Our High Power Diode Laser Modules are manufactured by adopting specialized fiber-coupling techniques, resulting in volume products with a high efficiency, stability and superior beam quality. The products are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime.

Our research staffs are constantly improving and innovating the processing technology in the producing process, based on the professional knowledge and experience accumulated in long-terms. We are also continuously developing new products to meet customers’ specific needs.

Avoid eye exposure to direct or scattered radiation.
ESD precautions must be taken.

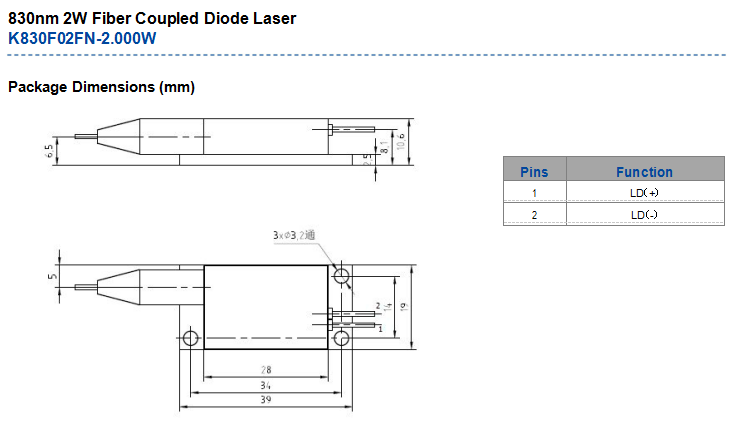

Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
Use constant current power supply. Avoid surge current.
Laser diode must be used according to the specifications.
Laser diode must work with good cooling.
Operation temperature is 15℃~ 35℃.
Storage: -20℃~ +70℃, all pins short-circuit.
