Description
830nm 1W Fiber Coupled Diode Laser
Features：
830nm wavelength
1W output power
50µm fiber core diameter
0.14N.A.
Applications：
Flexo Printing
Parameter:
CW Output Power: 1W
Threshold current: 0.25mA
Operating current: 1.5mA
Operating voltage: 2.0V
Reverse Voltage: 2.5V
Slope Efficiency: 0.9W/A
Electrical-to-Optical Efficiency: 40%
Center wavelength: 798nm~818nm
Spectral width(FWHM): 6nm
Wavelength Shift with Temperature: 0.3nm/℃
Fiber Data:
Buffer diameter: 250μm
Cladding diameter: 125μm
Core diameter: 50μm
Numeric aperture: 0.14
Fiber length：0.4~0.6m
Others:
ESD: 500V
Storage Temperature（Non-operating）: -20~70
Lead Soldering Temp: 260℃
Lead Soldering Time: 10sec
Operating Case Temperature: 15~35℃
Relative Humidity: 15~75%

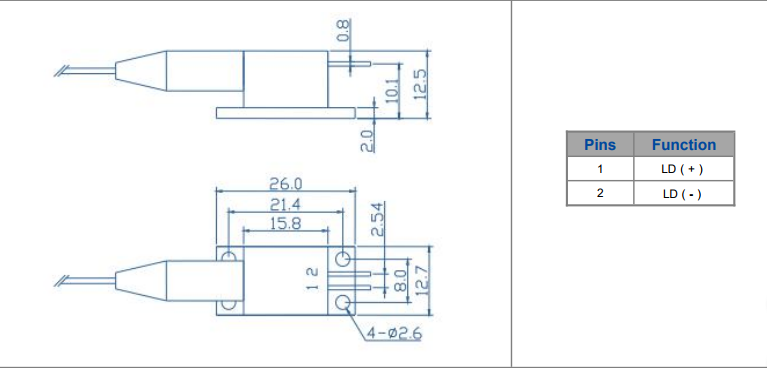

Please kindly check the datasheet:
